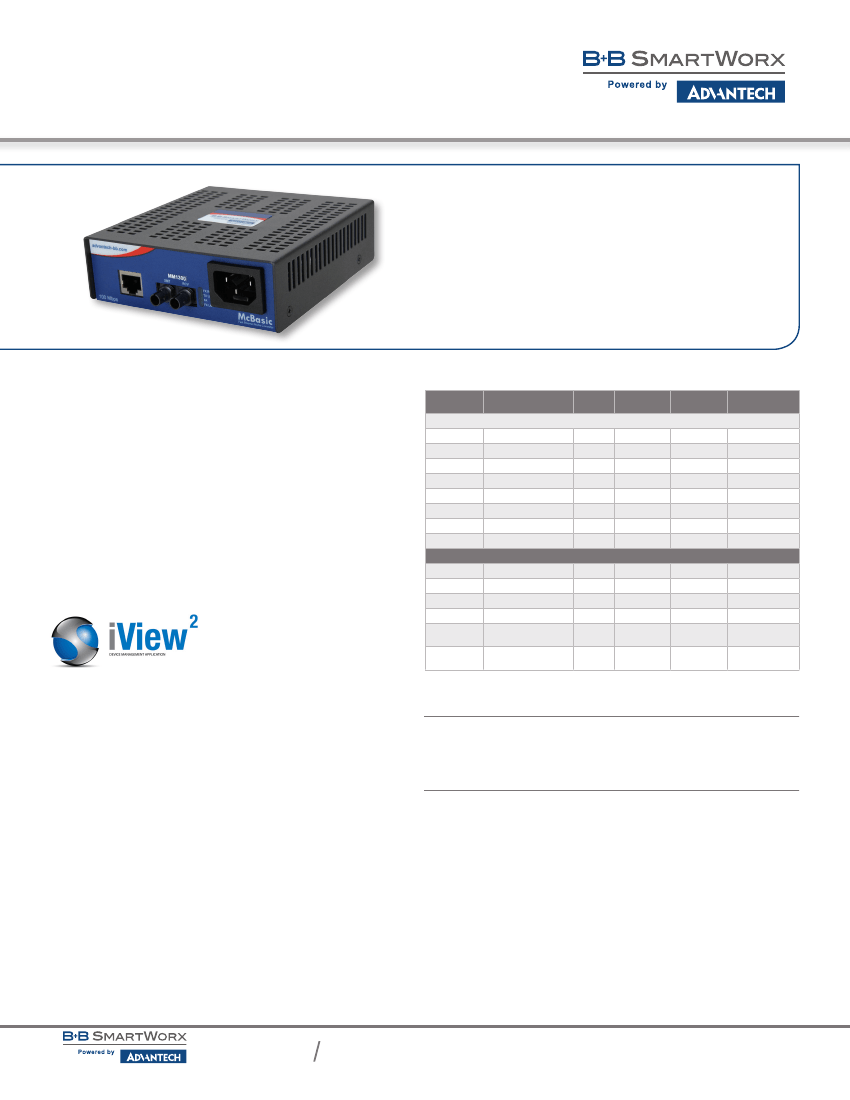

100 Mbps Compact
Media Converter
McBasic TX/FX series
www.advantech-bb.com
PRODUCT FEATURES
•
•
•
•
•
Rugged, stand-alone design with internal power supply
Available for multi-mode or single-mode fiber
Diagnostic features including Link Loss and FiberAlert
Converts 100 Mbps twisted pair to 100 Mbps fiber
Unmanaged Ethernet media converter
The McBasic is an unmanaged Fast Ethernet media converter. Its sturdy
design includes a highly reliable internal power supply and plenty of ventilation
to support long-time performance in the field. It is set to Auto Negotiation by
default, but can also be set to a Force Mode for legacy devices.
The McBasic includes troubleshooting features such as LinkLoss and
FiberAlert, which can be enabled by DIP switches. These diagnostic features
allow the network administrator to quickly identify network faults.
The McBasic includes AutoCross on the twisted-pair port and the fiber port is
available in single-mode, multi-mode and single-strand fiber types.
A unique pair also provides single-strand fiber for multi-mode applications.
ORDERING INFORMATION
MODEL
NUMBER
FIBER
McBasic TX/FX
855-10929
MM850-ST
855-10930
MM850-SC
855-10927
MM1300-ST
855-10928
MM1300-SC
855-10931
SM1310/PLUS-ST
855-10932
SM1310/PLUS-SC
855-10933
SM1310/LONG-ST
855-10934
SM1310/LONG-SC
SINGLE-STRAND FIBER *
855-10949
SSFX-MM1310-SC
855-10950
SSFX-MM1550-SC
855-10951
SSFX-SM1310-SC
855-10952
SSFX-SM1550-SC
855-10953
SSFX-SM1310/
PLUS-SC
855-10954
SSFX-SM1550/
PLUS-SC
FIBER
PORTS RANGE
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2 km
2 km
5 km
5 km
40 km
40 km
80 km
80 km
2 km
2 km
20 km
20 km
40 km
40 km
ETHERNET ETHERNET
PORTS
CONNECTOR
1
1
1
1
1
1
1
1
1
1
1
1
1
1
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
iView: Webserver Version
Free Download
* These products have single-strand fiber technology. Deploy in pairs or connect another
compatible B+B SmartWorx single-strand fiber product.
ACCESSORIES
895-39226
- Rackmount Bracket
895-39949
- Rackmount Shelf
All product specifications are subject to change without notice.
McBasic-TX-FX_4517ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
100 Mbps Compact
Media Converter
McBasic TX/FX series
SPECIFICATIONS
TECHNICAL
offers AutoCross on the copper port
Internal AC power
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Includes diagnostic LEDs
IEEE 802.3u 100Base-TX twisted-pair and 100Base-FX or -SX fiber
Features LinkLoss and FiberAlert
Features Auto Negotiation
CONNECTORS
RJ45 and ST or SC
Supports half- and full-duplex operation
MTU: Supports jumbo frames up to 10000 bytes
MECHANICAL
Dimensions
(4.2H x 12.17W x 11.64D cm (1.64H x 4.75W x 4.95D in)
Shipping Weight
0.58 kg (1.3 lb)
POWER RATING
100-240VAC, 50/60Hz, 1.0A
ENVIRONMENTAL
Operating Temperature
0 to +50 °C (+32 to +122 °F)
Storage Temperature
-20 to +70 °C (0 to +160 °F)
Operating Humidity
5 to 95% (non-condensing)
REGULATORY APPROVALS
FCC Class A
UL/cUL, CSA, CE
MEANTIME BEFORE FAILURE (MTBF)
MTBF
377009 hours

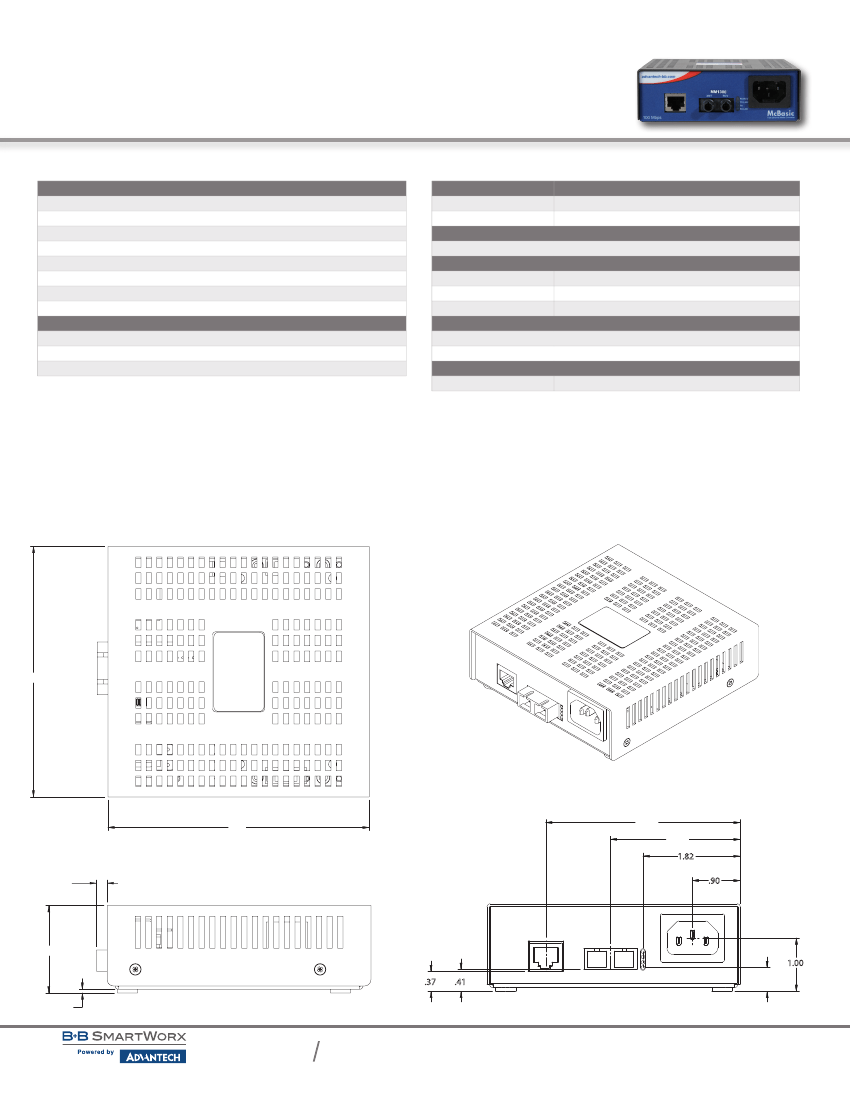

MECHANICAL DIAGRAM
units = inches
4.75
4.95
3.648
2.436
1.82
.20
.90
1.64
1.00
.37
.070
.41
.45
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
