PS91-102V-P2VC: DescriptionPRESSURE SWITCHES; CategoryThe sensor; File Size124KB，3 Pages; ManufacturerNidec Copal Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

PS91-102V-P2VC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PS91-102V-P2VC	-	-	View	Buy Now

PS91-102V-P2VC Overview

PRESSURE SWITCHES

PS91-102V-P2VC Parametric

Parameter Name	Attribute value
pressure type	pressure gauge
work pressure	-1.45 ~ 14.50 PSI（-10 ~ 100 kPa）
Output type	PNP - open collector
output	-
Accuracy	±3%
Voltage - Power	12 V ~ 24 V
Port size	-
Port style	Threaded
characteristic	Temperature compensation
Terminal type	Cable
maximum pressure	29.01 PSI（200 kPa）
Operating temperature	-20°C ~ 80°C
Package/casing	Cylindrical
Supplier device packaging	-

Preview

Download Datasheet

View All

PRESSURE SWITCHES

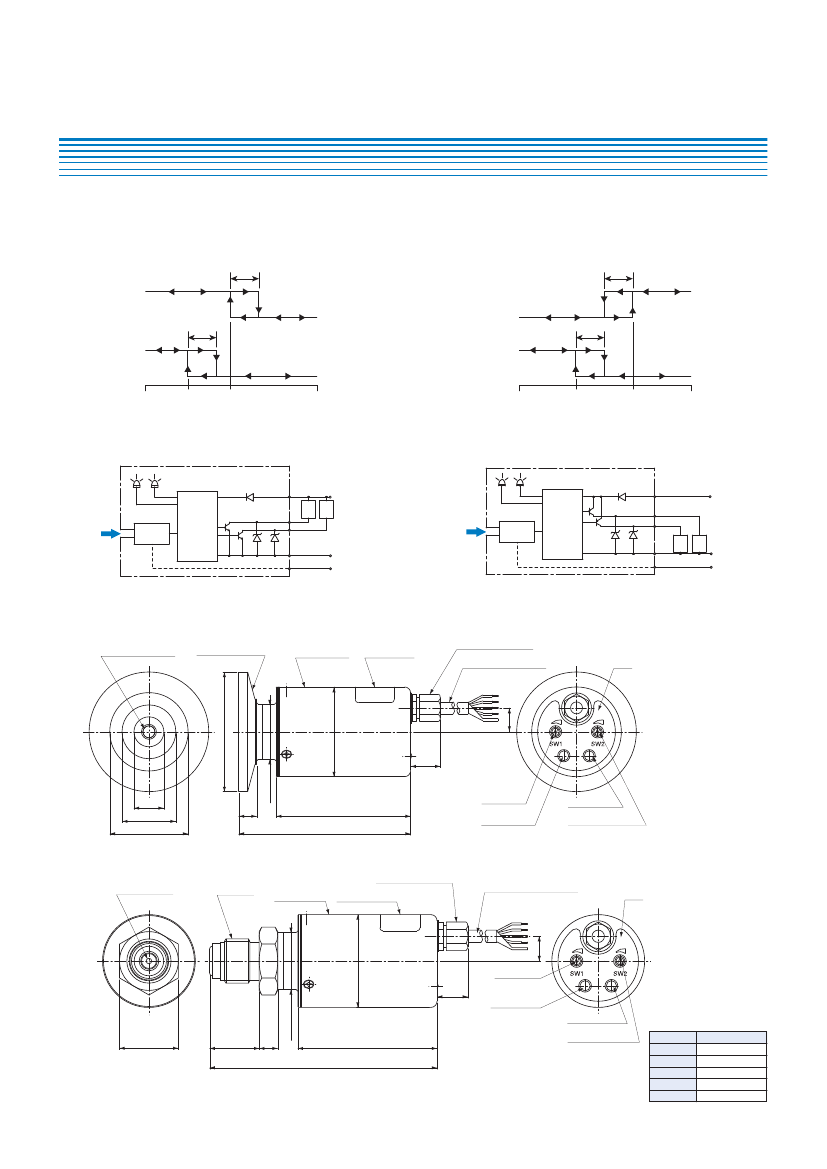

PS91

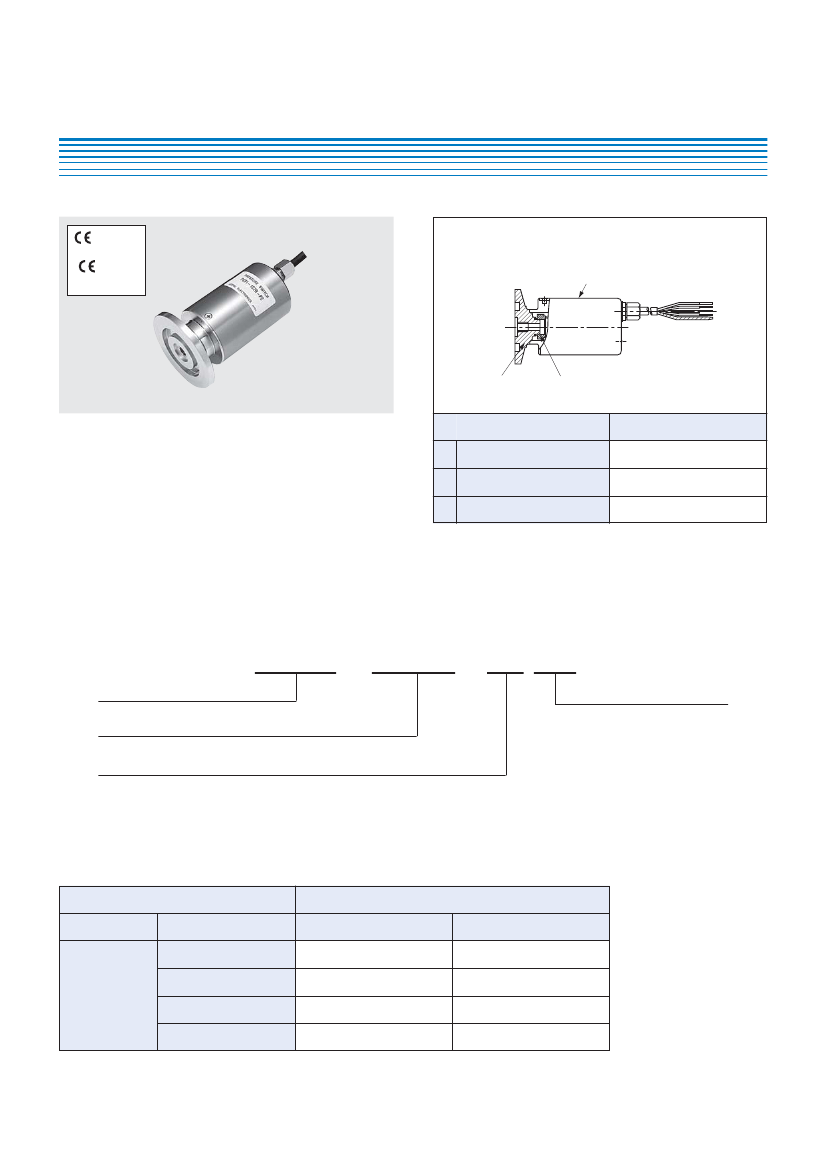

INTERNAL STRUCTURE (KF25 NW25

〕

〔

)

2

マーキング

EMC指令適合

marking

Compatible with

EMC directive

1

3

Part name

Material

SUS316L

Aluminum

SUS316L

■

FEATURES

Can be used in High vacuum

Selection of Quick-release coupling (ISO standard) and

Gasket joint

Switch setting adjustable by 2 VRs on the back

1

2

3

Fitting

Housing

Sensor module

■

MODEL NUMBER DESIGNATION

P S 9 1 - 1 0 2 V - N 2 K 2

Series name

Rated pressure range

102V：−100 ~ 10 kPa

Fitting

K2 : Flange joint KF25 (NW25)

VC : Gasket joint (9/16-18UNF)

Pressure reference

N1 : NPN Upper and upper limit mode

）

（

N2 : NPN Upper and lower limit mode

）

（

P1 : PNP Upper and upper limit mode

）

（

P2 : PNP Upper and lower limit mode

）

（

■

LIST OF MODEL NUMBERS

Gauge

Rated pressure range

Switch output interface

NPN (Upper and upper limit mode)

NPN (Upper and lower limit mode)

K2 : Flange joint KF25 (NW25)

PS91-102V-N1K2

PS91-102V-N2K2

PS91-102V-P1K2

PS91-102V-P2K2

VC : Gasket joint (9/16-18UNF)

PS91-102V-N1VC

PS91-102V-N2VC

PS91-102V-P1VC

PS91-102V-P2VC

102V

PNP (Upper and upper limit mode)

PNP (Upper and lower limit mode)

PS91-102V-P2VC Related Products

	PS91-102V-P2VC	PS91-102V-P1K2	PS91-102V-P1VC	PS91-102V-P2K2	PS91-102V-N1K2	PS91-102V-N1VC	PS91-102V-N2K2	PS91-102V-N2VC
Description	PRESSURE SWITCHES	PRESSURE SWITCHES	PRESSURE SWITCHES	PRESSURE SWITCHES	PRESSURE SWITCHES	PRESSURE SWITCHES	PRESSURE SWITCHES	PRESSURE SWITCHES
pressure type	pressure gauge	pressure gauge	pressure gauge	pressure gauge	pressure gauge	pressure gauge	pressure gauge	pressure gauge
work pressure	-1.45 ~ 14.50 PSI（-10 ~ 100 kPa）	-1.45 ~ 14.50 PSI（-10 ~ 100 kPa）	-1.45 ~ 14.50 PSI（-10 ~ 100 kPa）	-1.45 ~ 14.50 PSI（-10 ~ 100 kPa）	-1.45 ~ 14.50 PSI（-10 ~ 100 kPa）	-1.45 ~ 14.50 PSI（-10 ~ 100 kPa）	-1.45 ~ 14.50 PSI（-10 ~ 100 kPa）	-1.45 ~ 14.50 PSI（-10 ~ 100 kPa）
Output type	PNP - open collector	PNP - open collector	PNP - open collector	PNP - open collector	NPN - open collector	NPN - open collector	NPN - open collector	NPN - open collector
Accuracy	±3%	±3%	±3%	±3%	±3%	±3%	±3%	±3%
Voltage - Power	12 V ~ 24 V	12 V ~ 24 V	12 V ~ 24 V	12 V ~ 24 V	12 V ~ 24 V	12 V ~ 24 V	12 V ~ 24 V	12 V ~ 24 V
Port style	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded
characteristic	Temperature compensation	Temperature compensation	Temperature compensation	Temperature compensation	Temperature compensation	Temperature compensation	Temperature compensation	Temperature compensation
Terminal type	Cable	Cable	Cable	Cable	Cable	Cable	Cable	Cable
maximum pressure	29.01 PSI（200 kPa）	29.01 PSI（200 kPa）	29.01 PSI（200 kPa）	29.01 PSI（200 kPa）	29.01 PSI（200 kPa）	29.01 PSI（200 kPa）	29.01 PSI（200 kPa）	29.01 PSI（200 kPa）
Operating temperature	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C	-20°C ~ 80°C
Package/casing	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical
