Switching 10/100 Mbps
Media Converter Module
McLIM TP-TX/FX series
www.advantech-bb.com

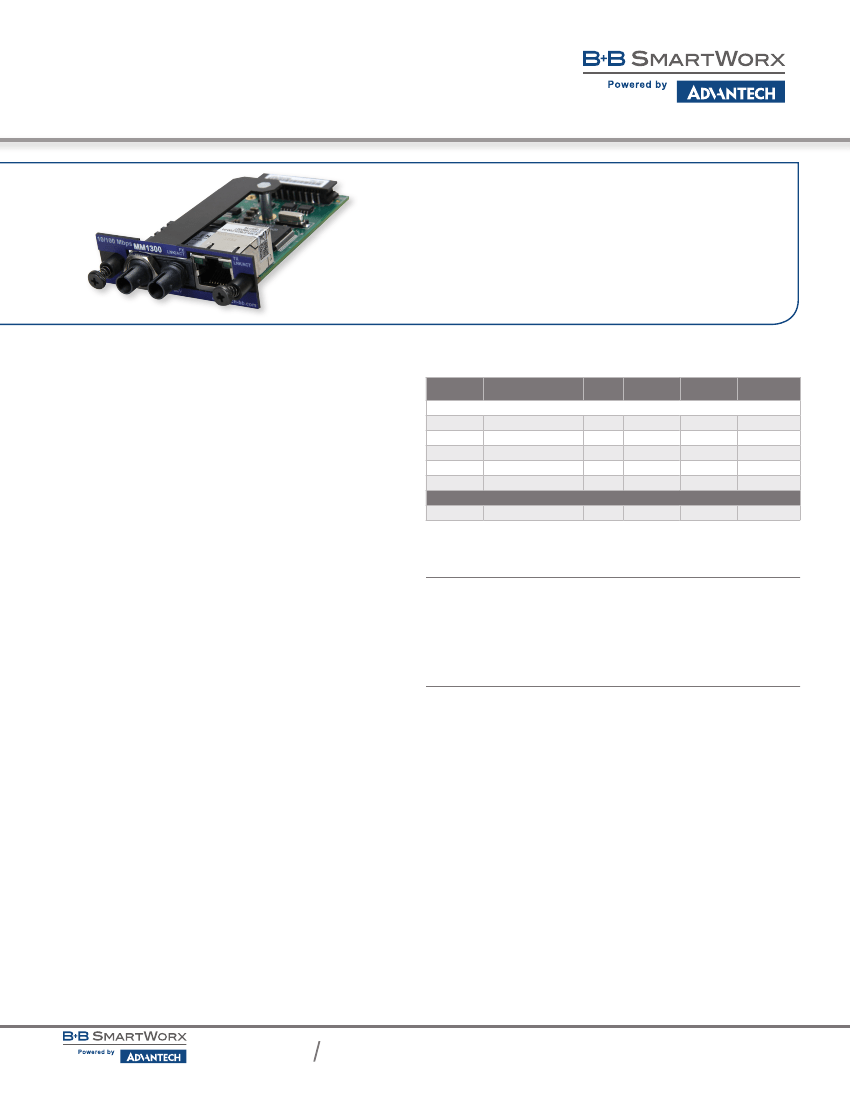

PRODUCT FEATURES
•
•
•
•
Modular, hot-swappable architecture reduces operational costs
associated with product installations, upgrades and maintenance
One 10/100 Mbps twisted pair port with an RJ45 connector
One 100 Mbps fiber port with ST and SC connectors
Unmanaged plug-and-play operation
Your network is growing and many new access points, workstations, etc.
are required. However, legacy equipment, along with your existing wiring
infrastructure, must work with any new equipment you implement in your
network. When copper-to-fiber conversions are required, the rate converting
10/100Mbps media converter is a good solution.
The McLIM 10/100Mbps media converter enables the customer to convert
copper to a variety of fiber types for multi-mode, single-mode, and single-
strand fiber for 100Mbps applications.
The unmanaged media converter can be installed in a 1, 4, 8 or 12 slot
chassis – the MediaConverter series chassis.
ORDERING INFORMATION
MODEL
FIBER
NUMBER
McLIM TP-TX/FX
855-12620 MM850-ST
855-12622 MM1300-ST
855-12623 MM1300-SC
855-12624 SM1310/PLUS-ST
855-12625 SM1310/PLUS-SC
SINGLE-STRAND FIBER *
855-12642 SSFX-SM1310-SC
FIB ER
RANGE
PORTS
1
1
1
1
1
1
220/550 m
5 km
5 km
40 km
40 km
20 km
ETHERNET ETHERNET
PORTS
CONNECTOR
1
1
1
1
1
1
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B+B SmartWorx single-strand fiber product.
851-10901
- MediaConverter/1 Chassis (1-slot, AC)
851-10904
- MediaConverter/4 Chassis (4-slot, AC)
851-10908
- MediaConverter/8 Chassis (8-slot, AC)
851-10912
- MediaConverter/12 Chassis (12-slot, AC)
ACCESSORIES
All product specifications are subject to change without notice.
McLIM TP-TX/FX series_4217ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Switching 10/100 Mbps
Media Converter Module
McLIM TP-TX/FX series

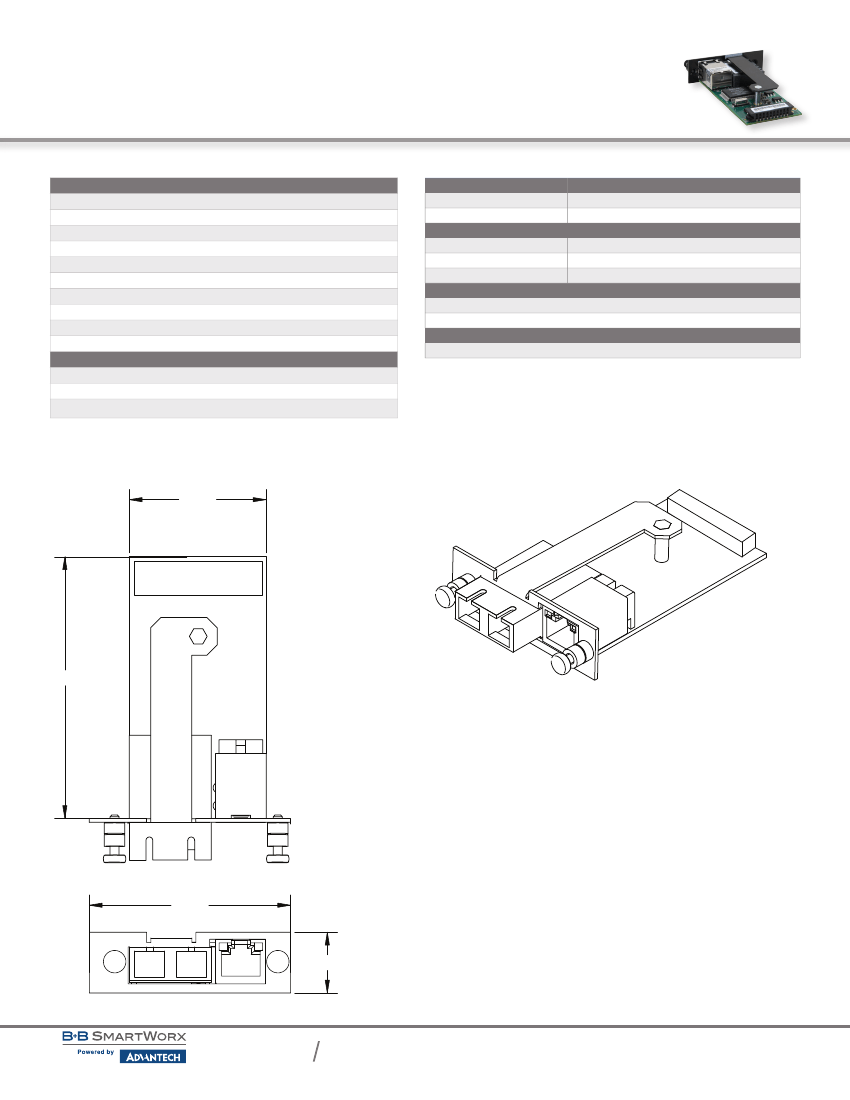

SPECIFICATIONS
TECHNICAL
Install in any MediaConverter chassis (1, 4, 8, 12 slots)
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Include diagnostic LEDs
Include hot-swappable architecture
10Base-T twisted pair
100Base-TX twisted pair
100Base-FX or SX fiber
AutoCross for RJ-45 copper port
Features Auto Negotiation
CONNECTORS
RJ45, ST and SC
Supports half- and full-duplex operation
MTU: 1916 bytes
MECHANICAL
Dimensions
2.20 x 6.41 x 10.25 cm (0.75H x 2.50W x 4D in.)
Shipping Weight
0.3 kg (0.7 lb)
ENVIRONMENTAL
Operating Temperature
0 to +50 °C (+3 to +122 °F)
Storage Temperature:
-25 to +70 °C (-1 to +158 °F)
Operating Humidity
5% to 95% (non-condensing)
REGULATORY APPROVALS
FCC Class B
UL/cUL, CSA, CE
MEANTIME BEFORE FAILURE (MTBF)
MTBF: 796650 hours
MECHANICAL DIAGRAM
Units = inches
1.67
3.19
2.45
.74
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
