A
B
C
D
E
F
G
REVISIONS
REV
DESCRIPTION, ECN, EAR NO.
H
DATE
APP'D
61.26
2.412
1
A
PROPOSAL DRAWING (EAR 14107)
AUG01/12
K.L.
NO CONTACT
IN POSITION A2
42.98
1.692
30.18
1.188
1
4-40 THREAD
THROUGH HOLE
10.80
.425
9.14
.360
TYP.
2.74
.108
TYP.
1.50
.059

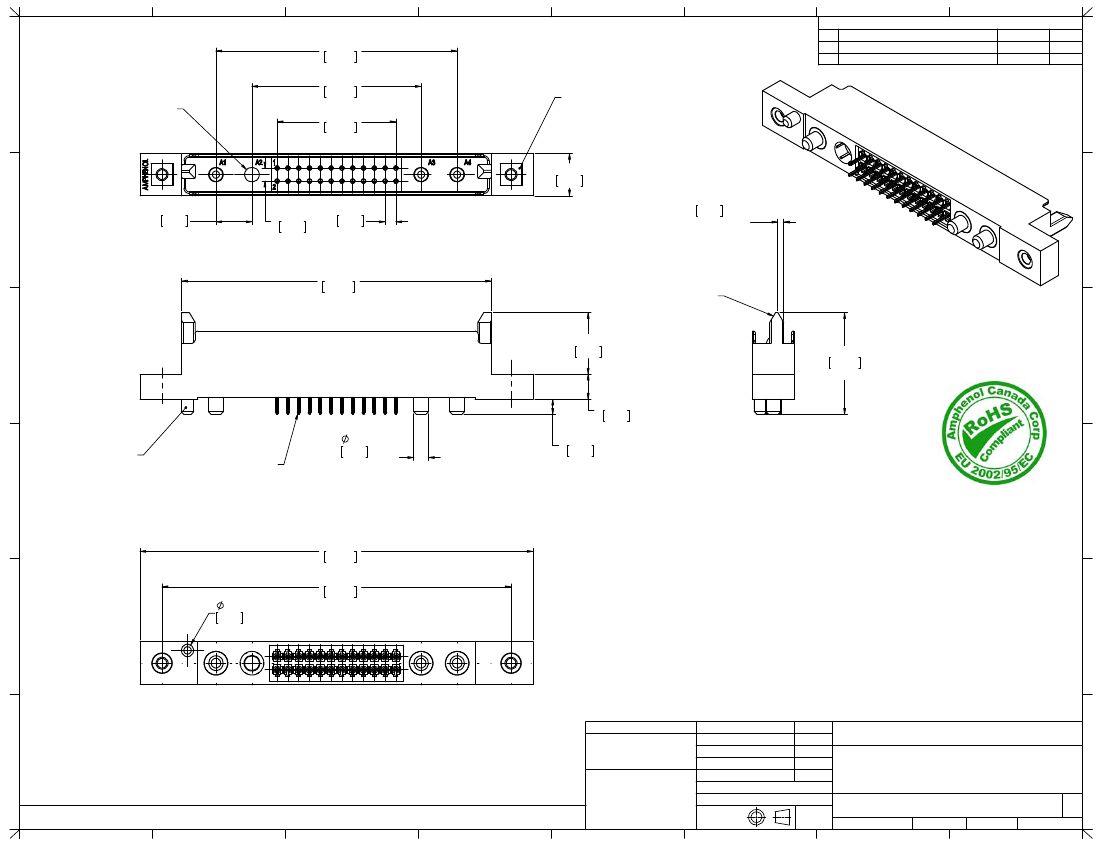

HOUSING BLADE
ALIGNMENT
CORRECTION
HOUSING BLADE IS
OFF CENTRE TO PREVENT
IMPROPER MATING
2
3.30
.130
2
78.69
3.098
3
15.65
.616
25.81
1.016
REF
6.35
.250
3
ORIENTATION
PEG PREVENTS
ASSEMBLY ERRORS
0.46 [.018] x 0.76 [.030]
SIGNAL CONTACT TAILS
3.75
.148
POWER CONTACT
TAILS
3.81
.150
4
NOTES:
1.
MATERIALS: ALL MATERIALS ARE RoHS COMPLIANT PER EU DIRECTIVE 2002/95/EC AND
AMENDMENTS.
•
HOUSING: HIGH TEMPERATURE RESISTANT NYLON, UL FLAMMABILITY RATING 94V-0, COLOUR
BLACK
•
POWER CONTACTS: COPPER ALLOY PLATED WITH 5.08µm(200µ") SILVER OVER 1.27µm (50µ”)
MIN NICKEL
•
SIGNAL CONTACTS: PHOSPHOR BRONZE PLATED WITH 0.38µm (15µ”) GOLD OVER NICKEL ON
THE MATING AREA AND 2.54µm (100µ”) MATTE TIN OVER NICKEL ON THE TAILS.
WHEN MATED WITH SOCKET CONNECTOR P/N DWR-T424S-V236-90, THE ORDER OF MECHANICAL
AND ELECTRICAL ENGAGEMENT IS A) HOUSING BLADES, B) HOUSING SHROUD, C) POWER
CONTACTS, D) SIGNAL CONTACTS
ELECTRICAL CHARACTERISTICS
•
CURRENT RATING: 55A PER CONTACT, 5A SIGNAL
•
DIELECTRIC WITHSTANDING VOLTAGE: 1500VDC
•
INSULATION RESISTANCE: 5000 MEGOHMS
•
OPERATING TEMPERATURE: -55C TO +105C
4
99.82
3.930
88.65
3.490
5
3.18
.125
2.
5
3.
AMPHENOL PART NUMBER: DWR-T424P-V236-90
UNLESS SPECIFIED OTHERWISE
PRIMARY UNITS
SECONDARY
DRAWN
J.VANDERWINDT JUL31/12
MILLIMETERS
CHECKED
K.LAMBIE AUG01/12
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
ENG. REL. NO.
REF.
THIRD
ANGLE
PROJECTION
Amphenol Canada Corp.
www.amphenolcanada.com
6
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
EAR 14107
DWR SERIES SLIM DRAWER
PIN CONNECTOR,
SIZE CB8,VERTICAL PCB TAILS,
POSITION A2 OMITTED, RoHS COMPLIANT
DWG. NO.
REV
6
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE
OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-DWR-T424P-V236-90
03554
DWG SIZE:
X
G
SCALE:
A
SHEET
1
OF
2
2:1
H
E
F
A
B
C
D
E
F
G
REVISIONS
REV
DESCRIPTION, ECN, EAR NO.
H
DATE
APP'D
A
PROPOSAL DRAWING (EAR 14107)
AUG01/12
K.L.
1
1
CONNECTOR ORIENTATION
HOLE DOES NOT REQUIRE
PLATING
88.65
3.490
61.26
2.412
30.18
1.188
2
3.30
.130
LOCATE HOLES
0.13 [0.005]
POSITION DIMENSIONS
ARE BASIC
7.22
.284
3.25
.128
9.14
.360
2x
3.25±0.08
.128±.003
2
3.56±0.08
.140±.003
3
2.74
.108
TYP.

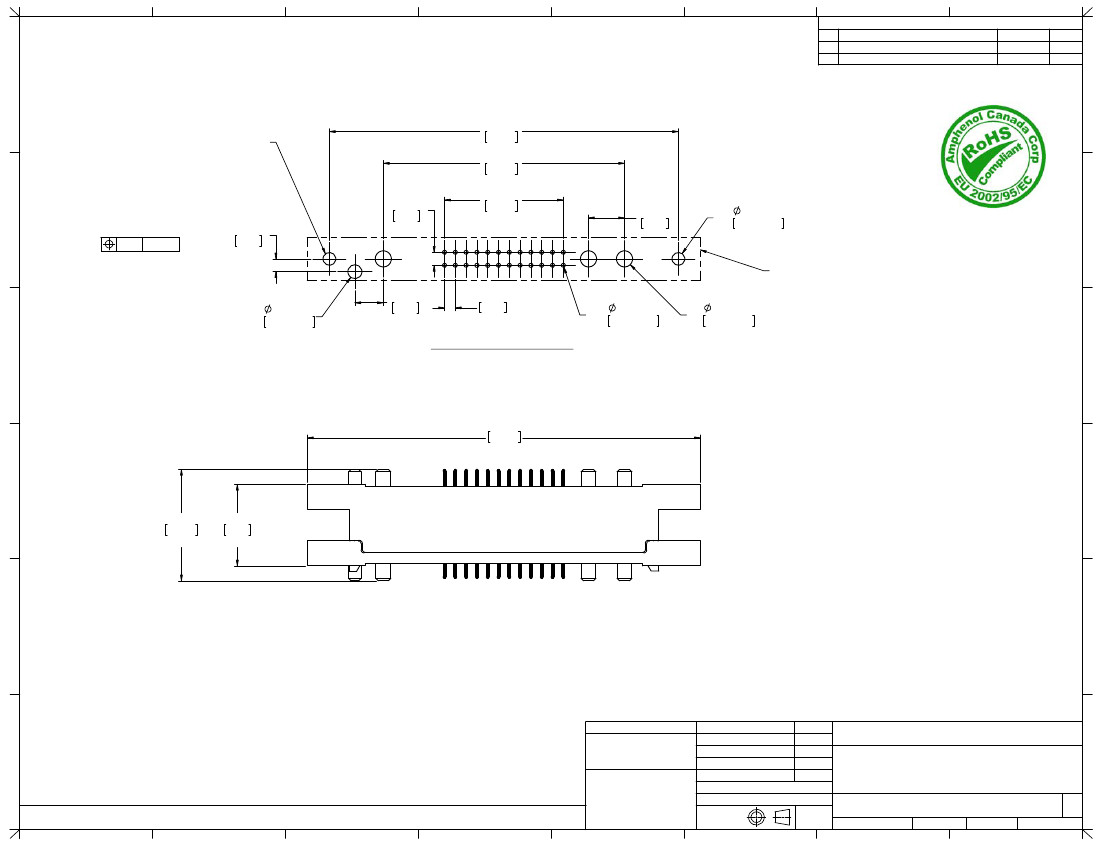

RECOMMENDED PCB LAYOUT
(COMPONENT SIDE OF BOARD)
CONNECTOR
PROFILE
REFERENCE
24 x
1.02±0.08
.040±.003
3x
4.11±0.08
.162±.003
3
99.82
3.930
REF
4
4
28.33
1.115
REF
20.71
.815
REF
5
PIN AND SOCKET MATED ASSEMBLY
DWR-T424P-V236-90 AND DWR-T424S-V236-90
5
UNLESS SPECIFIED OTHERWISE
PRIMARY UNITS
SECONDARY
DRAWN
J.VANDERWINDT JUL31/12
K.LAMBIE
AUG01/12
MILLIMETERS
CHECKED
INCHES
M.E. APP'D
Q.A. APP'D
DWG APPR.
ENG. REL. NO.
REF.
THIRD
ANGLE
PROJECTION
Amphenol Canada Corp.
www.amphenolcanada.com
6
REFERENCE IN PARENTHESES
GENERAL TOLERANCES
1 DECIMAL PLACE
2 DECIMAL PLACES
EAR 14107
DWR SERIES SLIM DRAWER
PIN CONNECTOR,
SIZE CB8,VERTICAL PCB TAILS,
POSITION A2 OMITTED, RoHS COMPLIANT
DWG. NO.
REV
6
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE
OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
A
B
C
D
3 DECIMAL PLACES
ANGULAR DEGREES
DO NOT
SCALE
DRAWING CODE ID NO.
P-DWR-T424P-V236-90
03554
DWG SIZE:
X
G
SCALE:
A
SHEET
2
OF
2
2:1
H
E
F
