Snap-Lock Environmentally Sealed - Rectangular
Engineering Quick Reference Selection Guide
Cannon SLE
19 Position

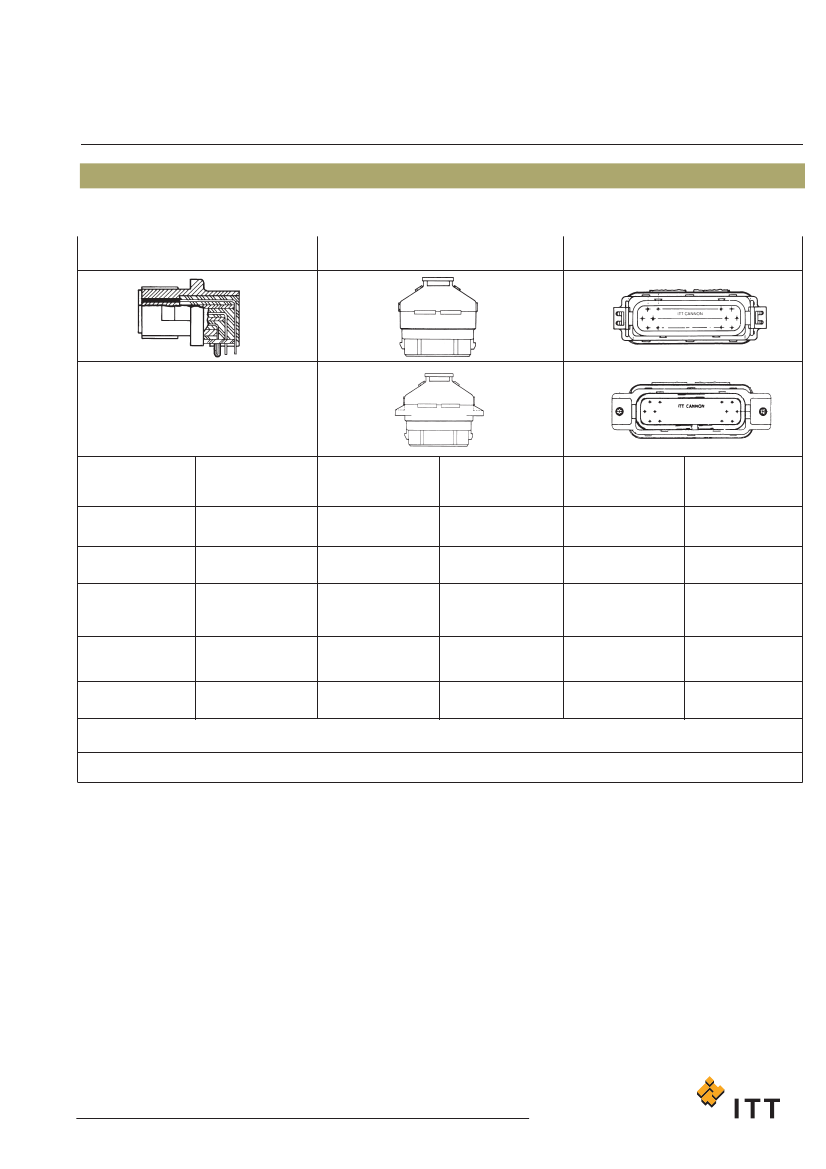

Plug, 90° PCB
28 Position
Plug, In-line
19 Position
28 Position
Receptacle, In-line
19 Position
28 Position
For PCB Layout, see page 25
130408-0000
130408-0001
130408-0002
130408-0003
130413-0000 130413-0003
130413-0001 130413-0004
130413-0002 130413-0005
130414-0000 130414-0002
130414-0001 130414-0004
130408-0004
130408-0010
130408-0011
130408-0012
130412-0000 130412-0004
130412-0001 130412-0010
130412-0002 130412-0011
130412-0003 130412-0012
130413-0000 130413-0003
130413-0001 130413-0004
130413-0002 130413-0005
130414-0000 130414-0002
130414-0001 130414-0004
Note: For configuration contact Cannon.
Note: For configuration contact Cannon.
Series Prefix
SLE - SLE-Snap Lock Environmental
Size
B-19 Cavity Housing
C-28 Cavity Housing
Number of Contacts
19 or 28
Contact Termination
T - Tuning Fork Straight [Plug with 3,05 (.120)
min. PCB tails]
N - Tuning Fork 90° [Plug with 2,54 (.100) min.
PCB tails]
P - Crimp Pin (Receptacle)
S - Crimp Socket (Plug)
P1 - Crimp Pin Power (Receptacle)
S1 - Crimp Socket Power (Pin)
Connector Type
2 - Plug, In-line (Cable-to-Cable)
3 - Plug, PCB
4 - Receptacle, In-line (Cable-to-Cable)

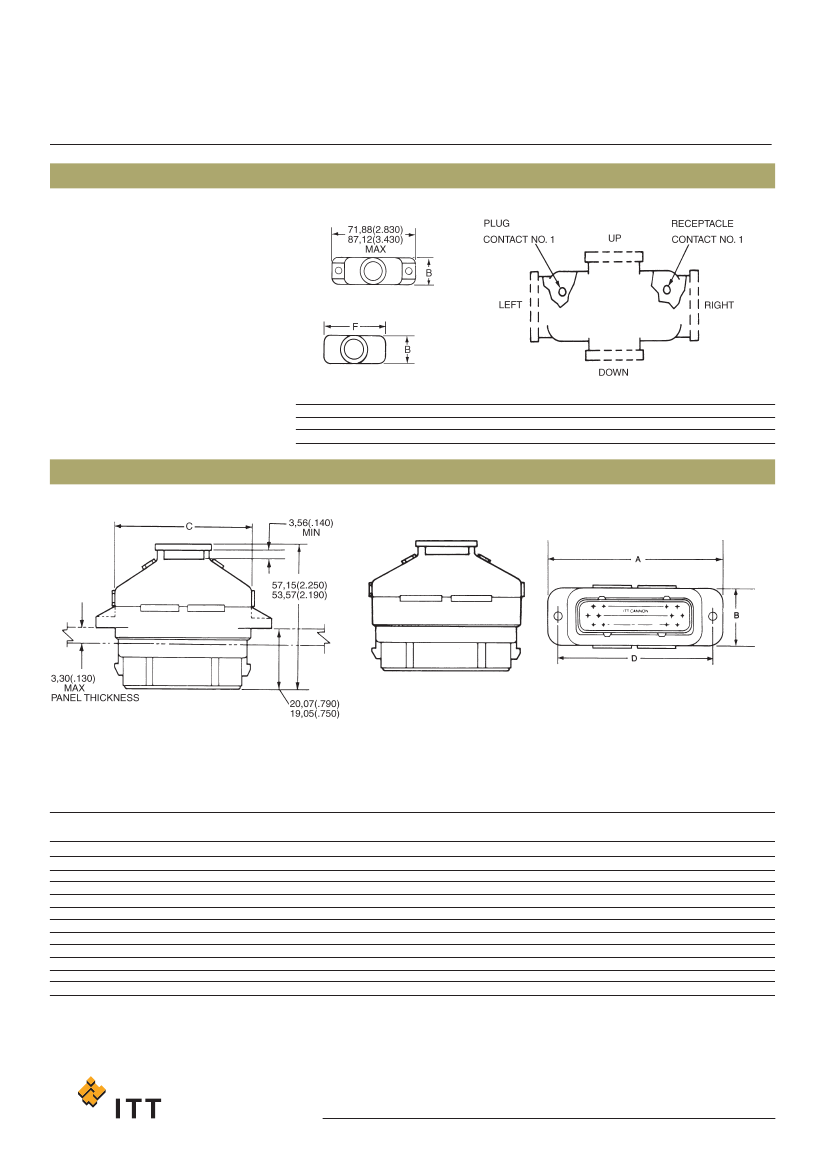

Connector Termination
S - Straight (Endbell)
L - 90° Left (Endbell)
R - 90° Right (Endbell)
U - 90° Up (Endbell)
D - 90° Down (Endbell)
P - Potted (PCB Only)
Mechanical Modifier
F - With Flange Mount (Plug only)
G - Screwlock Applications (Receptacle only)
M - Metric Threaded Inserts
N - Threaded Inserts #6-32
E - Threaded Inserts #6-32
Dimensions shown in mm
Specifications and dimensions subject to change
www.ittcannon.com
21
Snap-Lock Environmentally Sealed - Rectangular
Cannon SLE

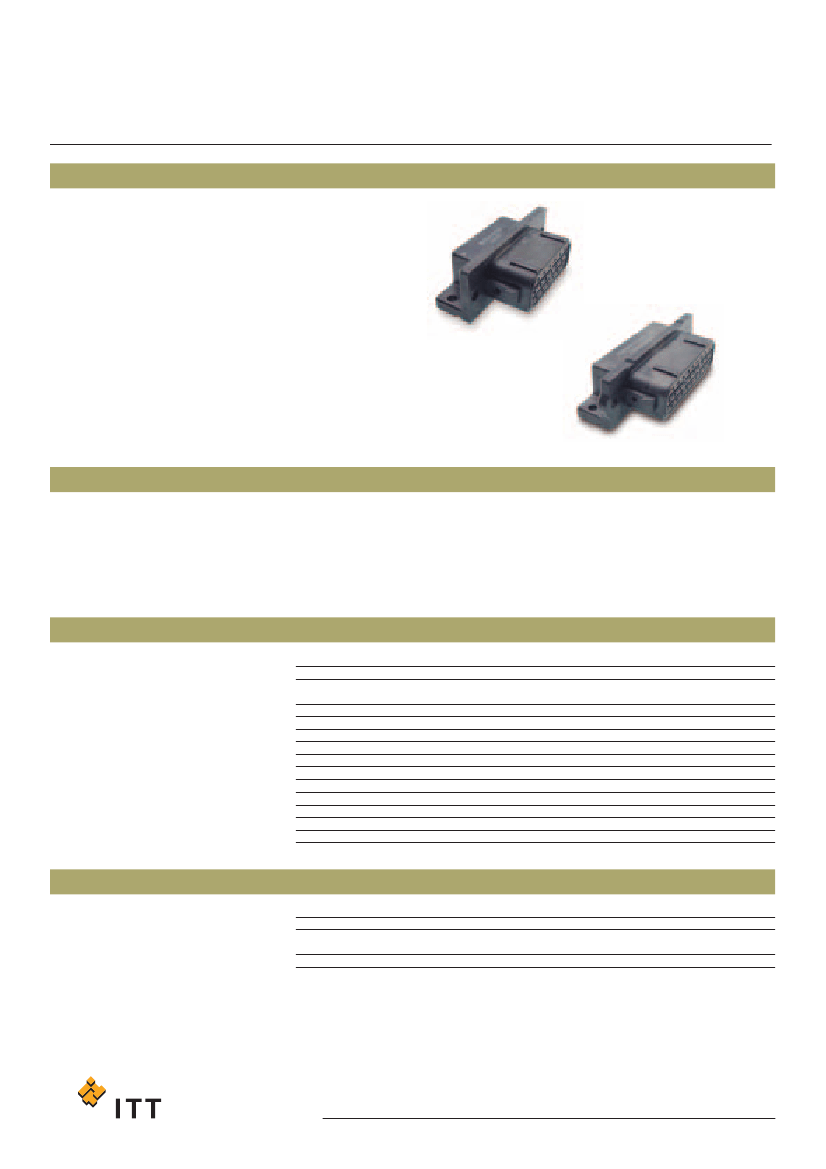

The Snap Lock Environmental Series is environmentally-sealed
connector created for printed circuit board, blackbox, cable-to-cable,
or bulkhead applications.
When your under-the-hood requirements call for tough performance,
the SLE "snaps" into a tightly sealed connection that can withstand
heat, shock and vibration. The connector is designed to preserve the
integrity of the solid state package, while protecting against
contaminants - even when unmated.
Polarization, scoop-proofing and hand insertion of contacts are part
of the package. Gold, tin/lead-plated stamped contacts add
durability. A rugged, thermoplastic receptacle body maximizes
performance by withstanding temperature variances from -40°C to
+125°C.
The SLE series is available in both 19 and 28 contact cavity
configurations. It can also be adapted to robotic assembly. Should
your requirement demand higher density configurations, consult
Customer Service.
Product Feature and Benefits
·
·
·
·
·
·
Superior environmental sealing
-40°C to +125°C continuous operation at rated
current
Available in two sizes, 19 and 28 contacts
Crimp stamped gold, tin/lead plated contacts
Hand insertable/removable contacts
Current rating 5 A and 13 A versions
·
·
·
·
·
·
Low millivolt drop
Small footprint on P.C. board and low profile
5-way alternate polarization
Integral mold latch. Adaptable to robotic
assembly.
Multi-direction, easily assembled endbells
Optional secondary bail latch
·
·
·
·
·
Latch with tactile and audible feedback
Low installed cost
Meets both signal and power requirements
Versatile cable strain relief, up, down, straight, left
ad right, flange/bulkhead
Connector mating assurance
Performance Specifications
Contact Resistance
Insulation Resistance
Current Rating
Dielectric Withstanding Voltage
Applicable Cannon Specification
Operating Temperature
Crimp Contacts
Wire Size
Wire Insulations Sealing Range

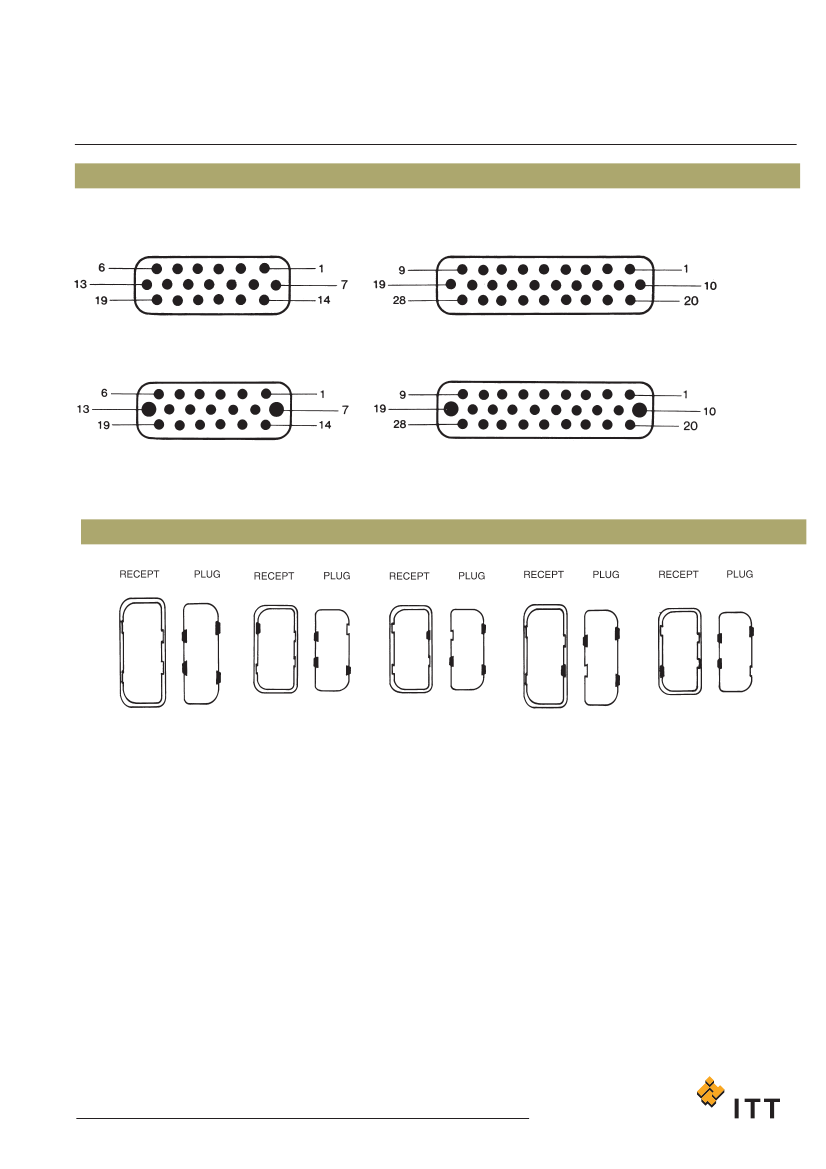

Polarization
Contact Insertion
Contact Extraction
Contact Retention
Wire Strip Length
10 mΩ maximum
100 MΩ minimum
5 A signal continuous at 125°C all contacts
13 A power continuous at 125°C all contacts
1000 Vrms AC at sea level
CS-189
-40°C to +125°C
Semi-automatic or hand crimpable
20-16 AWG
2,41 (.095) to 3,30 (.130) dia.
'D' shaped interface with five alternate positions.
No tool required. Suitable for automation.
Rear removable
25 lbs. Minimum per contact
5,59 (.220) to 5,33 (.210)
Materials and Finishes
Connector Housing
Contacts
Finish
Environmental Seal
High temperature thermoplastic
Copper alloy
Engaging area: Gold over nickel
Crimp/P.C. tail area: Tin/lead over nickel
High temperature silicone elastomer
Dimensions shown in mm
Specifications and dimensions subject to change
22
www.ittcannon.com
