FX10A-80P/8-SV

Description
CONN HEADER 80POS W/POST SMD
CategoryThe connector
File Size933KB,20 Pages
ManufacturerHirose Electric
Download Datasheet Parametric View All

FX10A-80P/8-SV Overview

CONN HEADER 80POS W/POST SMD

FX10A-80P/8-SV Parametric

Parameter NameAttribute value
Connector typeconnector, housing contact
Number of pins80
spacing0.020"(0.50mm)
Number of rows2
Installation typesurface mount
characteristicBoard rails, ground plates, fixed solder tails
Contact platinggold
Contact plating thickness3.90µin(0.099µm)
Joint stack height4mm
board height0.138"(3.50mm)
15
+

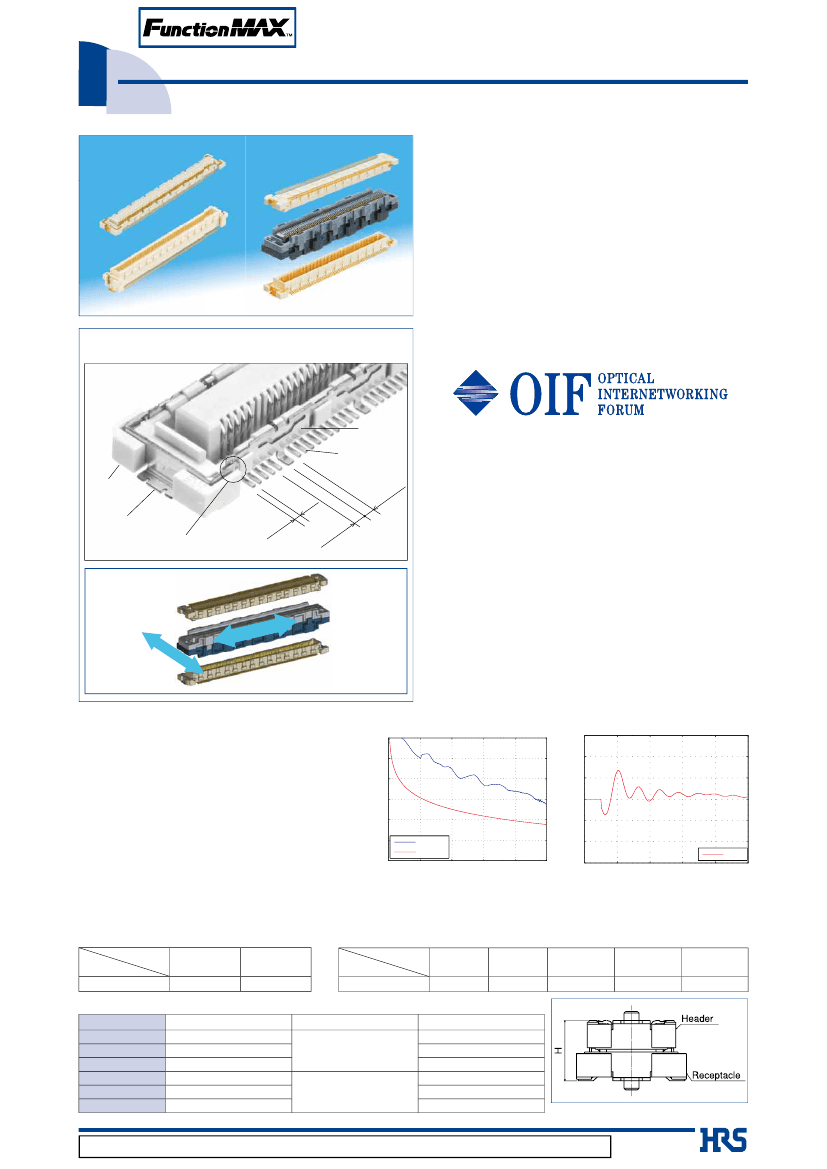

Gbps 0.5mm pitch Stacking Connectors
FX10 Series
Electrical Interface for the OIF 100G Long-Haul DWDM Transmission Module (MSA-100GLH)
■Mechanical
Features
0.5mm Pitch
Stacking height : 4 to 8mm (2-piece type)
8 to 13mm (3-piece type)
Number of Contacts
With ground plate : 80 / 100 / 120 / 140
Without ground plate : 96 / 120 / 144 / 168
3-piece interposer : 120 / 144 /168
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
OIF MSA-100GLH Electrical Interface
■With
GND Plate Type
FX10A-168P/S-SV(83) assembly is specified for the
OIF 100G Long-Haul DWDM Transmission Module
host line card - MSA-100GLH electrical connector.
Ground
plate
Signal contact
Housing
Suited to High-Density Applications
The 0.5 mm signal contact pitch provides a smaller
overall connector, using less mounting area on the board.
5
0.7
m
0.5
m
mm
.75
0
mm
Optional Ground Plate
An alternate style without the ground plate is available.
The space provided by the ground plate removal has
been filled with additional signal contacts.
<3-piece type>
Smooth floating with high speed transmission
capability supported by unique 3-piece floating
system
Multiple connectors are allowed on the same PCB
(Allowable Mis-alignment Range : ± 0.3mm in XY
direction)
Metal fitting
Ground plate and metal
fitting make contact
●Floating
Interposer
ing
Float
Flo
ati
n
g
■Signal
Integrity Features
●Insertion-Loss-to-Crosstalk-Ratio(ICR)
The insertion-loss-to-crosstalk-ratio (ICR) with
five-aggressor differential FEXT meets the
extrapolated IEEE 802.3ap specification for
15
+
Gbps.
ICR (dB)
60
50
40
Z (Ohm)
115
110
105
100
95
30
20
10
0
ICR
ICR spec
0
2
4
6
Frequency (GHz)
8
10
●Differential
Impedance
85ø configuration and 100ø configuration are
available.
90
S(3,3)
85
0
200
400
600
Time (ps)
800
1000
■Stack
Height
●2-piece
type
●With
ground plate

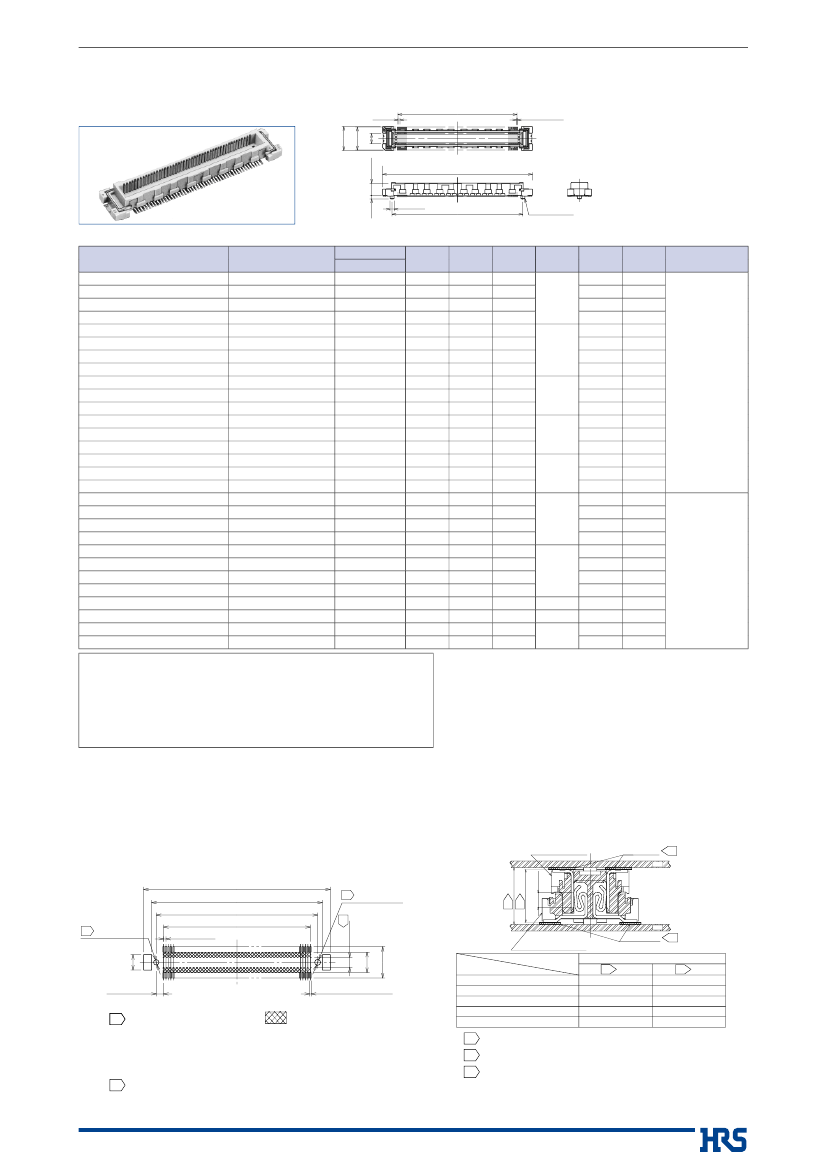

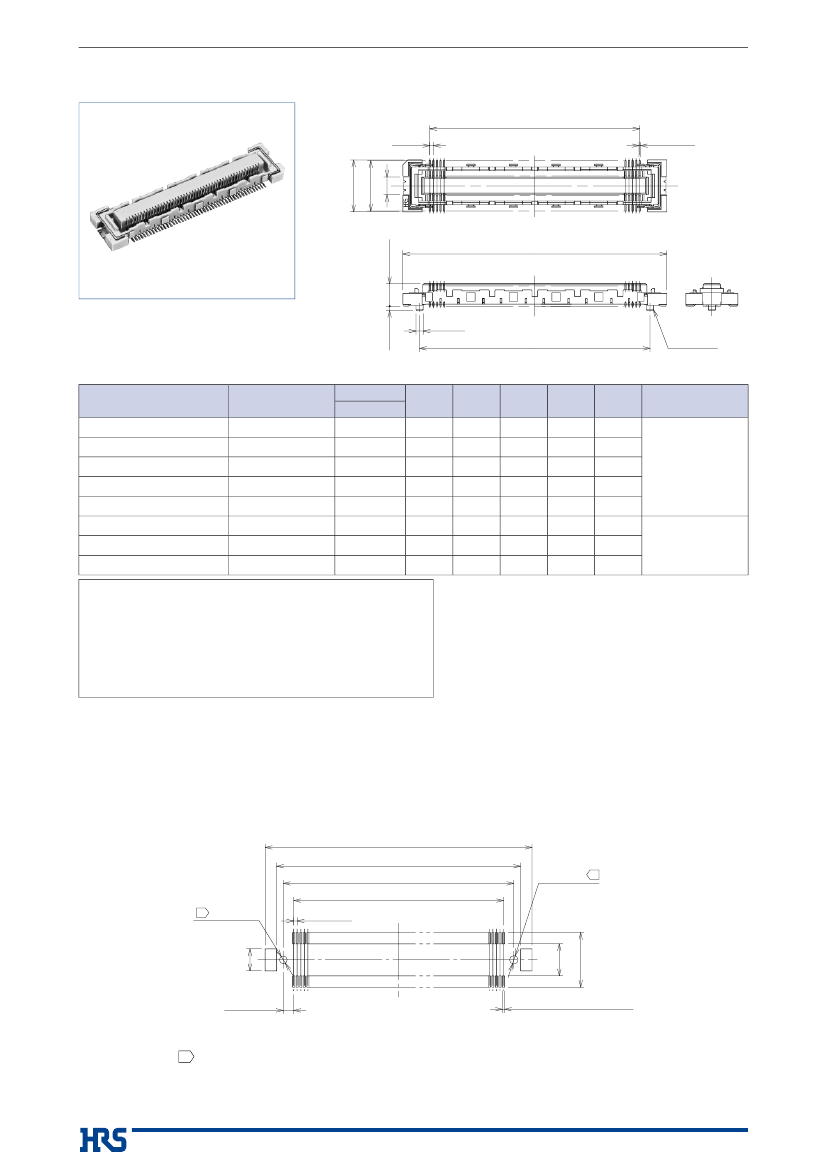

Headers
Receptacles
FX10#-*S/*-SV
FX10#-xP/x-SV
4mm
FX10#–xP/x–SV1
5mm

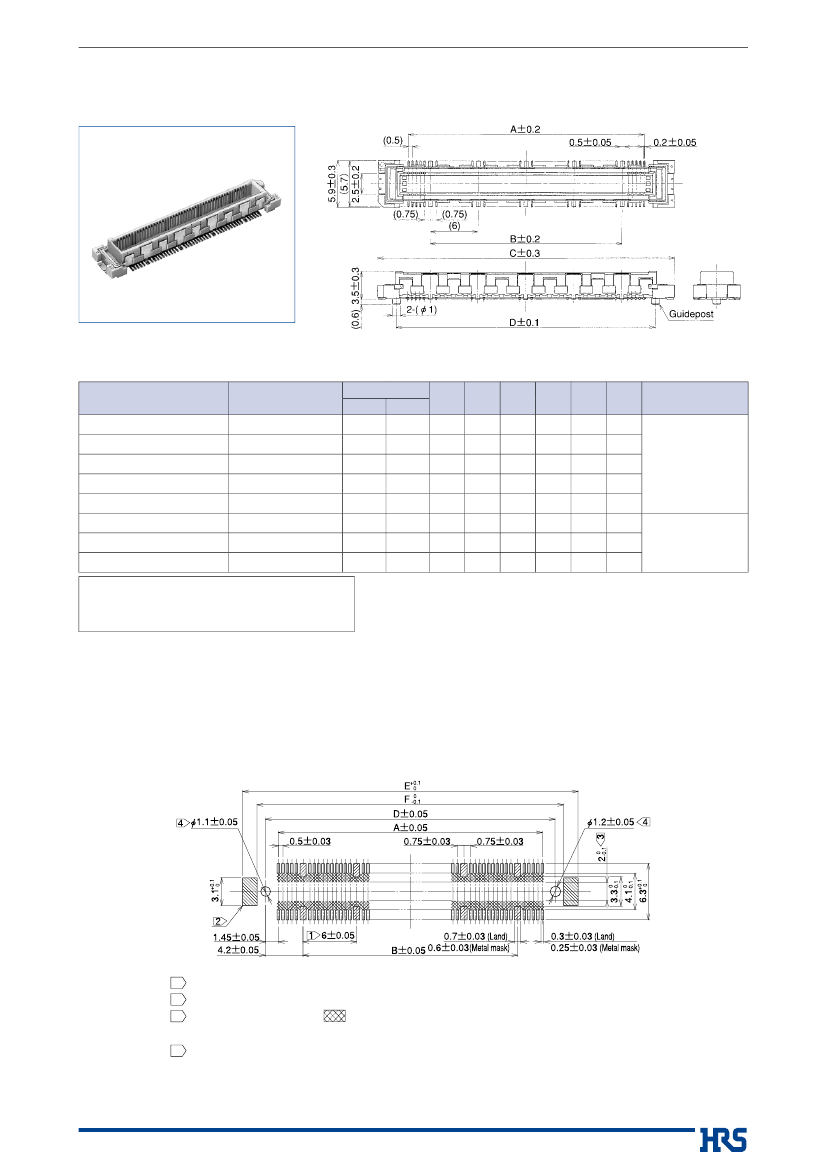

●Without
ground plate
Headers
Receptacles
FX10#-*S-SV
Interposer
FX10-xIP-xD(Q)-8H
FX10#-xP-SV FX10–xP–SV1 FX10#-xP-SV2
4mm
5mm
6mm
FX10#-xP-SV3
7mm
FX10#-xP-SV4
8mm
●3-piece
type
Stacking Height
8mm
9mm
10mm
11mm
12mm
13mm
Header (Mating side)
FX10#-xP-SV
FX10#-xP-SV
FX10#-xP-SV1
FX10#-xP-SV2
FX10#-xP-SV3
FX10#-xP-SV4
Header(Fixed side)
FX10#-xP-SV
FX10#-xP-SV1
FX10#-xP-SV1
FX10#-xP-SV1
FX10#-xP-SV1
FX10#-xP-SV1
( )
FX10-xIP-xD(Q)-8PH
(H) : Reference dimension
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
