SKKT92/14E datasheet, PDF - EEWORLD Datasheet

SKKT92/14E: Description150 A, 1400 V, SCR, TO-240AA; CategoryAnalog mixed-signal IC Trigger device; File Size959KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric View All

SKKT92/14E Overview

150 A, 1400 V, SCR, TO-240AA

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	TO-240AA
package instruction	FLANGE MOUNT, R-XUFM-X7
Contacts	7
Manufacturer packaging code	CASE A 46
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY, UL RECOGNIZED
Shell connection	ISOLATED
Nominal circuit commutation break time	100 µs
Configuration	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	2G-2GR
Description of screw terminals	A-K-AK
Maximum holding current	250 mA
JEDEC-95 code	TO-240AA
JESD-30 code	R-XUFM-X7
JESD-609 code	e2
Maximum leakage current	20 mA
On-state non-repetitive peak current	2000 A
Number of components	2
Number of terminals	7
Maximum on-state current	95000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	150 A
Maximum repetitive peak off-state leakage current	20000 µA
Off-state repetitive peak voltage	1400 V
Repeated peak reverse voltage	1400 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

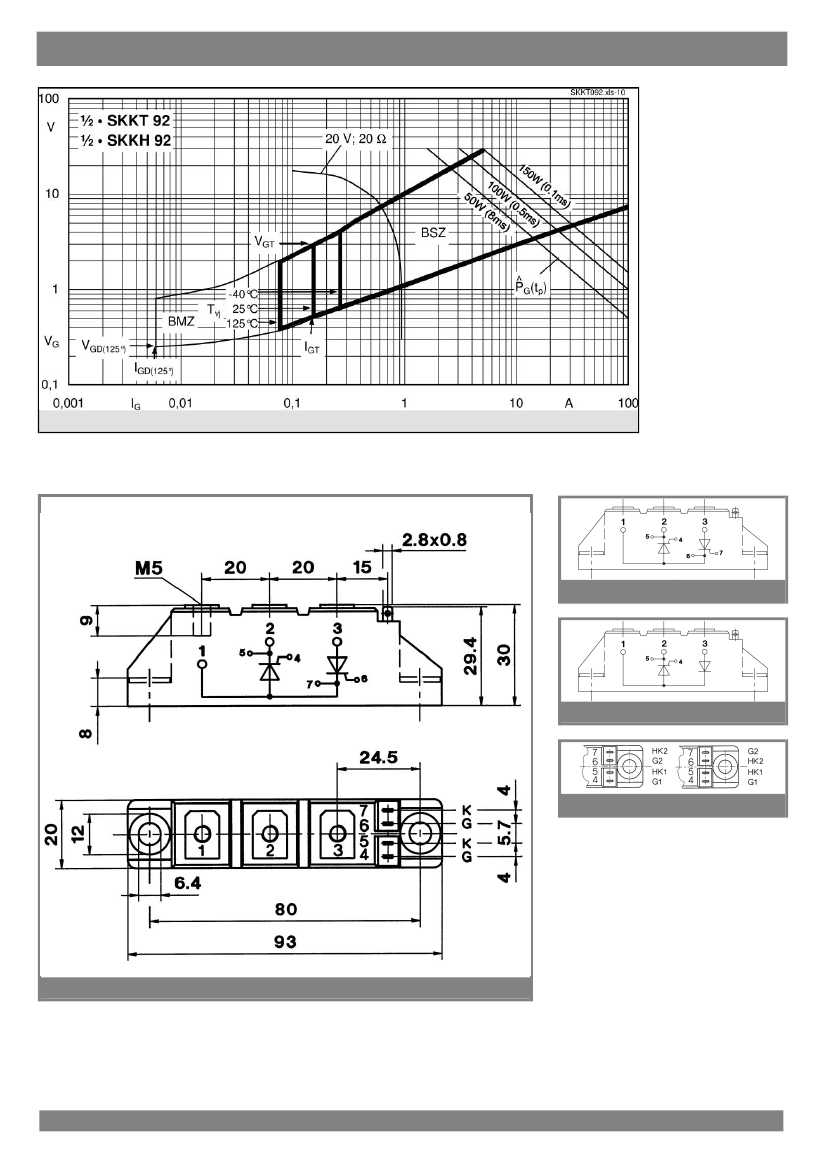

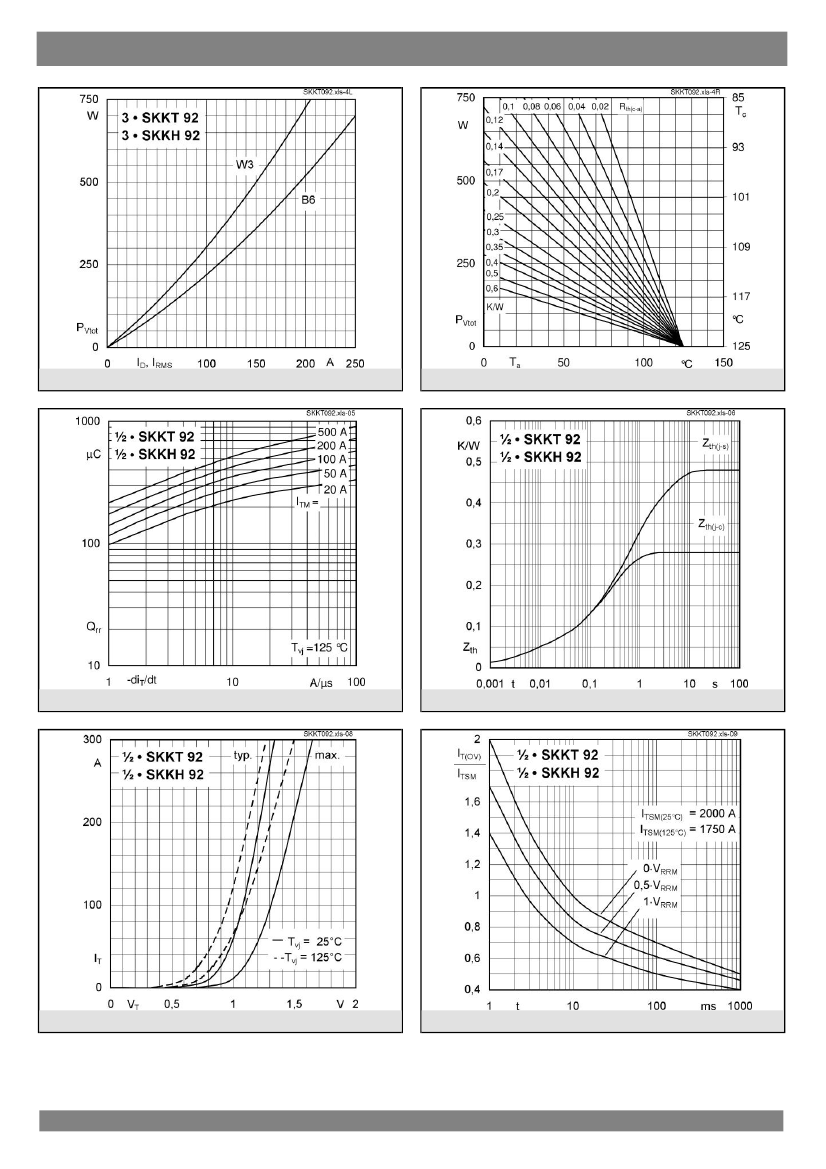

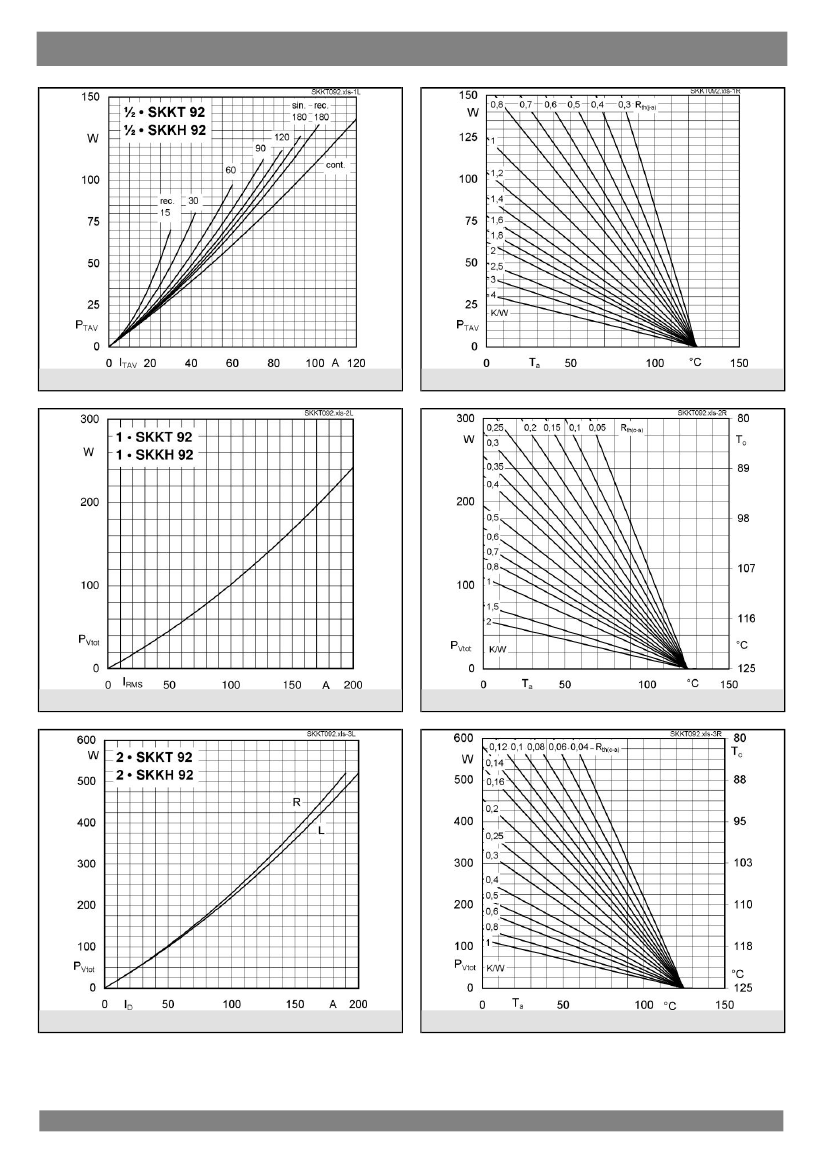

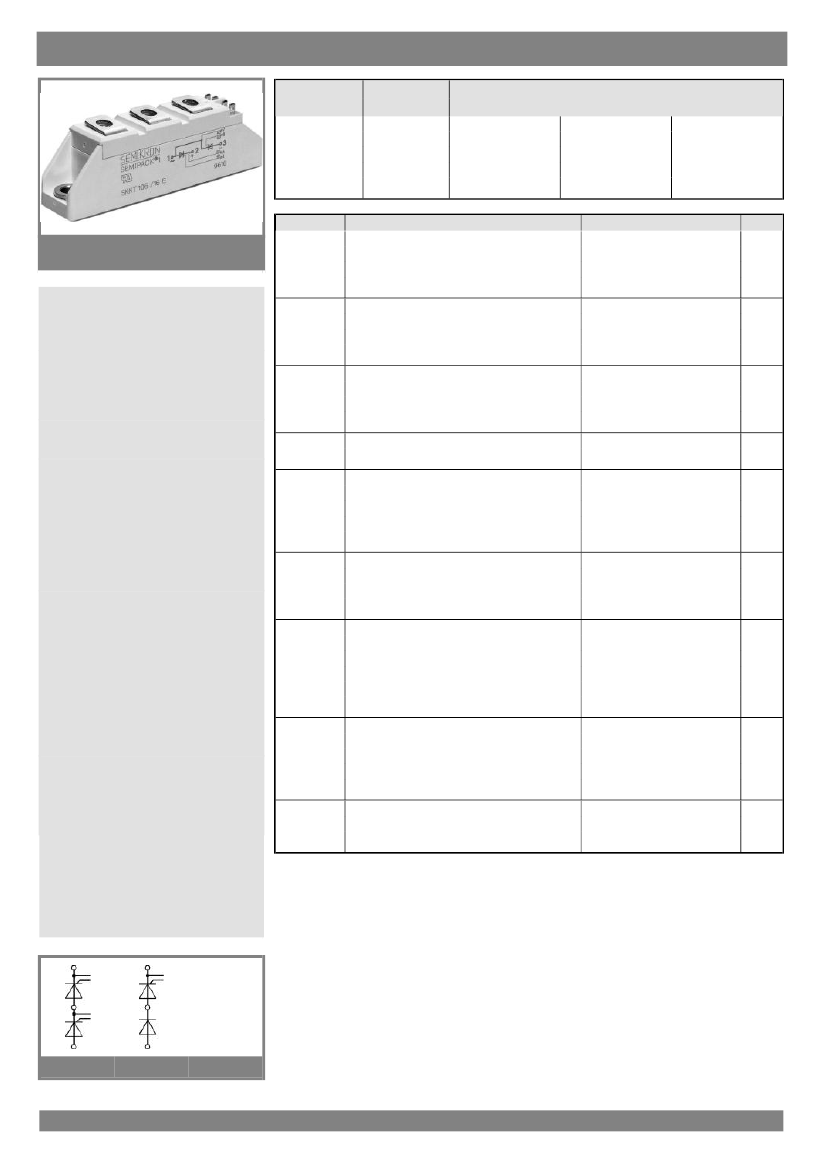

SKKT 92, SKKH 92, SKKT 92B

THYRISTOR

Symbol

Conditions

Values

Units

SEMIPACK

Thyristor / Diode Modules

SKKT 92

SKKT 92B

SKKH 92

Features

Typical Applications

SKKT

SKKH

09-03-2004 NOS
