Printview: Male connector with snap-in flanges; for panel feedthrough applications with plate thickness 0.5 -
2.5 mm; 5-pole; Pin spacing 5 mm / 0.197 in - Item No.: 231-605/114-000
.
Male connector with snap-in flanges; for panel feedthrough
applications with plate thickness 0.5 - 2.5 mm; 5-pole; Pin spacing
5 mm / 0.197 in
Item No.: 231-605/114-000
.
Male connector with snap-in flanges; for panel feedthrough applications with plate thickness 0.5 - 2.5 mm; 5-pole; Pin
spacing 5 mm / 0.197 in
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
231-605/114-000
4050821216032
1
50
Item description:Universal connection for all conductor typesEasy cable pre-assembly and on-unit wiring via vertical
and horizontal CAGE CLAMP® actuationFor “wire-to-wire” and “board-to-wire” connectionsCoding option available
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
Color
Ratings according to 1
Rated voltage (III / 3) [V]
5
5 mm (0.197 in %)
5
5
gray
IEC/EN 60664-1
320 [V]
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Male connector with snap-in flanges; for panel feedthrough applications with plate thickness 0.5 -
2.5 mm; 5-pole; Pin spacing 5 mm / 0.197 in - Item No.: 231-605/114-000
Technical data
Rated surge voltage (III / 3) [kV]
Rated voltage (III / 2) [V]
Rated surge voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated surge voltage (II / 2) [kV]
Nominal current [A]
Number of individual connection objects at the product
Number of levels
Connection technology
Number of connection points
Actuation type
Solid sizes
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
Strip length
Material group
Insulating material
Flammability rating per UL 94
Limit temperature range
Clamping spring material
Contact material
Contact plating
Fire load [MJ]
Weight [g]
Width
Height
Length
Type of mounting
Mounting type
4 [kV]
320 [V]
4 [kV]
630 [V]
4 [kV]
12 [A]
1
1
CAGE CLAMP®
1
Betätigungswerkzeug
0.08 … 2.5 mm² / 28 … 12 AWG
0.08 … 2.5 mm² / 28 … 12 AWG
0.25 … 1.5 mm² / …
0.25 … 2.5 mm² / …
8 … 9 mm / 0.31 … 0.35 in
I
Polyamide 66 (PA 66)
V0
-60 … 100 C
Chrome-nickel spring steel (CrNi)
Electrolytic copper (Ecu)
tin-plated
0.203 [MJ]
9.86 [g]
46 mm / 1.811 in
17.5 mm / 0.689 in
27.5 mm / 1.083 in
Durchführungsmontage
Snap-In-Flansch
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Male connector with snap-in flanges; for panel feedthrough applications with plate thickness 0.5 -
2.5 mm; 5-pole; Pin spacing 5 mm / 0.197 in - Item No.: 231-605/114-000

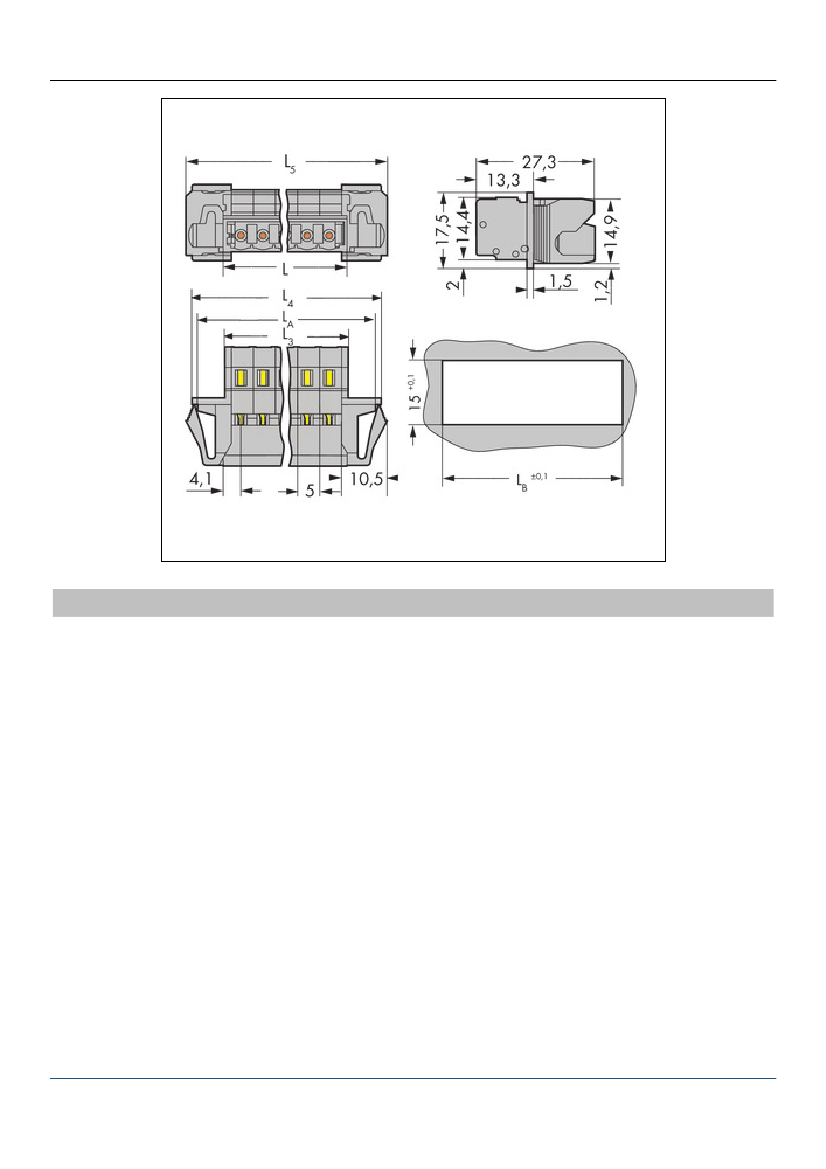

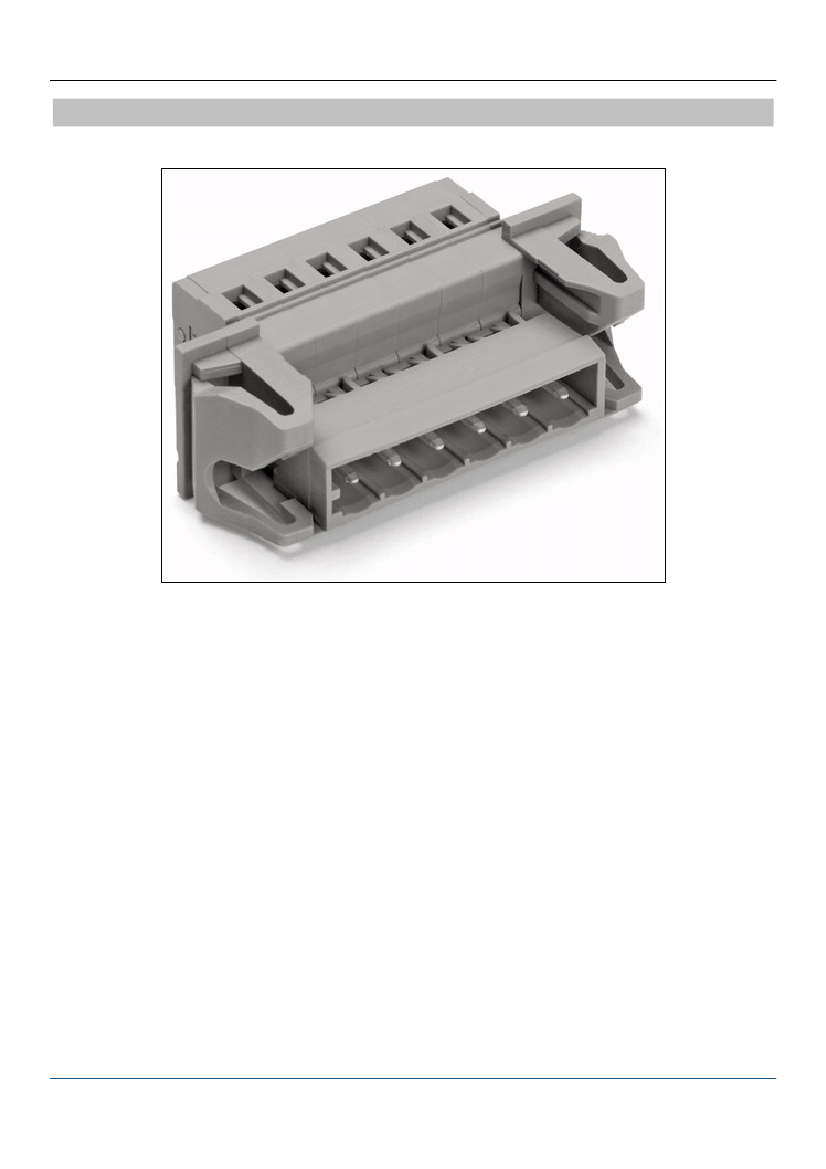

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Male connector with snap-in flanges; for panel feedthrough applications with plate thickness 0.5 -
2.5 mm; 5-pole; Pin spacing 5 mm / 0.197 in - Item No.: 231-605/114-000
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
