SK82 ... SK810
SK82 ... SK810
Surface Mount Schottky Rectifiers
Schottky-Gleichrichter für die Oberflächenmontage
Version 2005-11-09
7.9
±0.2
±0.2
Nominal current – Nennstrom
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
Plastic case
Kunststoffgehäuse
Weight approx. – Gewicht ca.
3
2.1
±0.1
8A
20...100 V
~ SMC
~ DO-214AB
0.21g
2.2
1.2
0.15
±0.2
5.8
Type
Typ
Plastic material has UL classification 94V-0
Gehäusematerial UL94V-0 klassifiziert
Standard packaging taped and reeled
Standard Lieferform gegurtet auf Rolle
7.5
±0.2
Dimensions - Maße [mm]
Maximum ratings
Type
Typ
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
V
RRM
[V]
20
30
40
50
60
80
100
Surge peak reverse voltage
Stoßspitzensperrspannung
V
RSM
[V]
20
30
40
50
60
80
100
Grenzwerte
Forward voltage
Durchlass-Spannung
V
F
[V]
1
)
I
F
= 5 A
I
F
= 8 A
< 0.55
< 0.55
< 0.55
< 0.70
< 0.70
< 0.85
< 0.85
< 0.50
< 0.50
< 0.50
< 0.63
< 0.63
< 0.77
< 0.77
SK82
SK83
SK84
SK85
SK86
SK88
SK810
Max. average forward rectified current, R-load
Dauergrenzstrom in Einwegschaltung mit R-Last
Repetitive peak forward current
Periodischer Spitzenstrom
Peak forward surge current, 50/60 Hz half sine-wave
Stoßstrom für eine 50/60 Hz Sinus-Halbwelle
Rating for fusing, t < 10 ms
Grenzlastintegral, t < 10 ms
Operating junction temperature – Sperrschichttemperatur
Storage temperature – Lagerungstemperatur
T
T
= 100°C
T
T
= 85°C
f > 15 Hz
T
A
= 25°C
T
A
= 25°C
I
FAV
I
FRM
I
FSM
i
2
t
8 A
2
)
8 A
3
)
30 A
2
)
27 A
3
)
140/150 A
2
)
125/135 A
3
)
100 A
2
s
2
)
78 A
2
s
3
)
-50...+150°C
-50...+150°C
T
j
T
S
1
2
3
T
j
= 25°C
SK82 ... SK86
SK88 ... SK810
http://www.diotec.com/
© Diotec Semiconductor AG
1
SK82 ... SK810
Characteristics
Leakage current
Sperrstrom
Thermal resistance junction to ambient air
Wärmewiderstand Sperrschicht – umgebende Luft
Thermal resistance junction to terminal
Wärmewiderstand Sperrschicht
−
Anschluss
T
j
= 25°C
T
j
= 100°C
V
R
= V
RRM
V
R
= V
RRM
I
R
I
R
R
thA
R
thT
Kennwerte
< 200 µA
< 20 mA
< 40 K/W
1
)
< 10 K/W
120
[%]
100
SK88, SK810
SK82...SK86
10
2
[A]
SK82...SK84
10
80
1
SK85, SK86
60
40
10
20
I
FAV
0
0
T
T
50
100
150
[°C]
-1
SK88, SK810
I
F
10

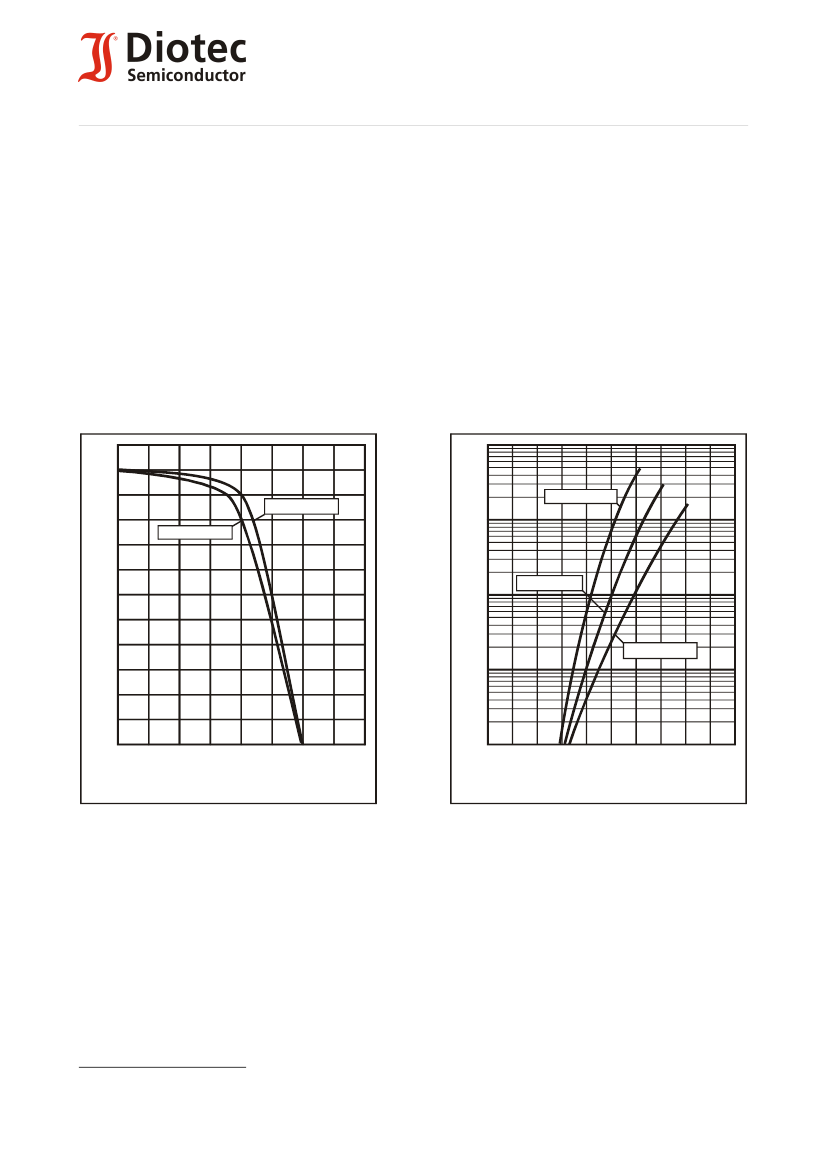

Rated forward current vs. temp. of the terminals
Zul. Richtstrom in Abh. v. d. Temp. der Terminals
-2
0
V
F
0.4
0.6
[V]
1.0
Forward characteristics (typical values)
Durchlasskennlinien (typische Werte)
1
Mounted on P.C. board with 50 mm
2
copper pads at each terminal
Montage auf Leiterplatte mit 50 mm
2
Kupferbelag (Lötpad) an jedem Anschluss
http://www.diotec.com/
© Diotec Semiconductor AG
2
