L1513SURC/E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > photoelectric> L1513SURC/E

L1513SURC/E: DescriptionT-1 3/4 SINGLE COLOR LED, HYPER RED, 5 mm, ROHS COMPLIANT PACKAGE-2; Categoryphotoelectric; File Size98KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L1513SURC/E Overview

T-1 3/4 SINGLE COLOR LED, HYPER RED, 5 mm, ROHS COMPLIANT PACKAGE-2

L1513SURC/E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Is Samacsys	N
Other features	IC COMPATIBLE
color	HYPER RED
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	2200.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	640 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	NOT SPECIFIED
Terminal pitch	2.54 mm
perspective	20 deg
Base Number Matches	1

Preview

Download Datasheet

View All

T-1 3/4 (5mm) HYPER RED LED LAMPS

L1513SURC HYPER RED

L1513SURC/E HYPER RED

Features

HYPER

Description

MATERIAL EFFICIENCY.

The Hyper Red source color devices are made with DH

InGaAlP on GaAs substrate Light Emitting Diode.

BRIGHTNESS.

OUTSTANDING

RELIABLE

I.C.

AND RUGGED.

COMPATIBLE.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: CDA0777

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: NOV/17/2001

DRAWN: J.X.FU

PAGE: 1 OF 4

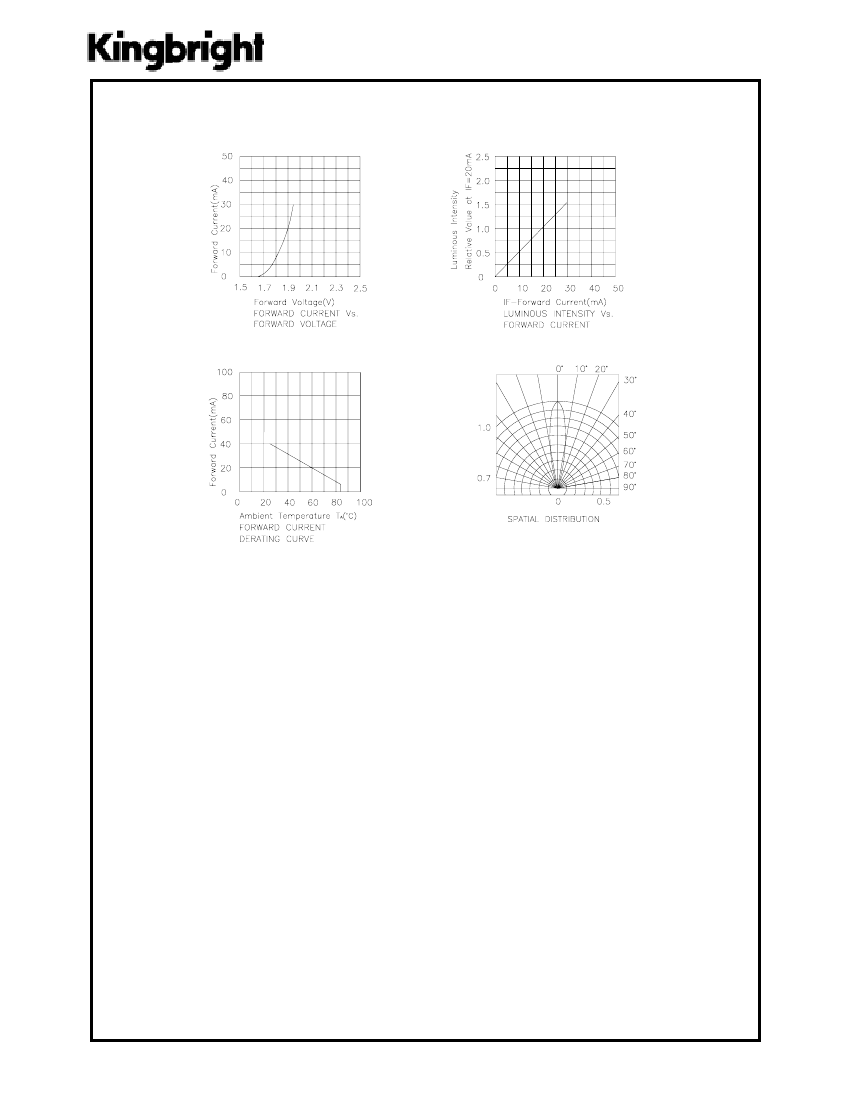

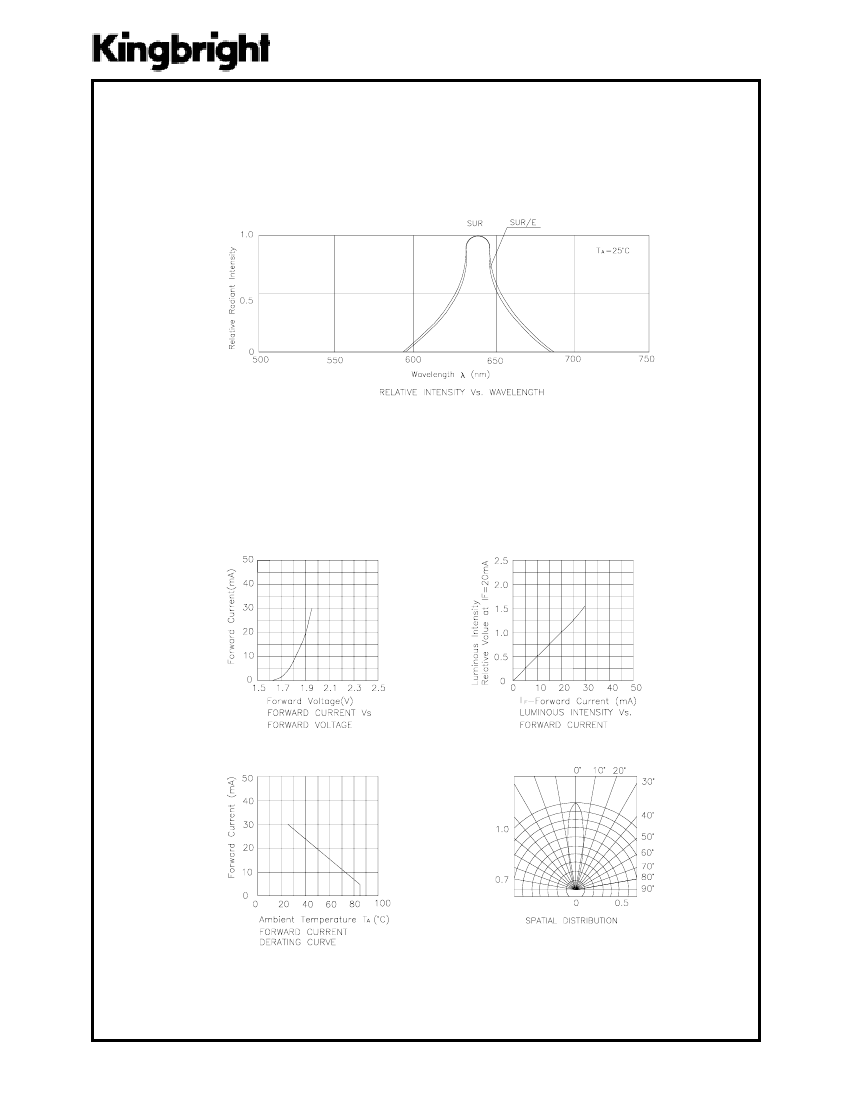

L1513SURC/E Related Products

	L1513SURC/E	L1513SURC
Description	T-1 3/4 SINGLE COLOR LED, HYPER RED, 5 mm, ROHS COMPLIANT PACKAGE-2	T-1 3/4 SINGLE COLOR LED, HYPER RED, 5 mm, ROHS COMPLIANT PACKAGE-2
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Kingbright	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown	unknown
Other features	IC COMPATIBLE	IC COMPATIBLE
color	HYPER RED	HYPER RED
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	2200.0 mcd	1800.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.6 mm	8.6 mm
method of packing	BULK	TAPE
peak wavelength	640 nm	640 nm
shape	ROUND	ROUND
size	5 mm	5 mm
surface mount	NO	NO
T code	T-1 3/4	T-1 3/4
Terminal surface	NOT SPECIFIED	NOT SPECIFIED
Terminal pitch	2.54 mm	2.54 mm
perspective	20 deg	20 deg
