Ratings
Voltage: 300 V
Temperature: -10 to 105 °C
Flammability: VW-1
Conductor
Conductor count: 2
Gauge: 16 AWG 1.32 mm2
Material: tinned copper strands
Strand size: Ø 0.25 mm x 26
Outer jacket
Material: PVC/38P
Color: red and black
Diameter: 4.8 ±0.30 mm (2.4±0.15 x 2)
Nominal thickness: 0.44 mm
Electrical requirements
Voltage test: 300 V
Spark test: 3.0 kV
Conductor maximum resistance at 20 °C:14.6 ohms/km
Jacket resistance at 20 °C: 10 Mohms/km
Dielectric test: 2000 Vac for 1 minute with no breakdown
Mechanical requirements
Jacket tensile strength: 1.05 kgf/mm2
After aging at 136±2 °C for 7 days:
Minimum tensile strength 70% of original
Minimum elongation 65% of original
Environmental requirements
Heat shock: 136±1 °C/1 hour, no observed degradation
Deformation: 136±1 °C/1 hour,
≤50%
Cold bend: -10±2 °C/1 hour, no observed cracking

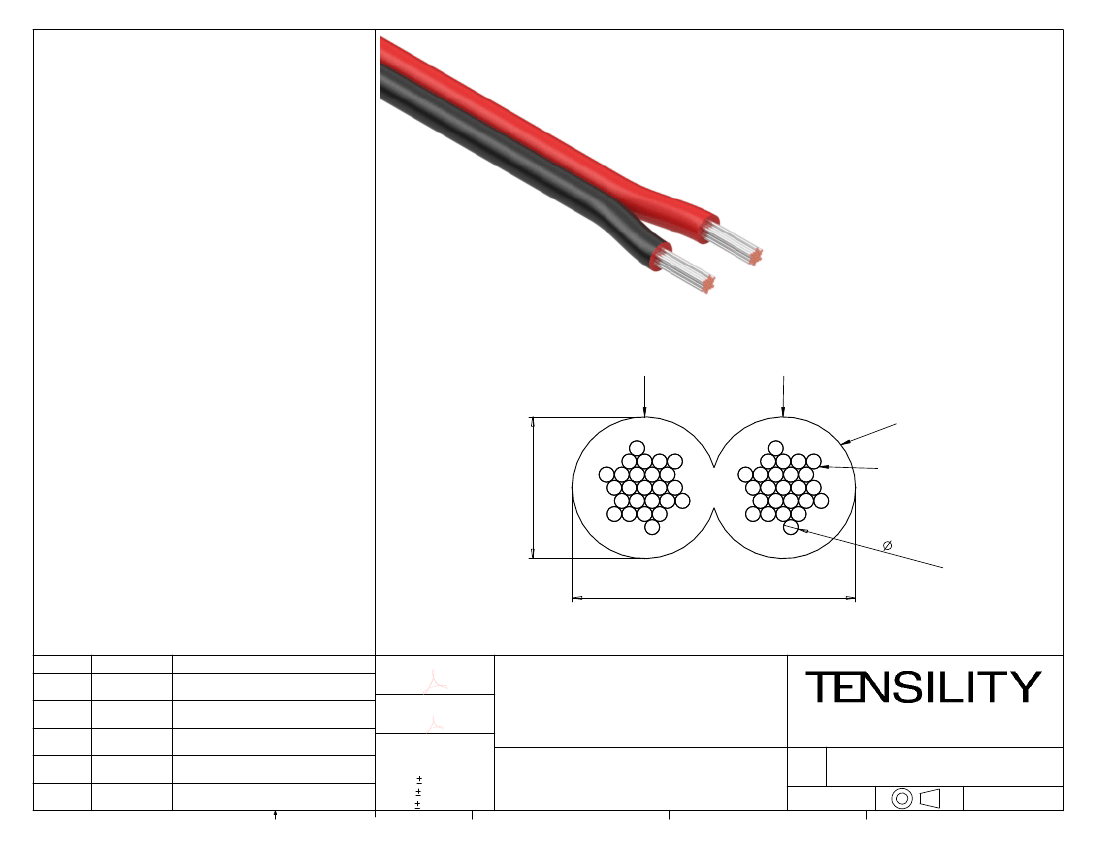

Wire marking:
E339579 UL AWM STYLE 2651 16 AWG 105°C
300V VW-1 - - - cUL AWM I A 105°C 300V FT1 TENSILITY
Marking
Red
Jacket
2.4 ±0.15
Conductor
0 . 25
x 26
4.8 ±0.30
Revision:
A
Date:
12/06/2017
Description:
Initial release
Prepared:
GL
Notes:
Digitally signed by GL
Date: 2017.10.05
14:59:04 -07'00'
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:
Wire, 2C TS, 16 AWG, UL2651, 300V, 105C, 4.8 mm,
VW-1, PVC, red and black
3
2
tel
fax
Verified:
PS
Digitally signed by PS
Date: 2017.10.17
16:44:46 -07'00'
Dimensions are in
millimeters.
Tolerances:
0.5 mm
X:
X.X:
0.3 mm
X.XX: 0.05 mm
5
4
1.541.323.3228
1.541.323.4202
Part number:
800
web
877.670.7118
tensility.com
Size:
A
Scale:
30-00792
15:1
1
Sheet 1 of 1
