Thermal-Magnetic Circuit Breaker 2210-T2...

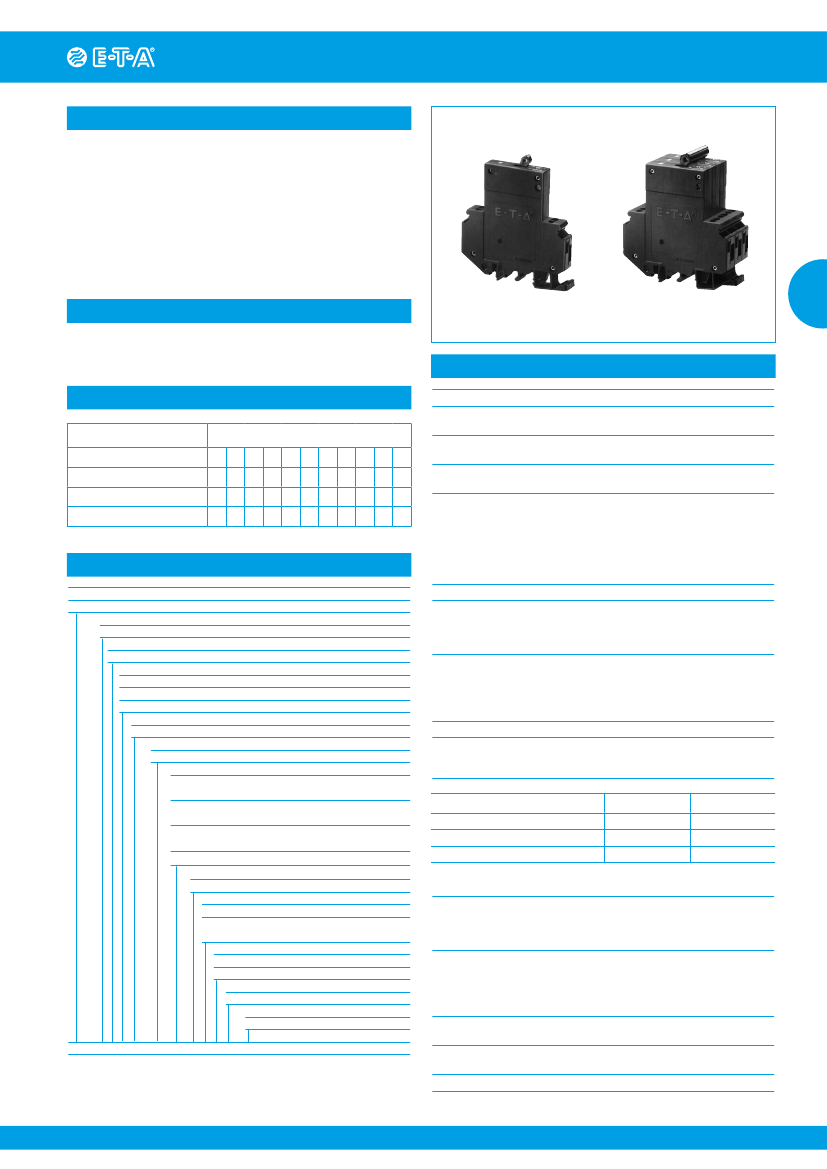

Description
One, two and three pole thermal-magnetic circuit breakers with trip-free
mechanism and toggle actuation (S-type TM CBE to EN 60934/IEC 934).
Featuring a combi-foot design for both symmetric and asymmetric rail
mounting. Available with auxiliary contact (1 x N/O or 1 x N/C) for status
signalling. Two and three pole models are internally linked to ensure that
both/all poles trip in the event of an overload on one pole, even if the
actuator is held in the ON position. This CBE can be supplied in current
ratings up to 32 A with a choice of characteristic curves. All screw
terminals are recessed for safety. Approved to CBE standard EN 60934
(IEC 60934).
Typical applications
Process control equipment, robotics, machine tool control,
communications systems, instrumentation.
1-pole
2210-T2..
1
3-pole
Technical data
For further details please see chapter: Technical Information
Voltage rating
AC 250 V; 3 AC 433 V (50/60 Hz); DC 65 V
(UL: AC 277/480 V; DC 65 V)
Current rating range
0.1...32 A for curves M1, T1
0.1...16 A for curves F1, F2
Auxiliary circuit
1 A, AC 240 V / DC 65 V, resistive
(min. 10 V / 10 mA)
Typical life
3 AC 433 V; AC 250 V: 0.1...25 A
10,000 operations at 1 x I
N
, inductive
DC 65 V:
0.1...32 A
10,000 operations at 1 x I
N
, inductive
3 AC 433 V; AC 250 V: 32 A
6,000 operations at 1 x I
N
, resistive
Ambient temperature
-30...+60 °C (-22...+140 °F) T 60
Insulation co-ordination
rated impulse
pollution
(IEC 60664 and 60664 A) withstand voltage
degree
2.5 kV
2
reinforced insulation in operating area
Dielectric strength
(IEC 60664 and 60664A)
test voltage
operating area
AC 3,000 V
main/aux. circuit
AC 3,000 V
pole/pole
AC 1,500 V
Insulation resistance
> 100 MΩ (DC 500 V)
Interrupting capacity I
cn
0.1...5 A
400 A
6...32 A
800 A
curves F1, F2, M1, T1: 0.1...16 A 2,500 A (at DC 32 V)
Interrupting capacity (UL 1077)
I
N
0.1...16 A
20...25 A
Preferred types
Preferred types
1-pole
2210-T210-K0M1-H121-
2-pole
2210-T220-K0M1-H221-
Standard current ratings (A)
0.5 1
x
x
2
x
3
x
4
x
5
x
6
x
8 10 16 20
x
x
x
x
0.5 1
2
x
3
4
x
5
6
x
8 10 16 20
x
x
x
Ordering information
Type No.
2210
single and multipole thermal-magnetic circuit breaker
Mounting
T
rail mounting
Actuator design
2
toggle
Number of poles
1
single pole protected
2
2-pole protected
3
3-pole protected
Accessories
0
without accessories
Terminal design (main contacts)
K0
screw terminals
Characteristic curve
F1
fast acting: therm.1.01-1.4xI
N
;
magn.2-4xI
N
DC (DC only)
F2
fast acting: therm.1.01-1.4xI
N
;
magn.3,5-6,5xI
N
AC/4,5-8,5xI
N
DC
M1
standard delay: therm. 1.01-1.4xI
N
;
magn. 6-12xI
N
AC, 7.8-15.6xI
N
DC
T1
delayed: therm. 1.01-1.4xI
N
; magn. 10-20xI
N
AC
Auxiliary contact design
H
without intermediate position
Auxiliary contacts
1
with auxiliary contacts
2
auxiliary contacts on pole 1 only
(multipole devices)
Auxiliary contact function (see diagrams)
2
1 N/O contact
3
1 N/C contact
Auxiliary contact - terminal design
1
screw terminals
Current ratings
0.1...32 A
2210 - T 2 1 0 - K0 M1- H 1 2 1 - 10 A
ordering example
AC 277 V
1-pole
AC 277/480 V
2-/3-pole
DC 65 V
Degree of protection
(IEC 60529/DIN 40050)
Vibration curves F1, F2:
curves M1, T1:
5,000 A
5,000 A
2,000 A
2,000 A
2,000 A
2,000 A
operating area IP30
terminal area IP20
3 g (57-500 Hz), ± 0.23 mm (10-57 Hz)
5 g (57-500 Hz), ± 0.38 mm (10-57 Hz)
to IEC 60068-2-6, test Fc
10 frequency cycles/axis
Shock
curves F1, F2: 25 g (11 ms), directions 1, 2, 3, 4, 5
10 g (11 ms), direction 6
curves M1, T1: 25 g (11 ms), directions 1, 2, 3, 4, 5
20 g (11 ms), direction 6
to IEC 60068-2-27, test Ea
Corrosion
96 hours at 5 % salt mist
to IEC 60068-2-11, test Ka
Humidity
240 hours at 95 % RH
to IEC 60068-2-78, test Cab
Mass
approx. 60 g per pole
1812
www.e-t-a.de
1

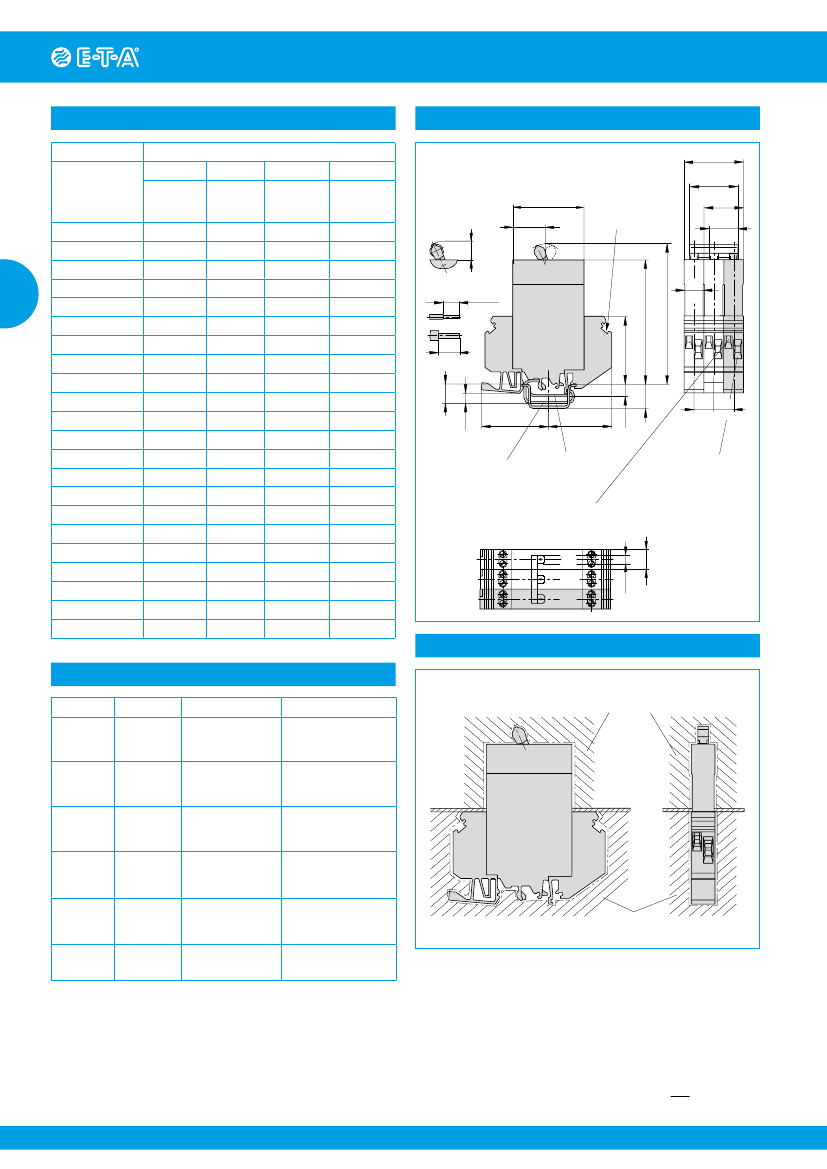

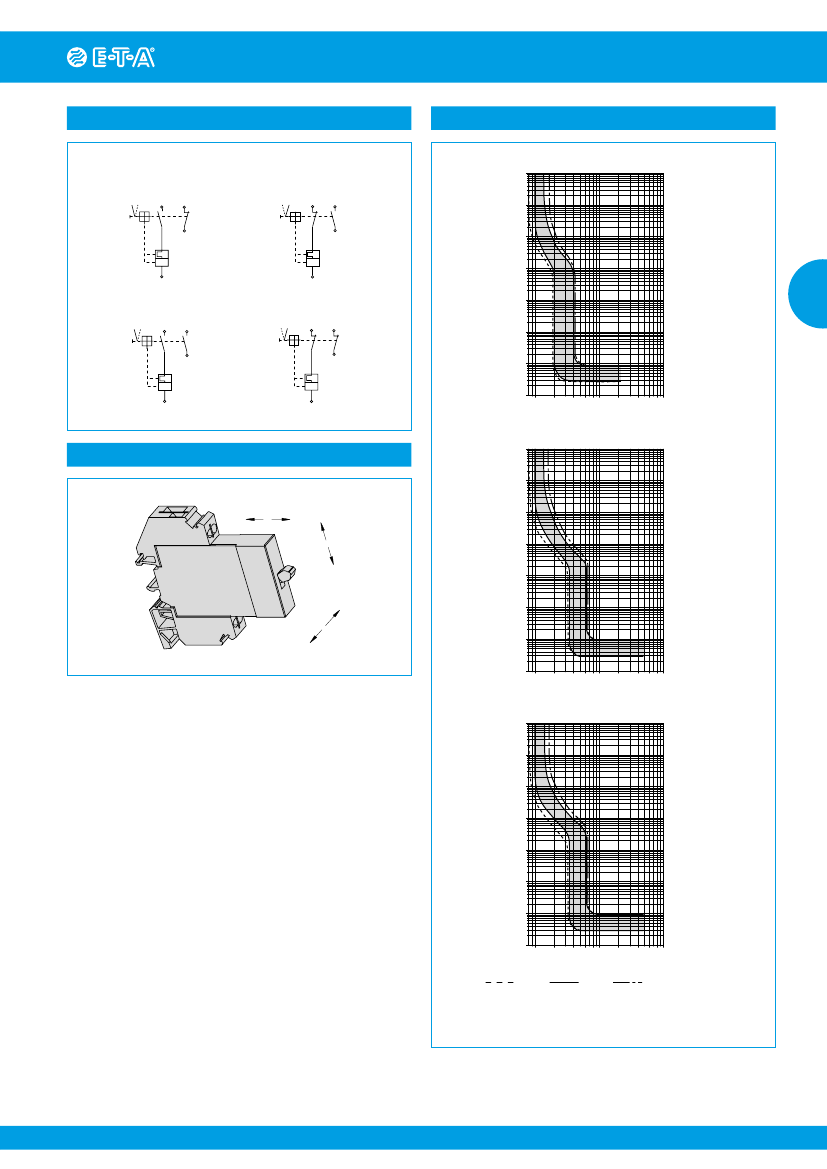

Thermal-Magnetic Circuit Breaker 2210-T2...

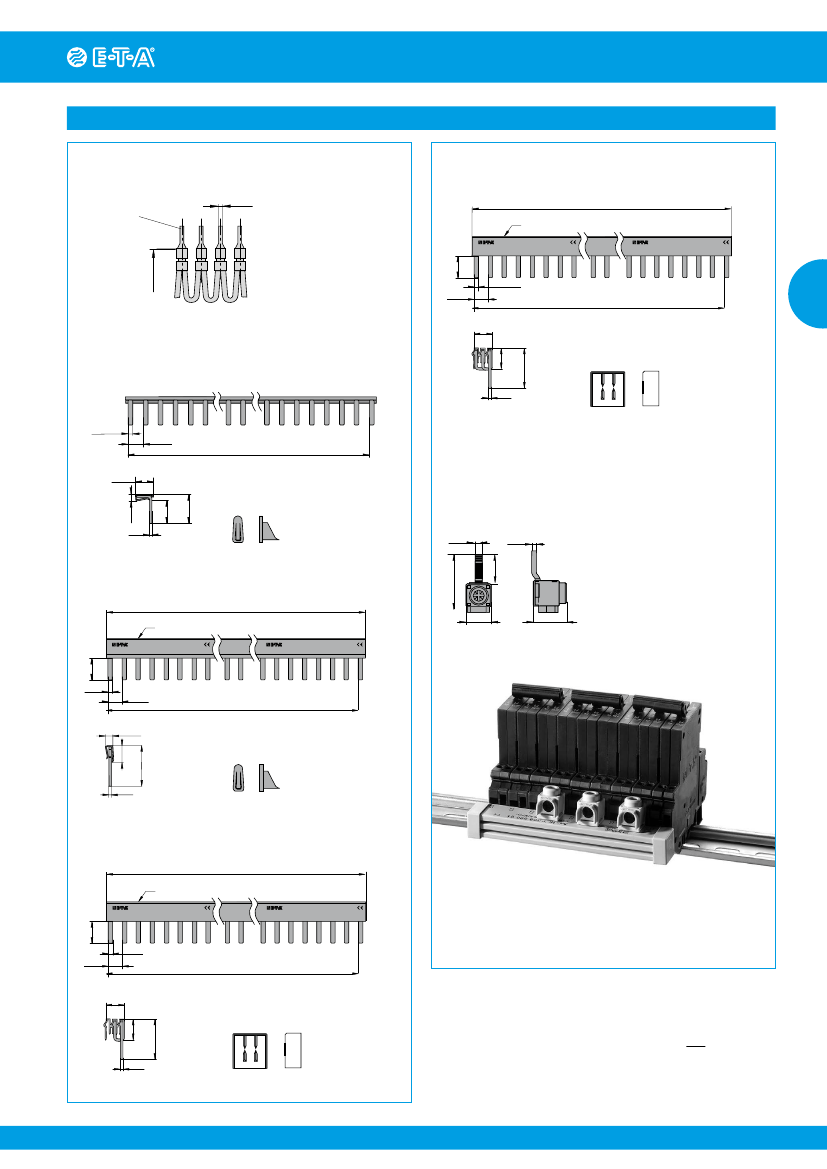

Accessories
Connector bus links -K10
X210 589 01/
2.5 mm
2
, (AWG 14) (black) up to 20 A max. load
X210 589 02/
1.5 mm
2
, (AWG 16) (brown) up to 13 A max. load
50 pin lugs to
DIN 46230
tinned copper
ø2.5
.099
Busbar 3-pole
Y 308 500 01
I
max
- busbar 100 A (40 °C)
1010
+2
39.764
+.079
marking 4 x on busbar
Art.-Nr. Y 308 500 01
L1
L2
L3
L1
L2
L3
L1
L2
L2
L3
L2
L3
L1
L2
L3
L1
L2
L2
L2
L2
L3
L1
L2
L3
Elektrotechnische Apparate GmbH
D-90418 Altdorf bei Nürnberg
Art.-Nr. Y 308 500 01
L2
L3
L2
L2
L1
L2
L3
L1
Elektrotechnische Apparate GmbH
D-90418 Altdorf bei Nürnberg
IEC 664 500 V/100 A (40 °C)
IEC 664 500 V/100 A (40°C)
~70
~2.76
16
.630
12.5
.492
3
±0.2
118
±.0082
80 x 12.5 = 1000
80 x .492 = 39.370
15.8
.622
17.3
.681
33,3
±0.4
1.311
±.016
Busbar 1-pole, 90°
X 222 540 01
The one metre long busbars can be cut to suitable lengths.
Plug-on caps can be fitted on the ends to provide brush
contact protection.
I
max
- busbar 100 A (40 °C)
1.5
.059
3
±0.2
.118
±.008
12.5
.492
79 x 12.5 = 987.5
79 x .492 = 38.878
14.7
.579
16
-1
.630
-.039
20
-1
.787
-.039
4.6
.181
Plug-on cap,
1-pole
Y 307 851 01
1.5
.059
Supply terminal
Y 308 503 01
I
max
63 A with 1-pole busbar,
50 A with multipole busbar
Max. tightening torque of terminal screw 2 Nm
Max. cable cross section: 25 mm
2
/ single strand
16 mm
2
/ multistrand
with wire end ferrule
3
.118
1.5
.059
16.2
.638
Busbar 1-pole
Y 308 498 01
I
max
- busbar 100 A (40 °C)
995
+2
39.173
+.079
marking 4 x on busbar
Art.-Nr. Y 308 498 01
Elektrotechnische Apparate GmbH
D-90418 Altdorf bei Nürnberg
33.7
1.327
13
.512
Art.-Nr. Y 308 498 01
Elektrotechnische Apparate GmbH
D-90418 Altdorf bei Nürnberg
IEC 664 500 V/100 A (40 °C)
IEC 664 500 V/100 A (40 °C)
16
.630
3
.118
12.5
.492
4.6
.181
14.7
.579
30.7
±0.4
1.209
±.016
79 x 12.5 = 987.5
79 x .492 = 38.878
Plug-on cap,
1-pole
Y 307 851 01
1.5
.059
Busbar 2-pole
Y 308 499 01
I
max
- busbar 100 A (40 °C)
995
+2
39.173
+.079
marking 4 x on busbar
Art.-Nr. Y 308 499 01
L1
L2
L1
L2
L1
L2
L1
L2
L2
L1
L1
L2
L1
L1
L2
L1
L2
L2
L1
L1
L2
L1
L2
L1
Elektrotechnische Apparate GmbH
D-90418 Altdorf bei Nürnberg
Art.-Nr. Y 308 499 01
L2
L1
L2
L1
L1
L1
L2
Elektrotechnische Apparate GmbH
D-90418 Altdorf bei Nürnberg
IEC 664 500 V/100 A (40 °C)
IEC 664 500 V/100 A (40 °C)
L2
Caution:
When using multipole busbars please leave at least one pole’s
width between two adjacent line entry terminals.
16
.630
12.5
.492
3
±0.2
.118
±.008
79 x 12.5 = 987.5
79 x .492 = 38.878
15.8
.622
17.3
.681
33,3
±0.4
1.311
±.016
Plug-on cap,
busbar 2/3-pole
Y 308 506 01
This is a metric design and millimeter dimensions take precedence ( mm )
inch
All dimensions without tolerances are for reference only. In the interest of improved design,
performance and cost effectiveness the right to make changes in these specifications
without notice is reserved.Product markings may not be exactly as the ordering codes.
Errors and omissions excepted.
1.5
.059
1812
www.e-t-a.de
L1
L2
L3
L2
L1
L2
L3
1
Plug-on cap,
busbar 2/3-pole
Y 308 506 01
18.4
.724
5
