Leaded Varistors
Taping
Taping (leaded varistors)
All leaded varistors are available on tape.
Exception: S10K510 … K680, S14K510 … K1000, S20K385 … K1000.
Tape packaging for lead spacing
= 5 fully conforms to IEC 60286-2, while for lead spacings
= 7,5 and 10 the taping mode is based on this standard.
The ordering tables on page 213 ff list disk types available on tape in detail, i. e. with complete type
designation and ordering code. Taping mode and, if relevant, crimp style and lead spacing are cod-
ed in the type designation. For types not listed please contact EPCOS. Upon request parts with lead
spacing
= 5 mm are available in Ammopack too.
Designation system for taping mode
Type designation
bulk
Taped, reel type
G
G2
G3
G4
G5
Crimp style
(if relevant)
Lead spacing
(if relevant)
see page 208
default = no extra
designation
Taped, Ammopack
GA
G2A
see page 209
S
S2
S3
S4
S5
R5
R7
see page 212
Lead spacing
differs from
standard
version
Example SIOV-S10K250GS3R5
SIOV-S10K250
G
Taped
Reel type
I
Seating plane height
H
0
=16
Example SIOV-S07K60G2AS2
SIOV-S07K60
G2A
Taped
Seating plane height
H
0
=18
Ammopack
S2
Crimp style 2
—
—
S3
Crimp style 3
R5
Lead spacing 5,0
(differs from LS 7,5
of standard version
S10K250)
206
04/02
Leaded Varistors
Taping
Taping modes/reel types
Taped varistors have the letter “G” appended to the type designation.
The different tapes and matching reel types are identified by numbers as shown in the table on
page 208.
Types with lead spacing
= 5, reel diameter 360 mm, have the code letter “G” while types with
lead spacing
= 7,5 and 10 on 500-mm reels are identified by “G5”.
Furthermore types with lead spacing
= 5 are available in Ammopack, code letters “GA”.
Versions G2, G3 and G4 are special tapes on 360-mm reels resp. Ammopack: G2 denotes the seat-
ing plane height
H
0
= 18 for crimped versions. Tapes G3 and G4 are available on 360-mm reels in
case the 500-mm reels are too big for your insertion machine.
Crimp styles
Both crimped and straight leads are standard for taped disk varistors. The leads are differently
crimped for technical reasons; the individual crimp styles are denoted by consecutive numbers
(S, S2 … S5) as shown in the dimensional drawings on page 212.
The crimp styles of the individual types can be seen from the type designation in the ordering tables.
Example straight leads:
Example crimped leads:
Lead spacing
Type series SIOV-S10 is available with two different lead spacings:
= 5,0 (wire
Æ
0,6 mm)
= 7,5 (wire
Æ
0,8 mm)
For taped varistors having a different lead spacing from their untaped equivalents, the actual
appended to type designation.
Example: S10K250GS3R5
The standard lead spacing of series SIOV-S10 is
appendix “R5”.
= 7,5. The version with
is
S10K250G5
S10K250G5S5
= 5,0 has the
207
04/02
Leaded Varistors
Taping
Assignment of taping mode to reel type
Taping mode
Reel type
Seating plane height
H
0
for crimped types
mm
16
18
16
18
16
16
18
Seating plane height
H
for uncrimped types
mm
18
—
18
—
18
18
—
G
1)
G2
G3
G4
G5
GA
G2A
I
I
II
II
III
Ammopack
Ammopack
Taping modes G2, G3, G4, GA and G2A: delivery upon request.
Reel
Direction of unreeling
Tape
Reel dimensions
(in mm)
Reel type
I
II
III
d
360 max.
360 max.
500 max.
f
31
±
1
31
±
1
23
±
1
n
approx. 45
approx. 55
approx. 59
w
54 max.
64 max.
72 max.
If reel type
III
is not compatible with insertion equipment because of its large diameter, type series
S10 and S14 can be supplied on reel
II
upon request (taping mode G3).
1) “1” is omitted.
208
04/02
Leaded Varistors
Taping
Ammopack dimensions
Bamboo sticks,
Cardboard folding
carton
340 × 226 × 55 mm
340
226
Paper adhesive tape,
width 50 mm
55
Label
Paper adhesive tape,
width 50 mm
VAR0402-G
209
04/02
Leaded Varistors
Taping

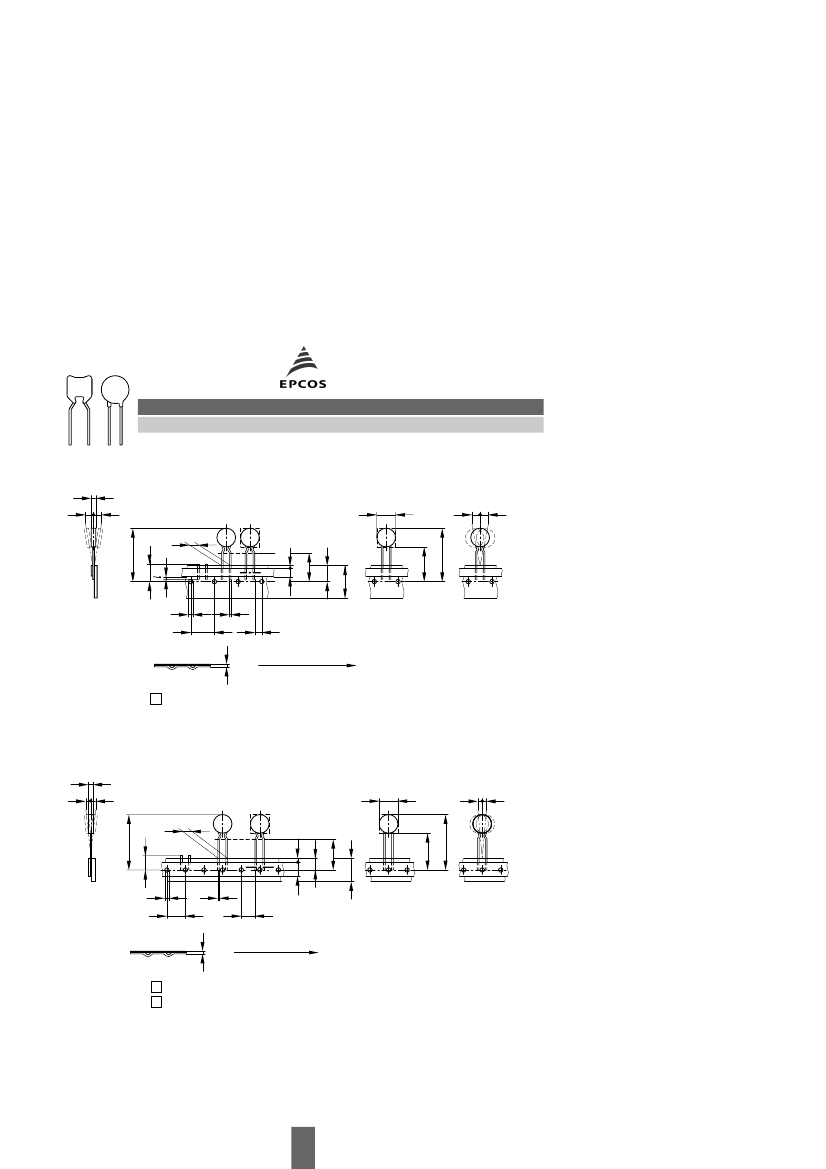

Taping in accordance with IEC 60286-2
s
∆
h
∆
h
F
b
∆
p
∆
p
H
1
W
2
H
0
A
B
W
1
L
D
0
P
0
Section A-B
d
P
1
Direction of unreeling
F
=
e
= 5,0 mm (except S ... R5)
t
W
0
W
H
H
1
Taping based on IEC 60286-2
s
<
VAR0410-X
∆
h
∆
h
F
b
∆
p
∆
p
H
1
W
2
W
1
L
H
0
A
B
D
0
P
0
Section A-B
d
P
1
Direction of unreeling
F
=
e
= 7,5 mm (including S ... R5)
F
=
e
= 10 mm (including S ... R5)
t
W
0
W
H
H
1
< <
VAR0395-J
210
04/02
