ThermaTEC
™
Series HT4,6,F2,2143
Innovative
Technology
for a
Connected
World
Thermoelectric Modules
The ThermaTEC
™
Series of thermoelectric modules (TEMs) are designed to operate under
cycling conditions or high temperature applications.
This product line is available in multiple configurations and is ideal for applications
that require both heating and cooling mode (reverse polarity) or power generation.
Assembled with proprietary solder construction, Bismuth Telluride semiconductor material
and thermally conductive Aluminum Oxide ceramics, the ThermaTEC
™
Series is designed
for higher current and larger heat-pumping applications.
FEaTurES
•
•
•
•
•
•
Thermal Cycling Durability
Power Cycling Reliability
Precise Temperature Control
Strong Lead Attachment
RoHS Compliant
Continuous Operation
at High Temperatures
appliCaTionS
•
•
•
•
•
•
Analytical Instrumentation
PCR Cyclers
Thermal Test Sockets
Electronic Enclosure Cooling
Chillers (Liquid Cooling)
Power Generation
perforMance SpecificaTionS
hot Side Temperature (°c)
Qmax (Watts)
delta Tmax (°c)
imax (amps)
Vmax (Volts)
Module resistance (ohms)
Suffix ThickneSS
(prior To Tinning)
11
Ta
TB
0.150”± 0.005”
0.150”± 0.001”
0.150”± 0.0005”
25°C
16.4
64
3.8
7.2
1.73
flaTneSS &
paralleliSM
0.002” / 0.0035”
0.001” / 0.001”
0.0005” / 0.0005”
50°C
18.0
75
3.8
8.2
1.95
hoT
face
Lapped
Lapped
Lapped
cold
face
Lapped
Lapped
Lapped
lead
length
6.0
6.0”
6.0”
SEaling opTion
Suffix
r
e
SealanT color
RTV
Epoxy
White
Black
TeMp range
-60 to 204 °C
-55 to 150 °C
deScripTion
Non-corrosive, silicone adhesive sealant
Low density syntactic foam epoxy encapsulant
global
solutions:
local
support
Americas: +1 888.246.9050
Europe: +46.31.420530
Asia: +86.755.2714.1166
clv.customerpos@lairdtech.com
www.lairdtech.com
TM
ThermaTEC
™
Series HT4,6,F2,2143
Innovative
Technology
for a
Connected
World
Thermoelectric Modules

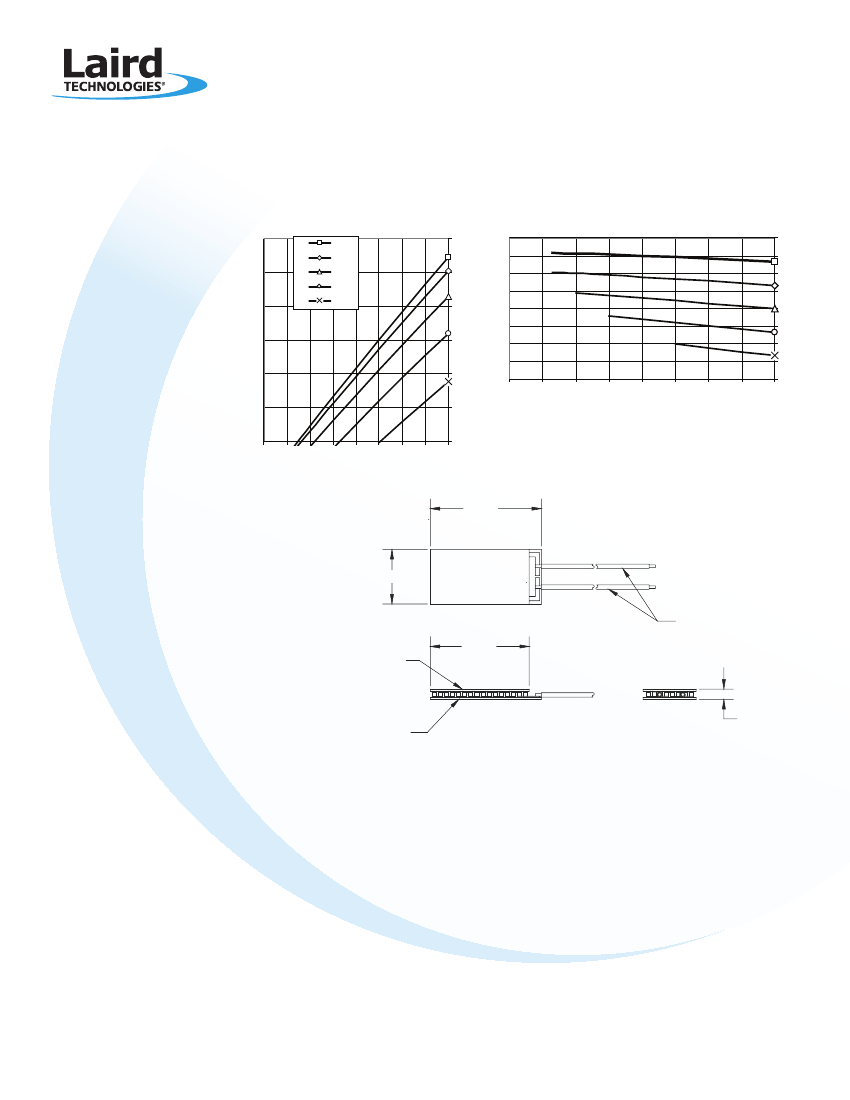

Performance Curves at Th = 25°C
THErmo
3.8
3.1
2.3
1.5
0.8
ElECTriC
18.0
15.0
12.0
8.0
7.0
5.0
4.0
Qc (W)
3.0
2.0
1.0
0.0
80
70
60
50
40
30
20
10
0
9.0
6.0
3.0
0.0
80
70
60
50
40
30
20
10
0
Delta T (°C)
Delta T (°C)
1.70
(43.2)
(+) ORANGE
0.81 (20.6)
(-) BLACK
18 AWG TEFLON INSUL
6.0 (152) IN LENGTH
COLD FACE
(SEE TABLE)
1.51
(38.4)
HOT FACE
(SEE TABLE)
THICKNESS
(SEE TABLE)
Ceramic Material: Alumina (Al
2
O
3
)
Solder Construction: 271°C, Proprietary
opEraTing TipS
• Max Operating Temperature: 175°C
• Do not exceed Imax or Vmax when
operating module
• Reference assembly guidelines for
recommended installation
THR-DS-HT4,6,F2,2143 0509
