BT-300.000MCC-T

Description
OSC SO 300.000MHZ LVDS SMD
CategoryPassive components
File Size974KB,1 Pages
ManufacturerTXC Corporation
Websitehttp://www.txccrystal.com/
Environmental Compliance
Download Datasheet Parametric View All

BT-300.000MCC-T Overview

OSC SO 300.000MHZ LVDS SMD

BT-300.000MCC-T Parametric

Parameter NameAttribute value
typeSO(SAW)
frequency300MHz
Functionenable/disable
outputLVDS
Voltage - Power2.5V
frequency stability±100ppm
Operating temperature-10°C ~ 70°C
Current - Power (maximum)80mA
grade-
Installation typesurface mount
Package/casing6-SMD, no leads
size/dimensions0.276" long x 0.197" wide (7.00mm x 5.00mm)
Height - Installation (maximum)0.071"(1.80mm)
Current - Power (disabled) (maximum)-
Think of Frequency Think of
come visit our site http://www.txccorp.com

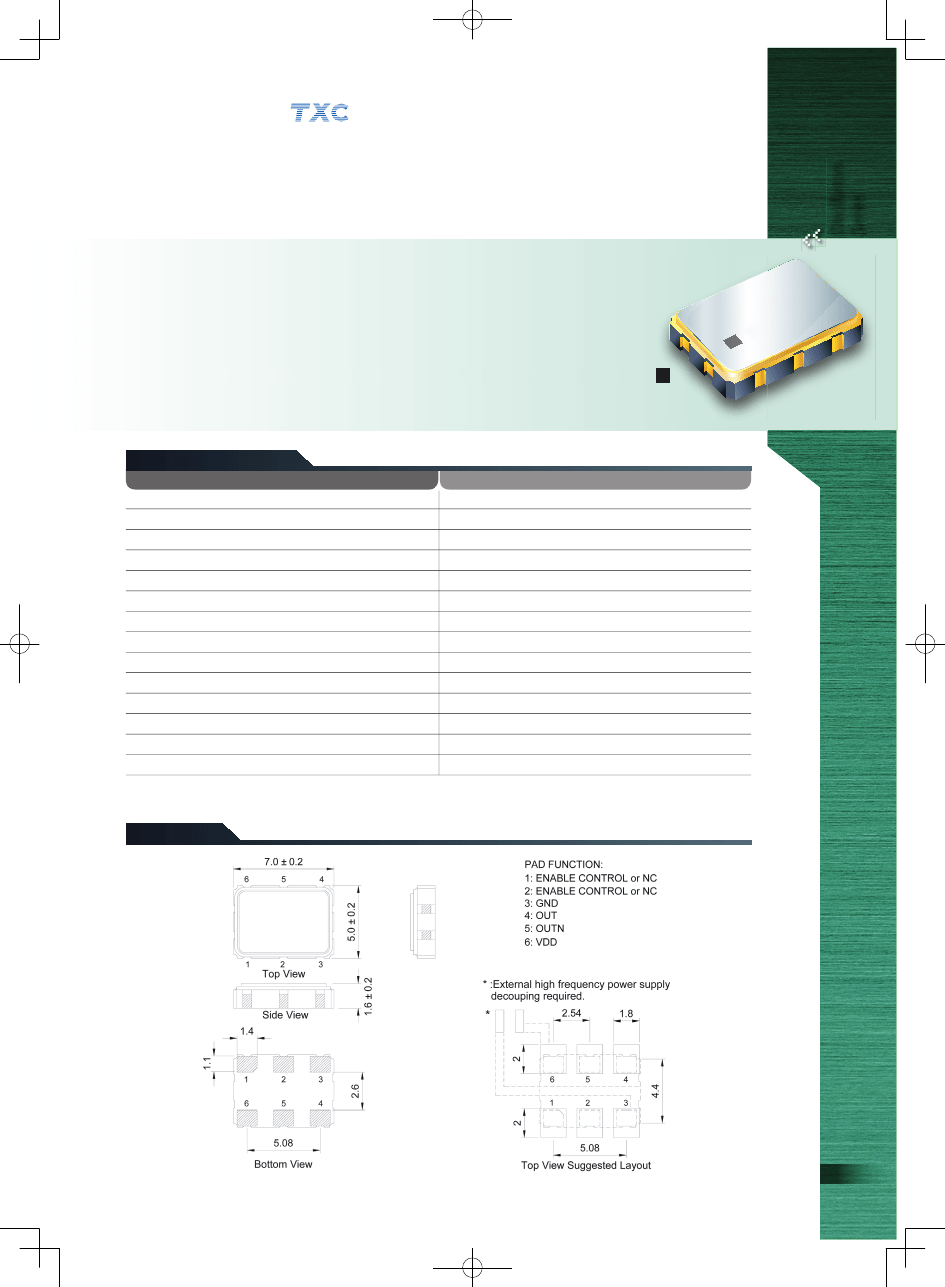

Features
SAW base solution.
3.3V and 2.5V operation available.
LVDS output, output frequencies 150 MHz to 700 MHz.
Excellent low phase noise and jitter.
Tri-State function available.
Applications
: Fibre Channel, Gigabit Ethernet, Serial ATA, Serial Attached SCSI,
pplications
H
SY1 00
T
B B 6.25
T 15
PCI-Express, SDH / SONET.
RoHS Compliant / Pb Free.
Electrical Specifications
Item / Type
Output Type
Output Load
Oscillation Mode
Supply Voltage
Frequency Range
Overall Frequency Stability *
Operating Temperature Range
Storage Temperature Range
Voltage Vol(Min.) / Voh (Max.)
Rise ( Tr ) / Fall ( Tf ) Time ( 20 % ~ 80 % )
Supply Current
Symmetry
Start-up Time
Phase Jitter ( 12 KHz ~ 20 MHz )
BT
LVDS
100
Ω
Fundamental
2.5 V , 3.3 V
150 ~ 700 MHz
±
100 ppm , or specify
-10 ~ + 70
, - 5 ~ + 85
, or specify
- 55 ~ + 125
0.9 V / 1.6 V
1 nS Max.
80 mA Max.
45 ~ 55 %
10 mS Max.
1 pS Max.
* Inclusive of frequency tolerance at 25
, variation over temperature, supply voltage variation, aging and vibration.
Dimensions
Units: mm
Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
Oscillators
Series
73
SMD LVDS SAW
Oscillators - Differential Output
7.0 x 5.0 x 1.6 mm BT Series
