16_N-50-9-6/003_-E: DescriptionRF N Connector, Male, Cable Mount, Clamp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

16_N-50-9-6/003_-E Overview

RF N Connector, Male, Cable Mount, Clamp Terminal, Plug, ROHS COMPLIANT

16_N-50-9-6/003_-E Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: IEC 61169-16, MIL-STD-348A/304, VSWR MAX AT 3GHZ
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE/PPO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	N
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	WATERPROOF
Panel mounting	NO
Termination type	CLAMP
voltage standing wave ratio	1.11
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

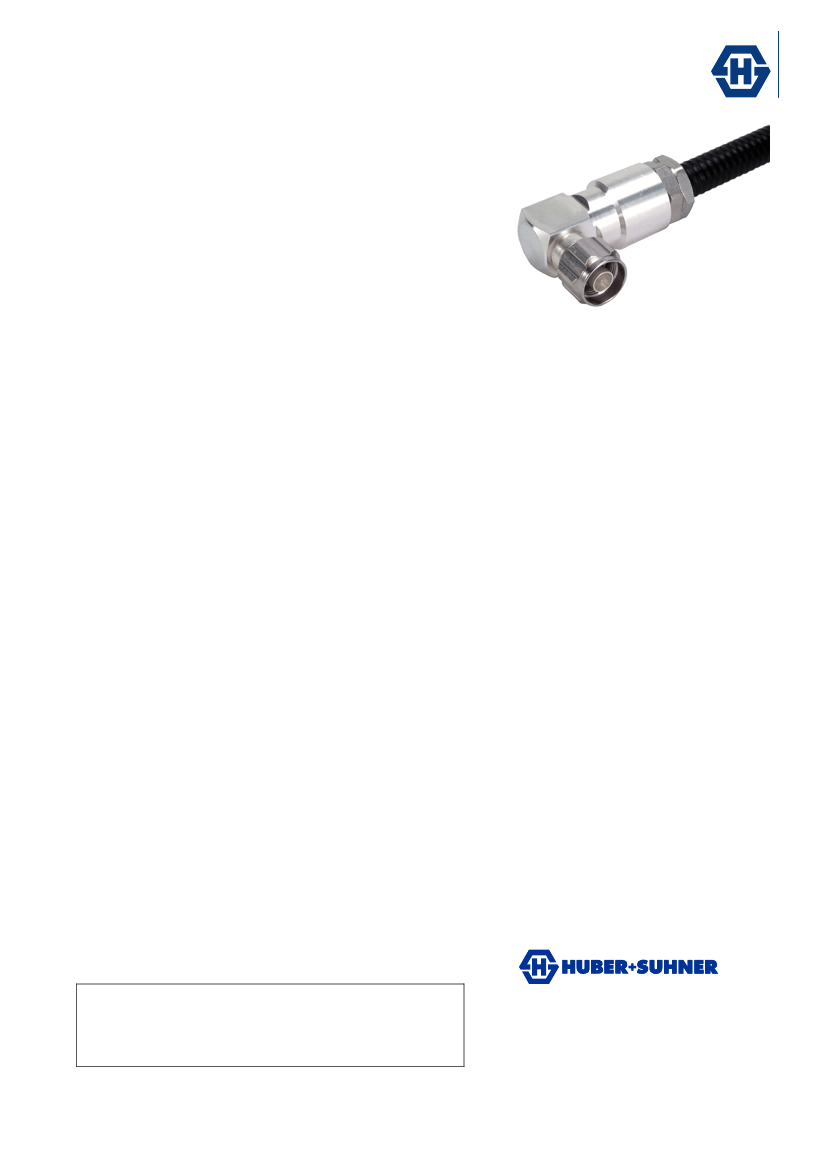

DATA SHEET

Coaxial Cable Connector: 16_N-50-9-6/003_-

Description

Rev.: C

Right angle cable plug

QUICK-FIT connector

For outdoor applications

Water protection according to IP 68

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

Intermodulation

50

Ω

11 GHz

DC to 2.5 GHz

2.5 to 3 GHz

≥ 30 dB

≥ 26 dB

≤ -155 dBc (2 x 43 dBm carrier)

plugged

clamped

0.164 kg

-40 °C to 85 °C

compliant

Material

Bronze / Brass

Brass

PFA / PTFE / PPO

Brass

MVQ (Silicone Rubber)

DOU-00006735

DOU-00006737

DOC-0000179418

16_N-50-9-6/003_-E

SUCOFEED_1/2_HF, SUCOFEED_1/2_HF_FR, SUCOFEED_1/2_HF_FR_UL, Heliax

FSJ4-50B, NK Cables RFF 1/2-50, Cellflex SCF12-50

IEC 61169-16_MIL-STD-348A/304_CECC 22210

Surface Plating

Silver Plating

SUCOPLATE (R) Plating

Mechanical Data

Centre contact

Outer contact

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

16_N-50-9-6/003_-E Related Products

	16_N-50-9-6/003_-E	16N-50-9-6/003-E
Description	RF N Connector, Male, Cable Mount, Clamp Terminal, Plug, ROHS COMPLIANT	CABLE TERMINATED, MALE, N CONNECTOR, CLAMP, PLUG, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	unknow
Other features	STANDARDS: IEC 61169-16, MIL-STD-348A/304, VSWR MAX AT 3GHZ	STANDARDS: IEC 61169-16, MIL-STD-348A/304, VSWR MAX AT 3GHZ
Body/casing type	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω
Connector type	RF N CONNECTOR	RF N CONNECTOR
Contact to complete cooperation	SILVER	SILVER
Contact completed and terminated	SILVER	SILVER
Contact point gender	MALE	MALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	YES	YES
insulator material	PFA/PTFE/PPO	PFA/PTFE/PPO
MIL compliance	YES	YES
Manufacturer's serial number	N	N
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE
Maximum operating frequency	11 GHz	11 GHz
Options	WATERPROOF	WATERPROOF
Panel mounting	NO	NO
Termination type	CLAMP	CLAMP
voltage standing wave ratio	1.11	1.11
Base Number Matches	1	1
