140 MHz Filter
14 MHz Bandwidth
Part Number SF0140CF51925T
Micro Networks., 324 Clark Street, Worcester, MA 01606, USA tel: 508-852-5400, fax:508-852-8456, www.micronetworks.com

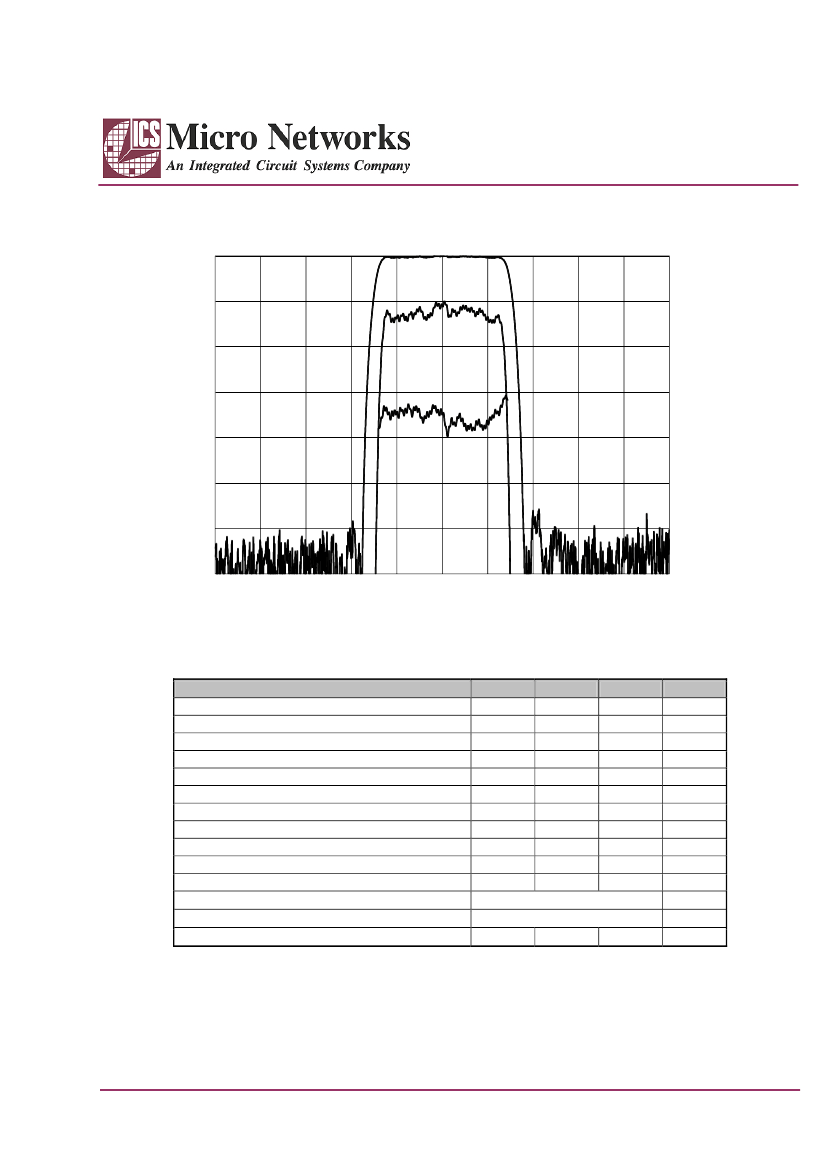

TYPICAL PERFORMANCE
Horizontal: 5.0 MHz/div
Vertical (from top):
Magnitude
Magnitude
Phase
10 dB/div
1 dB/div
5 deg/div
SPECIFICATION
Parameter
Center Frequency ( Fc)
1
Insertion Loss at Fc
1 dB Bandwidth
3 dB Bandwidth
40 dB Bandwidth
Passband Ripple
Phase Ripple
Group Delay Ripple
Absolute Delay
Ultimate Rejection
Temperature Coefficient of Frequency
Substrate Material
Source and Load Impedance
Ambient Temperature
Notes:
1: Mean Value of 3 dB band edges.
Min.
139.8
Typ.
Max.
140.0
140.2
21.0
24
13.2
13.4
14
14.2
17.1
17.6
0.5
0.6
4.0
6
30
90
1.67
50
60
-96
YZ Lithium Niobate
50
25
Units.
MHz
dB
MHz
MHz
MHz
dB
deg p-p
ns p-p
us
dB
ppm/º C
Ω
ºC
Rev 1.0 30-Oct-02
Page 1 of 2
140 MHz Filter
14 MHz Bandwidth
Part Number SF0140CF51925T
Micro Networks., 324 Clark Street, Worcester, MA 01606, USA tel: 508-852-5400, fax:508-852-8456, www.micronetworks.com

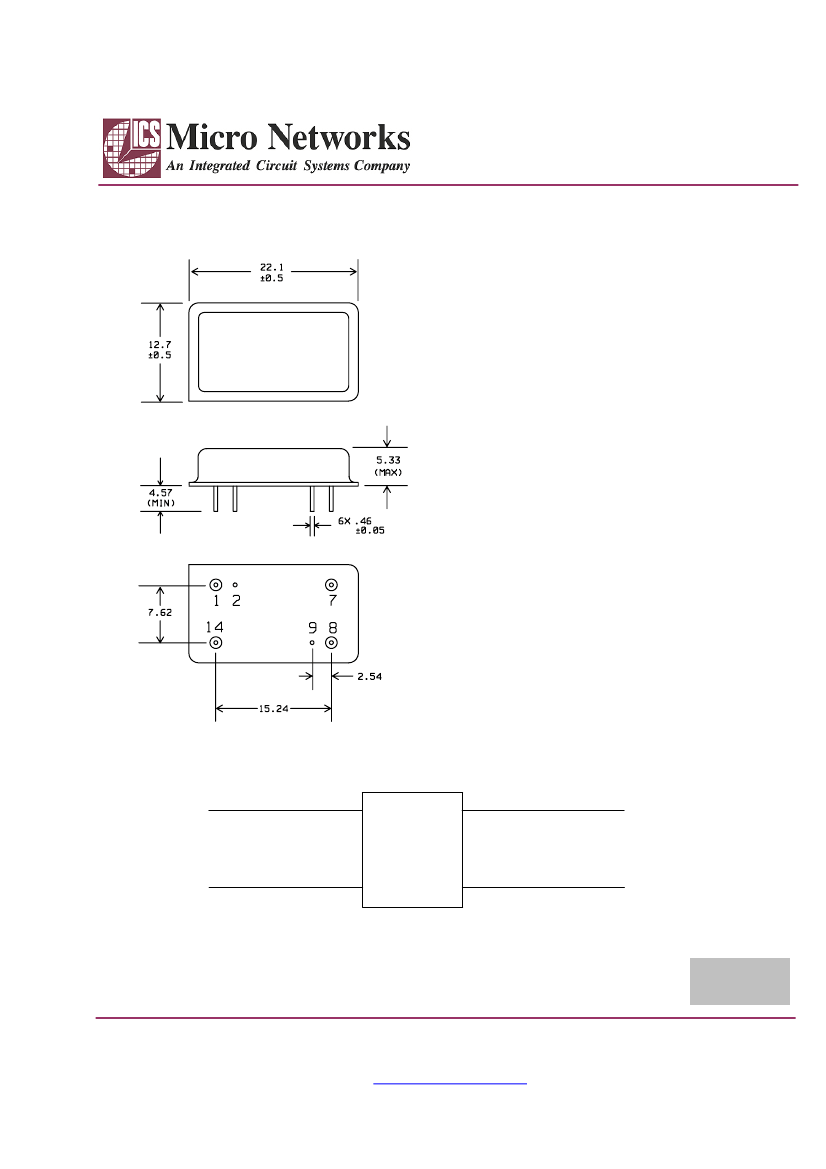

PACKAGE OUTLINE
Units:
mm
Pin Configuration:
Input:
14
Input Return: 1
Output:
8
Output Return: 7
Ground:
2, 9
MATCHING CIRCUIT
14
Input
8
Output
1
No Matching required
7
ISO 9001
Registered
Micro Networks
Worldwide Headquarters: 324 Clark Street Worcester, MA 01606. tel: 508-852-5400 fax: 508-852-8456
European Sales Headquarters: Hertosingel 20 6214 AD Maastricht, Netherlands. tel: +31-43-32-70912 fax: +31-43-32-70715
www.micronetworks.com
Rev 1.0 30-Oct-02
Page 2 of 2
