SDR623CTJ
Thru
SDR626DRJ
40A 35nsec 300-600 V
Hyper Fast Centertap Rectifier
Features
:
•
•
•
•
•
•
•
•
•
•
Hyper Fast Recovery: 35nsec Maximum
3/
High Surge Rating
Low Reverse Leakage Current
Low Junction Capacitance
Isolated Hermetically Sealed Package
Gold Eutectic Die Attach
Ultrasonic Aluminum Wire Bonds
Availabl e in Common Anode, Common Cathode,
Doubler, and Doubler Reverse Configurations
Custom Lead Forming Available
TX, TXV, and S-Level Screening Available
2/
Designer’s Data Sheet
Part Number/Ordering Information
1/
SDR62
__ __ __ __ __
¦
¦
¦¦ ¦
+
Screening
2/
__
= Not Screened
¦
¦
¦
TX = TX Level
¦ ¦
¦
¦
TXV = TXV Level
¦ ¦
¦
S = S Level
¦
¦ ¦
¦
¦
+
Leg Bend Option
¦
¦
¦
(See Figure 1)
¦
¦
+
¦
¦
Package
J = TO-257(J)
¦
¦
Configuration
CT = Common Cathode,
¦
+
CA = Common Anode, D = Doubler,
¦
¦
DR = Doubler Reverse
+
Voltage
3 = 300V, 4 = 400V, 5 = 500V, 6 = 600V
Maximum Ratings
SDR623__J
SDR624__J
SDR625__J
SDR626__J
Symbol
V
RRM
V
RWM
V
R
Io
I
FSM
T
OP
& T
STG
R
θ
JC
Value
300
400
500
600
40
200
-65 to +175
1.0
2.1
Units
Peak Repetitive Reverse Voltage
Volts
Average Rectified Forward Current
(Resistive Load, 60 Hz Sine Wave, T
A
= 25 °C)
4/
Peak Surge Current
(8.3 ms Pulse, Half Sine Wave, T
A
= 25 °C)
Operating & Storage Temperature
Maximum Total Thermal Resistance
Junction to Case
4/
Junction to Case
5/
-
5/
Amps
Amps
ºC
ºC/W
Notes:
1/ For ordering information, Price, Operating Curves, and Availability- Contact Factory.
2/ Screened to MIL-PRF-19500.
3/ Recovery Conditions: I
F
= 0.5 Amp, I
R
= 1.0 Amp, rec. to .25 Amp.
4/ Both Legs Tied Together.
5/ Per Leg.
TO-257(J)
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RH0051D
DOC
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, CA 90638
Phone: (562) 404-7855 * Fax: (562) 404-1773
ssdi@ssdi-power.com * www.ssdi-power.com
SDR623CTJ
Thru
SDR626DRJ
Symbol
T
A
= 25 ºC
T
A
= 25 ºC
T
A
= 100 ºC
T
A
= -55 ºC
T
A
= 25 ºC
T
A
= 100 ºC
V
F1
V
F2
V
F3
V
F4
I
R1
I
R2
t
RR
C
J
Electrical Characteristics, per leg
Instantaneous Forward Voltage Drop
(I
F
= 10Adc, Pulse)
(I
F
= 20Adc, Pulse)
Instantaneous Forward Voltage Drop
(I
F
= 10Adc, Pulse)
Reverse Leakage Current
(100% of rated V
R
, Pulse)
Reverse Recovery Time
(I
F
= 0.5A, I
R
= 1A, I
RR
= 0.25A, T
A
= 25ºC)
Junction Capacitance
(V
R
= 10V
DC
, T
A
= 25ºC, f = 1MHz)
Max
1.4
1.7
1.3
1.5
50
5
35
150
Units
V
DC
V
DC
µA
mΑ
nsec
pF

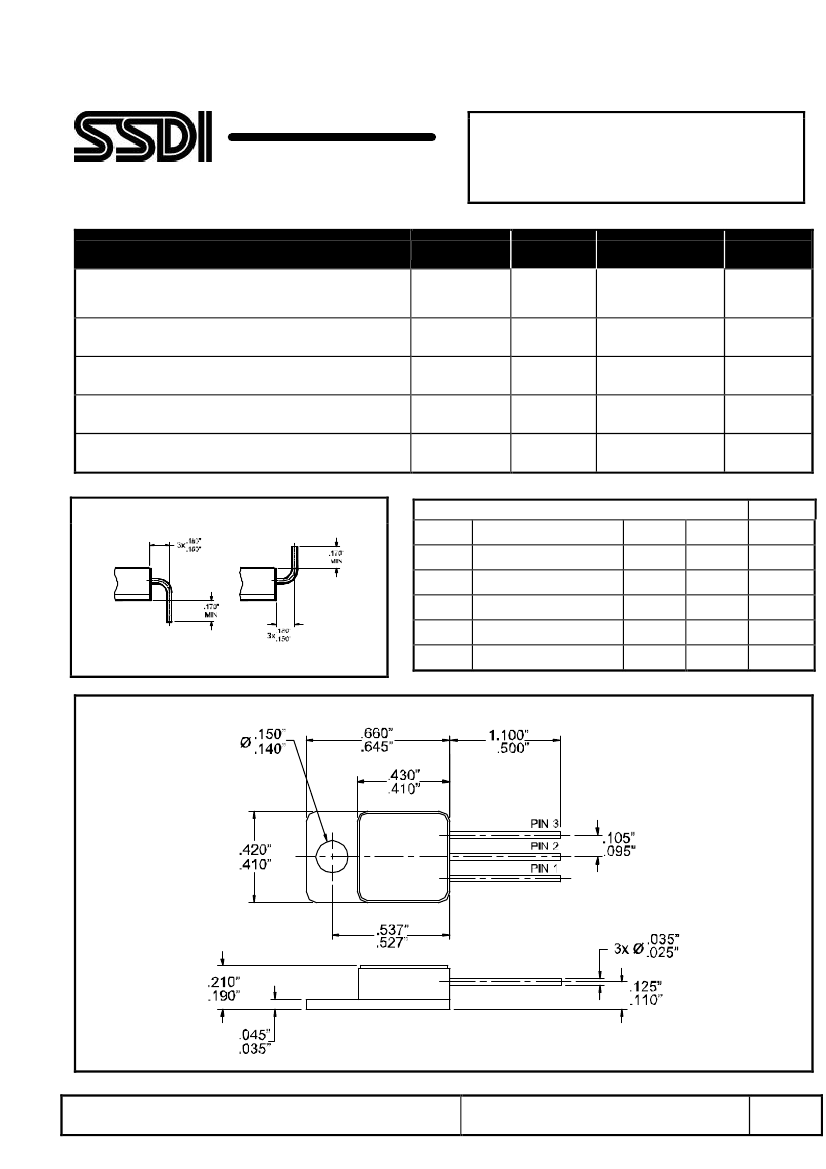

Figure 1- Optional Lead Bends
Code
CT
CA
D
DR
Suffix JDB
TO-257(J) Outline:
Suffix JUB
PIN ASSIGNMENT
FUNCTION
Common Cathode
Common Anode
Doubler
Doubler Reverse
Pin 1
Anode1
Cathode1
Cathode
Anode
Pin 2
Cathode
Anode
Common
Common
Pin 3
Anode2
Cathode2
Anode
Cathode
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: RH0051D
DOC
