IVIPOWER-4PIN-R10 datasheet, PDF

Datasheet> All Categories > Power/power management> Plug in ac adapter> Desktop type AC adapter> IVIPOWER-4PIN-R10

IVIPOWER-4PIN-R10: DescriptionDesktop AC adapter Qseven Rev. 2.0 module supports Intel Atom quad-core processor E3845 (10W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio and RoHS; CategoryPower/power management Plug in ac adapter Desktop type AC adapter; File Size599KB，3 Pages; ManufacturerIEI; Environmental Compliance

Download Datasheet Parametric Compare View All

IVIPOWER-4PIN-R10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IVIPOWER-4PIN-R10	-	-	View	Buy Now

IVIPOWER-4PIN-R10 Overview

Desktop AC adapter Qseven Rev. 2.0 module supports Intel Atom quad-core processor E3845 (10W), On-board 2GB DDR3L, LVDS, DDI, GbE, SATA 3Gb/s, USB 3.0, SDIO, Audio and RoHS

IVIPOWER-4PIN-R10 Parametric

Parameter Name	Attribute value
Maker	IEI
Product Category	Desktop AC Adapter
Shipping restrictions	Mouser does not currently sell this product.
series	IVIPOWER
Factory packaging quantity	1

Preview

Download Datasheet

View All

Industrial System

w w w.ieiworld.com

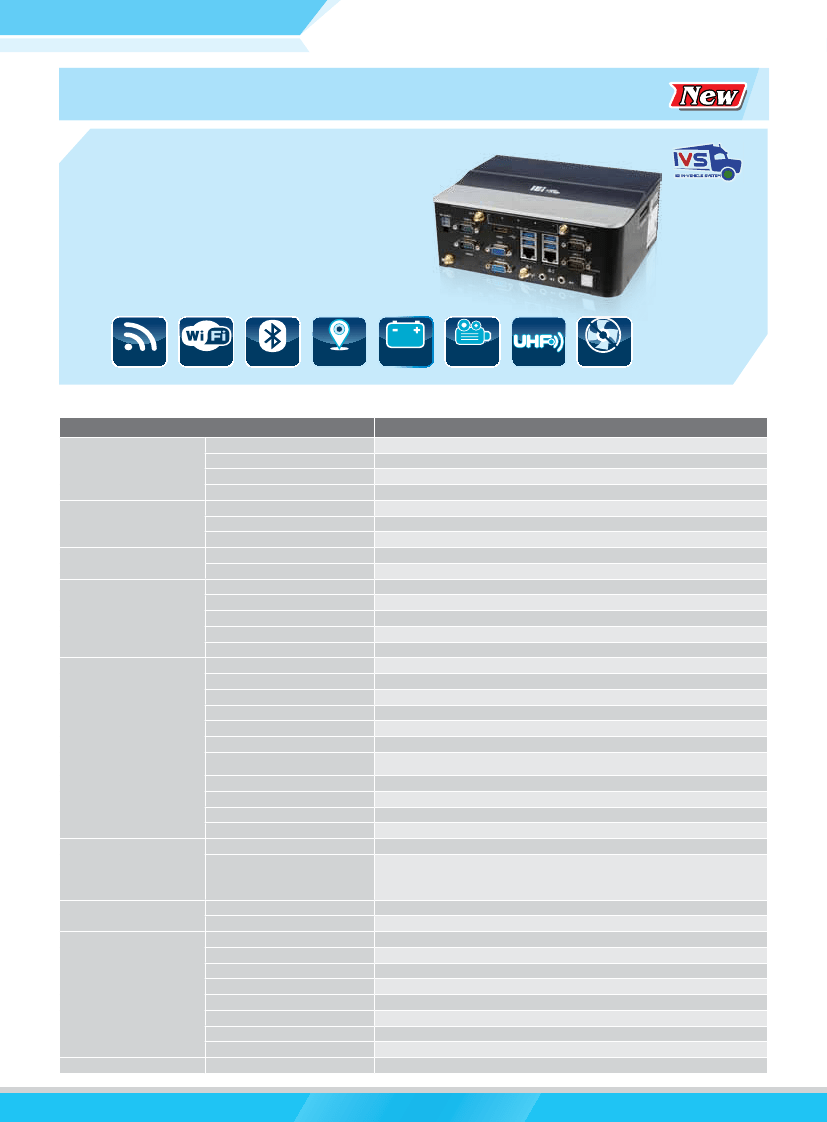

IVS-100-BT

Features

Vehicle Fleet Management System

●

Intel® Atom® E3826 1.46 GHz CPU

●

Supports 2.5" SATA 3Gb/s SSD

●

Built-in GPS function

●

Built-in VGA output and HDMI output

●

Dual SIM slot

●

Optional 3G/Wi-Fi/UHF reader modules

●

Optional software compression video capture card

3.75G/HSUPA

Wi-Fi

Bluetooth

GPS

Power

Management

Video

Capture

Fanless

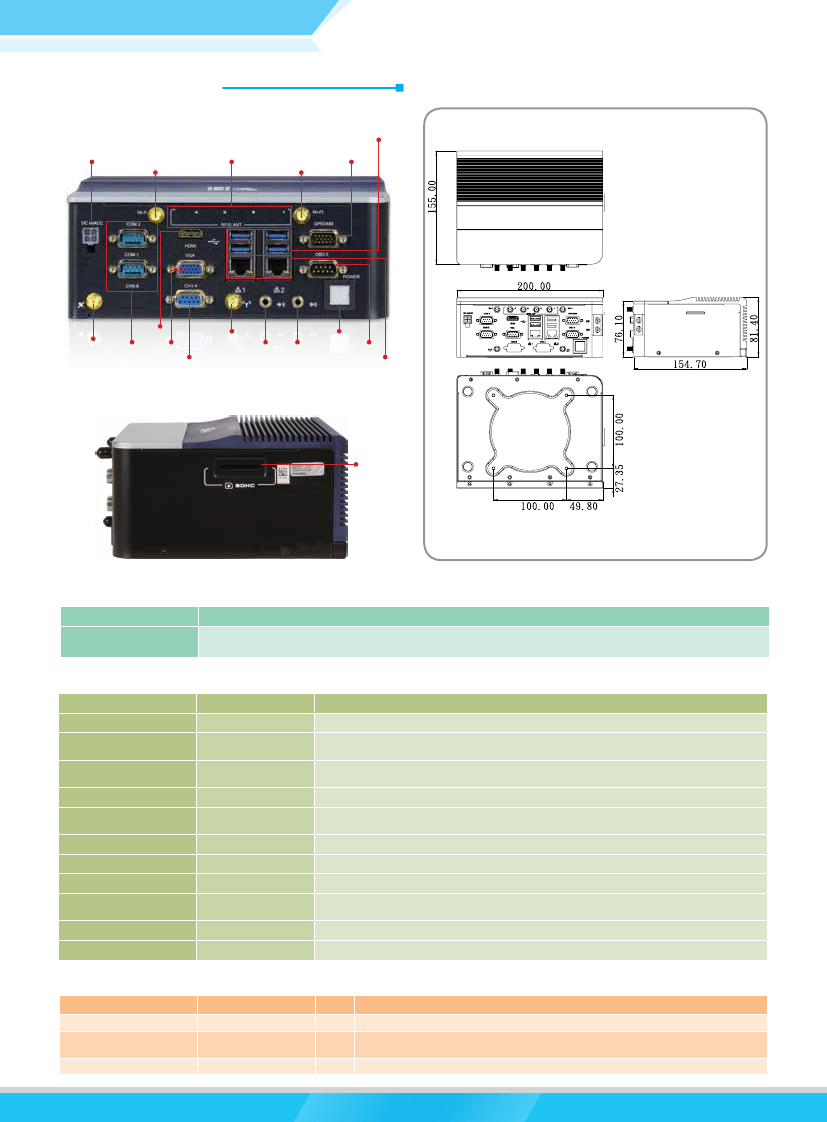

Specifications

Model Name

Color

Chassis

Dimensions (WxHxD) (mm)

System Fan

Chassis Construction

CPU

Motherboard

Chipset

System Memory

Storage

Hard Drive

SD Card

WLAN

Bluetooth

Communication

WWAN

RFID

GPS

USB 3.0

Ethernet

COM Port

Digital I/O

CAN-bus/OBD-II

I/O Interfaces

Display

Resolution

Audio

SIM

Antenna

Other

PCI

Expansions

PCIe Mini

Power Input

Consumption

Mounting

Operating Temperature

Storage Temperature

Reliability

Humidity

Operating Shock

Operating Vibration

Weight (Net/Gross)

Safety/EMC

Supported OS

IVS-100-BT

Blue C

200 x 76 x 150

Fanless

Extruded aluminum alloy

Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W TDP)

SoC

2 x 204-pin DDR3 SO-DIMM slot, pre-installed one 2 GB DDR3 SO-DIMM

1 x 2.5" SATA 3Gb/s HDD/SSD drive bay

1 (supports SD 2.0, max. 32 GB)

PCIe Mini Wi-Fi 802.11b/g/n 1T1R (optional)

Bluetooth 2.0 combined with WWAN module (optional)

PCIe Mini, WCDMA/HSDPA/HSUPA (optional)

UHF module, 902 MHz ~ 928 MHz operating band (optional)

On board GPS

2 x 10/100/1000 Mbps RJ-45 by RTL8111E PCIe GbE

1 x DB-15 RS-422/485, 2 x RS-232

8-bit digital I/O (4-bit input, 4-bit output)

1 x DB-9 CAN-bus/OBD-II

1 x VGA, 1 x HDMI

HDMI: Up to 1920 x 1080 @ 60 Hz

VGA: Up to 2560 x 1600 @ 60 Hz

1 x Line in, 1 x Line out

2 x Wi-Fi/BT, 1 x WWAN, 1 x GPS, 4 x UHF

4-channel SC video capture card (optional)

1 x PCI-104

1 x Full-size PCIe Mini (reserved for 3G module),

1 x Full-size PCIe Mini (reserved for capture card module),

1 x Full-size PCIe Mini (reserved for analog DIO module),

1 x Full-size PCIe Mini (reserved for Wi-Fi module)

Cigarette lighter power cable, DC 9 V~30 V

12 V @ 3.2 A (Intel® Atom™ E3826 with 2 GB DDR3 memory)

VESA 100

-20°C ~ 60°C with air flow

-30°C ~ 70°C

5% ~ 95%, non-condensing

Half-sine wave shock 5G, 11ms, 3 shocks per axis

MIL-STD-810F 514.5C-2 (with SSD)

2.1 kg/3.6 kg

CE/FCC/E-Mark

Microsoft® Windows® Embedded 8, Microsoft® Windows® Embedded Standard 7 E

Power

IVS-100-BT-2016-V11
