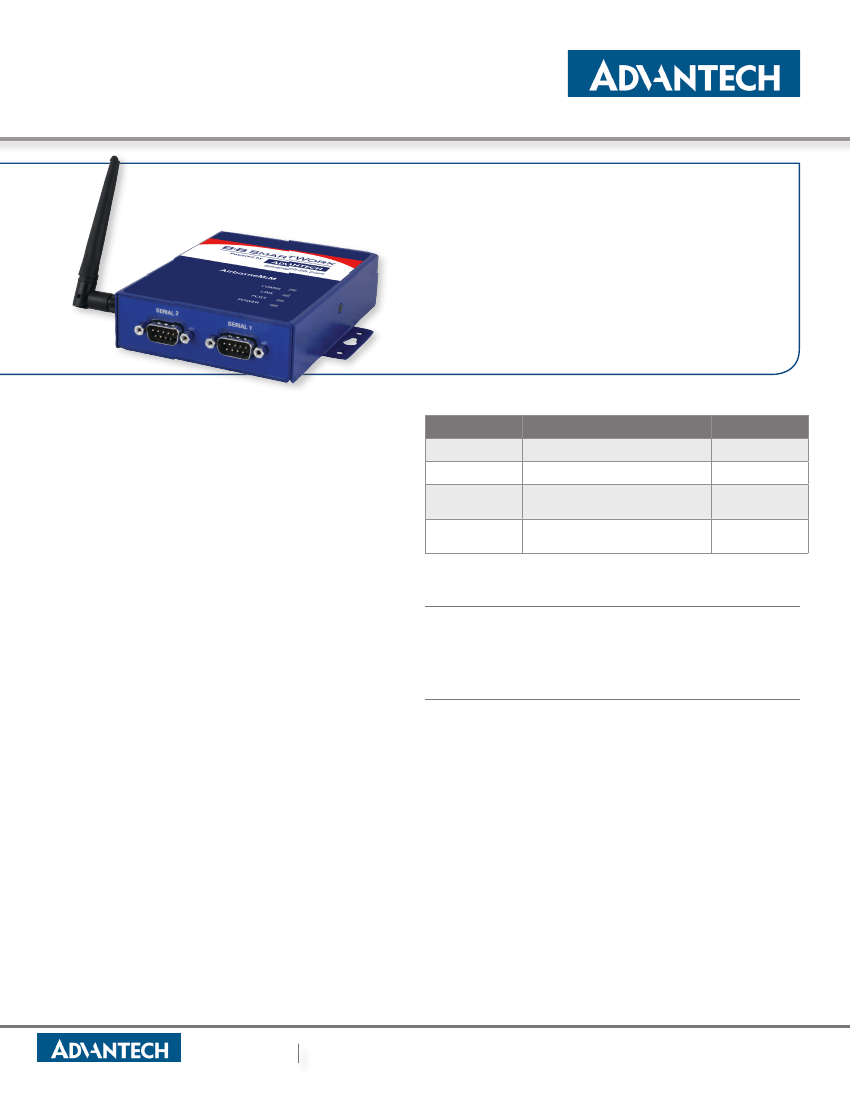

Dual Band (2.4 GHz, 5 GHz) Wi-Fi
Ethernet Bridge/Router, Serial Server
AirborneM2M
TM
Industrial ABDN-xx-IN50xx Series
www.advantech.com
PRODUCT FEATURES
•
•
•
•
•
•
RS-232/422/485 or 10/100 Mbps Ethernet to 802.11a/b/g/n (2.4, 5 GHz)
Advanced Enterprise class wireless security
One or two serial ports, one Ethernet port
Wide operating temperature: -40 to +85 °C
PoE 802.3af Power-over-Ethernet (Model BB-ABDN-ER-IN5018 = “PD”)
5-36 VDC variable DC power supply (USA cord included; other cords sold
separately)
AirborneM
2
M
TM
Industrial Wireless Device Serial Servers and Ethernet Bridge/
Routers are built for networking equipment in a wide array of machine-to-
machine (M
2
M) applications. AirborneM
2
M industrial series features industrial
strength packaging and supports a wide temperature rating (-40 to +85 °C)
to withstand challenging M
2
M environments. Available in both single and dual
serial port models or a single Ethernet port model.
These AirborneM
2
M products establish wireless connections over both 2.4
GHz and 5 GHz bands. Whenever the 2.4 GHz airspace is overcrowded with
competing wireless transmission, AirborneM
2
M products can be switched over
to 5 GHz band to keep data flowing.
Powering Options
_External 5-36 VDC power source required. USA power cord included, other
cords sold separately.
_Power-over-Ethernet (PoE) 802.3af, Powered Device (PD) (Model ABDN-ER-
IN5018 only)
ORDERING INFORMATION
MODEL NUMBER
DESCRIPTION
–
BB-ABDN-ER-IN5010 Ethernet Bridge/Router
Band (2.4 / 5 GHz)
Industrial Wireless, Dual
BB-ABDN-ER-IN5018 Ethernet Bridge/Router, PoE (PD)
–
Industrial Wireless, Dual Band (2.4 / 5 GHz)
Serial Device Server –
BB-ABDN-SE-IN5410
Industrial Wireless, Dual Band (2.4 / 5 GHz)
- with one RS-232/422/485 port
Serial Device Server –
BB-ABDN-SE-IN5420
Industrial Wireless, Dual Band (2.4 / 5 GHz)
- with two RS-232/422/485 ports
Available in:
North America, European Union (EU), Japan
POWER-OVER-ETHERNET
POE
no
YES
(PD)
no
no
ACCESSORIES - sold separately
BB-PS-WDS – 120-240 VAC, 50/60 Hz, 5 VDC, 2A barrel connector power supply
(Note: includes USA cord; other cords sold separately.)
BB-MDR-20-24 – 120-240 VAC, 50/60 Hz, 24 VDC, 1.0A DIN rail power supply
BB-ACH2-DBAT-DP002 – 2dBi portable (rubber duck) 2.4GHz / 5GHz antenna
All product specifications are subject to change without notice.
ABDN-er-se-IN50xx_EthBridgeRouter-SerSvr_1819ds
orders@advantech-bb.com
eSales@advantech-bb.com
Headquarters: 707 Dayton Rd, PO Box 1040 Ottawa, IL 61350 USA (815)433-5100 or
(800)346-3119/
Toll Free Fax (815)433-5104
European Office: Westlink Commercial Pk, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Dual Band (2.4 GHz, 5 GHz) Wi-Fi
Ethernet Bridge/Router, Serial Server
AirborneM2M
TM
Industrial ABDN-xx-IN50xx Series
SPECIFICATIONS
TECHNOLOGY
Wireless Technology
IEEE 802.11 a/b/g/n, Wi-Fi Compliant
2 ports, RS-232/422/485,
(RS-232/422 4- wire or RS-485 2 wire)
Wired Interface
10/100 Ethernet port (Bridge, Router (NAT3) Modes)
Software selectable
2.4~2.4835 GHz (US/Canada/Europe)
2.4~2.497 GHz (Japan)
Frequency
5.150 ~ 5.350 GHz
5.725 ~ 5.825 GHz
Modulation Technology DSSS, CCK, OFDM
Modulation Type
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Network Access Modes Infrastructure (Client), Ad Hoc
US/Canada: 11 Channels 802.11b/g
13 Channels 802.11a
Europe:
13 Channels 802.11b/g
19 Channels 802.11a
France:
4 Channels 802.11b/g
Japan:
14 Channels 802.11b
13 Channels 802.11g
23 Channels 802.11a
802.11a/g = 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Wireless Data Rates
802.11b = 11, 5.5, 2, 1 Mbps
802.11n = 65, 58.5, 42, 39, 26, 19.5, 13, 6.5 Mbps
TCP/IP, ARP, ICMP, DHCP, DHS, UDAP, TFTP, UDP, PING,
Network Protocols
HTTP, FTP
54Mb/s = -72 dBm
36Mb/s = -78 dBm
Receive Sensitivity
18Mb/s = -84 dBm
– 802.11 b/g
6Mb/s = -89 dBm
11Mb/s = -86 dBm
1Mb/s = -92 dBm
54Mb/s = -74 dBm
Receive Sensitivity
36Mb/s = -80 dBm
– 802.11 a
6Mb/s = -90 dBm
- Open, WEP 64 & 128 bit, WPA-PSK (TKIP), WPA2-PSK
(AES), 802.1x (EAP), WPA-Enterprise, WPA2-Enterprise,
EAP-TLS/MSCHAPv2, EAP-TTLS/MSCHAPv2, EAP-TTLS
Wireless Security
(MD5), EAP-PEAPv0/MSCHAPv2, LEAP
- Zero host security footprint
- Advanced certificate storage and management
Secure Communications SSH and SSL tunneling.
Encrypted configuration.
802.11b = 15 dBm (31.6mW)
Transmit Power
802.11g = 12.6dBm (18.12mW)
802.11a = 17 dBm (50.1mW)
POWER
Input Voltage
Power Connection
Power Use
Supply In-rush Current
Source (all models)
5-36VDC +/-5%, 500mA (maximum)
2-position terminal block, 2.1mm barrel jack
2.5W at 5VDC
3000 mA (maximum) for 20ms
External, required
(USA cord included, other cords sold separately)
Power-over-Ethernet, using a 802.3af Class 1
(Model# BB-ABDN-ER-IN5018 only)
PoE “PD”
(select model)
LED INDICATORS
4 LEDs
COMM, LINK, POWER, POST (Power on Self Test)
ENVIRONMENTAL
Operating Temperature -40 to +85 °C
Storage Temperature
-40 to +85 °C
Operating Humidity
5 to 95%, non-condensing
MECHANICAL
Antenna
RP-SMA Omni-directional 5.5 dBi 2.4GHz / 5GHz Antenna
Enclosure
Metal enclosure
Mounting
Panel mount, optional DIN rail brackets
Dimensions
12.1 x 12.0 x 2.9 cm (4.9 x 4.7 x 1.2 in)
MEANTIME BETWEEN FAILURES (MTBF)
BB-ABDN-ER-IN5010 = 392467 hours
BB-ABDN-ER-IN5018 = 377995 hours
MTBF
BB-ABDN-SE-IN5410 = 360740 hours
BB-ABDN-SE-IN5420 = 350412 hours
MTBF Calc. Method
MIL 217F (Parts Count Reliability Prediction)
APPROVALS, DIRECTIVES & STANDARDS
North America
FCC Title 47 Part 15 Class B Sub C Intentional Radiator
2014/35/EU - Low Voltage Directive
2014/53/EU - Radio Equipment Directive (RED)
Hereby, Advantech B+B SmartWorx declares that the radio equipment
type Wi-Fi Ethernet Bridge/Router or Serial Server is in compliance
CE - Directives
with Directive 2014/53/EU. The full text of the EU declaration of
(Europe)
conformity is available at the following internet address:
www.
advantech-bb.com
2011/65/EU - Reduction of Hazardous Substances Directive (RoHS)
2012/19/EU - Waste Electrical & Electronic Equipment Directive
(WEEE)
EMC:
ETSI EN 300 328 v2.1.1 - EMC & Radio Spectrum Matters (ERM)
Wideband Transmission Systems - 2.4 GHz ISM Band
ETSI EN 301 893 v2.1.1 - EMC & Radio Spectrum Matters (ERM)
Wideband Transmission Systems - 5 GHz ISM Band
ETSI EN 301 489-1 v2.1.1 - Applied in accordance with the specific
requirements of:
ETSI EN 301 489-17 v3.1.1 - EMC & Radio Spectrum Matters (ERM)
Broadband Data Systems
EN 55032+AC, Class A - Information Technology Equipment (ITE) - RF
CE - Standards
Emissions
(Europe)
EN 55024 - Information Technology Equipment (ITE) - Immunity
Characteristics - Limits and Methods of Measurement
Safety:
EN 60950-1 + A1 + A11 + A12 + A2 - Information Technology Equipment
- Safety - Part 1 - General Requirements
RF Exposure:
EN 62311 - Assessment of electronic and electrical equipment related to
human exposure restrictions for EM fields (0 Hz to 300 GHz)
