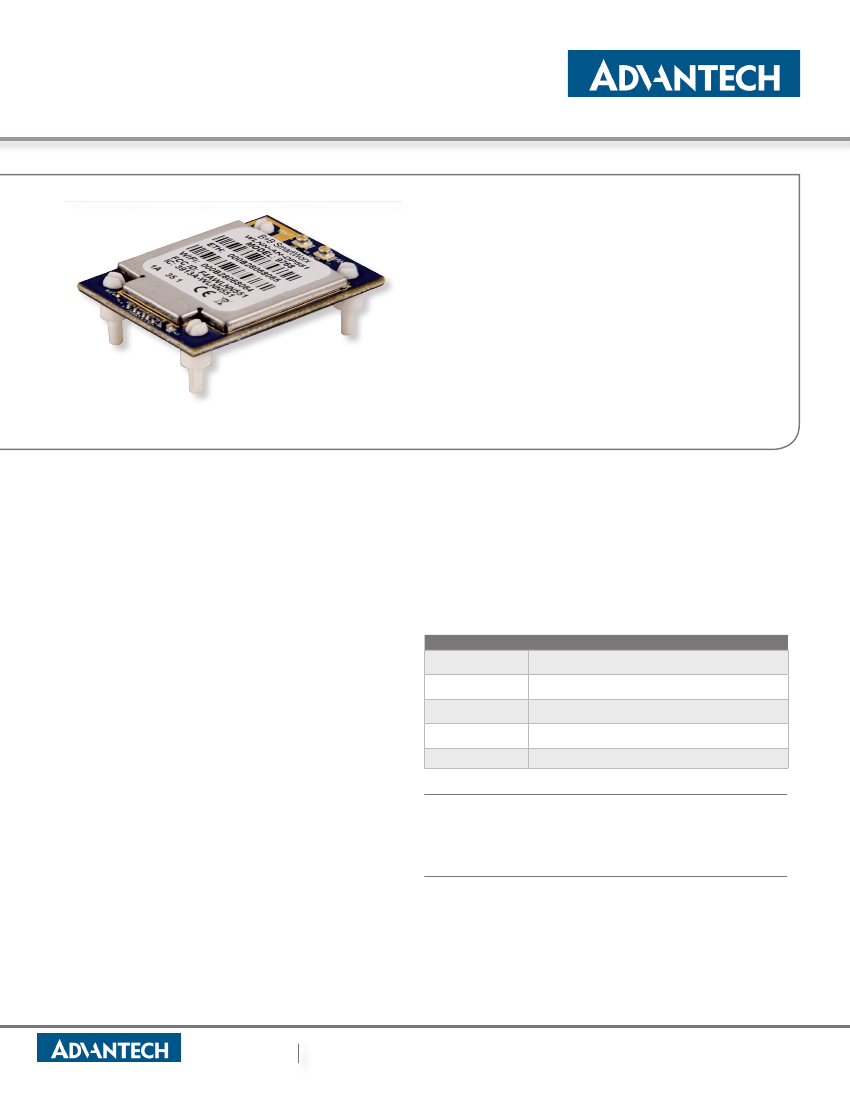

Secure, Rugged Wi-Fi Embedded
OEM open board modules
BB-WLNN-xx-DP551 Series
www.advantech.com
PRODUCT FEATURES
• Quick time to market and reduced integration costs
• 802.11a/b/g/n Wi-Fi (2.4 GHz, 5 GHz)
• Airborne PowerSave firmware reduces power consumption and extends
battery life in mobile devices
• Extended operating temperature range (-40 to +85°C) and environmental
specifications
• AirborneM2M SpeedLink roaming provides enhanced connection reliability
• Advanced Enterprise Class wireless security
• AirborneM2M PortFlex capability enables any combination of COM ports
(UART, SPI, GPIO, Ethernet and 802.11 interfaces)
• FCC Part 15 Class B Sub C Modular Approval minimizes regulatory
requirements
• Backwards compatible with previous generations of AirborneM2M
embedded modules
AirborneM2M
TM
Embedded Dual Band Wireless
Device Server and Ethernet Solution Modules
Serial & Ethernet to 802.11a/b/g/n (2.4 GHz, 5 GHz)
The AirborneM
2
M line of highly-integrated 802.11 wireless modules allows
OEMs to Wi-Fi enable devices used in a variety of machine-to-machine (M
2
M)
applications. Advantech delivers all the necessary RF technology, networking
stacks and advanced security features in a compact, single-board package,
reducing integration costs for OEMs and providing a quick time to market.
Big Performance in Small, Ruggedized Package
The AirborneM
2
M series provides the industry’s most rugged, highly-integrated,
embedded WiFi module solution. AirborneM
2
M modules meet extended
operating temperature specifications of the most demanding M
2
M applications.
Utilizing a 32-bit ARM9 processor and high-performance Atheros AR6203
802.11 radio, AirborneM
2
M modules deliver increased transmit power and
receive sensitivity contributing to superior range performance.
SpeedLink
™
Roaming
AirborneM
2
M SpeedLink roaming feature provides enhanced connection
reliability, enabling OEM devices to roam freely within a wireless network
without loss of data or connection.
Flexible & Easy to Integrate
AirborneM
2
M incorporates support for both serial and Ethernet to WiFi 802.11
2.4 or 5 GHz communications. Utilizing AirborneM
2
M PortFlex capability, OEMs
can configure via software any combination of UART, SPI, Ethernet, GPIO and
802.11 interfaces. Each individual port can be independently configured. A
development kit is also available to aid developers (sold separately).
The AirborneM
2
M modules are footprint and pin compatible with their
predecessors. Our commitment to maintaining hardware and software
compatibility assures OEMs of a simple, future-proof migration path even as
wireless technology evolves.
All product specifications are subject to change without notice.
BB-WLNN-xx-DP551_EthernetDualBand-WiFiModules_1319ds
orders@advantech-bb.com
eSales@advantech-bb.com
Headquarters: 707 Dayton Rd, PO Box 1040 Ottawa, IL 61350 USA (815)433-5100 or
(800)346-3119/
Toll Free Fax (815)433-5104
European Office: Westlink Commercial Pk, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Enterprise Class Security
Security protocols are important to mission-critical wireless M
2
M applications.
The AirborneM
2
M multi-layered security approach addresses the requirements
of enterprise-class networks and corporate IT departments. These advanced
security features include wireless security (801.11i/WPA2 Enterprise); network
security (EAP authentication and certificate support); communication security
(SSH functionality and fully encrypted data tunnels); and device security (multi-
level encryption capability to protect configuration data).
ORDERING INFORMATION
MODEL NUMBER
BB-WLNN-ER-DP551
BB-WLNN-AN-DP551
BB-WLNN-SE-DP551
BB-WLNN-SP-DP551
BB-WLNN-EK-DP551
DESCRIPTION
802.11a/b/g/n, 10/100 Ethernet Router (NAT Level 3),
Advanced Enterprise Security
802.11a/b/g/n, UART Interface,
Advanced Enterprise Security
802.11a/b/g/n, Serial Device Server, UART with RS-
232/422/485 Driver Control, Advanced Enterprise Security
802.11a/b/g/n, SPI Interface,
Advanced Enterprise Security
Design and Development Kit
ACCESSORIES -
sold separately
BB-ACH2-DBAT-DP002 - 2dBi Portable (rubber duck), 2.4/5GHz Antenna
BB-ACH2-DBAT-DP003 - 3.8/5.5dBi Portable (rubber duck), 2.4/5GHz Antenna
BB-ACH0-CA-DP003-G - Airborne Ethernet Cable, RJ-45 to Hirose Connector
Secure, Rugged Wi-Fi Embedded
OEM open board modules
BB-WLNN-xx-DP551 Series
SPECIFICATIONS
TECHNOLOGY
Technology
IEEE 802.11a/b/g/n, Wi-Fi Compliant
2.4 ~ 2.4835 GHz (US/Canada/Europe)
Frequency
5.150 ~ 5.350 GHz
5.725 ~ 5.825 GHz
Modulation Technology DSSS, CCK, OFDM
Modulation Type
DBPSK, DQPSK, CCK, BPSK, QPSK, 16QAM, 64QAM
Network Access Modes Infrastructure (Client), Ad Hoc
US/Canada: 11 Channels 802.11b/g
13 Channels 802.11a
Europe:
13 Channels 802.11b/g
Channels
19 Channels 802.11a
France:
4 Channels 802.11b/g
Japan:
14 Channels 802.11b
13 Channels 802.11g
23 Channels 802.11a
802.11b:11, 5.5, 2, 1 Mbps
Wireless Data Rate
802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
802.11n: 65, 58.5, 42, 39, 26, 19.5, 13, 6.5 Mbps
MAC
CSMA/CA with ACK, RTS, CTS
Network Protocols
TCP/IP, ARP, ICMP, DHCP, DHS, UDAP, TFTP, UDP, PING
54Mb/s = -72 dBm
36Mb/s = -78 dBm
Receive Sensitivity
18Mb/s = -84 dBm
- 802.11 b/g
6Mb/s = -89 dBm
11Mb/s = -86 dBm
1Mb/s = -92 dBm
54Mb/s = -74 dBm
Receive Sensitivity
36Mb/s = -80 dBm
- 802.11 a
18Mb/s = -86 dBm
6Mb/s = -90 dBm
802.11b = 15 dBm
Transmit Power
802.11g = 12.6 dBm
- 802.11a/b/g
802.11a = 17 dBm
Disabled, WEP 64 & 128bit, WPA (TKIP), WPA (AES), WPA2
(AES), 802.1x (EAP) Supplicant 802.11I, WPA & WPA2
Enterprise supplicants (EAP-TLS, EAP-TTLS(MSCHAPv2),
Security Protocols
EAPTTLS(MDS5), EAP-PEAPv0(MSCHAPv2, LEAP), EAP-
- client mode
FAST, LEAP)
Supports Certificates and Private Key Upload and Storage
(Multiple)
Two (2) U.FL Coaxial Connectors, 50 Ohms
Antenna
Maximum Gain @ 5 GHz = 5.5 dBi
Maximum Gain @ 2.4 GHz = 4.1 dBi
Supply
3.3 VDC +/-5%, 650 mA (MAX)
Supply In-rush Current
1500 mA (maximum) for 400us
Operating Current (Tx, 802.11g) = 370 mA (typical)
DC Characteristics
Operating Current (Rx, 802.11g) = 200 mA (typical)
Operating Temperature: -40 to +85 °C
Environmental
Storage Temperature: -40 to +85 °C
Relative Humidity: 5% to 95% (non-condensing)
Dual UART (960K baud), RS-232/422/485, SPI (1-bit/8 MHz),
Interfaces
10/100 Ethernet, PortFlex
Digital I/O
8 GPIO
4 Indicator LED Signals (RF ACT, POST, CONNECT, RF LINK),
LED Indicators
Signal Strength
36-pin High Density SMT connector from Hirose (DF12-36DS-
Connector
0.5V), 4mm Height
MEANTIME BETWEEN FAILURES (MTBF)
MTBF
MTBF Calc Method
524380 hours (all models)
MIL 217F (Parts Count Reliability Prediction)
Headquarters: 707 Dayton Rd, PO Box 1040 Ottawa, IL 61350 USA (815)433-5100 or
(800)346-3119/
Toll Free Fax (815)433-5104
European Office: Westlink Commercial Pk, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
APPROVALS, DIRECTIVES, STANDARDS
North America
FCC Title 47 Part 15 Class B Sub C Intentional Radiator
2014/35/EU - Low Voltage Directive
2014/53/EU - Radio Equipment Directive (RED)
Hereby, Advantech Advantech declares that the radio equipment type
CE - Directives
Wi-Fi module is in compliance with Directive 2014/53/EU. The full
(Europe)
text of the EU declaration of conformity is available at the following
internet address:
www.advantech-bb.com
2011/65/EU - Reduction of Hazardous Substances Directive (RoHS)
2012/19/EU - Waste Electrical & Electronic Equipment Directive (WEEE)
EMC:
ETSI EN 300 328 v2.1.1 - EMC & Radio Spectrum Matters (ERM)
Wideband Transmission Systems - 2.4 GHz ISM Band
ETSI EN 301 893 v1.8.5 - EMC & Radio Spectrum Matters (ERM)
Wideband Transmission Systems - 5 GHz ISM Band
ETSI EN 301 489-1 v2.1.1 - Applied in accordance with the specific
requirements of:
ETSI EN 301 489-17 v3.1.1 - EMC & Radio Spectrum Matters (ERM)
Broadband Data Systems
EN 55032+AC, Class A - Information Technology Equipment (ITE) - RF
CE - Standards
Emissions
(Europe)
EN 55024 - Information Technology Equipment (ITE) - Immunity
Characteristics - Limits and Methods of Measurement
Safety:
EN 60950-1 + A1 + A11 + A12 + A2 -
Information Technology Equipment
(ITE) - Safety - Part 1 - General Requirements
RF Exposure:
EN 62311 - Assessment of electronic and electrical equipment related to
human exposure restrictions for EM fields (0 Hz to 300 GHz)
