LS1044ASE7PTA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> The embedded processor and controller> The microprocessor - MPU> LS1044ASE7PTA

Preview

LS1044ASE7PTA: DescriptionMicroprocessor - MPU 1400/1800 ST WE; Categorysemiconductor The embedded processor and controller The microprocessor - MPU; File Size2MB，197 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric View All

LS1044ASE7PTA Overview

Microprocessor - MPU 1400/1800 ST WE

LS1044ASE7PTA Parametric

Parameter Name	Attribute value
Maker	NXP
Product Category	Microprocessor - MPU
Shipping restrictions	This product may require additional documentation for export from the United States.
Installation style	SMD/SMT
Package/box	PBGA-780
series	LS1044A
core	ARM Cortex A53
Number of cores	4 Core
Data bus width	64 bit
maximum clock frequency	1400 MHz
L1 cache instruction memory	32 kB
L1 cache data memory	32 kB
Working power voltage	1.025 V
Minimum operating temperature	0 C
Maximum operating temperature	+ 105 C
storage type	DDR4
Interface Type	PCIe, QSGMII, RGMII, SATA, SGMII, XFI
L2 cache instruction/data memory	1 MB, 1 MB
Factory packaging quantity	60
watchdog timer	Watchdog Timer

Preview

Download Datasheet

View All

NXP Semiconductors

Data Sheet: Technical Data

Document Number LS1088A

Rev. 0, 01/2018

QorIQ LS1088A Data Sheet

Features

• LS1088A contains eight ARM® Cortex®-A53 (32/64

bit) cores with the following capabilities:

– Speed up to 1.6 GHz

– Arranged as two clusters of four cores

– 32 KB L1 instruction cache (ECC protection) and 32

KB L1 data cache (ECC protection)

– Two 1 MB unified I/D L2 cache (ECC protection),

one per Cortex-A53 core cluster

– NEON™ SIMD coprocessor

– ARMv8 cryptography extensions

• Hierarchical interconnect fabric:

– Hardware-managed data coherency

– Up to 700 MHz operation

• One 32/64-bit DDR4 SDRAM memory controller:

– ECC and interleaving support

– Up to 2.1 GT/s

• Datapath acceleration architecture 2.0 (DPAA2)

incorporates acceleration for the following functions:

– Packet parsing, classification, and distribution

(WRIOP)

– Queue management for scheduling, packet

sequencing, and congestion management (QMan)

– Hardware buffer management for buffer allocation

and de-allocation (BMan)

– Cryptography acceleration (SEC)

– IEEE 1588 support

– Advanced I/O processor (AIOP)

• Parallel Ethernet interfaces:

– Up to two RGMII interfaces

LS1088A

• Eight SerDes lanes for high-speed peripheral

interfaces:

– Three PCI Express 3.0 controllers (one supporting

x4 operation)

– One serial ATA (SATA 3.0) controller supporting

6 Gbps

– Up to two SGMII supporting 2500 Mbps

– Up to four SGMII supporting 1000 Mbps

– Up to two XFI (10 GbE) interfaces

– Up to two QSGMII

– Supports 1000Base-KX

– Supports 10GBase-KR

• Additional peripheral interfaces include:

– One quad serial peripheral interface (QSPI)

controller, one serial peripheral interface (SPI)

controller

– Integrated flash controller (IFC) supporting NAND

and NOR flash with 28-bit addressing and 16-bit

data

– Two USB 3.0 controllers with integrated PHY

– Enhanced secure digital host controller supporting

SD 3.0, eMMC 4.4, and eMMC 4.5 modes

– uQE supporting TDM/HDLC

– Four I2C controllers

– Two 16550-compliant DUARTs

– General purpose IO (GPIO), four FlexTimers, and

nine watchdog timers

– Trust architecture

– Debug support with run control, data acquisition,

high-speed trace, and performance/event monitoring

• 780 FC-PBGA package, 23 mm x 23 mm, 0.8 mm

pitch

NXP reserves the right to change the production detail specifications as may be

required to permit improvements in the design of its products.

Table of Contents

1 Overview.............................................................................................. 3

2 Pin assignments.................................................................................... 3

2.1

2.2

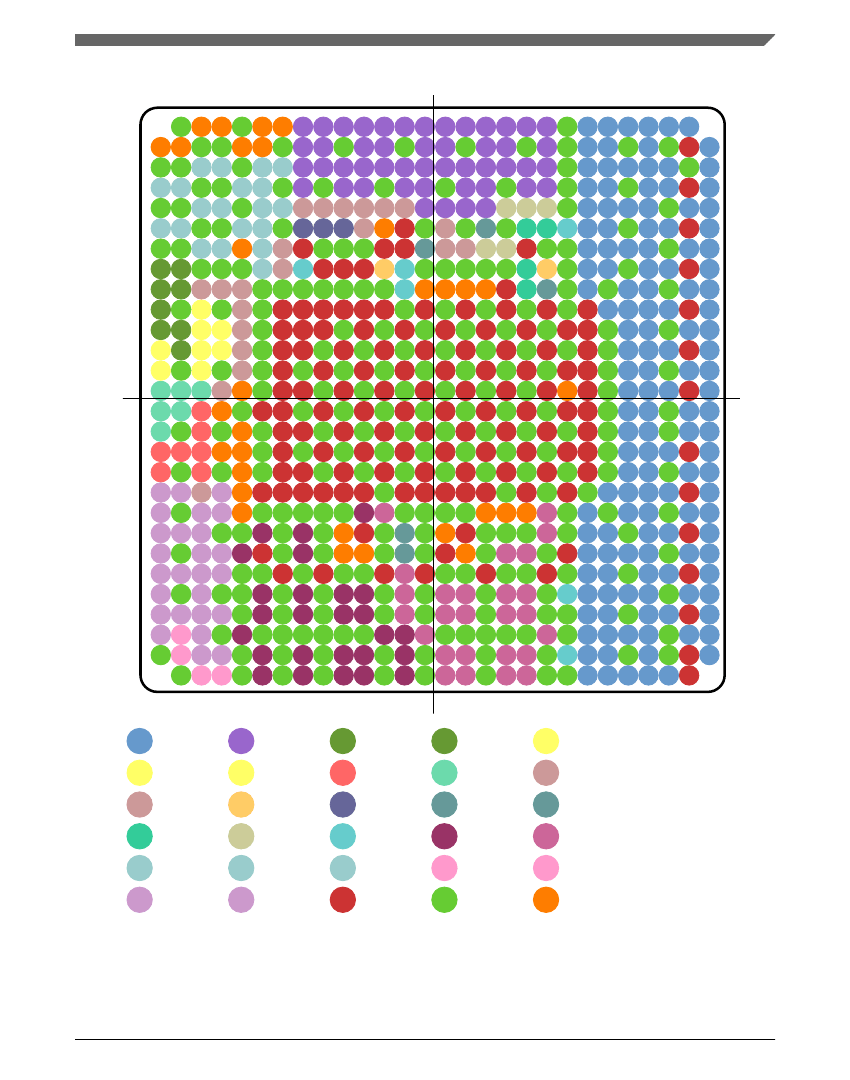

780 BGA ball layout diagrams.................................................. 4

Pinout list...................................................................................10

3.17 I2C interface.............................................................................. 144

3.18 Integrated Flash Controller........................................................147

3.19 JTAG interface.......................................................................... 166

3.20 Quad serial peripheral interface (QuadSPI).............................. 169

3.21 QUICC engine specifications.................................................... 173

3.22 Serial peripheral interface (SPI)................................................ 179

3.23 Universal serial bus (USB) interface.........................................182

4 Hardware design considerations...........................................................185

4.1

4.2

Clock ranges.............................................................................. 185

Power supply design..................................................................186

3 Electrical characteristics.......................................................................51

3.1

3.2

3.3

3.4

3.5

3.6

3.7

3.8

3.9

Overall DC electrical characteristics......................................... 51

General AC timing specifications............................................. 57

Power sequencing......................................................................58

Power-down requirements.........................................................61

Power characteristics................................................................. 61

Power-on ramp rate................................................................... 63

Input clocks............................................................................... 63

RESET initialization timing specifications............................... 70

Battery-backed security monitor interface................................ 71

5 Thermal................................................................................................ 187

5.1

5.2

5.3

Recommended thermal model...................................................188

Temperature diode.....................................................................188

Thermal management information............................................ 188

3.10 DDR4 SDRAM controller.........................................................72

3.11 Dual universal asynchronous receiver/transmitter (DUART)

interface..................................................................................... 77

3.12 Enhanced secure digital host controller (eSDHC).....................79

3.13 Ethernet interface (EMI, RGMII, and IEEE Std 1588)............. 87

3.14 General purpose input/output (GPIO) interface........................ 97

3.15 Generic interrupt controller (GIC) interface..............................101

3.16 High-speed serial interfaces (HSSI).......................................... 103

6 Package information.............................................................................191

6.1

6.2

Package parameters for the FC-PBGA......................................191

Mechanical dimensions of the FC-PBGA................................. 191

7 Security fuse processor.........................................................................193

8 Ordering information............................................................................193

8.1

8.2

Part numbering nomenclature....................................................193

Part marking ............................................................................. 194

9 Revision history....................................................................................195

QorIQ LS1088A Data Sheet, Rev. 0, 01/2018

NXP Semiconductors
