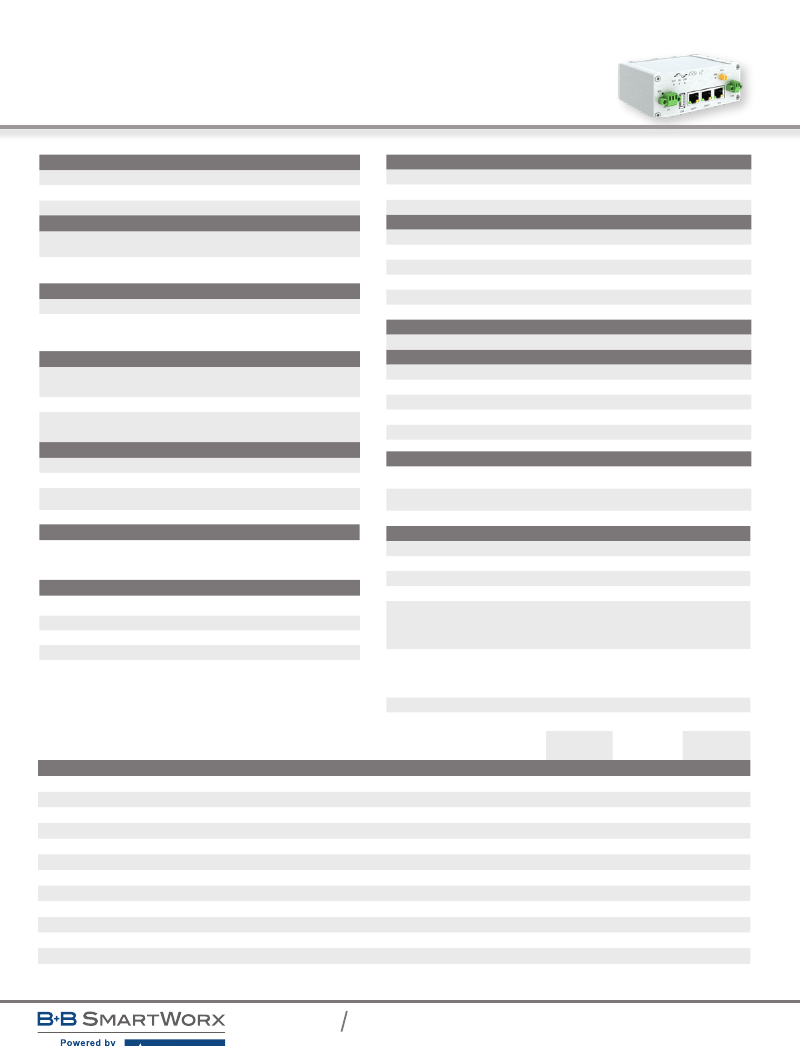

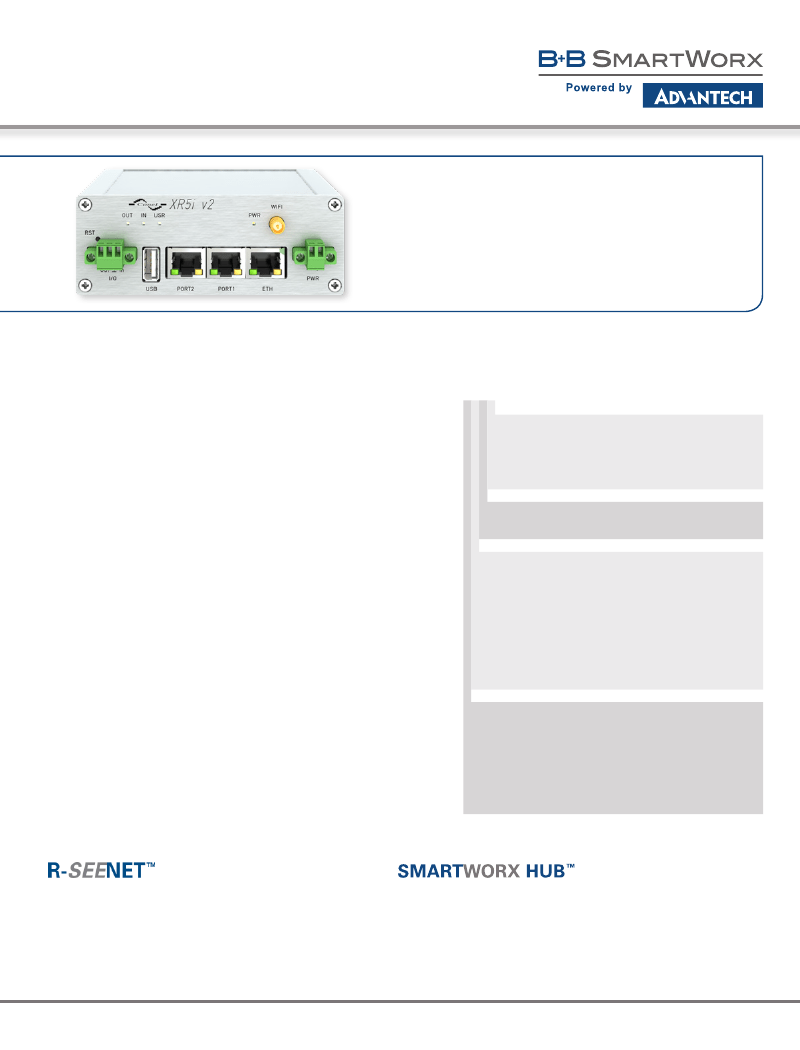

Industrial Routers
LAN ROUTER
XR5i v2F Series
PRODUCT FEATURES
•
•
•
•
•
Modular design to fit application requirements
Provided secure connection between two networks
Provides USB, Serial and I/O connectivity
SNMP protocol for remote management
VPN support
The XR5i v2F industrial router secures connections between two
local networks (LAN) via two Ethernet interfaces 10/100. The XR5i
v2F can also convert serial RS232, RS485, M-BUS, I/O to IP local
area network (LAN Ethernet 10/100).
WiFi models are available.
The XR5i v2F Industrial router will also connect two devices with
different serial interfaces (RS232, RS485, M-Bus, I/O, etc.) to the
local network. In this configuration, the communication device
has an Ethernet 10/100 port and two serial interfaces which
user definable. A third option uses combination of two previous
versions, when the industrial XR5i v2F router equipped with two
Ethernet interfaces 10/100 and one optional serial interface.
Standard on the XR5i v2F Industrial Router is one Ethernet
10/100 port, one USB A (host) port, I/O port and two optional
interfaces. Users can select a second Ethernet port, 10/100, serial
interface RS232/RS485/RS422/MBUS or other Inputs/Outputs (I/O).
Industrial XR5i v2F router can be ordered with either a plastic or
metal housing.
Configuration is password protected, via web interface. The router
supports creation of VPN tunnels using IPsec, OpenVPN and L2TP
to ensure safe communication. Web interface provides detail
statistics about router activities.
SELECTED APPLICATIONS
ORDERING INFORMATION
Note: Check with your local distributor for availability and options. Contact
Advantech B+B SmartWorx distributors.
Europe, Middle East, Africa, Asia, South America, Latin America.
BB - XR 2 F 00 X X X X
Accessories
0
1
2
3
4
Enclosure
1
2
PORT2
(Full version only)
0
1
2
3
4
5
6
7
8
PORT1
0
1
2
3
4
5
6
9
No Accessories
Accessories with EU power supply
Accessories with UK power supply
Accessories with Australia power supply
Accessories with US power supply
Plastic enclosure
Metal enclosure
Transportation and security
IT and communication
Self-service terminals
Energy and power industry
Metrology, alarm and warning systems
No expansion port
ETH
RS232
RS485
RS422
MBUS
CNT (4× BI, 2×, 1×BO) - I/O port
WiFi
WMBUS (Wireless M-BUS)
No expansion port
ETH
RS232
RS485
RS422
MBUS
CNT (4× BI, 2×, 1×BO) - I/O port
Switch
Router Management Software consisting of two parts:
R-SeeNet Server
application can be programmed to automatically send SNMP
queries (Simple Network Management Protocol) to each router defined in the
network. The application retrieves status information from the routers and
records it in the SQL database.
R-SeeNet PHP
is a web-based application that accesses the SQL database and
provides the network administrator detailed information on individual routers
and network health.
SmartWorx HUB
takes management of your devices to new levels of flexibility and
efficiency. Giving you a complete view of your installed device population, SmartWorx
Hub delivers invaluable configuration, diagnostic and management facilities directly to
your desktop, wherever you are.
Manage a single device or your entire device population at the same time. Whether you
need to modify configuration parameters, download or upgrade installed firmware and
applications or view detailed information regarding network statistics, you can do it all
from any location.
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
DS_XR5iv2F_December 12, 2017 11:05 AM
Industrial Routers
LAN ROUTER
XR5i v2F Series
SPECIFICATIONS
FIXED INTERFACES
1× Ethernet
1× I/O
1× USB
10/100 Mbits, independent or bridged
Binary input/output
USB 2.0 Host, Type A
Ethernet (10/100Mbps), RS232, RS422/485, M-Bus
I/O Input/Output, Ethernet Switch (with PORT 2)
RS232, RS422/485, M-Bus, WM-Bus, SDH, WiFi
Ethernet Switch (with PORT 1)
9 - 36 VDC
Idle - 1.6 W
WiFi Com. to 1.9 W
Full Com. to 2.5 W
51 x 87 x 116mm
IP30
150 g
280 g
-40 to +75°C
-40° to +85°C
Operating - 0 to 95% relative humidity non condensing
Storage - 0 to 95% relative humidity non condensing
SOFTWARE FEATURES
Linux based, possibility to program your own application
NTP client, NTP Server – time synchronization
M-RAM memory inside – router statistic´s saving into memory
NETWORKING
DHCP – automatic IP addressing in LAN network
NAT/PAT – IP address and ports translation between inside/outside network
VRRP – virtual backup router function
DynDNS client – access to the router with a dynamic IP address
Dial-in – the ability to communicate over dial CSD call
PPPoE Bridge – PPP frames encapsulation inside ETH frames
VPN TUNNELING
IPsec, OpenVPN, L2TP – secure encrypted tunnels
CONFIGURATION AND DIAGNOSTIC
HTTP server – configuration via web server
Telnet – configuration and access to the file system
SNMP – router diagnostics, communication with I/O and M-Bus
Remote router group configuration change, switching among configuration profiles
SSH – encrypted configuration and access to the file system
OPTIONAL INTERFACES
1× PORT 1
1× PORT 2
POWER
Source
Consumption
MECHANICAL
Dimension Plastic version
Protection
Weight Plastic version
Weight Metallic version
Dimension Metallic version 42 x 87 x 113mm
ENVIRONMENTAL
Operating Temperature
Storage Temperature
Humidity
STANDARDS/REGULATION
EMC
Safety
WIFI
*optional
ETSI EN 301 489-1 V2.1.1, ETSI EN 301 489-17 V3.1.1, ETSI
EN 301 489-3 V2.1.1
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
+ AC:2011
I/O PORT
Binary input
Binary output
Reed contact with trigger level 1.3 up to 1.4 V
100 mA/ max. 30 V
Antenna connector
Supported WiFi band
Standards
R-SMA – 50 Ohms
2.4 GHz
802.11b, 802.11g, 802.11n
11b, 11 Mbps: typ. -85 dBm
11g, 54 Mbps: typ. -70 dBm
(HT20) 11n, MSC7: typ. -66 dBm
(HT40) 11n, MSC7: typ. -62 dBm
11b, 11 Mbps: min. 18, typ. 19, max. 20 dBm
11g, 54 Mbps: min. 14.5, typ. 16, max. 17.5 dBm
802.11n (HT20): min. 13.5, typ. 15, max. 16.5 dBm
802.11n (HT40): min. 13.5, typ. 15, max. 16.5 dBm
Access point, station
INCLUDED IN
PACKAGE
a
a
INCLUDED IN
SET PACKAGE
a
a
a
2×
a
a
a
a
a
a
a
a
a
a
SOLD
SEPARATELY
a
a
a
a
a
a
a
a
a
a
a
CPU & MEMORY
CPU
Flash memory
RAM
M-RAM
32b ARM microprocessor, 0.25 DMIPS per MHz
16 MB DDR SDRAM
64 MB
128 kB
2.4 GHz supported channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13
RX Sensitivity
TX Output Power
Type of device
ACCESSORIES
ORDER CODE
BB-SBD40
BB-CPD2-G
BB-AW-A24G-M5SRP
BB-KD-ETH
BB-CON-WR2
BB-CON-WR3
BB-RPS-v2-WR2-EU
BB-RPS-v2-WR2-US
BB-RPS-v2-WR2-UK
BB-RPS-v2-WR2-AUS
BB-KN-WR2-3
Quick Start Guide
DESCRIPTION
Metal DIN holder for Metal versions of routers v2
Plastic DIN holder for Plastic versions of routers v2
Antenna WiFi stick 5dB, SMA-RP connector
Ethernet cross cable 1.5m
2-pin Terminal block for Power Supply
3-pin terminal block for I/O
Power supply with WR connector (2 pins) - 12V/1A - EU plug
Power supply with WR connector (2 pins) - 12V/1A - US plug
Power supply with WR connector (2 pins) - 12V/1A - UK plug
Power supply with WR connector (2 pins) - 12V/1A - AUS plug
Power supply cable 2-wire, 3m
