7 Sealing Nut
6 Clamp Ring
5 Seals B2
4 Seals B1
3 Lock Nut
2 Connector
1 O-Ring
D
T
A
L
W
CONFIDENTIAL
Note:
* Important Dimension.
QC
* Waterproof Rate : IP66
* O-Ring: EPDM,Black.
* Housing: Nylon+GF,Black.
* Female Pin: Copper Alloy,Gold Plated
* Lock Nut: Nylon+GF,Black.
* Seals: EPDM,Black.
* Clamp Ring: Nylon,Black.
* Sealing Nut: Nylon,Black.
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
2017-11-20
R&D DEPT.
C
44.0(REF.)
7
18.0
6
5
4
1
2
3
* PE Bag: 90mm*85mm
* Seals B1 for Cable OD:
* Seals B2 for Cable OD:
n 4.5mm~ n
n 3.5mm~
6.5mm
(防水墊圈B1線徑: n 4.5mm~ n 6.5mm )
n 5.3mm
(防水墊圈B2線徑: n 3.5mm~ n 5.3mm)
* One Set Unassembled in One PE Bag
B
Pin Assignments
Front View 前視圖
B
(每一組未組裝,放½於一個PE袋,並封口)
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
TITLE

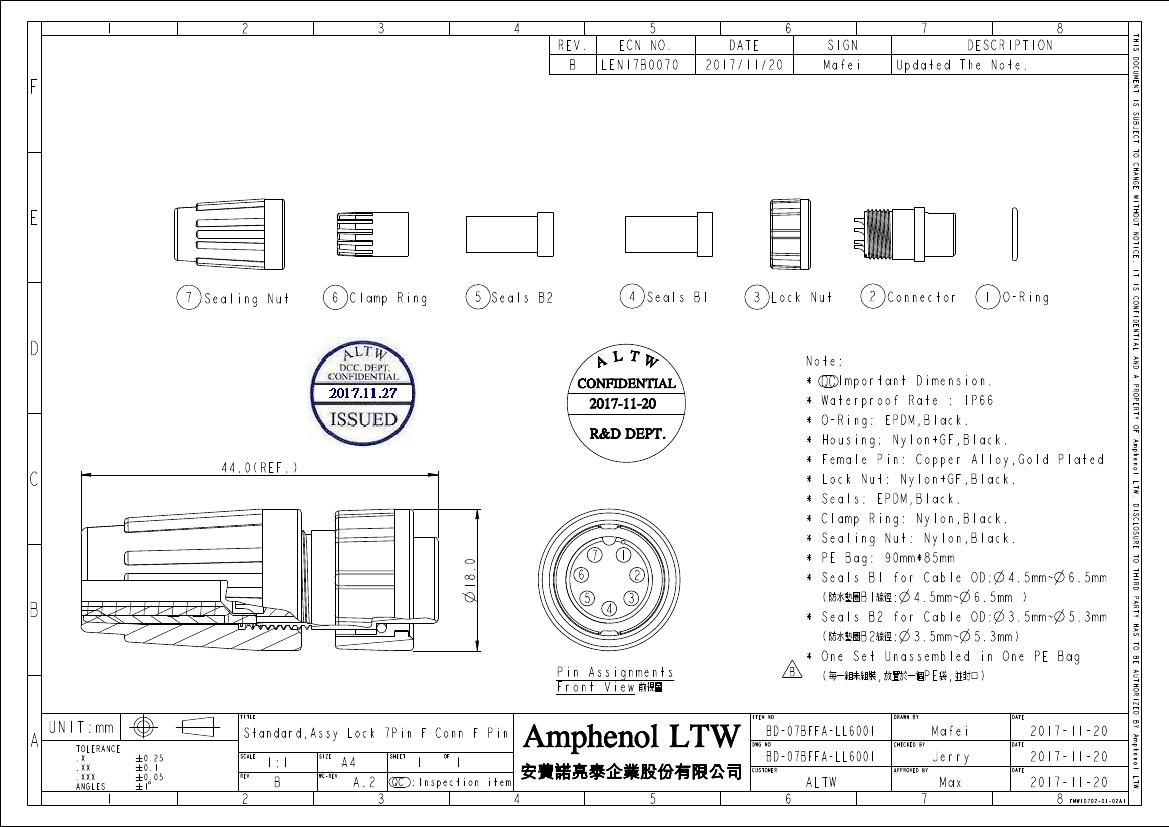

Standard,Assy Lock 7Pin F Conn F Pin
SCALE
1:1
B
SIZE
A4
A.2
3
SHEET
1
OF
Amphenol LTW
4
5
ITEM NO
DRAWN BY
DATE
BD-07BFFA-LL6001
DWG NO
CHECKED BY
Mafei
DATE
2017-11-20
2017-11-20
DATE
Amphenol LTW.
1
BD-07BFFA-LL6001
CUSTOMER
APPROVED BY
Jerry
Max
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2017-11-20
8
FMW10702-01-02A1
