REV.
A
5
ECN NO.
Initial Release
6
DATE
2015/07/16
SIGN
Mafei
7
DESCRIPTION
Change Rev.01 To Rev.A
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
T
A
L
W
F
CONFIDENTIAL
2015-07-16
R&D DEPT.
E

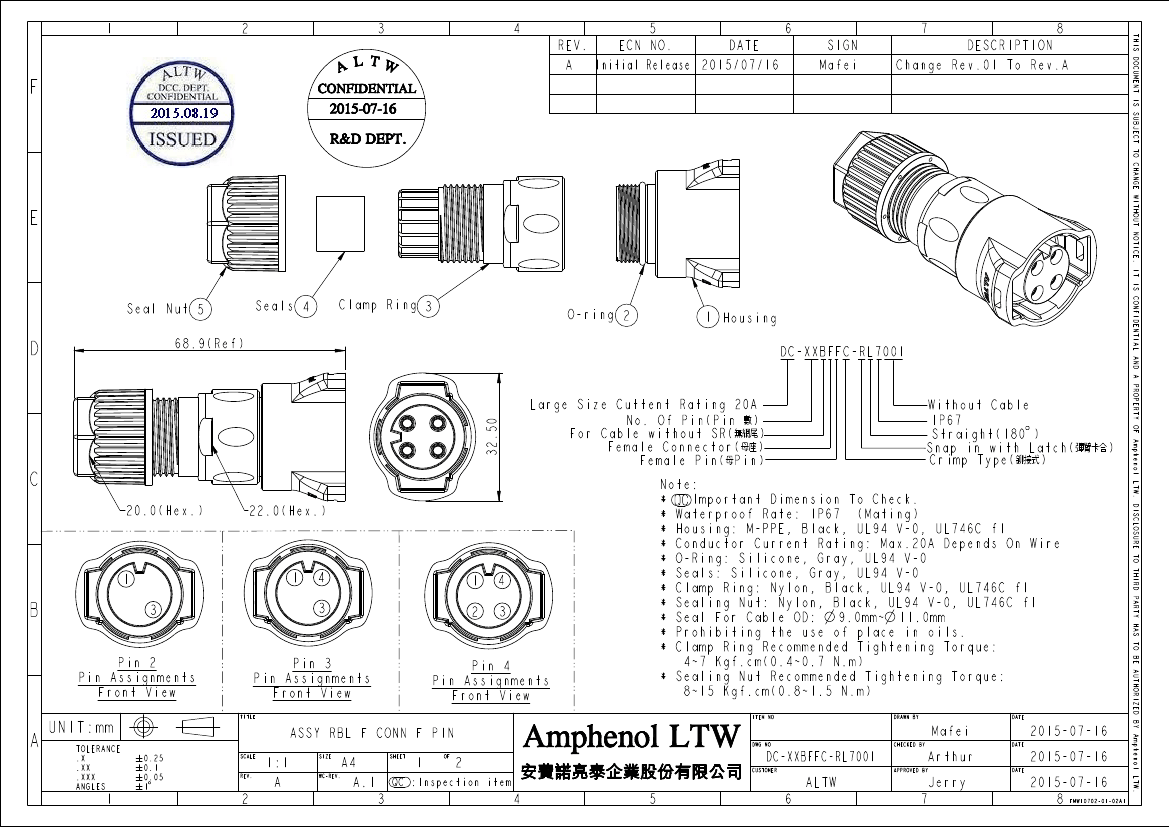

Seal Nut
5
Seals
4
Clamp Ring
3
O-ring
2
1 Housing
DC-XXBFFC-RL7001
D
68.9 (Ref)
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
Large Size Cuttent Rating 20A
No. Of Pin(Pin 數)
For Cable without SR(無網尾)
Female Connector(母座)
Female Pin(母Pin)
Without Cable
IP67
Straight(180 $ )
Snap in with Latch(½臂卡合)
Crimp Type(鉚接式)
C
20.0(Hex.)
22.0(Hex.)
32.50
1
1
3
4
3
1
2
4
3
B
Pin 2
Pin Assignments
Front View
Pin 3
Pin Assignments
Front View
TITLE
Pin 4
Pin Assignments
Front View
Note:
*
QC
Important Dimension To Check.
* Waterproof Rate: IP67 (Mating)
* Housing: M-PPE, Black, UL94 V-0, UL746C f1
* Conductor Current Rating: Max.20A Depends On Wire
* O-Ring: Silicone, Gray, UL94 V-0
* Seals: Silicone, Gray, UL94 V-0
* Clamp Ring: Nylon, Black, UL94 V-0, UL746C f1
* Sealing Nut: Nylon, Black, UL94 V-0, UL746C f1
* Seal For Cable OD: n 9.0mm~ n 11.0mm
* Prohibiting the use of place in oils.
* Clamp Ring Recommended Tightening Torque:
4~7 Kgf.cm(0.4~0.7 N.m)
* Sealing Nut Recommended Tightening Torque:
8~15 Kgf.cm(0.8~1.5 N.m)
ITEM NO
DRAWN BY
DATE
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
ASSY RBL F CONN F PIN
SCALE
1:1
A
SIZE
A4
A.1
3
SHEET
1
OF
Amphenol LTW
2
4
5
Mafei
DWG NO
CHECKED BY
DATE
2015-07-16
2015-07-16
DATE
Amphenol LTW.
DC-XXBFFC-RL7001
CUSTOMER
APPROVED BY
Arthur
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2015-07-16
8
FMW10702-01-02A1
1
2
3
4
REV.
5
ECN NO.
6
DATE
SIGN
7
DESCRIPTION
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F

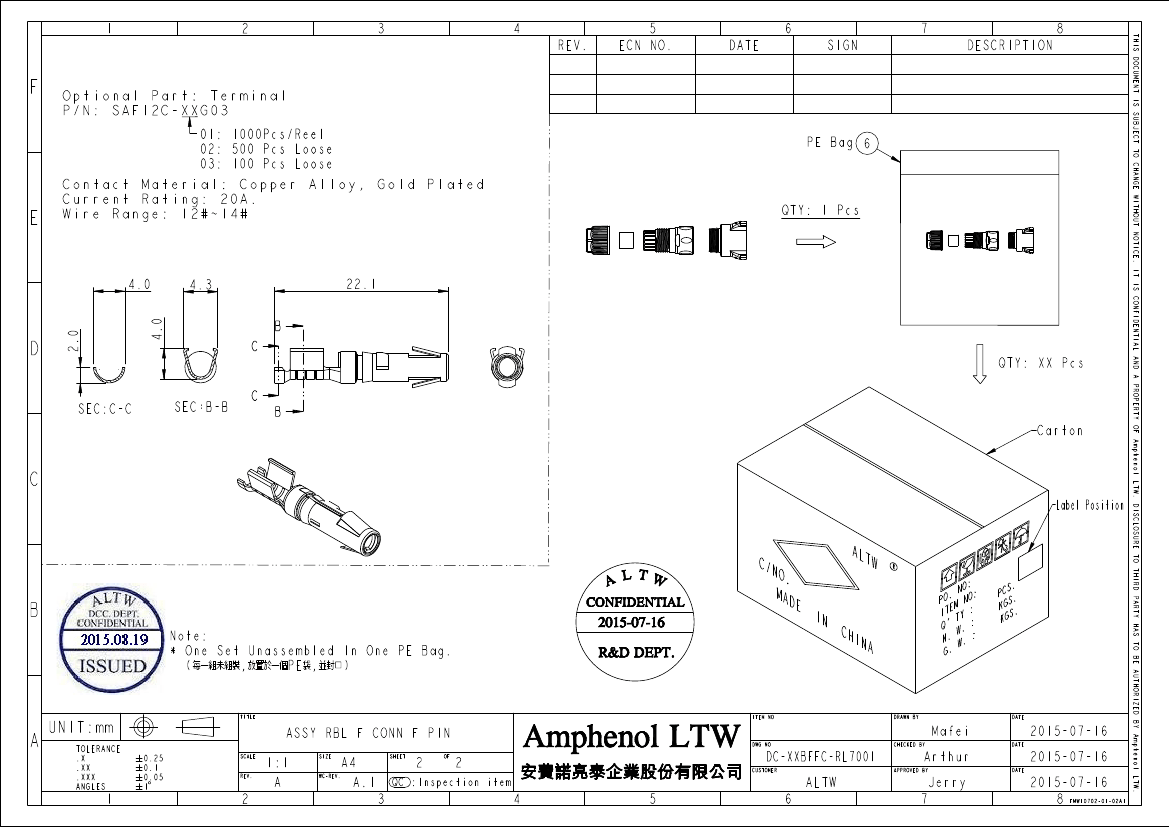

Optional Part: Terminal
P/N: SAF12C-XXG03
01: 1000Pcs/Reel
02: 500 Pcs Loose
03: 100 Pcs Loose
Contact Material: Copper Alloy, Gold Plated
Current Rating: 20A.
Wire Range: 12#~14#
PE Bag
6
E
QTY: 1 Pcs
4.0
4.3
22.1
D
2.0
4.0
QTY: XX Pcs
SEC： B-B
Carton
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
SEC: C-C
C
Label Position
T
A
L
W
B
Note:
* One Set Unassembled In One PE Bag.
(每一組未組裝,放½於一個PE袋,並封口)
CONFIDENTIAL
2015-07-16
R&D DEPT.
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
TITLE
ASSY RBL F CONN F PIN
SCALE
1:1
A
SIZE
A4
A.1
3
SHEET
2
OF
Amphenol LTW
2
4
5
ITEM NO
DRAWN BY
DATE
Mafei
DWG NO
CHECKED BY
DATE
2015-07-16
2015-07-16
DATE
Amphenol LTW.
DC-XXBFFC-RL7001
CUSTOMER
Arthur
APPROVED BY
REV.
WC-REV.
QC :Inspection item
ALTW
6
7
Jerry
1
2
2015-07-16
8
FMW10702-01-02A1
