8HP-05PMMP-SF7001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Circular connector> The annular metric connector> 8HP-05PMMP-SF7001

Preview

8HP-05PMMP-SF7001: DescriptionRing Metric Connector M8 CONN WITH KEY PNL SCRW 5PIN M CONN; CategoryThe connector Circular connector The annular metric connector; File Size168KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8HP-05PMMP-SF7001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8HP-05PMMP-SF7001	-	-	View	Buy Now

8HP-05PMMP-SF7001 Overview

Ring Metric Connector M8 CONN WITH KEY PNL SCRW 5PIN M CONN

8HP-05PMMP-SF7001 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	Ring Metric Connector
Shipping restrictions	Mouser does not currently sell this product.
Number of contacts	5 Contact
Thread size	M8
Termination type	Solder
Current rating	3 A
IP rating	IP67
series	M Series
Subject type	Straight
Contact plating	Gold
Description/Function	M8 With Key (Plastic) Male Connector
Type	Male
Shell material	Nylon
length	16.4 mm
Housing type	Plug
shield	Unshielded
Installation style	Panel
Contact type	Pin (Male)
Insert/contact gender	Pin
Factory packaging quantity	1

Preview

Download Datasheet

View All

1

2

3

4

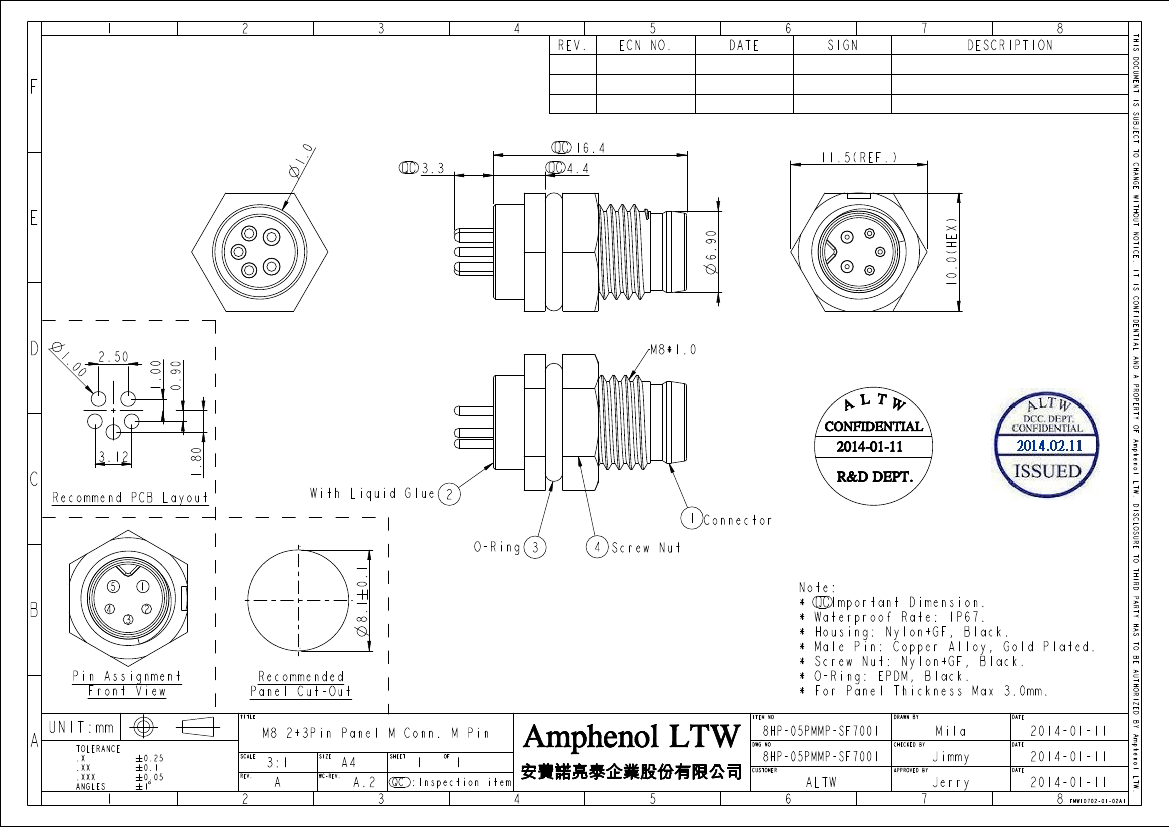

REV.

5

ECN NO.

6

DATE

SIGN

7

DESCRIPTION

8

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A

F

1.0

QC

16.4

3.3

QC

4.4

11.5 (REF.)

D

1.

1.00

0.90

00

2.50

M8*1.0

10.0 (HEX)

E

6.90

PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY

T

A

L

W

CONFIDENTIAL

1.80

3.12

2014-01-11

R&D DEPT.

With Liquid Glue

2

1 Connector

O-Ring

3

4 Screw Nut

Note:

* Important Dimension.

QC

* Waterproof Rate: IP67.

* Housing: Nylon+GF, Black.

* Male Pin: Copper Alloy, Gold Plated.

* Screw Nut: Nylon+GF, Black.

* O-Ring: EPDM, Black.

* For Panel Thickness Max 3.0mm.

C

Recommend PCB Layout

5

1

3

Pin Assignment

Front View

Recommended

Panel Cut-Out

TITLE

8.1

B

4

2

A

UNIT:mm

TOLERANCE

.X

# 0.25

.XX

# 0.1

.XXX

# 0.05

ANGLES

# 1 $

M8 2+3Pin Panel M Conn. M Pin

SCALE

3:1

A

SIZE

A4

A.2

3

SHEET

1

OF

Amphenol LTW

4

5

ITEM NO

DRAWN BY

DATE

8HP-05PMMP-SF7001

DWG NO

CHECKED BY

Mila

DATE

2014-01-11

DATE

Amphenol LTW.

1

8HP-05PMMP-SF7001

CUSTOMER

APPROVED BY

Jimmy

Jerry

7

REV.

WC-REV.

QC :Inspection item

ALTW

6

1

2

2014-01-11

8

FMW10702-01-02A1
