ADAM-39100-BE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> connection terminal > Terminal board interface module> ADAM-39100-BE

ADAM-39100-BE: DescriptionWiring Terminal Board Interface Module SCSI-100 Wiring Terminal, Connect; CategoryThe connector connection terminal Terminal board interface module; File Size652KB，1 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ADAM-39100-BE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ADAM-39100-BE	-	-	View	Buy Now

ADAM-39100-BE Overview

Wiring Terminal Board Interface Module SCSI-100 Wiring Terminal, Connect

ADAM-39100-BE Parametric

Parameter Name	Attribute value
Maker	Advantech
Product Category	Terminal board interface module
product	Terminal Boards
Number of locations	100 Position
Current rating	-
Voltage rating	-
Termination type	Screw
Installation style	DIN Rail
connection method	SCSI-II (Female)
high	42 mm
length	230 mm
type	Power Terminal
width	80 mm
Maximum operating temperature	-
Minimum operating temperature	-
Factory packaging quantity	1

Preview

Download Datasheet

View All

Accessories

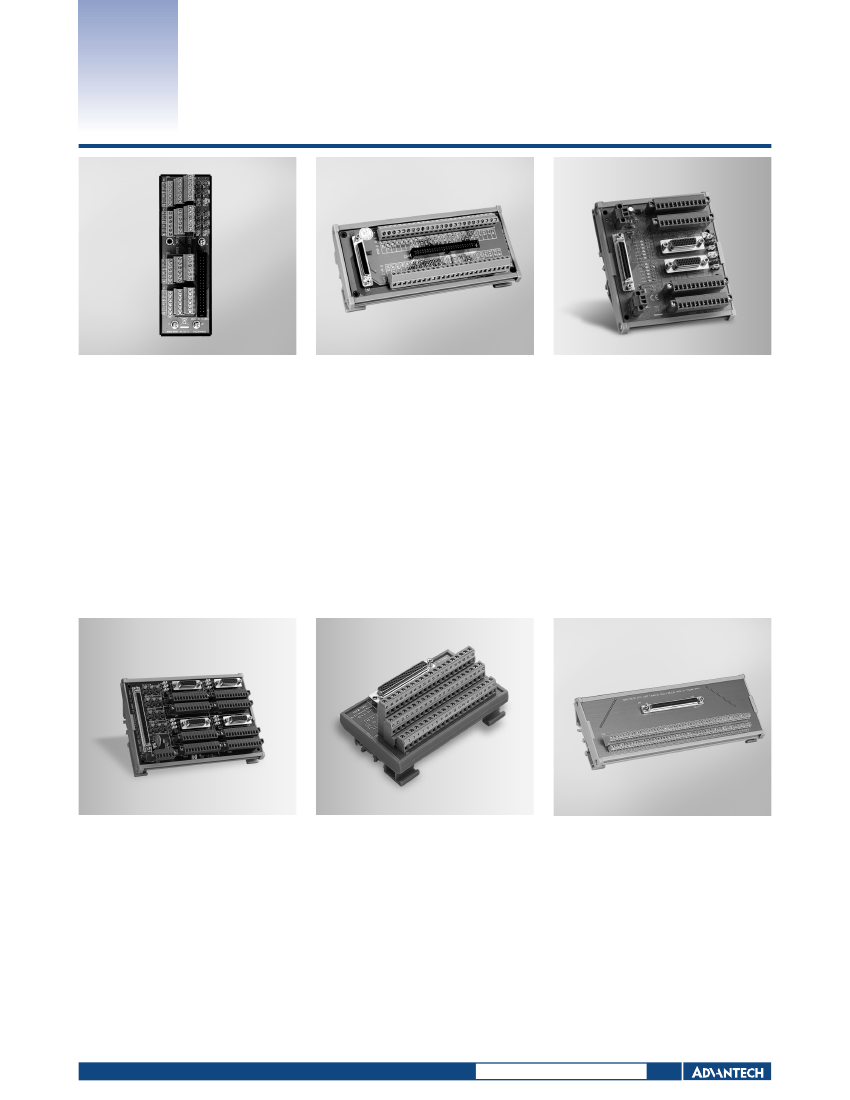

DIN-rail Terminal Boards

ADAM-3940

40-pin Wiring Board with LED

ADAM-3952

50-pin SCSI and IDC DIN-rail Wiring Board

ADAM-3955

50-pin SCSI DIN-rail Motion Wiring Board

Features

DIN-rail wiring board

Dimensions (W x L x H): 160 x 50 x 43 mm

(6.3" x 2" x 1.7")

40-pin box header connector

LED indicators

To Be Used With

AMAX-2241, AMAX-2242, AMAX-2243

Features

DIN-rail wiring board

Dimensions (W x L x H): 77.5 x 179.5 x 41.5 mm

(3.1" x 7.1" x 1.6")

50-pin SCSI and IDC connectors

To Be Used With

PCI-1220U, PCI-1240U, PCI-1245, PCI-1245E,

PCI-1245L, PCI-1265, PEC-3240

Features

DIN-rail wiring board

Dimensions (W x L x H): 103 x 120 x 45 mm

(4.12" x 4.8" x 1.8")

DB-26 and connector

LED indicators

To Be Used With

PCI-1220U, PCI-1240U, PCI-1245, PCI-1245E,

PCI-1245L, PCI-1265, PEC-3240

ADAM-3956

100-pin SCSI DIN-rail Motion Wiring Board

ADAM-3962

DB62 DIN-rail Wiring Board

ADAM-39100

100-pin DIN-rail SCSI Wiring Board

Features

DIN-rail wiring board

Dimensions (W x L x H): 122 x 171 x 45 mm

(4.8" x 6.73" x 1.77")

DB-26 and connector

LED indicators

To Be Used With

PCI-1240U, PCI-1245, PCI-1245E, PCI-1245L,

PCI-1265, PCI-1285, PCI-1285E

Features

Low cost universal DIN-rail mounting screw terminal

module with DB62 female connector

Screw-clamp terminal blocks allow easy and reliable

connections

Case dimensions (W x L x H): 77.5 x 124.5 x 63.5

mm (3.1" x 4.9" x 2.5")

To Be Used With

PCI-1243U

Features

Low cost universal DIN-rail mounting screw terminal

module for industrial applications with 100-pin SCSI

female connector

Dimensions (W x L x H): 80 x 230 x 42 mm

(3.14" x 9.05" x 1.65")

To Be Used With

PCI-1240U, PCI-1245, PCI-1245E, PCI-1245L, PCI-1265,

PCI-1285, PCI-1285E, PCIE-1756, PCI-1756

Online Download

www.advantech.com/products

All product specifications are subject to change without notice

Last updated: 15-Mar-2016
