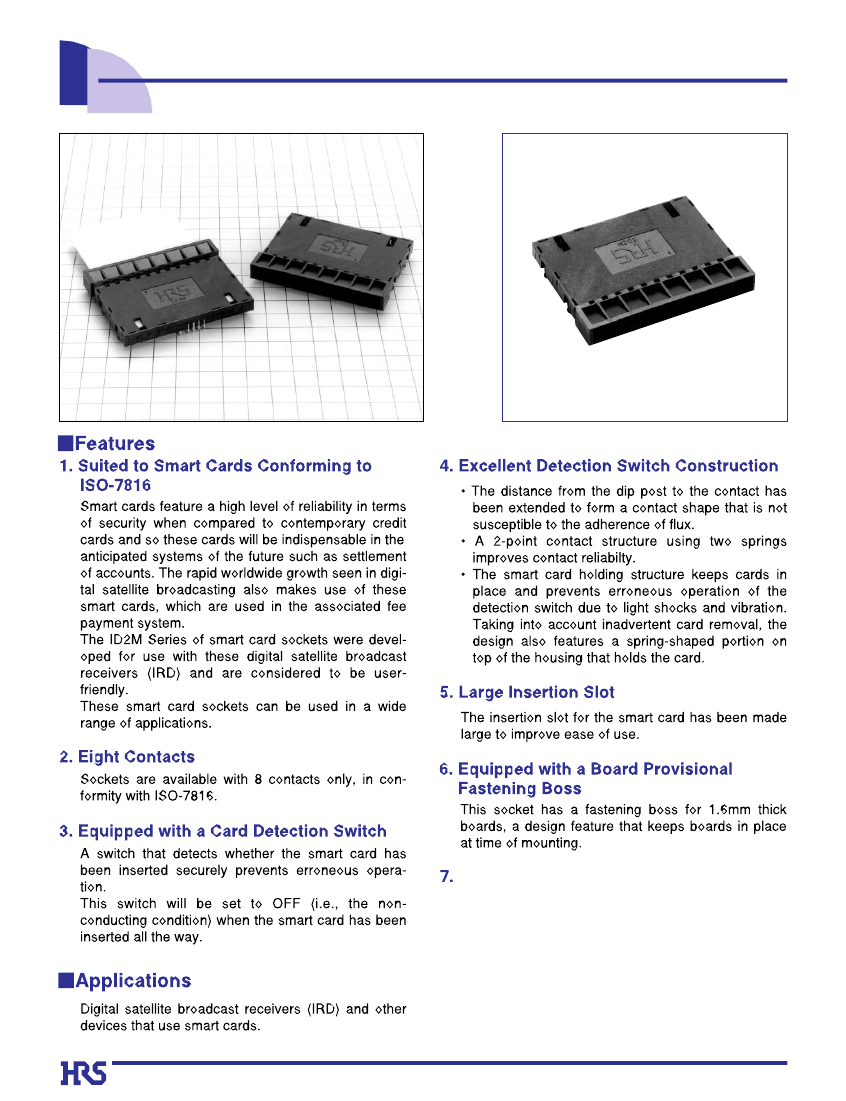

Smart Card Sockets
ID2M Series
Insertion/Removal Guarantee of
10,000 Times
C28
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

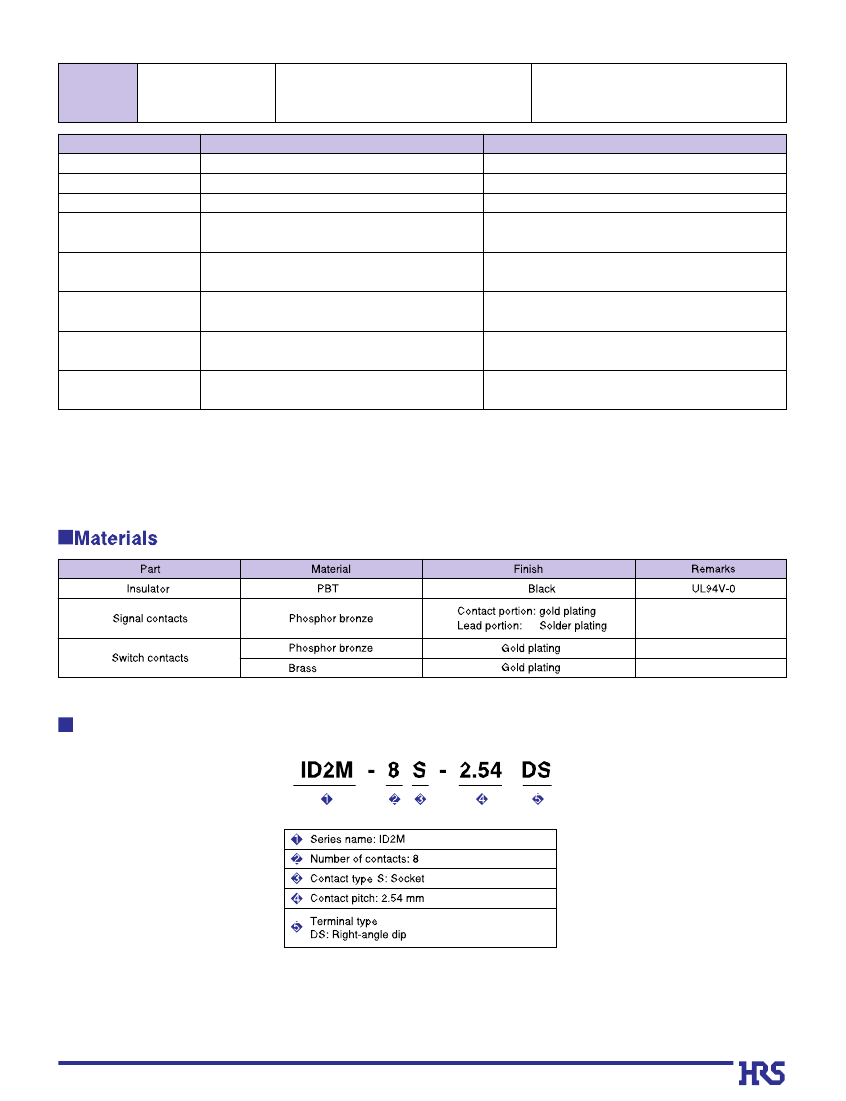

sProduct
Specification
Current rating
Rating
Voltage rating
150V AC
Operating humidity
40 to 80
%
Storage humidity
40 to 70
%
(NOTE 2)
1A
Operating temperature
-50
ç
to +80
ç
(NOTE 1)
Storage temperature
-40
ç
to +60
ç
(NOTE 1)
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
5. Humidity(Steady state)
6. Temperature cycle
7.Durability
(mating/unmating)
9.
Resistance to
soldering heat
1000 Mø min.
Specification
500 VDC
500 V AC / 1 minute
No flashover or insulation breakdown.
30 mø max.(40mø max.for switch portion)
No electrical discontinuity of 1µs or more
Contact resistance: 40 mø max. (50 mø max.for the switch portion)
Insulation resistance: 1000Mø man.
Contact resistance: 40 mø max. (50 mø max.for the switch portion)
Insulation resistance: 1000Mø man.
Contact resistance: 40 mø max.
(50 mø max.for the switch portion)
No deformation of components
affecting performance.
Conditions
20 mV AC max.,measured at 1 mA
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm ,
2 hours in each of the 3 directions.
96 hours at temperature of 40ç and
humidity of 90% to 95%
(-55ç: 30 minutes/
5 to 35ç:10 minutes/85ç:30 minutes
/
5 to 35ç:10 minutes)for 5 cycles
100000 cycles
Flow: 255° for 5 seconds
Manual soldering: 300ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and Humidity
range covers non- conducting condition of installed connectors in storage, shipment or during transportation.
Color:
Ordering Information
C29
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

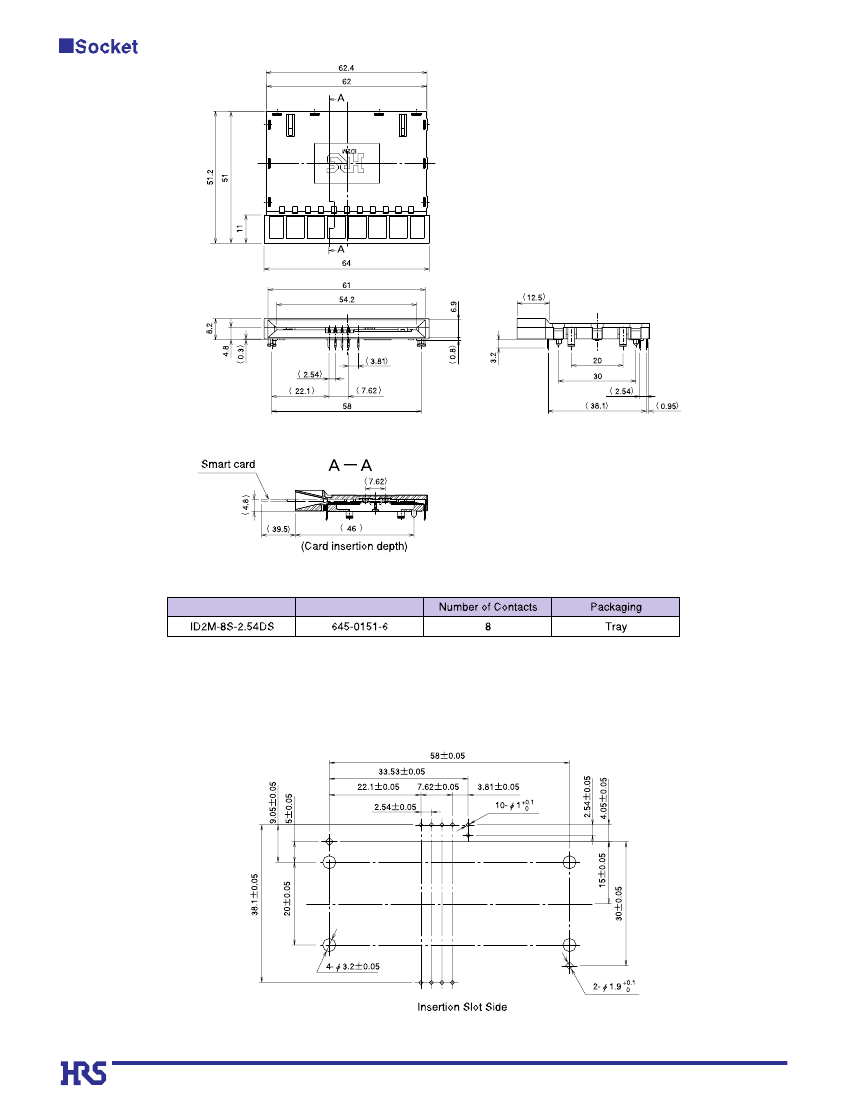

Part Number
CL No.
sPCB
mounting pattern
PCB mounting pattern
C30
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

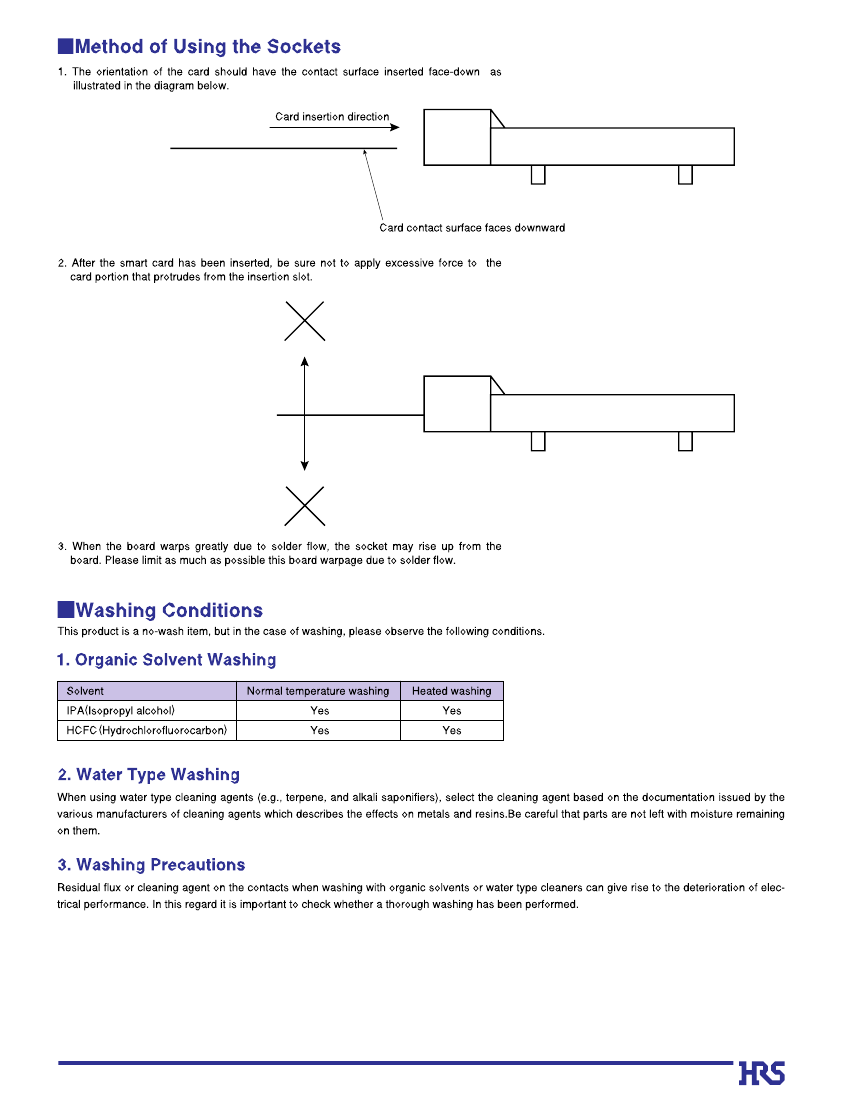

C31
