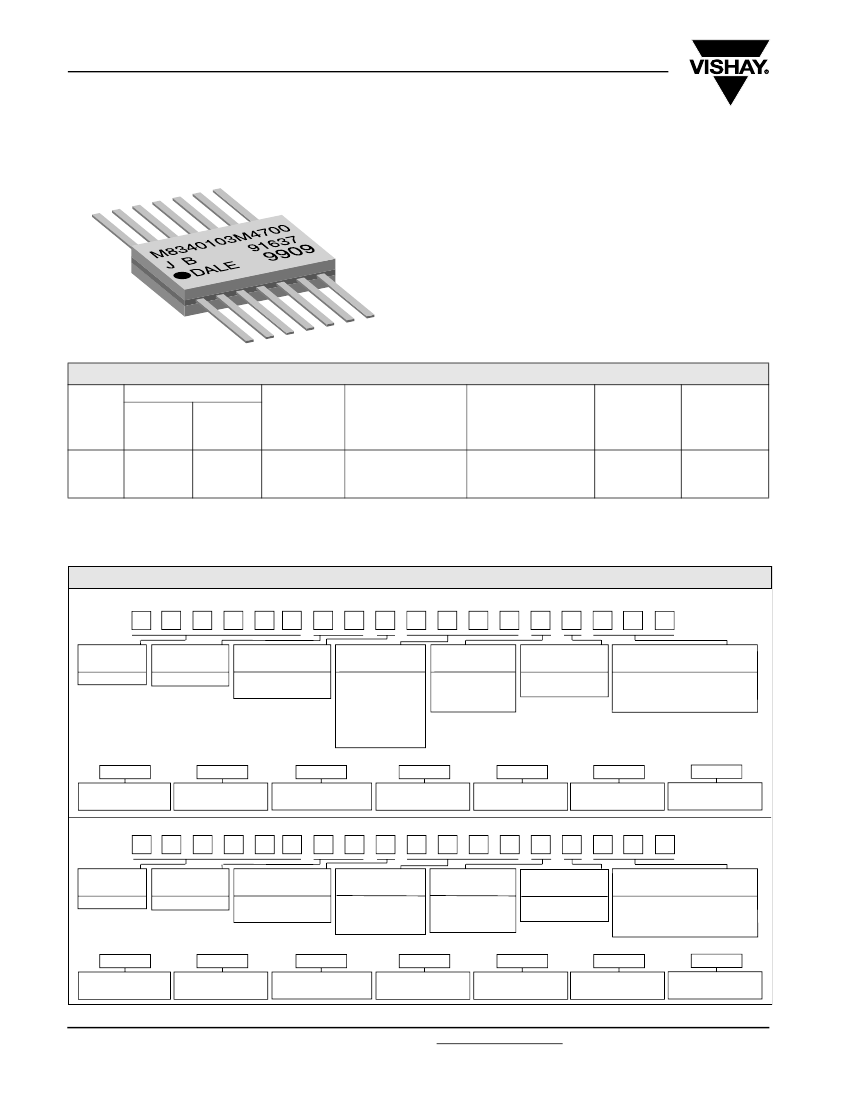

DFM (Military M83401)
Vishay Dale
Thick Film Resistor Networks, Military, MIL-PRF-83401
Qualified, Type RZ030, Schematics A (11), B (12), J (15)
FEATURES
•
11, 12, 15 Schematics; hot-solder dipped
•
MIL-PRF-83401 qualified
•
Thick film resisitive elements
•
TCR available in “K” (± 100 ppm/°C) or “M” (± 300 ppm/°C)
characteristic
•
100 % screen tested per Group A, Subgroup 1 of
MIL-PRF-83401
•
0.065" [1.65 mm] height for high density packaging
STANDARD ELECTRICAL SPECIFICATIONS
VISHAY
DALE
MODEL
POWER RATING
P
70 °C
ELEMENT
W
0.050
0.025
0.015
P
70 °C
PACKAGE
W
0.350
0.325
0.350
CIRCUIT
SCHEMATIC
11
12
15
LIMITING ELEMENT
VOLTAGE
MAX.
V≅
50
50
50
TEMPERATURE
COEFFICIENT
(1)
(- 55 °C to + 125 °C)
K, M
K, M
K, M
STANDARD
(2)
TOLERANCE
%
2
2
2
RESISTANCE
RANGE
Ω
10R0 - 1M0
10R0 - 1M0
see table
DFM
Notes
(1)
K = ± 100 ppm/°C; M = ± 300 ppm/°C
(2)
± 1 % and ± 5 % tolerance available
• Consult factory for stocked values
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: M8340103M6801GAD05 (preferred part numbering format)
M
MIL STYLE
8
3
4
0
1
0
3
M
6
8
0
1
G
A
D
0
5
PACKAGING
RESISTANCE
TOLERANCE
V
ALUE
M83401
03
3 digit significant
F
=±1
%
K
= 100 ppm
M
= 300 ppm
figure, followed
G
=±2
%
by
a multiplier
J
=±5
%
10R0
= 10
Ω
3302
= 33 k
Ω
1004
= 1 M
Ω
Historical Part Number example: M8340103M6801G A (will continue to be accepted)
SPEC SHEET CHARACTERISTIC
SCHEMATIC
A
= Isolated
B
= Bussed
D05
= Tin/Lead, Tube
DSL
= Tin/Lead, Tube,
Single Lot Date Code
M83401
MIL STYLE
03
SPEC SHEET
M
CHARACTERISTIC
6801
RESISTANCE
V
ALUE
G
TOLERANCE
A
SCHEMATIC
D05
PACKAGING
New Global Part Numbering: M8340103KA001GJD05 (preferred part numbering format)
M
MIL STYLE
M83401
8
3
4
0
1
0
3
K
A
0
0
1
G
J
D
0
5
PACKAGING
SPEC SHEET CHARACTERISTIC
03
K
= 100 ppm
M
= 300 ppm
RESISTANCE
V
ALUE
Per Std. MIL. Spec
(see Impedence
Codes table)
TOLERANCE
F
=±1
%
G
=±2
%
J
=±5
%
SCHEMATIC
J
= Dual
Terminator
D05
= Tin/Lead, Tube
DSL
= Tin/Lead, Tube,
Single Lot Date Code
Historical Part Number example: M8340103KA001GJ (will continue to be accepted)
M83401
MIL STYLE
03
SPEC SHEET
K
CHARACTERISTIC
A001
RESISTANCE
V
ALUE
G
TOLERANCE
J
SCHEMATIC
D05
PACKAGING
www.vishay.com
330
For technical questions, contact: ff2aresistors@vishay.com
Document Number: 31517
Revision: 08-Jul-08
DFM (Military M83401)
Thick Film Resistor Networks, Military, MIL-PRF-83401
Qualified, Type RZ030, Schematics A (11), B (12), J (15)
DIMENSIONS
in inches [millimeters]
Pin #1
0.050 [1.27]
Typ.
0.019 ± 0.006
[0.483 ± 0.15]
0.305
[7.75]
Max.
0.250 [6.35]
Min.
0.075
[1.91]
Max.
0.250 [6.35]
Min.
0.005 + 0.004
- 0.002
[0.127 + 0.102
- 0.051]
Vishay Dale
0.365 [9.27] Min.
0.385 [9.78] Max.
0.825 [20.96]
Max.
11 Schematic
Power Rating (W)
12 Schematic
Power Rating (W)
15 Schematic
Power Rating (W)
0.400
0.350
DFM1411
Package
0.400
DFM1412
Package
0.325
0.400
0.350
DFM1415
Package
0.200
0.200
0.200
Single
Resistor
0.050
0.025
- 55
+ 25
+ 70
+ 125 + 150
- 55
Single
Resistor
0.015
+ 25
+ 70
+ 125 + 150
- 55
Single
Resistor
+ 25
+ 70
+ 125 + 150
Derating
Ambient Temperature °C
Ambient Temperature °C
Ambient Temperature °C
MECHANICAL SPECIFICATIONS
Marking Resistance to Solvents
Solderability
Terminals
Body
Permanency testing per MIL-PRF-83401
Per MIL-PRF-83401
Per MIL-STD-1276
DFM1411, DFM1412 and DFM1415 = Type G (hot solder dipped)
Hot solder dipped leads supplied as standard finish.
Epoxy filled ceramic sandwich
IMPEDANCE CODES
CODE
A001
A002
A003
A004
A005
A006
A007
A008
A009
R
1
(Ω)
82
120
130
160
180
180
220
220
330
R
2
(Ω)
130
200
210
260
240
390
270
330
390
CODE
A010
A011
A012
A013
A014
A015
A016
A017
A018
R
1
(Ω)
330
330
1.5K
3K
180
270
560
560
620
R
2
(Ω)
470
680
3.3K
6.2K
270
270
560
1.2K
2.7K
Document Number: 31517
Revision: 08-Jul-08
For technical questions, contact: ff2aresistors@vishay.com
www.vishay.com
331
DFM (Military M83401)
Vishay Dale
Thick Film Resistor Networks, Military, MIL-PRF-83401
Qualified, Type RZ030, Schematics A (11), B (12), J (15)
CIRCUIT APPLICATIONS
11 Schematic
DFM1411 (M8340103xxxxxxA)
7 isolated resistors
The DFM1411 provides the user with 7 nominally equal resistors with each resistor isolated from
all others. Commonly used in the following applications:
DFM1411
Pin #1
• “Wired OR” Pull-up
• Power Driven Pull-up
• TTL Input Pull-down
• Line Termination
• ECL Output Pull-down
• LED Current Limiting
• Power Gate Pull-up
• Long-line Impedance balancing
12 Schematic
DFM1412 (M8340103xxxxxxB)
13 resistors with one pin common
The DFM1412 provides the user with a choice of 13 nominally equal resistors, each connected
to a common pin. Commonly used in the following applications:
• MOS/ROM Pull-up/
• “Wired OR” Pull-up
• Power Driven Pull-up
• TTL Unused Gate Pull-up
• Digital Pulse Squaring
• TTL Input Pull-down
• High Speed Parallel Pull-up
• Pull-down
• Open Collector Pull-up
• • • • • • •
DFM1412
Pin #1
15 Schematic
DFM1415 (M8340103xxxxxxJ)
14
R1
R2
R1
1R2
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R2
R1
R1
R2
12 pairs of resistors
The DFM1415 provides the user with a choice of 12 pairs of R1/R2 resistor values for pulse
squaring and TTL dual-line terminating requirements.
DFM1415
CAGE CODE: 91637
www.vishay.com
332
For technical questions, contact: ff2aresistors@vishay.com
Document Number: 31517
Revision: 08-Jul-08
DFM (Military M83401)
Thick Film Resistor Networks, Military, MIL-PRF-83401
Qualified, Type RZ030, Schematics A (11), B (12), J (15)
PERFORMANCE
TEST
CONDITIONS
1.5 x rated power, applied 1.5 h “ON” and 0.5 h “OFF”
for 100 h ± 4 h at + 25 °C ambient temperature
5 cycles between - 65 °C and + 125 °C
MAX.
ΔR
(Typical Test Lots)
± 0.50 %
ΔR
± 0.50 %
ΔR
± 0.25 %
ΔR
(Char. K)
± 0.50 %
ΔR
(Char. M)
± 0.25 %
ΔR
(Char. K)
± 0.50 %
ΔR
(Char. M)
± 0.50 %
ΔR
± 0.25 %
ΔR
± 0.25 %
ΔR
± 0.25 %
ΔR
± 0.50 %
ΔR
(Char. K)
± 2.0 %
ΔR
(Char. M)
± 0.25 %
ΔR
Vishay Dale
Power Conditioning
Thermal Shock
Short Time Overload
2.5 x rated working voltage for 5 s
Low Temperature Operation
45 min at full rated working voltage at - 65 °C
Moisture Resistance
240 h with humidity ranging from 80 % RH to 98 % RH
Resistance to Soldering Heat
Leads immersed in + 260 °C solder to within 1/16" of body for 10 s
Shock
Total of 18 shocks at 100 g's
Vibration
12 h at maximum of 20 g's between 10 and 2000 Hz
1000 h at + 70 °C, rated power applied 1.5 h “ON”,
0.5 h “OFF” for full 1000 h period
1.5 pound pull for 30 s
Load Life
Terminal Strength
Insulation Resistance
10 000 MΩ (minimum)
-
Dielectric Withstanding Voltage
No evidence of arcing or damage (200 V RMS for 1 min)
-
