8A-03PMMS-SH7001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Circular connector> The annular metric connector> 8A-03PMMS-SH7001

Preview

8A-03PMMS-SH7001: DescriptionRing Metric Connector M8 CONN WITH KEY PNL SCRW 3PIN M CONN; CategoryThe connector Circular connector The annular metric connector; File Size210KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8A-03PMMS-SH7001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8A-03PMMS-SH7001	-	-	View	Buy Now

8A-03PMMS-SH7001 Overview

Ring Metric Connector M8 CONN WITH KEY PNL SCRW 3PIN M CONN

8A-03PMMS-SH7001 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Product Category	Ring Metric Connector
Shipping restrictions	Mouser does not currently sell this product.
Number of contacts	3 Contact
Thread size	M8
Termination type	Solder Cup
Current rating	3 A
IP rating	IP67
series	M Series
Subject type	Straight
Contact plating	Gold
Description/Function	M8 With Key Male Connector
Type	Male
Shell material	Nylon
length	20.5 mm
Housing type	Plug
shield	Unshielded
Installation style	Panel
Contact type	Pin (Male)
Insert/contact gender	Pin
Factory packaging quantity	1

Preview

Download Datasheet

View All

1

2

3

4

REV.

5

ECN NO.

6

DATE

SIGN

7

DESCRIPTION

8

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A

F

QC

12.0 (HEX)

QC

2.5

QC

20.5

QC

10.0

8.50

13.9 (REF.)

D

M8*0.5

With Liquid Glue

3

M8*1.0

T

A

L

W

CONFIDENTIAL

11.5 (REF.)

7.00

QC

6.90

E

PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY

2013-10-22

C

7.1

+0.1

0

R&D DEPT.

1

Screw Nut

5

4 O-Ring

Connector

Note:

* Important Dimension.

QC

* Waterproof Rate: IP67.

* Housing: Nylon+GF, Black.

* Male Pin: Copper Alloy, Gold Plated.

* Shield: Zinc Alloy, Nickel Plated.

* Screw Nut: Copper Alloy, Nickel Plated.

* O-Ring: EPDM, Black.

* For Panel Thickness Max 3.5mm.

* Nut Torque: 4~6 kgf.cm.

DRAWN BY

DATE

2 Shield

3

4

Pin Assignment

Front View

Recommended

Panel Cut-Out

TITLE

8.1

B

1

A

UNIT:mm

TOLERANCE

.X

# 0.25

.XX

# 0.1

.XXX

# 0.05

ANGLES

# 1 $

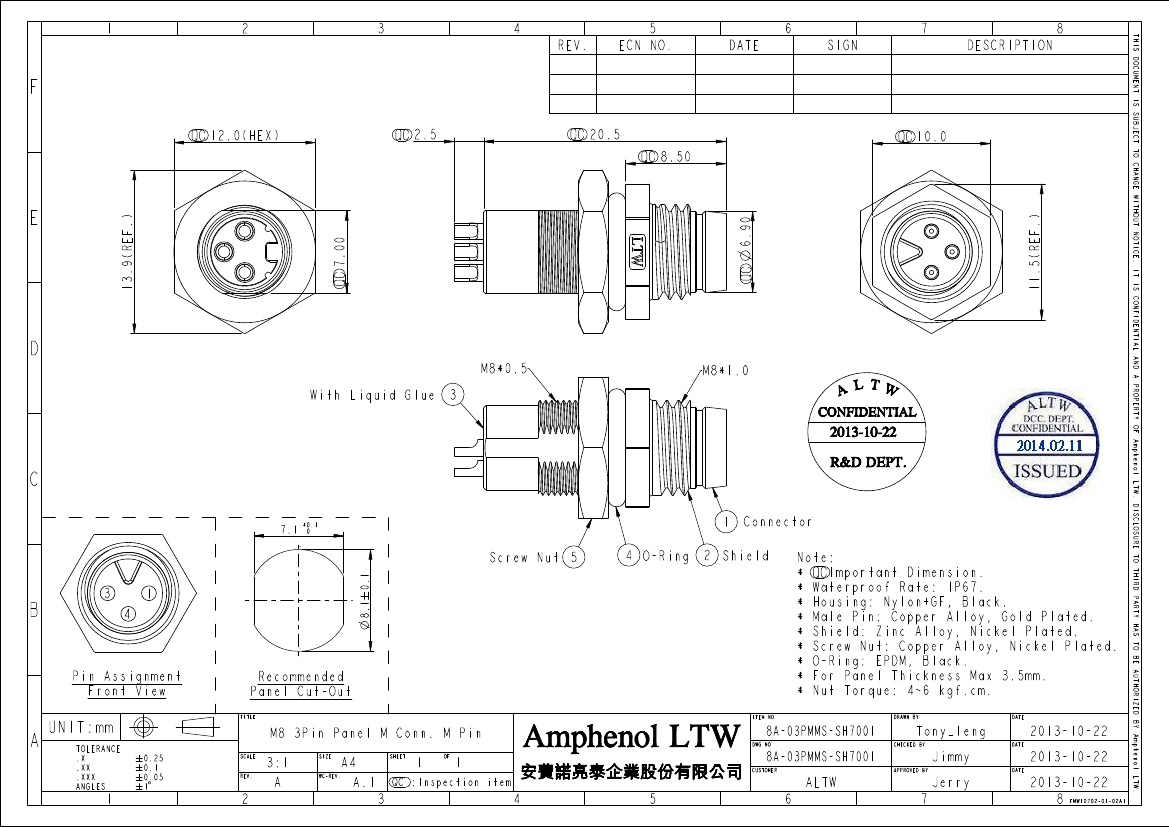

M8 3Pin Panel M Conn. M Pin

SCALE

3:1

A

SIZE

A4

A.1

3

SHEET

1

OF

Amphenol LTW

4

5

ITEM NO

8A-03PMMS-SH7001

DWG NO

Tony_leng

CHECKED BY

DATE

2013-10-22

DATE

Amphenol LTW.

1

8A-03PMMS-SH7001

CUSTOMER

APPROVED BY

Jimmy

Jerry

7

REV.

WC-REV.

QC :Inspection item

ALTW

6

1

2

2013-10-22

8

FMW10702-01-02A1
