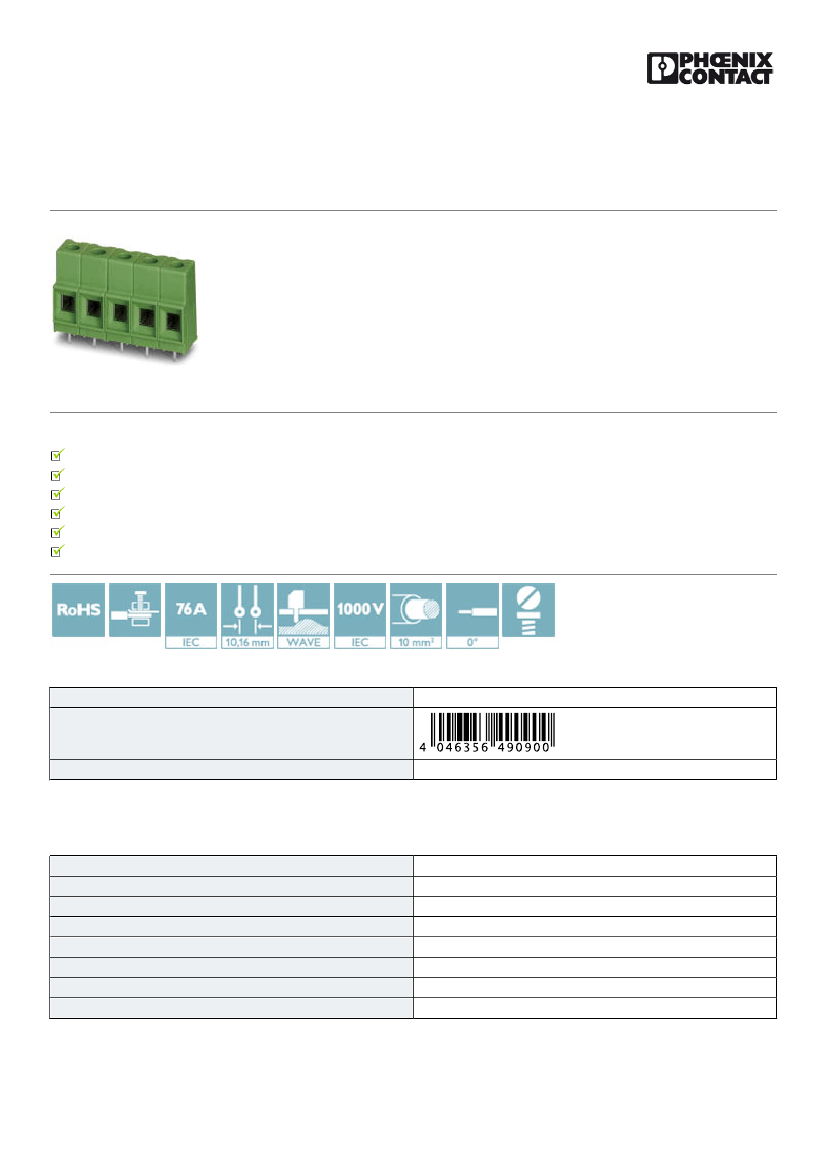

PCB terminal block - MKDSP 10N/ 2-10,16 NZ557541-3 - 1700524
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 76 A, nom. voltage: 1000 V, pitch: 10.16 mm, number of positions:
2, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB
connection direction: 0 °, color: green
The figure shows a 5-pos. version
of the product
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Quick and convenient testing using integrated test option
The latching on the side enables various numbers of positions to be combined
Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
Key Commercial Data
Packing unit
GTIN
GTIN
4046356490900
50 pc
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Hole diameter
18.4 mm
10.16 mm
10.16 mm
20.32 mm
29.3 mm
34.3 mm
5 mm
1.5 mm
General
12/07/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1700524
PCB terminal block - MKDSP 10N/ 2-10,16 NZ557541-3 - 1700524
Technical data
General
Range of articles
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Internal cylindrical gage
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
MKDSP 10N
8 kV
8 kV
6 kV
690 V
1000 V
1000 V
EN-VDE
76 A
10 mm²
B6
10 mm
2
M4
1.2 Nm
1.5 Nm
Connection data
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
20
6
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
0.5 mm²
6 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
12/07/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1700524
PCB terminal block - MKDSP 10N/ 2-10,16 NZ557541-3 - 1700524
Approvals
Approvals
Approvals
CSA / CCA / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
CCA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
10 A
22-12
http://www.csagroup.org/services-industries/product-listing/
B
300 V
15 A
22-12
1000 V
76 A
0.5-16
13631
CCA/ DE1 34205
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.iecee.org/
DE1-58858
1000 V
76 A
0.5-16
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
1000 V
76 A
0.5-16
40035740
12/07/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1700524
PCB terminal block - MKDSP 10N/ 2-10,16 NZ557541-3 - 1700524
Approvals
EAC
D
600 V
5A
20-6
B
300 V
60 A
20-6
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19770427
C
300 V
60 A
20-6
