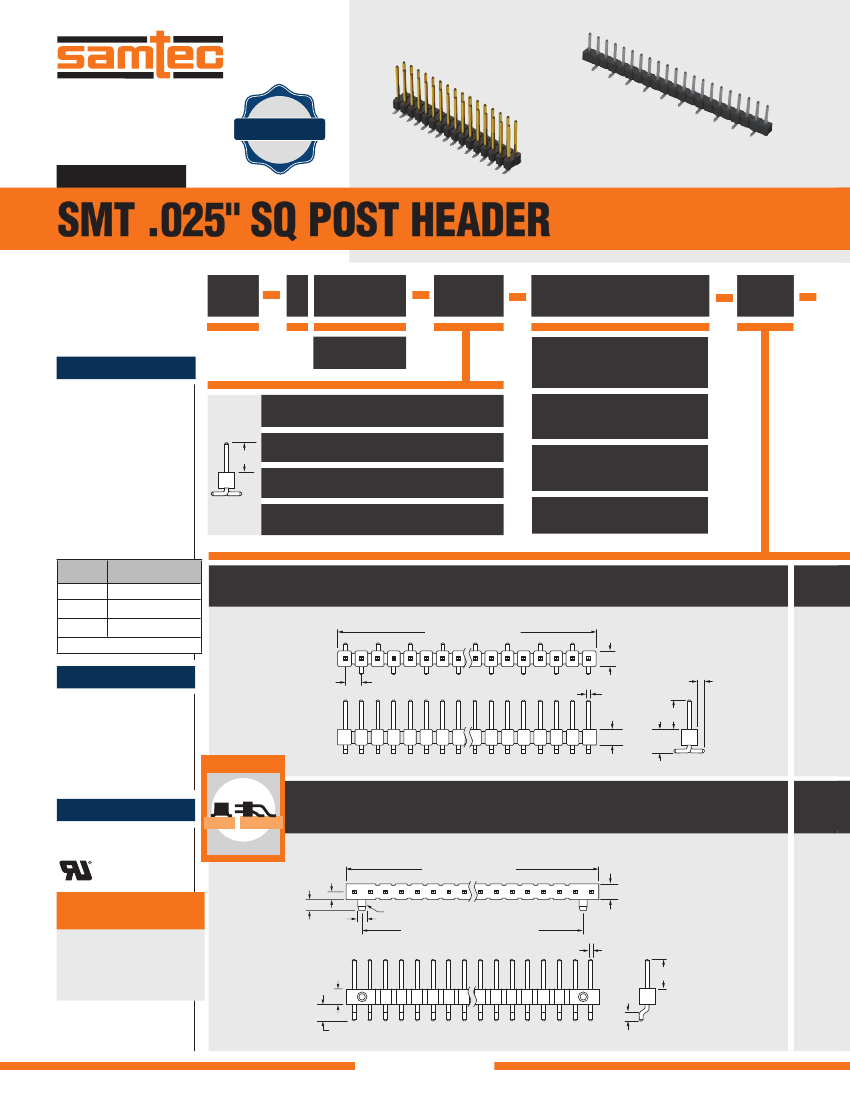

F-219
TSM–116–02–S–DV–LC
EXTENDED LIFE
PRODUCT
HIGH MATING
CYCLES
10 YEAR MFG
WITH 30 µ" GOLD
TSM–121–01–T–SV
(2.54 mm) .100"
SMT .025" SQ POST HEADER
Board Mates:
SSW, SSQ, SSM, BSW, ESW,
ESQ, BCS, SLW, CES, HLE
Cable Mates:
IDSS, IDSD
TSM
1
NO. PINS
PER ROW
LEAD
STYLE
PLATING
OPTION
ROW
OPTION
SPECIFICATIONS
For complete specifications
and recommended PCB layouts
see www.samtec.com?TSM
Insulator Material:
Black Liquid Crystal Polymer
Terminal Material:
Phosphor Bronze
Plating:
Au or Sn over
50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +105 °C with Tin;
-55 °C to +125 °C with Gold
Voltage Rating:
475 VAC -SV/-DV mated with
BCS or SSM
RoHS Compliant:
Yes
MATES
TSM/SSW
TSM/SSM
TSM/HLE
CURRENT RATING
(PER PIN)
4.7 A
5.4 A
4.1 A
02
thru
36
–01
= .230" (5.84 mm) Post Height IDSS, IDSD)
(Mates with SSW, BCS, SSM,
Post
Height
= Gold flash on post,
Matte Tin on tail
–F
–L
= 10 µ" (0.25 µm) Gold on post,
Matte Tin on tail
.320" (8.13
–02
= (Mates withmm) Post Height
SSM -DH)
.420" (10.67
Height
–03
= (For Bottom mm) PostPass Through)
Mount &
.120" (3.05
–04
= (Mates withmm) Post Height
SLW, CES, HLE)
= 30 µ" (0.76 µm) Gold on post,
Matte Tin on tail
–S
–T
= Matte Tin
= Single Row Vertical Pin
–SV
2 PINS POWERED
36
(2.54) .100 x No. of positions
(2.54)
.100
PROCESSING
Lead–Free Solderable:
Yes
-DH/-SH Lead Coplanarity:
(0.15 mm) .006" max (02-36)*
-DV/-SV Lead Coplanarity:
(0.10 mm) .004" max (02-05)
(0.13 mm) .005" max (06-10)*
(0.15 mm) .006" max (11-36)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
(2.54)
.100
01
(0.64)
.025
SQ
(1.14)
.045
REF
Post
Height
(2.54)
.100
(3.81)
.150
APPLICATIONS
SSM
TSM
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
HORIZONTAL
(1.40)
.055
(1.78)
.070
= Single Row
Horizontal Pin
–SH
(2.54) .100 x No. of positions
36
01
(3.05)
.120
FILE NO. E111594
ALSO AVAILABLE
(MOQ Required)
• Edge Mount and
Locking Clips for –SV
• Solder Locks for –DH and
Shrouds for –DV
• Other platings
(1.58)
.062
DIA
(2)
Optional Alignment Pin (–A)
(No. of positions x (2.54) .100) – (5.08) .200
(0.64)
.025
SQ
Post
Height
(2.54)
.100
(2.03)
.080
Note:
Some lengths,
styles and options are
non-standard, non-returnable.
–01= (4.57) .180
–02, –03, –04 = (4.82) .190
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
TSM–115–01–T–SH–A
TSM–110–01–T–DV
TSM–126–02–L–DH–K

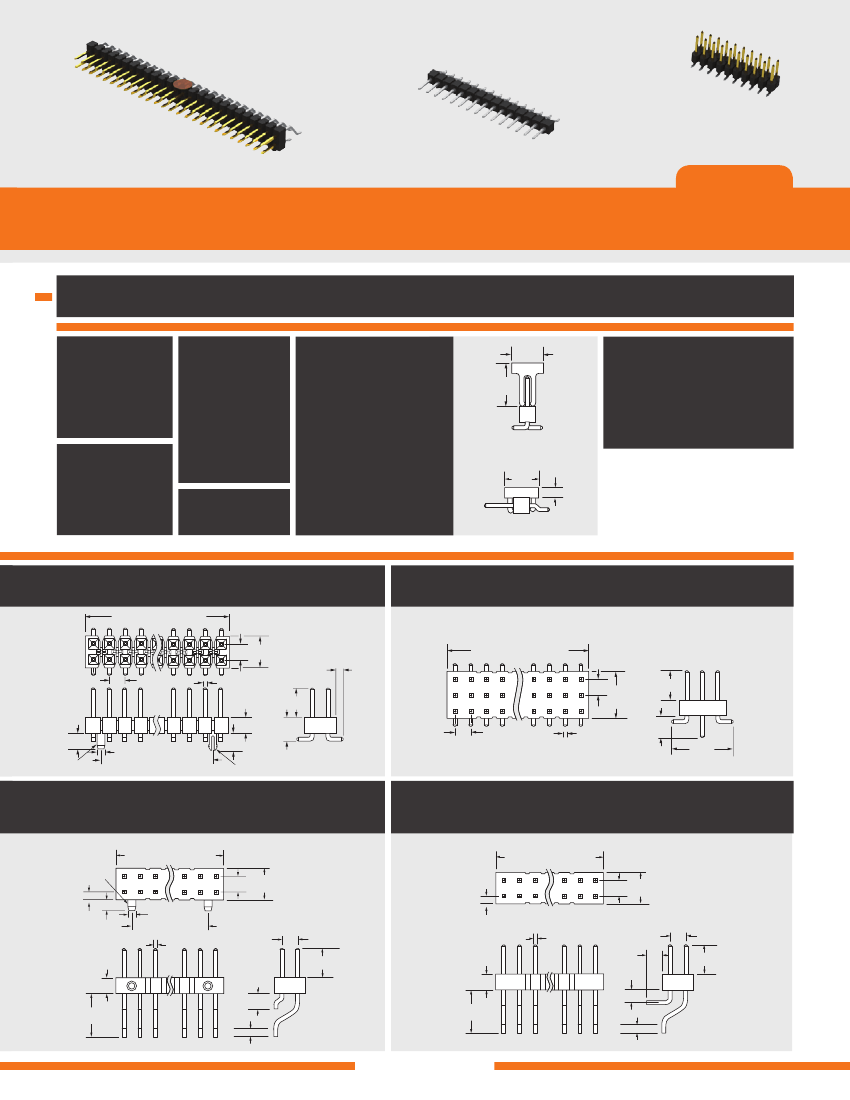

TSM SERIES
OTHER OPTIONS
= Alignment Pin
metal or plastic
at Samtec discretion
(Not available
with –TM or –MT)
(02 positions min.)
(Not available with –LC)
–A
= (6.50 mm) .256" DIA
Polyimide Film
Pick & Place Pad
(–SH: 4 positions
minimum without –TR;
2 & 3 positions
available with –TR)
(–DH: 4 positions
minimum
without –TR)
–K
= Plastic Pick & Place Pad
(–DV: 4 positions minimum
without –TR; 2 & 3 positions
available with –TR)
(–SH: 4 positions
minimum without –TR;
2 & 3 positions
available with –TR)
(–DH: 5 positions
minimum without –TR)
(–SV: 4 positions
minimum without –TR;
2 & 3 positions
available with –TR)
(6.86)
.270
–P
(4.06)
.160
= Tape & Reel Packaging
–SV = 02-22 positions
–DV = 02-28 positions
–SH = 02-30 positions
–DH = 02-29 positions
Not available with –MT or –TM
(13.27)
.050
–TR
= Locking Clip
(Not available with –TM)
(3 positions min.)
(Not available with –A)
(Manual placement
required)
–LC
–SV
(6.35)
.250
–“XXX”
= Polarized
Position
–SH & –DH
= Double Row Vertical Pin
02
(2.54) .100 x No. of positions
72
(2.54) (5.08)
.100 .200
01
(2.54) .100
71
(0.64) .025 SQ
Post
Height
(2.54)
.100
(2.79)
.110
–LC Option
(3.81)
.150
01
–DV
= Triple Row Vertical Mixed Technology (Style –01 only)
–TM
02 thru 30 positions only
03
(2.54) .100 X No. of positions
90
(2.54)
.100 (7.62)
.300
88
(0.64) .025 SQ
Post
Height
(1.14)
.045
REF
(2.54)
.100
–A Option
(2.54) .100
(3.56)
.140
(11.43)
.450
(1.58) .062 DIA
(No. of positions -2) x (2.54) .100)
= Double Row Horizontal Pin
(Style –01, –02 or –03 only)
(2.54) .100 x No. of positions
02
72
(2.54)
.100
01
(1.78)
.070 (1.40)
.055
(1.58)
.062 DIA(2)
(No. of positions x
(2.54) .100) – (5.08) .200
(0.64)
.025
71
(1.78)
.070
(2.54)
.100
Post
Height
(2.54)
.100
(7.87)
.310
(3.68)
.145
(2.54)
.100
(7.87)
.310
(6.10)
.240
01
–DH
= Mixed Technology Pin
(Style –01, –02 or –03 only)
–MT
Optional
Alignment
Pin (–A)
(2.54) .100 x No. of positions
02
72
(2.54) (6.10)
.100 .240
71
(2.54)
.100
(2.54)
.100
(1.52)
.060
Post
Height
(0.64)
.025
(1.16) .046
(1.16) .046
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
