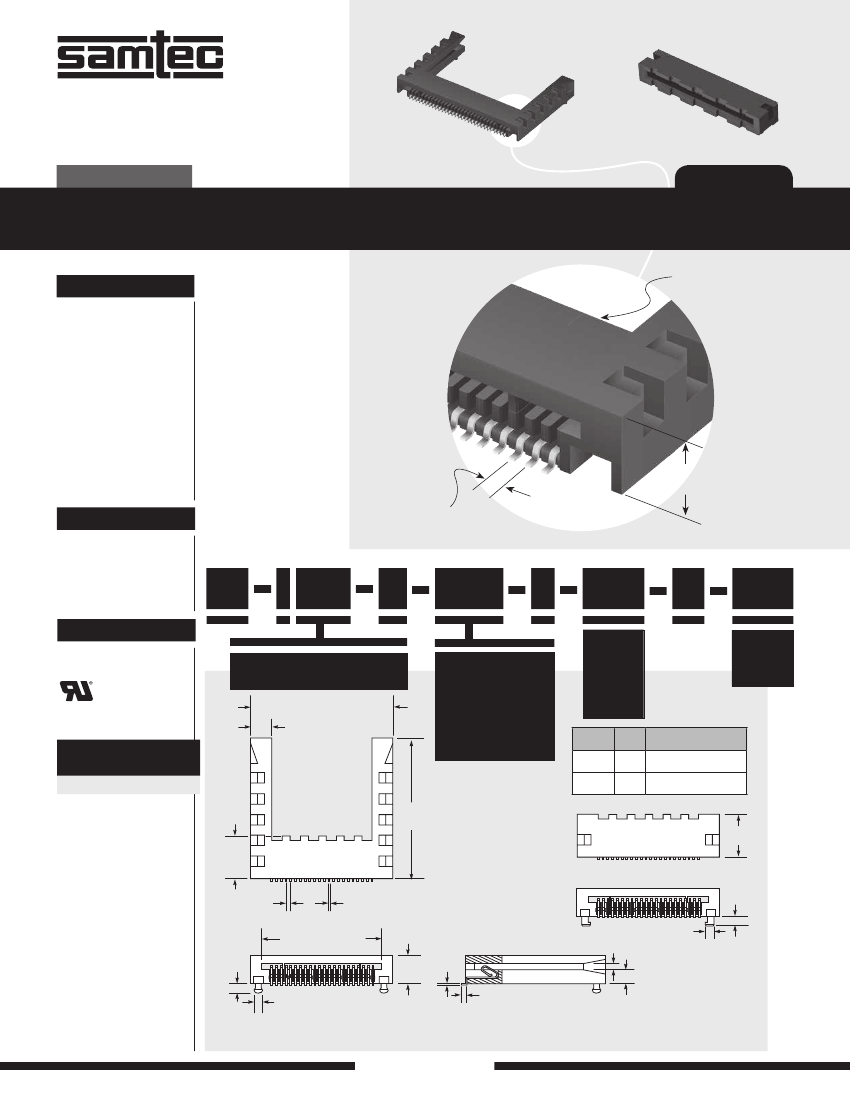

F-219 SUPPLEMENT
MB1–130–01–F–S–01–SL–N
MB1–130–01–F–S–01–SL
(1.00 mm) .0394"
MB1 SERIES
MINI EDGE CARD SOCKET WITH GUIDES
SPECIFICATIONS
For complete specifications and
recommended PCB layouts see
www.samtec.com?MB1
Insulator Material:
Black LCP
Contact Material:
BeCu
Plating:
Sn or Au over
50 µ" (1.27 µm) Ni
Current Rating:
2.2 A per pin
(6 pins powered)
Operating Temp Range:
-55 °C to +125 °C
Insertion Depth:
(5.26 mm) .207" to
(6.10 mm) .240"
RoHS Compliant:
Yes
Mates with:
(0.80 mm) .031" PCB,
(1.60 mm) .062" PCB
Choice of two
card thicknesses
(5.44 mm)
.214"
(1.00 mm)
.03937" pitch
PROCESSING
Lead–Free Solderable:
Yes
SMT Lead Coplanarity:
(0.10 mm) .004" max (20-30)
(0.15 mm) .006" max (40-50)*
*(.004" stencil solution
may be available; contact
IPG@samtec.com)
MB1
1
NO. OF
PINS
01
PLATING
OPTION
S
CARD
SLOT
Specify
CARD
SLOT
from
chart
CARD
SLOT
–01
–02
A
SL
OTHER
OPTION
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
20, 30, 40, 50
(No. of Positions + 2)
x (1.00) .03937 + (4.06) .160
(3.81)
.150
= Gold flash on contact,
Matte Tin on tail
–F
–L
= No Card
Guides
–N
FILE NO. E111594
ALSO AVAILABLE
(MOQ Required)
• Other platings
(25.5)
1.004
(7.24)
.285
01
(1.00)
.03937
50
(0.36)
.014
(No. of Positions + 2)
x (1.00) .03937
(1.52)
.060
(1.27)
.050
DIA
(5.44)
.214
= 10 µ" (0.25 µm)
Gold on contact,
Matte Tin on tail
MATES WITH
BOARD THICKNESS
(0.97)
(0.80)
.038
.031
(1.83)
(1.60)
.072
.062
(7.24)
.285
–N OPTION
(1.27)
.050
(1.27)
.050
(0.15)
.006
(0.69)
.027
A
Notes:
Patented
Some sizes, styles and
options are non-standard,
non-returnable.
(2.36)
.093
Important Note:
Samtec recommends that pads on the mating board be Gold plated.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
WWW.SAMTEC.COM
