11_SMS-50-2-110/111_NH datasheet, PDF

Datasheet> All Categories > The connector> The connector> 11_SMS-50-2-110/111_NH

11_SMS-50-2-110/111_NH: DescriptionRF Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

11_SMS-50-2-110/111_NH Overview

RF Connector, Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT

11_SMS-50-2-110/111_NH Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	APPLICABLE CABLE: RG 316/U, CAPTIVATED
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	SMS
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

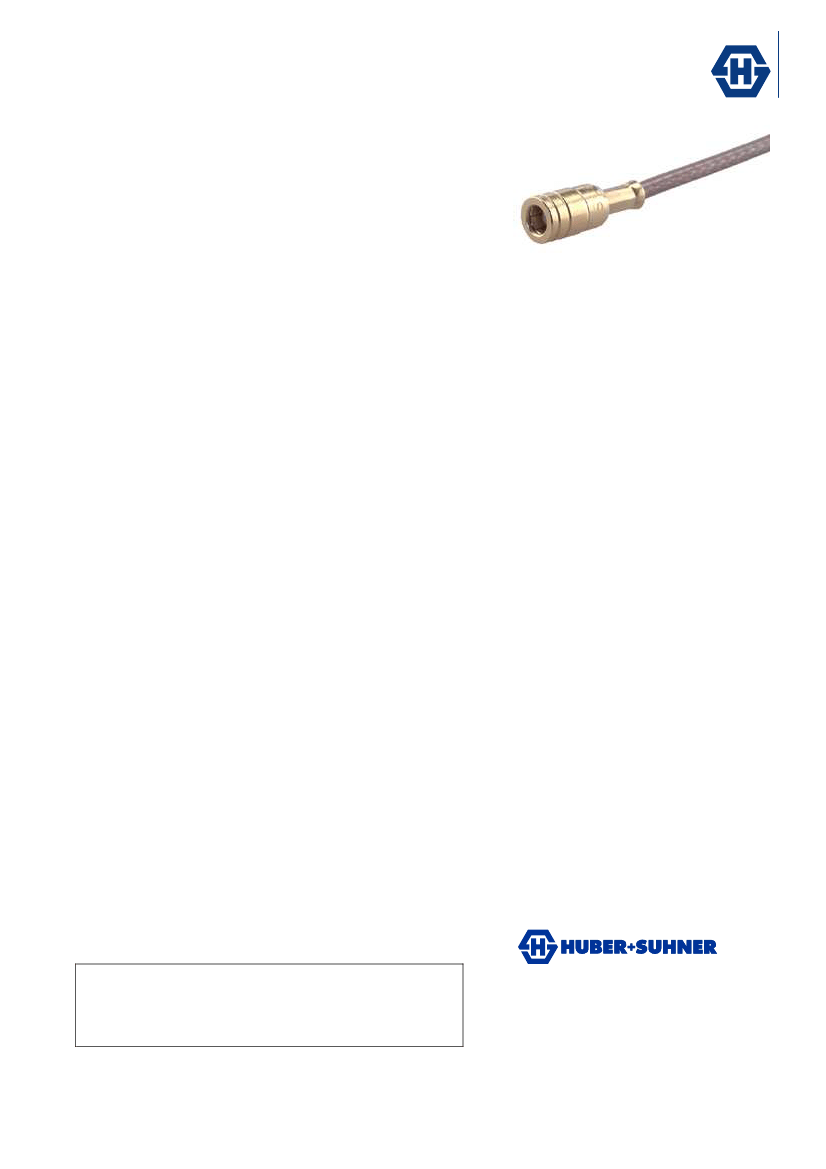

HUBER+SUHNER

DATA SHEET

Coaxial Cable Connector: 11_SMS-50-2-110/111_N

Description

Rev.: B

Straight cable plug

Interface Standards

SUHNER-SMS

Technical Data

Electrical Data

Impedance

Interface frequency max.

Ω

4 GHz

crimped

0.0024 kg

-65 °C to 165 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE / PSU

Copper

DOU-00006502

DOU-00005855

DOC-0000179013

11_SMS-50-2-110/111_NH

RG_316_/U, ENVIROFLEX_316, RG_188_A/U, RG 174 /U

Surface Plating

Gold Plating (Nickel underplated)

Gold Plating (without Nickel underplating)

Mechanical Data

Centre contact

Outer contact

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Crimp ferrule

Material Data
