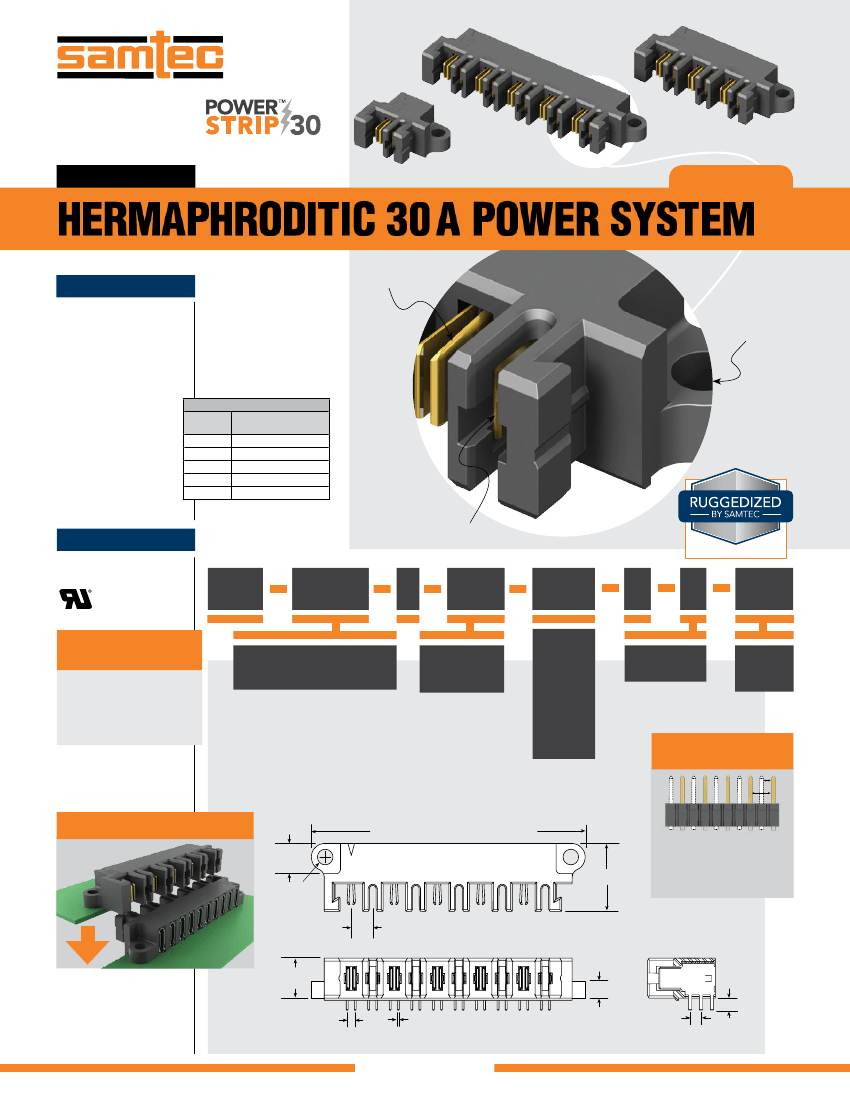

F-218
MPPT–10–01–01–L–RA–SD
MPPT–06–01–01–L–RA–SD
(5.00 mm) .1969"
MPPT–02–01–01–L–RA–SD
MPPT SERIES
HERMAPHRODITIC 30 A POWER SYSTEM
SPECIFICATIONS
For complete specifications
see www.samtec.com?MPPT
Insulator Material:
Black LCP
Terminal Material:
Copper Alloy
Plating:
Sn or Au over 50 µ"
(1.27 µm) Ni
Operating Temp Range:
-55 °C to +105 °C with Tin;
-55 °C to +125 °C with Gold
Voltage Rating:
600 VAC/848 VDC
Standard Creepage:
(2.95 mm) .116"
Standard Clearance:
(2.71 mm) .106"
RoHS Compliant:
Yes
Lead–Free Solderable:
Yes
Mates with:
MPPT
Dual leaf
contacts
Screw down
option
POWER
PINS
1
2
3
4
10
MPPT/MPPT
CURRENT RATING
(PER CONTACT)
23.3 A
20.5 A
19.4 A
18.4 A
17.2 A
RECOGNITIONS
For complete scope
of recognitions see
www.samtec.com/quality
FILE NO. E111594
Dual blade post
• Screw down option
MPPT
NO. OF
POSITIONS
01
TAIL
LENGTH
PLATING
RA
SD
OPTION
ALSO AVAILABLE
(MOQ Required)
• Locking Clip
(Manual placement required)
• Solder Leads for
(2.36 mm) .093" thick board
Contact Samtec.
–02, –04,
–06, –08, –10
= (1.60 mm) .062"
Thick PCB
– 01
=10 µ"
(0.25 µm)
Gold on
contact,
Matte Tin
on tail
–L
= Screw Down
–SD
= Tape &
Reel
–TR
= Matte Tin
–T
CREEPAGE
AND CLEARANCE
APPLICATION
(7.00)
.275
(3.60)
.142
DIA
No. of positions x (5.00) .1969 + (13.50) .531
(15.75)
.620
Selectively loading
contacts achieves customer
specific creepage and
clearance requirements.
Contact asp@samtec.com
(5.00)
.1969
TYP
(9.26)
.365
(4.00)
.157
(1.88)
.074
(0.41)
.016
(2.54)
.100
(2.84)
.112
Note:
Some sizes, styles
and options are non-standard,
non-returnable.
Due to technical progress, all designs, specifications and components are subject to change without notice.
All parts within this catalog are built to Samtec’s specifications.
Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.
