12.7mm (0.5INCH) SINGLE DIGIT
NUMERIC DISPLAYS
SA05-11EWA/GWA/YWA/SRWA
SC05-11EWA/GWA/YWA/SRWA
Features
0.5 INCH DIGIT HEIGHT.
LOW CURRENT OPERATION.
EXCELLENT CHARACTER APPEARANCE.
EASY MOUNTING ON P.C. BOARDS OR SOCKETS.
I.C. COMPATIBLE.
CATEGORIZED FOR LUMINOUS INTENSITY,
YELLOW AND GREEN CATEGORIZED FOR COLOR.
MECHANICALLY RUGGED.
STANDARD : GRAY FACE, WHITE SEGMENT.
Description
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
Package Dimensions & Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is
±0.25(0.01")unless
otherwise noted.
2. Specifications are subject to change whitout notice.
SPEC NO: CDA0851
APPROVED:J.LU
REV NO: V.1
CHECKED:
DATE: NOV/18/2001
DRAWN: S.H.CHEN
PAGE: 1 OF 5
Selection Guide
Par t No .
SA05-11EWA
SC05-11EWA
SA05-11GWA
SC05-11GWA
SA05-11YWA
SC05-11YWA
SA05-11SRWA
SC05-11SRWA
SUPER BRIGHT RED (GaAlAs)
8000
24000
YELLOW (GaAsP/GaP)
19 0 0
4700
GREEN (GaP)
3000
10500
HIGH EFFICIENCY RED (GaAsP/GaP)
3 0 00
800 0
Dic e
Iv (u c d )
@ 10 m A
Min .
Ty p .
D es c r i p t i o n
Common Anode, Rt Hand Decimal
Common Cathode, Rt. Hand
Decimal
Common Anode, Rt Hand Decimal
Common Cathode, Rt. Hand
Decimal
Common Anode, Rt Hand Decimal
Common Cathode, Rt. Hand
Decimal
Common Anode, Rt Hand Decimal
Common Cathode, Rt. Hand
Decimal
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Par am et er
D ev i c e
High Efficiency Red
Green
Yellow
Super Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Ty p .
627
565
590
660
625
568
588
640
45
30
35
20
15
15
20
45
2.0
2.2
2.1
1.85
2.5
2.5
2.5
2.5
10
Max .
Un it s
Tes t Co n d it io n s
λ
peak
Peak Wavelength
nm
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
High Efficiency Red
Green
Spectral Line Halfwidth Yellow
Super Bright Red
Capacitance
High Efficiency Red
Green
Yellow
Super Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
All
nm
IF=20mA
C
pF
VF=0V;f=1MHz
V
F
I
R
Forward Voltage
V
IF=20mA
Reverse Current
uA
V R = 5V
SPEC NO: CDA0851
APPROVED:J.LU
REV NO: V.1
CHECKED:
DATE: NOV/18/2001
DRAWN: S.H.CHEN
PAGE: 2 OF 5
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
H i g h E f f i c i en c y
R ed
105
30
160
5
Gr een
105
25
140
5
Yello w
105
30
140
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
S u p er B r i g h t
R ed
100
30
155
5
Un it s
mW
mA
mA
V

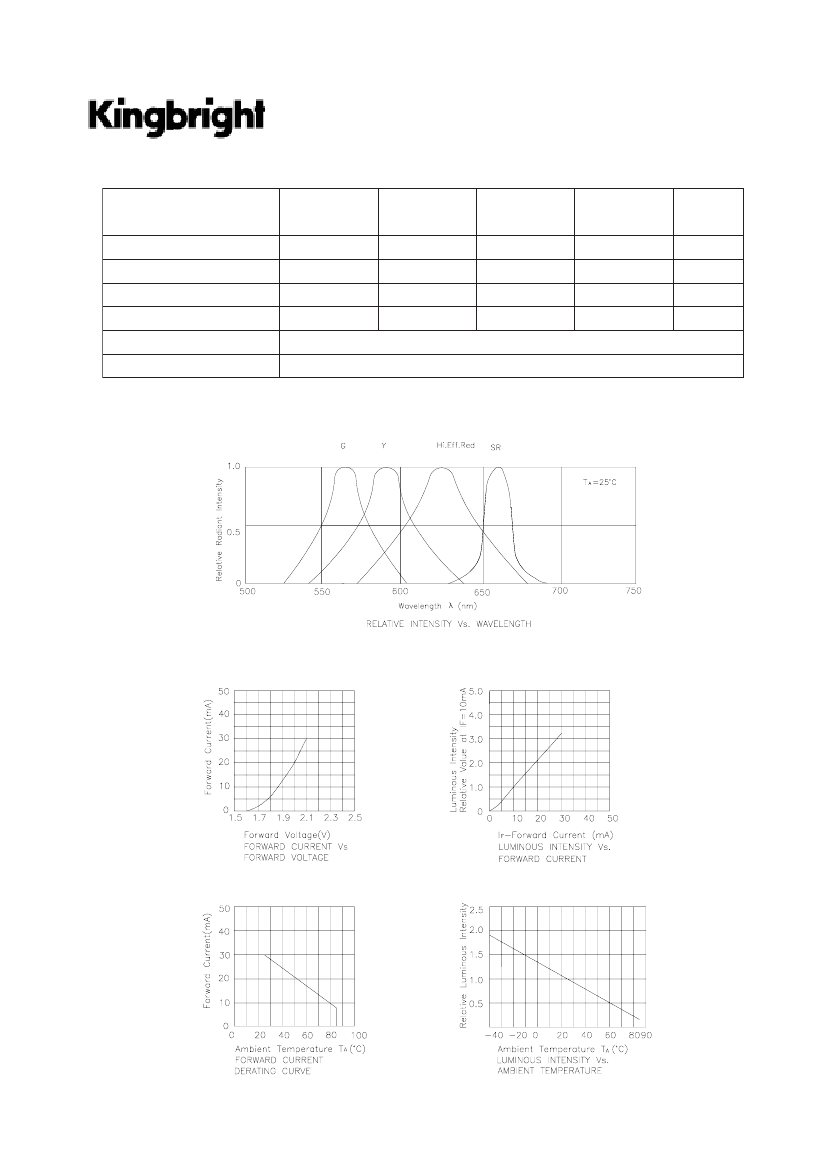

High Efficiency Red
SPEC NO: CDA0851
APPROVED:J.LU
REV NO: V.1
CHECKED:
DATE: NOV/18/2001
DRAWN: S.H.CHEN
PAGE: 3 OF 5

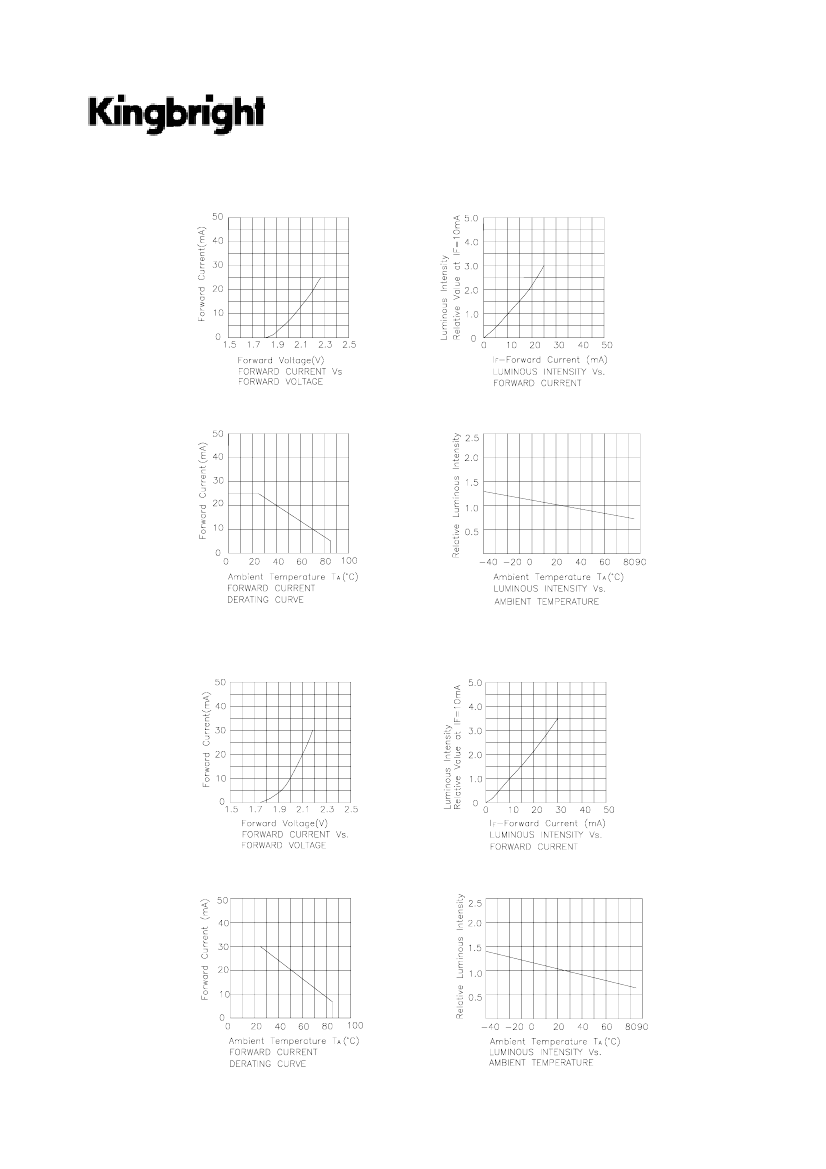

Green
Yellow
SPEC NO: CDA0851
APPROVED:J.LU
REV NO: V.1
CHECKED:
DATE: NOV/18/2001
DRAWN: S.H.CHEN
PAGE: 4 OF 5

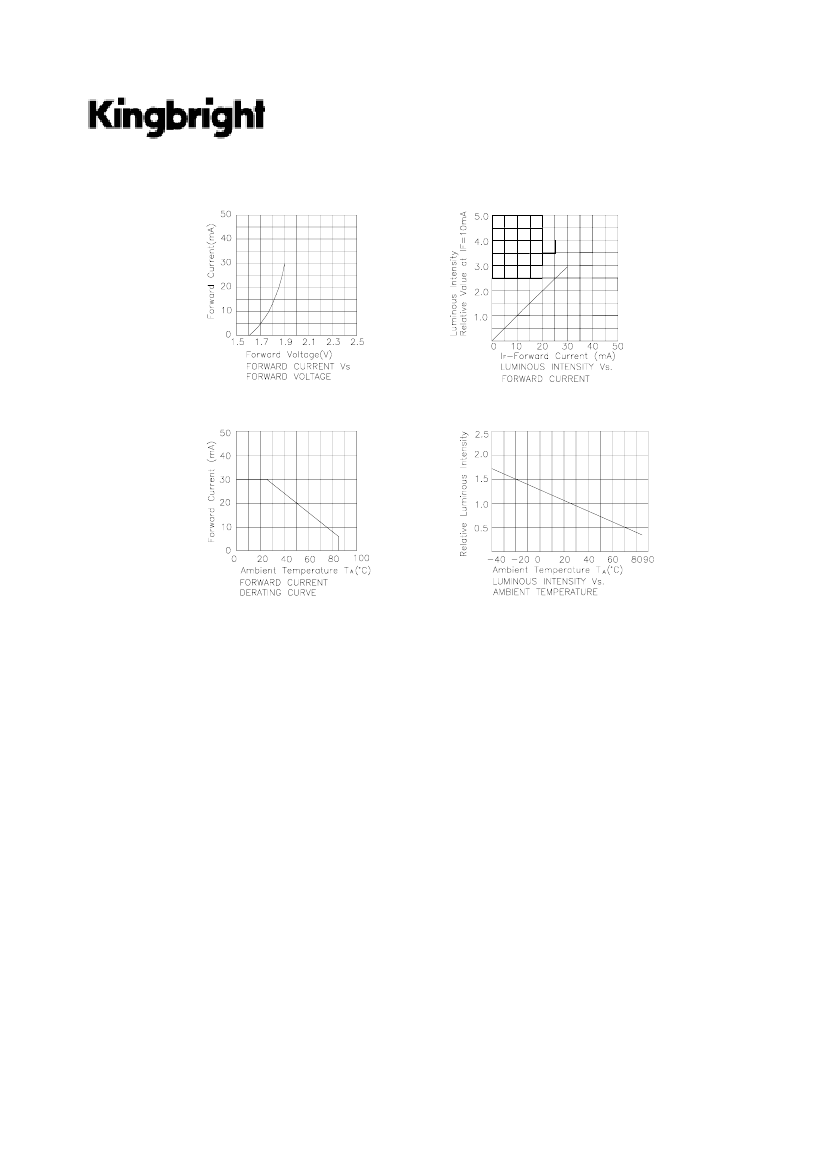

Super Bright Red
SPEC NO: CDA0851
APPROVED:J.LU
REV NO: V.1
CHECKED:
DATE: NOV/18/2001
DRAWN: S.H.CHEN
PAGE: 5 OF 5
