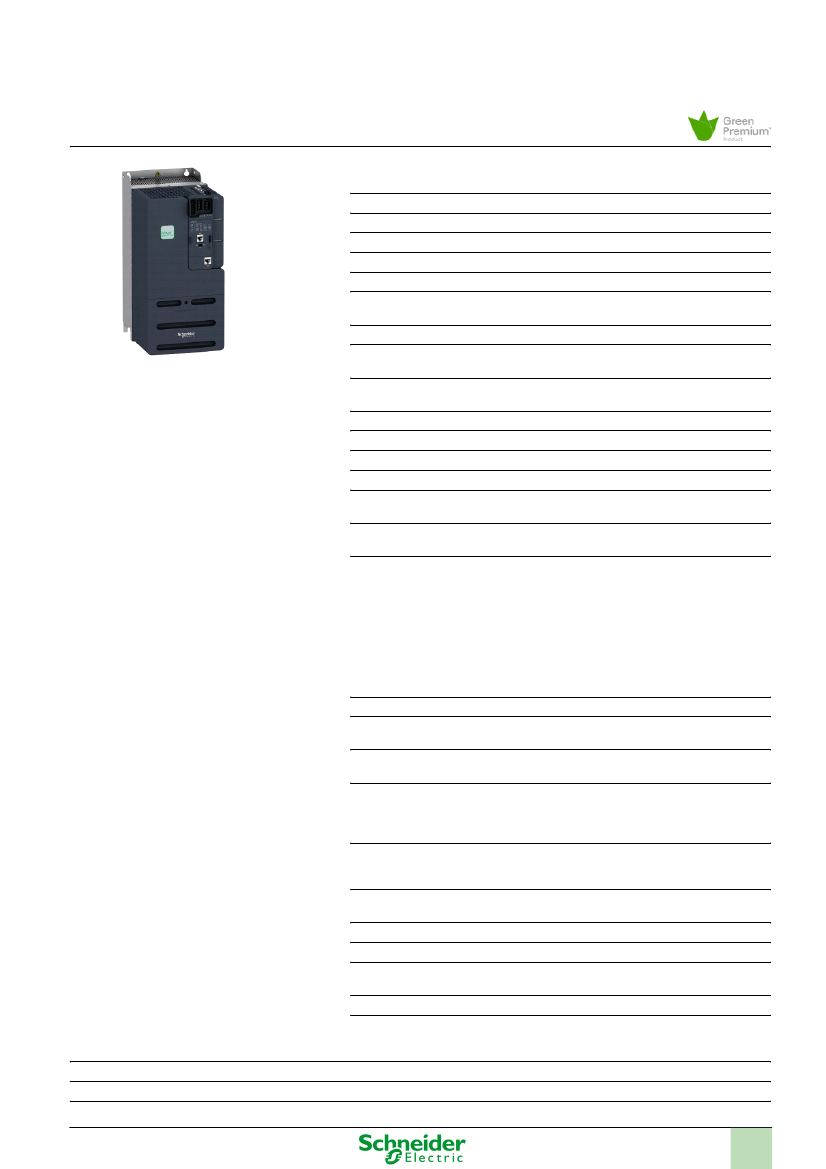

IP20 conforming to IEC 60529
IP20 conforming to IEC 61800-5-1
Forced convection
50...60 Hz +/- 5 %
3 phases
380...480 V - 15...10 %
30 kW (normal duty)
22 kW (heavy duty)
40 hp (normal duty)
30 hp (heavy duty)
63.5 A at 380 V without line choke (heavy duty)
50.5 A at 480 V without line choke (heavy duty)
67.9 A at 480 V with external line choke (normal
duty)
54.4 A at 380 V with external line choke (heavy
duty)
64.1 A at 480 V with external line choke (heavy
duty)
50.8 A at 380 V with external line choke (normal
duty)
22 kA
45.1 kVA at 480 V (normal duty)
42.1 kVA at 480 V (heavy duty)
62 A at 4 kHz (normal duty)
46 A at 4 kHz (heavy duty)
68.2 A during 60 s (normal duty)
69 A during 60 s (heavy duty)
83.7 A during 2 s (normal duty)
83 A during 2 s (heavy duty)
Constant torque standard
Variable torque standard
Optimized torque mode
Prospective line Isc
Apparent power
Continuous output current
Maximum transient current
Asynchronous motor control
profile
Synchronous motor control profilePermanent magnet motor
Reluctance motor
Speed drive output frequency
Nominal switching frequency
Switching frequency
Safety function
0.1...599 Hz
4 kHz
2...16 kHz adjustable
6...16 kHz with
STO (safe torque off) SIL 3
Complementary
Discrete input logic
Communication port protocol
16 preset speeds
Modbus serial
1 / 10
Option card
Slot GP-FB : communication module Profibus DP V1
Slot GP-FB : communication module Profinet
Slot GP-FB : communication module DeviceNet
Slot GP-FB : communication module CANopen daisy chain RJ45
Slot GP-FB : communication module CANopen SUB-D 9
Slot GP-FB : communication module CANopen screw terminals
Slot GP-FB : communication module EtherCAT
Slot GP-X : digital and analog I/O extension module
Slot GP-X : output relay extension module
Slot GP-ENC : 5/12 V digital encoder interface module
Slot GP-ENC : analog encoder interface module
Slot GP-ENC : resolver encoder interface module
<= power supply voltage
1.1 x In 60 s (normal duty)
1.5 x In 60 s (heavy duty)
1.35 x In 2 s (normal duty)
1.8 x In 2 s (heavy duty)
Adjustable
Automatic whatever the load
Can be suppressed
Not available in permanent magnet motor law
S, U or customized
Linear adjustable separately from 0.01...9999 s
By DC injection
Motor: thermal protection
Drive: thermal protection
Drive: overheating
Drive: line supply overvoltage
Drive: line supply undervoltage
Drive: break on the control circuit
Motor: safe torque off
Drive: safe torque off
Drive: short-circuit between motor phases
Motor: motor phase loss
Drive: overcurrent
Drive: output overcurrent between motor phase and earth
Drive: output overcurrent between motor phases
Drive: short-circuit between motor phase and earth
Drive: motor phase loss
Drive: DC Bus overvoltage
Drive: input supply loss
Drive: exceeding limit speed
Display unit: 0.1 Hz
Analog input: 0.012/50 Hz
Screw terminal with clamping capacity: 0.2...2.5 mm², AWG 24...AWG 12 on control
Screw terminal with clamping capacity: 6...25 mm², AWG 8...AWG 3 on motor
Screw terminal with clamping capacity: 10...25 mm², AWG 6...AWG 3 on line side
Screw terminal with clamping capacity: 10...25 mm², AWG 6...AWG 3 on DC bus
Connector(s)1 x RJ45, Modbus serial on front face
Connector(s)1 x RJ45, Modbus serial HMI on front face
2-wire RS 485 Modbus serial
RTU Modbus serial
4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus serial
8 bits, configurable odd, even or no parity Modbus serial
No impedance Modbus serial
Modbus serial
Slave Modbus RTU
External supply for digital inputs : 24 V DC (19...30 V), <= 1.25 mA, protection type:
overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm) : 10.5 V DC +/- 5 %, <= 10
mA, protection type: overload and short-circuit protection
Internal supply for digital inputs and STO : 24 V DC (21...27 V), <= 200 mA, protection
