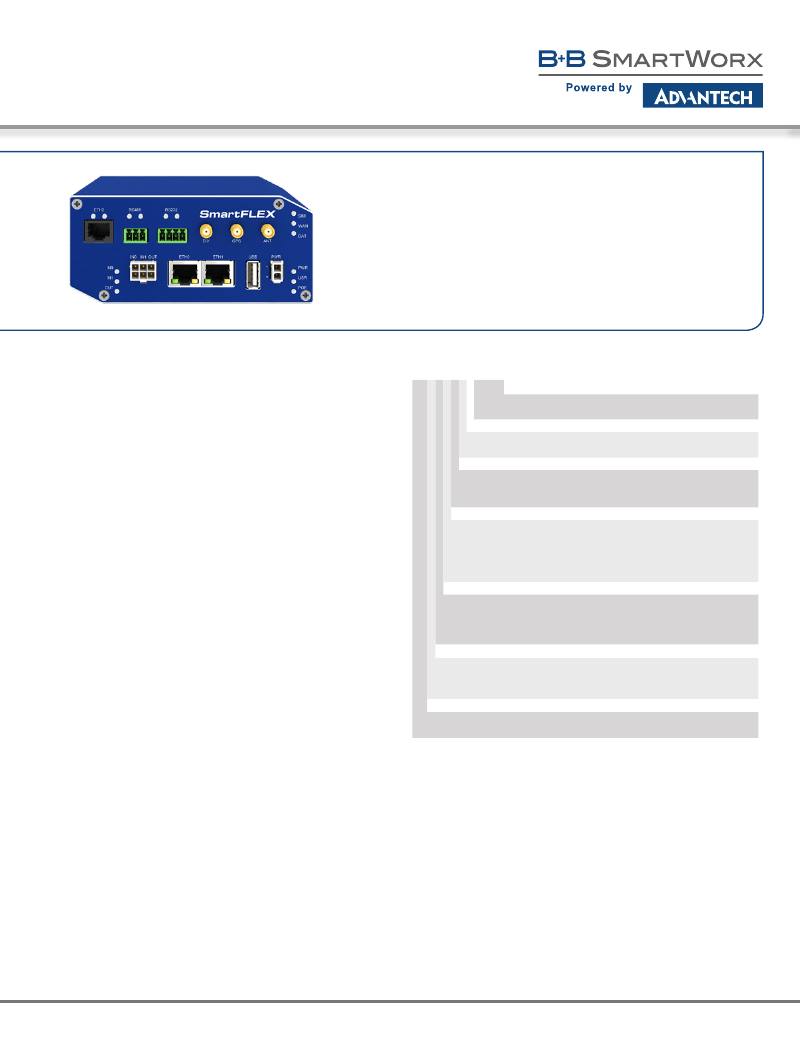

SmartFlex SR305
FLEXIBLE, ADAPTABLE LTE ROUTER
+
Powerful CPU and enhanced memory
+
Extended operational temperature range from -40 °C to +75 °C
+
10-60 VDC operation with transient and reverse polarity voltage
protection
+
Flexible port options – 3-port Switch, Ethernet and RS-232/422/485
serial ports with isolation
+
GPS and GLONASS support
+
MicroSD card holder, In/Out, USB Host
+
Low power consumption mode for solar and battery power applications
+
Optional industrial grade Wi-Fi
+
Optional PoE PSE or PoE PD on ETH0 and ETH1
+
Advanced security features
SmartFlex
TM
cellular router provides secure Internet
connectivity for devices and LANs via the cellular networks.
It canprovide automatic wireless failover for wired networks,
wireless connectivity for devices in remote locations where
cable connections are impractical and wireless connectivity
for mobile assets. With upload speeds of up to 50 Mbps and
download speeds of up to 100 Mbps, SmartFlex provides
ample bandwidth, even for applications that require video.
SmartFlex places intelligence at the network edge with an
extremely powerful Cortex A8 CPU at 1GHz, 256 MB flash
memory, 512 MB RAM and 128kB M-RAM, providing full
support for LTE (Long Term Evolution) speeds and applications.
A secure Web interface allows users to configure and manage
SmartFlex from remote locations. The router can also upgrade
its configuration and firmware from the operator’s central
server, allowing for simultaneous mass reconfiguration of
every router on the network. Users may insert Linux scripts
and can create multiple configurations for the same router
and switch from one configuration to another at any time.
Modular SmartFlex can be configured for any application.
Standard configuration includes 2 Ethernet ports with
2 independent LANs/IP addresses and also includes 1
USB host port, 1 microSD card holder, 2 SIM card holders
for automatic failover to an alternate service provider, 2
binary inputs(I/O), 1 binary output (I/O) and onboard GPS.
An optional built-in Wi-Fi module is also available, with
industrial grade operating temperature ranges from -40 to
+75 °C (-20 to +60 °C LTE450 module). Further optional boards
include: 3x ETH (the router can be configured with up to 5 total
Ethernet ports and 3 independent LANs/IP addresses) or ETH/
RS-232/485 or RS-232/485 (isolation strength up to 2.5kV) or
RS-232. The SmartFlex supports real time data encryption and
the creation of VPN tunnels using IPsec, OpenVPN and L2TP.
It supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control
by SMS, and numerous other functions, as well as additional
software like SmartCluster VPN Server and R-SeeNet.
SmartFlex Family
2x ETH, 1x USB, 2x BI, 1x BO, MicroSD reader, 2x SIM reader
BB
-
SR3 05 X XXXX
-
YYYY
SWH
Accessories
0
Enclosure
1
2
Interfaces
0
1
3
4
PoE
0
8
9
WiFi
0
1
Router version
05
No SmartWorx HUB
SmartWorx HUB
No Accessories (DIN holder included)
Plastic enclosure
Metal enclosure
No optional port
3x ETH Switch
RS232 (5-pin TB), RS485/422 (4-pin TB)
RS232 (4-pin TB), RS485 (3-pin TB), ETH
No PoE
PoE PSE
PoE PD
No Wi
WiFi (TI 2.4 & 5 GHz)
NAM
ORDERING INFORMATION
Note: Check with your local distributor for availability, options, and HW configuration.
Contact Advantech B+B SmartWorx distributors.
Note: Antennas & Power Supply Sold Separately.
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
SmartFlex_SR305_February 27, 2018 9:06 AM
SmartFlex SR305
FLEXIBLE, ADAPTABLE LTE ROUTER

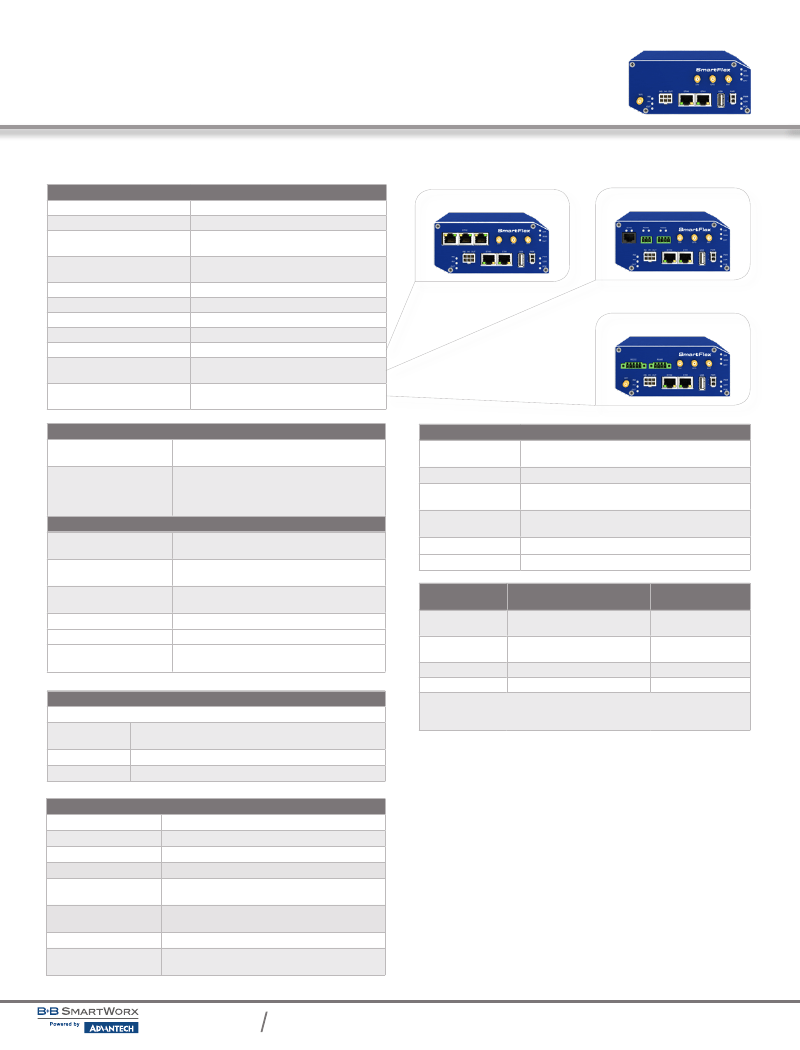

HW SPECIFICATIONS
PORTS, LED, ANTENNAS
Up to 5x ETH ports
SIM
LED Indicators
3x ANT - ANT, DIV, GPS
(sold separately)
Wi-Fi Antenna (sold separately)
USB
SD Card
RST
*Optional 3-port SWITCH
*Optional ETH - R232 - RS485
*Optional RS232 - RS485
RJ45, 10/100 Mbps
2 Mini SIMs (2FF) (rear panel)
PWR, DAT, WAN, ETH, SIM, USR, POE, IN0,
IN1, OUT
SMA connectors
R-SMA connector
USB Host connector 2.0
1x Micro SD Card slot (rear panel)
RESET button (rear panel)
3x RJ45, 10/100 Mbps
RJ45, 4-pin terminal block, 3-pin terminal block
connectors – Isolation up to 2.5 kV
5-pin terminal block, 4-pin terminal block
connectors – Isolation up to 2.5 kV
3-port SWITCH
ETH - RS232 - RS485
RS232 - RS485
POWER
Power Supply
(sold separately)
Power Consumption
ENVIRONMENTAL
Temperature Range
Temperature Range
LTE450
Humidity
Cold Start
Operating Altitude
Ingress Protection
Rating
10 – 60 VDC (2–Way Molex connector
Idle: 2.5 W
Average: 4 W
Peak: 11 W
Sleep Mode: 10mW
Operating: -40 to +75 °C
Storage: -40 to +85 °C
Operating: -20 to +60 °C
Storage: -40 to +85 °C
Operating: 0 to 95 %
Storage (Non-condensing): 0 to 95 %
-35 °C
2000 m / 70 kPa
IP30
WI-FI - 802.11 A/B/G/N, AP OR CLIENT MODES
Supported Wi-Fi
2.4 GHz, 5.4 GHz
band
Encryption
None, WEP, TKIP, AES
5 GHz supported
36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165
channels
2.4 GHz supported
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
channels
Number of clients
10
Authentication
Open, Shared, WPA–PSK, WPA2–PSK
POE
PARAMETERS
Input voltage
range
Power available
Maximum current
Insul. Strength
POE PD
parameters for opposite PSE
42.5 – 57 V
25.50 W
600 mA
1.5 kV from the router
P0E PSE
44 – 57 V, 65 W
2x 25.50 W
(ETH0, ETH1)
none
MECHANICAL
Plastic or metal case with plastic or metal DIN rail
Enclosure
55x97x125 mm
Dimensions
Weight Plastic
170 g
Weight Metal
375 g
GNSS SPECIFICATIONS
Antenna
Protocols
Frequency GPS
Frequency GLOBASS
Tracking Sensitivity
(Open sky)
Acquisition Sensitivity
(Open sky)
Cold Start Sensitivity
Acquisition time (TTFF)
Standards IEEE 802.3at-2009 (PoE+) and IEEE 802.3af-2003 (PoE) supported.
Cabling needed is Category 5, up to 12.5 Ω. It is possible to use a passive PoE
injector
50 Ohms – active
NMEA 0183 v3.0
1575.42MHz Typical
1597.551MHz Min.; 1605.886MHz Max.
Active antenna or LNA: -159 dBm
Passive antenna: -156 dBm
Active antenna or LNA: -149 dBm
Passive antenna: -145 dBm
-145 dBm
Warm start: 29 s Max.
Cold start: 32 s Max.
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
SmartFlex SR305
FLEXIBLE, ADAPTABLE LTE ROUTER
STANDARDS AND REGULATIONS
INDUSTRY CERTIFICATIONS & APPROVALS
SR305 - NAM
Telecom and
emission
ETSI EN 301 511 v9.0.2, ETSI EN 300 440-2 v1.4.1
ETSI EN 300 328 v1.8.1, ETSI EN 301 489-17 v2.2.1
FCC 15.107 Class B, FCC 15.109 Class B
FCC ID 2AIQR-SR305, Contains: FCC ID 2AIQR-PLS8-X, IC ID 7830A-PLS8X.WiFi versions contain FCC ID Z64-WL18DBMOD,
IC ID 4511-WL18DBMOD.
PTCRB
ETSI EN 301 489-1 v1.9.2, IEC 61000-6-2:2005, IEC 61000-6-3:2006
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, EN 62311:2008
UL C1D2 and ATEX:
UL 60950-1, 2nd ed. + am1 + am2 *
CAN/CSA C22.2 No. 60950-1-07, 2nd ed. + am1 + am2 *
UL E486108 *
ATEX II 3 G Ex nA IIC T4 Gc, DEMKO 16 ATEX 1801X *
AT&T, Verizon, Rogers
EMC
Safety
Carrier approvals
* Excluding versions with PoE PSE or RS232-RS485-ETH interface.
CELLULAR MODULE PARAMETERS
LTE features
Bit rate 100 Mbps (DL) / 50 Mbps (UL), 3GPP rel. 8 standard; UE CAT. 3
Output power: Class 3 (+23dBm ±2 dB)
Supported bandwidths: 5 MHz, 10 MHz, 20 MHz
Supported frequencies: 700 (B13) / 700 (B17) / 850 (B5) /AWS (B4) / 1900 MHz (B2)
GPRS/EDGE
features
Bit rate 237 kbps (DL) / 59,2 kbps (UL)
GPRS multislot class 12, CS 1 to 4
EDGE multislot class 12, CS 1 to 4, MCS 1 to 9
Supported frequencies: 850 / 900 / 1800 / 1900 MHz
EGSM 850 / 900: Class 4 (+33dBm ±2 dB)
GSM 1800 / 1900: Class 1 (+30dBm ±2 dB)
GSM 850 / 900: Class E2 (+27dBm ±3 dB)
GSM 1800 / 1900: Class E2 (+26dBm +3/-4 dB)
HSPA+ features Bit rate 42 Mbps (DL) / 5,76 Mbps (UL), 3GPP rel. 7 standard; UE CAT. 14, 24
Data compression 3GPP TS25.212
Supported frequencies: 850 (BV) /AWS (BIV) / 1900 MHz (BII)
UMTS features
PS bit rate 384 kbps (DL) / 384 kbps (UL)
Output power: Class 3 (+24dBm +1/-3 dB)
Supported frequencies: 850 (BV) /AWS (BIV) / 1900 MHz (BII)
GPRS/EDGE
power classes

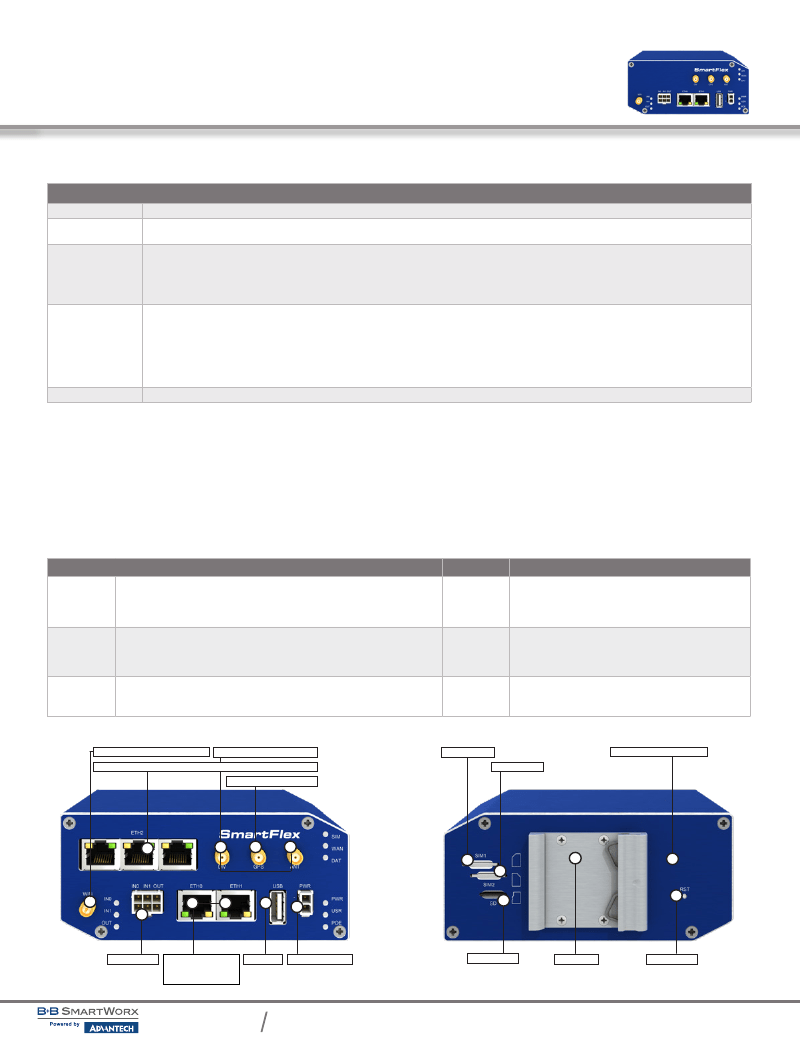

WiFi antenna connector *optional
ANT, DIV antenna connector
GPS antenna connector
Primary SIM
Secundary SIM
Robust metal or plastic case
*optional - RS232, ETH - RS232 - RS485, RS232 - RS485, 3-port SWITCH
IN0, IN1, OUT
Ethernet 10/100 ports
*optional PoE PD and
PoE PSD capability
USB Host
Power connector
SD card slot
DIN holder
RESET button
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
SmartFlex SR305
FLEXIBLE, ADAPTABLE LTE ROUTER
ACCESSORIES
ORDER CODE
BB-TG.09.0113
BB-GA.110.101111
BB-AW-A2458G-FSRPK
BB-RPS-v3-MO2-M
BB-RPS-v3-PSE
BB-PWRCORD-US
BB-PWRCORD-EU
BB-PWRCORD-UK
BB-PWRCORD-AUS
BB-SBD40
BB-CPD3
BB-KN-v3-MO2-3
BB-KIO-v3-MO6-3
DESCRIPTION
Antenna LTE, Terminal
Antenna LTE, Magnet Mount
Antenna Wi-Fi, 2.4 & 5.8 GHz
SmartFlex Power Supply, 12V/1A
SmartFlex Power Supply, 48V/1.35A (power cord required)
USA - Power Supply Power Cord
EU - Power Supply Power Cord
UK - Power Supply Power Cord
AU - Power Supply Power Cord
DIN Rail Clip - metal
DIN Rail Clip - plastic
PS Cable 2-wire, MO 2 pins, 3m, v3 routers
IO Cable 6-wire, 3m, v3 routers
SW FEATURES
SOFTWARE
Network and Routing
Security
VPN Tunnelling
Configuration
Firmware Management
Diagnostic
Status
Log
Controlling and
Diagnostic
Event Engine
Other
DHCP Server, , DHCP Client, NAT/PAT, VRRP, Dynamic DNS client, DNS proxy, VLAN, QoS, NTP Client/ Server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS,
SNMP v1/ v2c/ v3, Backup routes, PPP, PPPoE, SSL, Port Forwarding, Host Port Routing, Ethernet Bridging
HTTPS, SSH, VPN tunnels, SFTP, Firewall (IP Filtering, MAC address filtering, Inbound and outbound Port filtering), DMZ (via iptables)
Open VPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, DMVPN, IPSec with IKEv1 and IKEv2
Web server, SSH, Four configuration switchable profiles, Automatic configuration update from server Backup configuration, Restore configuration
Automatic firmware update from server, Locally via LAN and USB or remotely OTA (HTTP, HTTPS), Over-the-Air software updates, Over-the-Air cellular
module update from FW
One CLICK report – current configuration / factory identification / system log / kernel log / reboot log / routing table, Remote diagnostics possible via
SSH
Network Status, DHCP Status, IPSec Status, Statistics history for last 60 days
System Log, Reboot Log, Kernel Log
SMS, SNMP v1/v2c/v3, Statuses, Log
StartUp script & Up/Down script (Bash), Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature
Report Types: RAP, SMS, email, SNMP Trap
IPv6 support
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters:
707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
