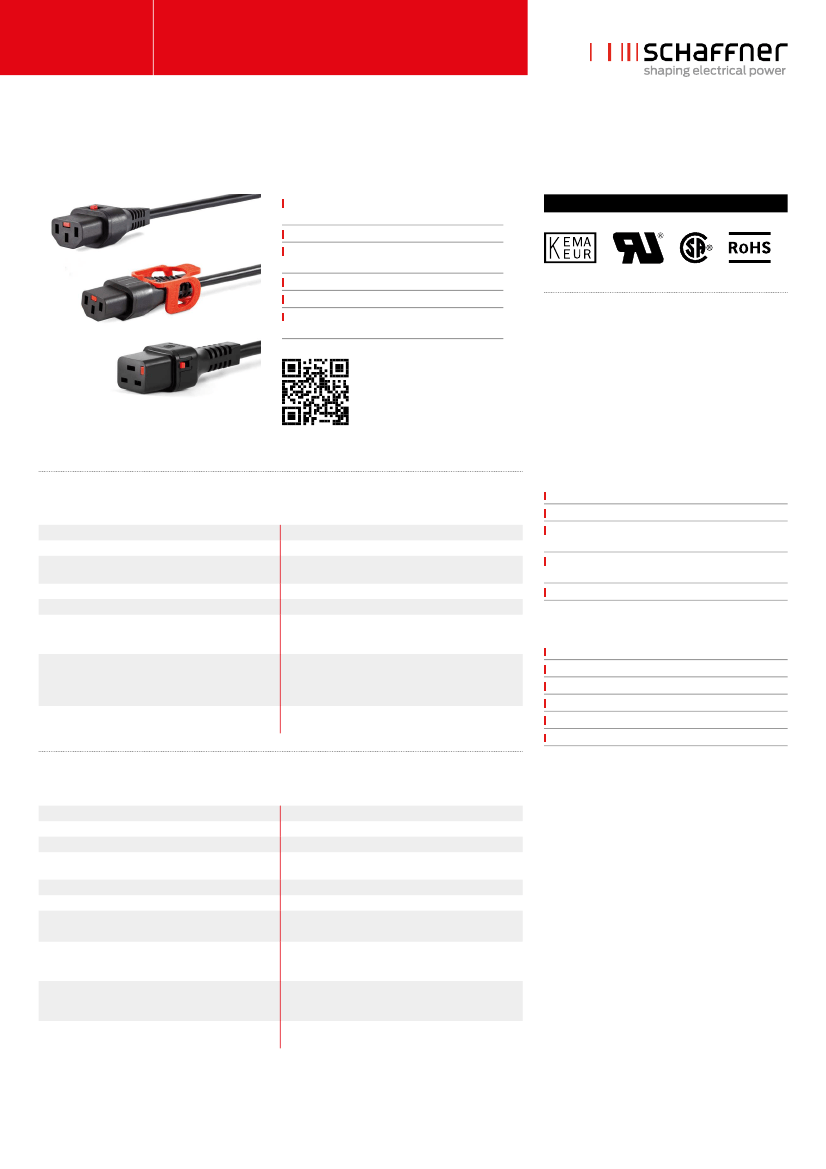

Power Cords with Locking System
Power Cord with Locking System for Inlet Filters IL 13, IL 13 P, IL 19
Locking system for standardized IEC C14/C20
inlet filter
No accidental disconnection
Rated current up to 10 A (C13 plug), up to 15 A
(C13P plug), and up to 16 A (C19 plug)
Fits any Schaffner IEC C14/C20 inlet filter
Retrofit for any IEC C14/C20 inlet
Various power line plugs for international
usage
Approvals
The locking system has a tensile force of typical 200N.
It is recommended to use it with flange mount filters.
For details refer to our Application Note "Using IEC
Lock Power Cords with IEC Inlets and Filters"
Schaffner power cords with IEC lock guard against
accidental disconnection of all electrical appliances
with an IEC inlet. No exchange or modification of the
IEC inlet or IEC inlet filter system is needed. Easy
retrofit for all electronic equipments and devices.
Features and benefits
Technical specifications IL 13/IL 13 P
Maximum continuous operating voltage
Rated currents
High potential test voltage
Protection category
Temperature range (operation and storage)
Connector (load side)
250 VAC, 50/60 Hz
10 A for C13 plug, 15 A for C13P plug
P–> PE 2000 VAC (1 min 50 Hz)
P –> N 2000 VAC (1 min 50 Hz)
IP 20 according IEC 60529
-25°C to +70°C
IEC C13 according to IEC/EN 60320-2-2 with IEC
Lock UL 498, CSA C22.2 no. 42 (for cold conditions)
pin temperature 70°C, 10 A, Protection Class I
IEC C14 according to IEC/EN 60320-2-2; EU Schuko
plug CEE7/VII; UK plug BS 1363; US NEMA 5-15
plug standard or hospital grade (UL 817); CH plug
SEV 1011; JP plug JIS 8303 Other plugs on request
Plugs: UL 94 V-2 or better; Cable: IEC 60332-1 Cat.
F2
Power cord with locking system for IEC inlets
Protection class I (IL 13, IL 13 P)
Suitable for use with any C14 IEC inlet (IL 13, IL 13 P)
and C20 IEC inlet (IL 19)
Fits the complete Schaffner IEC inlet filter program
with C14 IEC inlet and C20 IEC inlet (IL 19)
Max. pin temperature 70°C
Typical applications
Data centers
Industrial equipment
Medical devices
In-vitro diagnostic devices
Broadcasting stations
Mobile applications
Connector (line side)
Flammability corresponding to
Technical specifications IL 19
Maximum continuous operating voltage
Rated currents
Operating frequency
High potential test voltage
Protection category
Temperature range (operation and storage)
Cable
Connector (load side)
250 VAC, 50/60 Hz
16 A (IEC)
50 to 400 Hz
P–> PE 2000 VAC (1 min 50 Hz)
P –> N 2000 VAC (1 min 50 Hz)
IP 20 according IEC 60529
-25°C to +70°C
2 m; 3 x 1.50 mm
2
; H05 VV-5; 6 ft; 3 x AWG14 SJT;
black; other lengths or colors on request
IEC C19 according to IEC/EN 60320-2-2 with IEC
lock, UL 498, CSA C22.2 no. 42 (for cold conditions)
pin temperature 70°C, 16 A, Protection Class I
C20 according to IEC/EN 60320-2-2; EU Schuko
plug CEE7/VII angled; UK plug BS 1363 angled; US
plug NEMA 5-15 straight; other plugs on request
Plugs: UL 94 V-2 or better; Cable: IEC 60332-1 Cat.
F2
Connector (line side)
Flammability corresponding to
2
EMC/EMI Products
Schaffner Group
Datasheets
Cable selection table IL 13
IL 13-C14-H05-3100-X*
IL 13-C14-SVT-3100-X*
IL 13-CH1-H05-3100-X*
IL 13-EU1-H05-3100-X*
IL 13-JP1-HVCTF-3125-X*
IL 13-SE-H05-3100-X*
IL 13-UK1-H05-3100-X*
IL 13-US1-SVT-3100-X*
IL 13-US2-SJT-3100-X*
IEC cable assembly with locking system for IEC C14 inlet, EU version
IEC cable assembly with locking system for IEC C14 inlet, US version
IEC cable assembly with locking system for IEC C14 inlet, CH version
IEC cable assembly with locking system for IEC C14 inlet, EU version
IEC cable assembly with locking system for IEC C14 inlet, JP version
IEC cable assembly with locking system for IEC C14 inlet, stripped ends
IEC cable assembly with locking system for IEC C14 inlet, UK version
IEC cable assembly with locking system for IEC C14 inlet, US version
IEC cable assembly with locking system for IEC C14 inlet, US version, hospital grade
To compile a complete part number, please replace the X* with the required length (please refer to table below for available length per cable type):
- X* options = 200, 300, 400, 500 or 1000 cm; 183, 275 or 366 cm (6, 9 or 12 feet)
Available combinations IL 13
To compile a complete part number exchange the letters (IL13-yyy-zzz-aaaa-bbb-c) with the data from the table below.
Load side IL13
IL13
Line side plug
yyy
IEC C14, male, straight
Australian plug 3 pins
SEV1011, straight
CEE 7/VII, right angled or straight
Italian Plug
Israel Plug
Korean Plug
South African Plug
Stripped Ends
BS1363, right angled fused 5A
IEC C14, male, straight
Japanese plug JIS C8303
Stripped Ends
C14
AU1
CH1
EU1
IT1
IL1
KC1
SA1
SE
UK1
C14
JP1
SE
Cable type
zzz
Cable core
aaaa
Rating
Cable length*
bbb
6 feet
200 cm
9 feet
300 cm
12 feet
400 cm
500 cm
1000 cm
100 cm
200 cm
300 cm
400 cm
500 cm
6 feet
200 cm
9 feet
300 cm
12 feet
400 cm
500 cm
1000 cm
183
200
275
300
366
400
500
1000
100
200
300
400
500
183
200
275
300
366
400
500
1000
Cable color
c
Cert.
IL13
IEC C13
Female plug,
straight, lock
H05VV-F
H05
3x1.00mm²
3100
250VAC
10A
Black
Blue
Orange
Red
White
-
B
O
R
W
CB
KC
KEMA
SAA
IL13
IEC C13
Female plug,
straight, lock
HVCTF
HVCTF
3x1.25mm²
3x2.00mm²
3125
3200
125VAC
12A
15A
Black
Blue
Orange
Red
White
Black
Blue
Orange
Red
White
Black
Blue
Orange
Red
White
Black
Blue
Orange
Red
White
-
B
O
R
W
-
B
O
R
W
-
B
O
R
W
-
B
O
R
W
PSE
IL13
IEC C13
Female plug,
straight, lock
IEC C14, male, straight
Stripped Ends
NEMA5-15, straight
NEMA5-15, straight, hospital grade
C14
SE
US1
US2
SJT
SVT
SJT
SVT
AWG 18
AWG 16
AWG 14
3100
3130
3160
125VAC
10A
13A
15A
UL
cUL
IL13
IEC C13
Female plug,
straight, lock
IEC C14, male, straight
Chinese plug
Stripped Ends
C14
CN1
SE
RVV
RVV
3x1.00mm²
3100
250VAC
10A
200 cm
200
CCC
IL13
IEC C13
Female plug,
straight, lock
IEC C14, male, straigh
Indian plug 3 Pin
Stripped Ends
C14
IN1
SE
IS 694
1000V
IS694
3x1.00mm²
3100
250VAC
10A
200 cm
200
CB
*feet values are calculated to the matching length in cm
3
EMC/EMI Products
Schaffner Group
Datasheets
Cable selection table IL 13 P
IL 13 P-C14-H05-3100-X*
IEC cable assembly with locking system + for IEC C14 inlet, EU version
IL 13 P-CH1-H05-3100-X*
IEC cable assembly with locking system + for IEC C14 inlet, CH version
IL 13 P-EU1-H05-3100-X*
IEC cable assembly with locking system + for IEC C14 inlet, EU version
IL 13 P-JP1-HVCTF-3125-X*
IEC cable assembly with locking system + for IEC C14 inlet, JP version
IL 13 P-SE-H05-3100-X*
IEC cable assembly with locking system + for IEC C14 inlet, stripped ends
IL 13 P-UK1-H05-3100-X*
IEC cable assembly with locking system + for IEC C14 inlet, UK version
IL 13 P-US1-SJT-3160-X*
IEC cable assembly with locking system + for IEC C14 inlet, US version
To compile a complete part number, please replace the X* with the required length (please refer to table below for available length per cable type):
- X* options = 200, 300, 400, 500 or 1000 cm; 183, 275 or 366 cm (6, 9 or 12 feet)
Available combinations IL 13 P
To compile a complete part number exchange the letters (IL13P-yyy-zzz-aaaa-bbb-c) with the data from the table below.
Load side IL13P
IL13P
Line side plug
yyy
IEC C14, male, straight
Australian plug 3 pins
SEV1011, straight
CEE 7/VII, right angled or straight
Italian Plug
Israel Plug
Korean Plug
South African Plug
Stripped Ends
BS1363, right angled fused 5A
IEC C14, male, straight
Japanese plug JIS C8303
Stripped Ends
C14
AU1
CH1
EU1
IT1
IL1
KC1
SA1
SE
UK1
C14
JP1
SE
Cable type
zzz
Cable core
aaaa
Rating
Cable length*
bbb
6 feet
200 cm
9 feet
300 cm
12 feet
400 cm
500 cm
1000 cm
100 cm
200 cm
300 cm
400 cm
500 cm
6 feet
200 cm
9 feet
300 cm
12 feet
400 cm
500 cm
1000 cm
183
200
275
300
366
400
500
1000
100
200
300
400
500
183
200
275
300
366
400
500
1000
Cable color
c
Cert.
IL13P
IEC C13 +
Female plug,
straight, lock
H05VV-F
H05
3x1.00mm²
3100
250VAC
10A
Black
Blue
Orange
Red
White
-
B
O
R
W
CB
KC
KEMA
SAA
IL13P
IEC C13 +
Female plug,
straight, lock
HVCTF
HVCTF
3x1.25mm²
3x2.00mm²
3125
3200
125VAC
12A
15A
Black
Blue
Orange
Red
White
Black
Blue
Orange
Red
White
Black
Blue
Orange
Red
White
Black
Blue
Orange
Red
White
-
B
O
R
W
-
B
O
R
W
-
B
O
R
W
-
B
O
R
W
PSE
IL13P
IEC C13 +
Female plug,
straight, lock
IEC C14, male, straight
Stripped Ends
NEMA5-15, straight
NEMA5-15, straight, hospital grade
C14
SE
US1
US2
SJT
SVT
SJT
SVT
AWG 18
AWG 16
AWG 14
3100
3130
3160
125VAC
10A
13A
15A
UL
cUL
IL13P
IEC C13 +
Female plug,
straight, lock
IEC C14, male, straight
Chinese plug
Stripped Ends
C14
CN1
SE
RVV
RVV
3x1.00mm²
3100
250VAC
10A
200 cm
200
CCC
IL13P
IEC C13 +
Female plug,
straight, lock
IEC C14, male, straigh
Indian plug 3 Pin
Stripped Ends
C14
IN1
SE
IS 694
1000V
IS694
3x1.00mm²
3100
250VAC
10A
200 cm
200
CB
*feet values are calculated to the matching length in cm
4
EMC/EMI Products
Schaffner Group
Datasheets
Cable selection table IL 19
IL 19-C20-H05-3150-X*
IL 19-C20-SJT-3160-X*
IL 19-EU1-H05-3150-X*
IL 19-SE-H05-3150-X*
IL 19-UK1-H05-3150-X*
IL 19-US1-SJT-3160-X*
IEC cable assembly with locking system for IEC C20 inlet, EU version
IEC cable assembly with locking system for IEC C20 inlet, US version
IEC cable assembly with locking system for IEC C20 inlet, EU version
IEC cable assembly with locking system for IEC C20 inlet, stripped ends
IEC cable assembly with locking system for IEC C20 inlet, UK version
IEC cable assembly with locking system for IEC C20 inlet, US version
To compile a complete part number, please replace the X* with the required length (please refer to table below for available length per cable type):
- X* options = 200, 300, 400, 500 or 1000 cm; 183, 275 or 366 cm (6, 9 or 12 feet)
Available combinations IL 19
To compile a complete part number exchange the letters (IL19-yyy-zzz-aaaa-bbb-c) with the data from the table below.
Load side IL19
IL19
Line side plug
yyy
IEC C20, male, straight
Australian plug 3 pins
SEV1011, straight
CEE 7/VII, right angled or straight
Italian Plug
South Africa plug
Stripped Ends
BS1363, right angled fused 13A
IEC C20, male, straight
Japanese plug JIS C8303
Stripped Ends
C20
AU1
CH1
EU1
IT1
SA1
SE
UK1
C20
JP1
SE
Cable type
zzz
Cable core
aaaa
Rating
Cable length*
bbb
6 feet
200 cm
9 feet
300 cm
12 feet
400 cm
500 cm
1000 cm
100 cm
200 cm
300 cm
400 cm
500 cm
6 feet
200 cm
9 feet
300 cm
12 feet
400 cm
500 cm
1000 cm
200 cm
183
200
275
300
366
400
500
1000
100
200
300
400
500
183
200
275
300
366
400
500
1000
Cable color
c
Black
Blue
Orange
Red
White
Black
Blue
Orange
Red
White
-
B
O
R
W
-
B
O
R
W
-
B
O
R
W
Cert.
IL19
IEC C19
Female plug,
straight, lock
H05VV-F
H05
3x1.50mm²
3150
250VAC
16A
CB
KEMA
SAA
IL19
IEC C19
Female plug,
straight, lock
HVCTF
HVCTF
3x2.00mm²
3200
250VAC
20A
PSE
IL19
IEC C19
Female plug,
straight, lock
IEC C20, male, straight
Stripped Ends
NEMA5-15, straight
Nema 5-20P
C20
SE
US1
US4
SJT
SVT
SJT
SVT
AWG14
AWG12
3160
3205
125V
18A
20A
Black
Blue
Orange
Red
White
UL
cUL
IL19
IEC C19
Female plug,
straight, lock
Chinese plug
CN1
RVVF
RVVF
3x1.50mm²
3150
250V
16A
200
black
-
CCC
*feet values are calculated to the matching length in cm
5
EMC/EMI Products
Schaffner Group
Datasheets

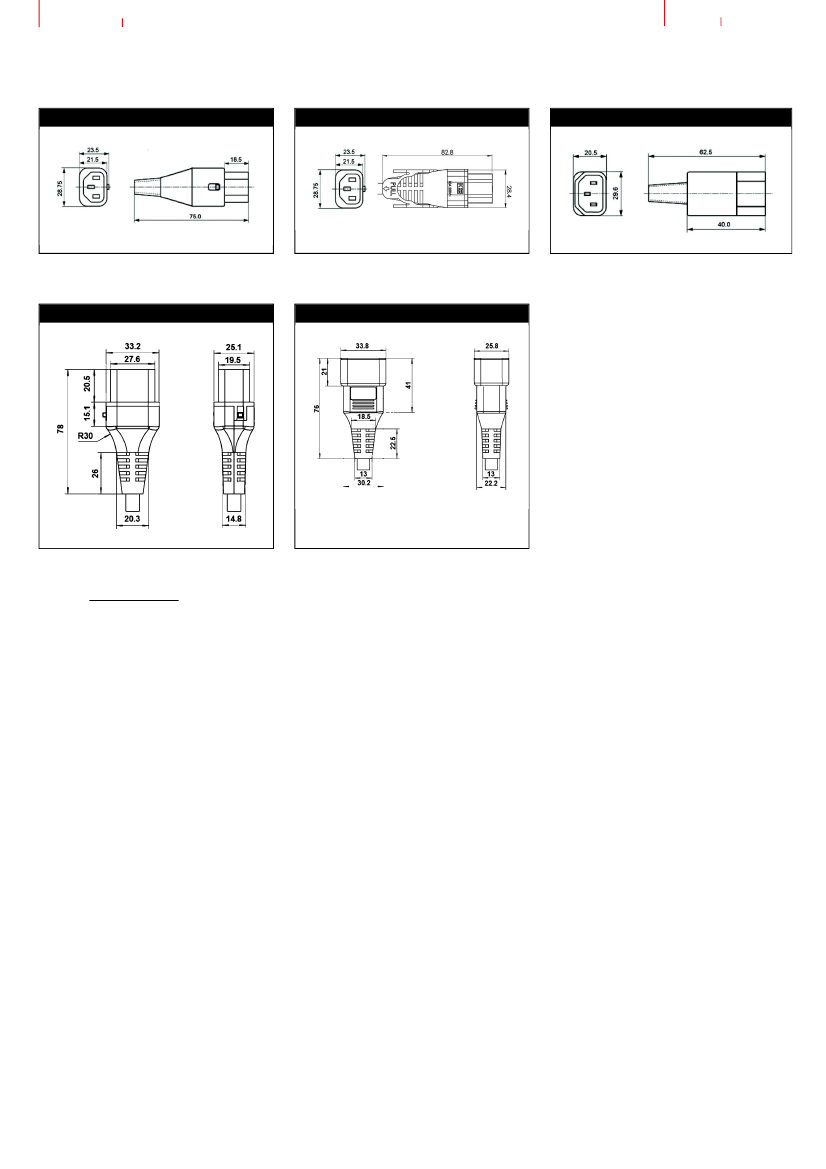

Mechanical data
IEC Lock C13
IEC Lock C13P
C14
IEC Lock C19
C20
Please visit www.schaffner.com to find more details on filter connectors.
京公网安备 11010802033920号
EEWORLD
