RAH1A12HSB: DescriptionPower/Signal Relay, SPST, Momentary, 0.18A (Coil), 3VDC (Coil), 540mW (Coil), DC Input, AC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size737KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RAH1A12HSB Overview

Power/Signal Relay, SPST, Momentary, 0.18A (Coil), 3VDC (Coil), 540mW (Coil), DC Input, AC Output, Through Hole-Straight Mount, ROHS COMPLIANT

RAH1A12HSB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	World Produts Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	12.8 mm
body height	20.6 mm
Body length or diameter	29.2 mm
Maximum coil current (DC)	0.18 A
Coil operating voltage (DC)	2.4 V
Coil power	540 mW
Coil release voltage (DC)	0.15 V
Coil resistance	17 Ω
Maximum coil voltage (DC)	3 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	20 ms
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
physical size	29.2mm x 12.8mm x 20.6mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	8 ms
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

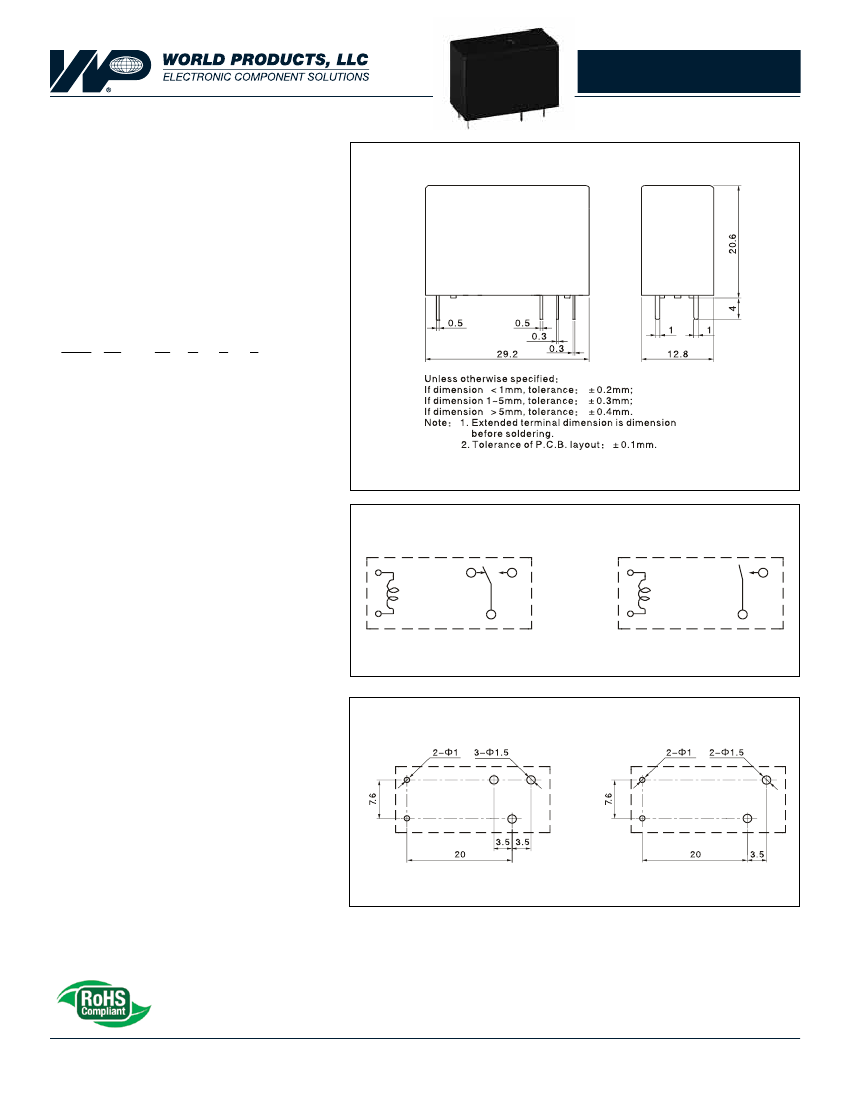

RAH SERIES

MINIATURE HIGH POWER RELAY

UL & CUL File# E256619

FEATURES

High switching capabiliy: 16A

Small size for density PCB mounting.

Dielectric strength: 5000V

DIMENSIONS

Unit: mm

TYPICAL APPLICATIONS

Home appliances, air conditioner, microwave oven, audio

equipment, monitor, industrial control equipment, instru-

ment, etc.

ORDERING INFORMATION

RAH 1A -

(1) (2)

(1)

(2)

(3)

(4)

(5)

(6)

Basic Designation

RAH

= RAH Series

Coil Arrangement

= 1 Form A

= 1 Form B

Coil Voltage

3~48V

Coil Sensitivity

Nil

= 720mW

= 540mW

Enclosure

Nil

= Unsealed type

= Sealed type

Insulation System

Nil

= Standard

= Class B

= Class F

(5)

(3)

(6)

SCHEMATICS

Bottom view

PCB LAYOUT

Bottom view

Unit: mm

World Products, LLC

19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com

| Industrial Relays Catalog

Rev. 18.0 (12.14.10)

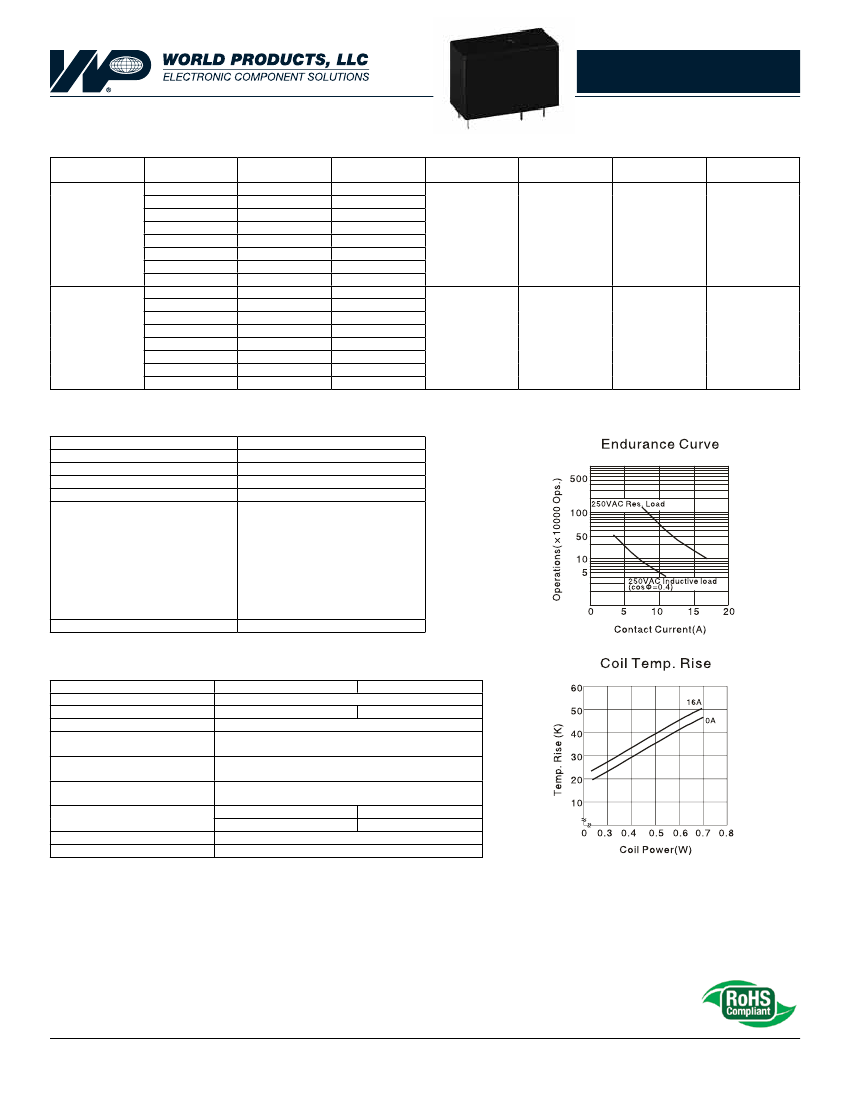

RAH1A12HSB Related Products

	RAH1A12HSB	RAH1B12HSB	RAH1A24HSB	RAH1B24HSB	RAH1B3
Description	Power/Signal Relay, SPST, Momentary, 0.18A (Coil), 3VDC (Coil), 540mW (Coil), DC Input, AC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPST, Momentary, 0.108A (Coil), 5VDC (Coil), 540mW (Coil), DC Input, AC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPST, Momentary, 0.045A (Coil), 12VDC (Coil), 540mW (Coil), DC Input, AC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPST, Momentary, 0.03A (Coil), 18VDC (Coil), 540mW (Coil), DC Input, AC Output, Through Hole-Straight Mount, ROHS COMPLIANT	Power/Signal Relay, SPST, Momentary, 0.144A (Coil), 5VDC (Coil), 720mW (Coil), DC Input, AC Output, Through Hole-Straight Mount, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	World Produts Inc.	World Produts Inc.	World Produts Inc.	World Produts Inc.	World Produts Inc.
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm
body height	20.6 mm	20.6 mm	20.6 mm	20.6 mm	20.6 mm
Body length or diameter	29.2 mm	29.2 mm	29.2 mm	29.2 mm	29.2 mm
Maximum coil current (DC)	0.18 A	0.108 A	0.045 A	0.03 A	0.144 A
Coil operating voltage (DC)	2.4 V	4 V	9.6 V	14.4 V	4 V
Coil power	540 mW	540 mW	540 mW	540 mW	720 mW
Coil release voltage (DC)	0.15 V	0.25 V	0.6 V	0.9 V	0.25 V
Coil resistance	17 Ω	47 Ω	270 Ω	600 Ω	35 Ω
Maximum coil voltage (DC)	3 V	5 V	12 V	18 V	5 V
Coil/Input Power Type	DC	DC	DC	DC	DC
Contact (AC) maximum rated R load	16A@250VAC	16A@250VAC	16A@250VAC	16A@250VAC	16A@250VAC
Maximum contact current (AC)	16 A	16 A	16 A	16 A	16 A
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V
Contact/Output Power Type	AC	AC	AC	AC	AC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	20 ms	20 ms	20 ms	20 ms	15 ms
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	29.2mm x 12.8mm x 20.6mm	29.2mm x 12.8mm x 20.6mm	29.2mm x 12.8mm x 20.6mm	29.2mm x 12.8mm x 20.6mm	29.2mm x 12.8mm x 20.6mm
Guideline	UL	UL	UL	UL	UL
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	SPST	SPST	SPST	SPST	SPST
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	8 ms	8 ms	8 ms	8 ms	8 ms
surface mount	NO	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER

Recommended Resources

TMP03-04 interfaces with low-voltage logic circuits

Improved dynamic expansion circuit

Homemade light-controlled LED lighting circuit diagram

Universal inverter main circuit

Remote control multi-point control switch circuit diagram

Simple touch switch
