0151340303 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 0151340303

0151340303: DescriptionCable Assembly, 3 Conductor(s), 28AWG, 125V,; CategoryThe connector Connector bracket; File Size148KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0151340303 Overview

Cable Assembly, 3 Conductor(s), 28AWG, 125V,

0151340303 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	PICOBLADE
Certification	UL
ConnectorSide1	PICOBLADE
ConnectorSide2	PICOBLADE
Connector bracket type	CABLE ASSEMBLY
diameter	0.9 mm
insulator material	POLYESTER
length	0.3 mm
Number of conductors	3
Rated current	1 A
Rated voltage	125 V
shield	NO
Wire gauge	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

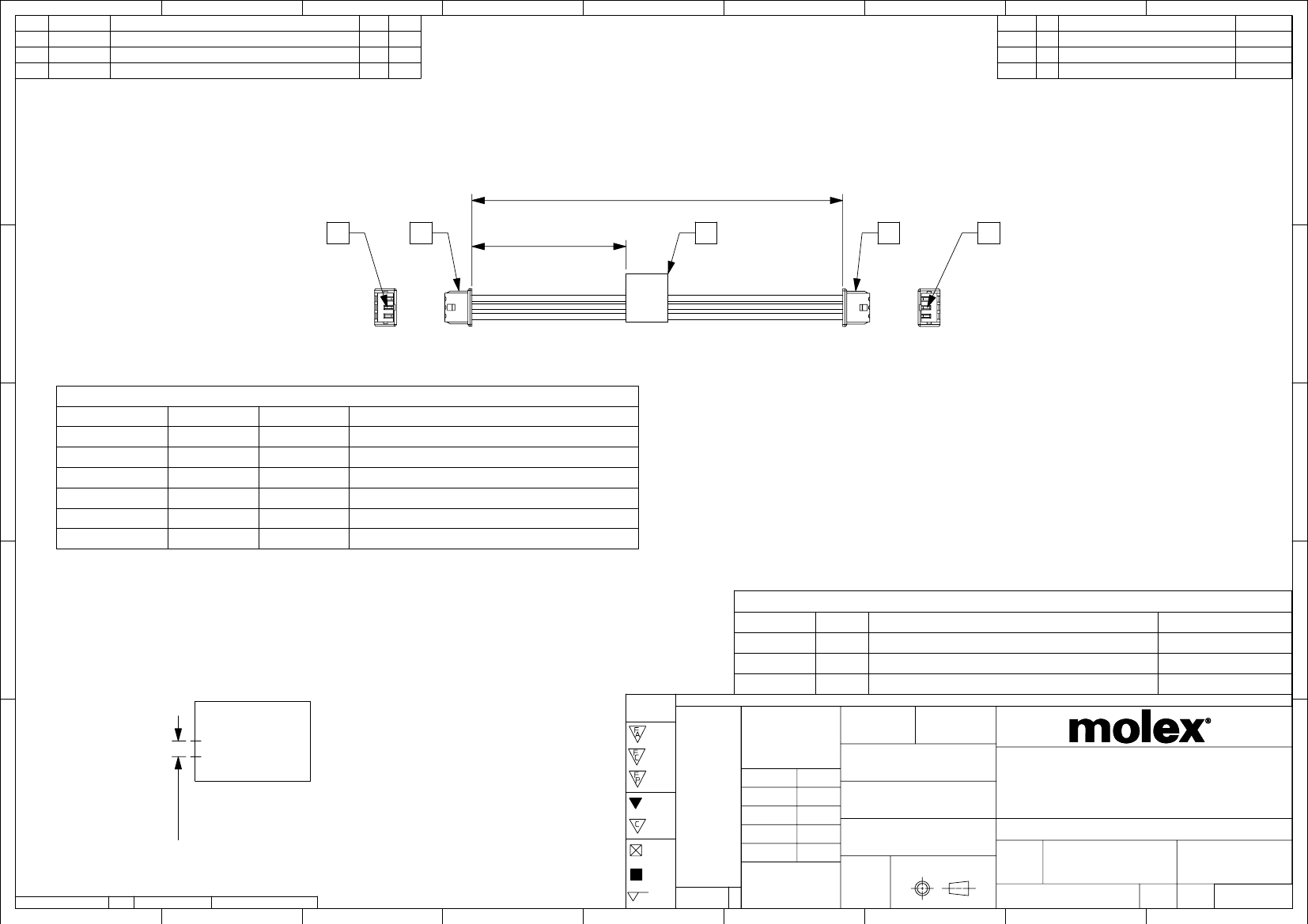

ITEM

A,B

DESCRIPTION

PicoBlade1.25 Rec Hsg 3P

PicoBlade1.25 Crimp Rec Term Chain

Blank label 12.7x35.5mm (WHT:12.7mm) HF

QTY

UOM

FROM

COLOR

BLACK

PART#

510210300

500588000

887804719

DESCRIPTION

CABLE 28 AWG UL 1061 BLACK

SEE DETAIL A

TABLE

PART NUMBER

151340300

151340301

151340302

151340303

151340305

151340306

100

150

300

450

600

145

220

295

TITLE

Picoblade 3 Circuit 50MM

Picoblade 3 Circuit 100MM

Picoblade 3 Circuit 150MM

Picoblade 3 Circuit 300MM

Picoblade 3 Circuit 450MM

Picoblade 3 Circuit 600MM

NOTES:

1. Cable assembly to be tested 100% for continuity and polarity.

2. Label text must be 2mm max. In height with Arial font.

3. Connector view shown is from mating side.

4. Label must be wrapped in Flag type.

5. Stick UL label on the outside carton.

DATE

26/07/2016

26/04/2019

24/06/2019

2019/06/11

2019/06/26

REV

REVISION

DESCRIPTION

INITIAL RELEASE

PROJECT TRANSFER FROM DG TO INDIA

LABEL CHANGE

CHANGER

DICK

ARAJU

P/N:15134XXXX

MFG: WW-YY

QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

SYMBOLS

GENERAL

MOLEX

4MM MAX.

TOLERANCES

(UNLESS SPECIFIED)

ANGULAR TOL ±

DRWN BY

DATE

NTS

4 PLACES

3 PLACES

WLXIE

CHK'D BY

DATE

2016/07/12

DETAIL A

SEE TABLE

2016/07/25

619691

ARAJU

RDESAI01

2 PLACES

1 PLACE

0 PLACES

DHUANG16

APPR BY

DATE

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

YXZOU

DRAWING SIZE

2016/07/28

THIRD ANGLE PROJECTION

EC NO:

DRWN:

CHK'D:

APPR:

RELEASE STATUS

FORMAT: master-tb-prod-A3

REVISION: G

DATE: 2015/12/14

RELEASE DATE

2019/06/26

04:26:01

REV

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

201234

DOCUMENT NUMBER

SEE TABLE

GENERAL MARKET

DOC TYPE

DOC PART

SHEET NUMBER

2012341355

PSD

000

1 OF 1

0151340303 Related Products

	0151340303	0151340300	0151340302
Description	Cable Assembly, 3 Conductor(s), 28AWG, 125V,	PICOBLADE 3 CIRCUIT 50MM	PICOBLADE 3 CIRCUIT 150MM
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compliant
Connector bracket type	CABLE ASSEMBLY	CABLE ASSEMBLY	CABLE ASSEMBLY
Base Number Matches	1	1	-
