C0805H332K3GAC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> Ceramic capacitor> MLCC, multilayer ceramic capacitors> Multilayer ceramic capacitor MLCC - SMD/SMT> C0805H332K3GAC

Preview

C0805H332K3GAC: DescriptionMultilayer Ceramic Capacitor MLCC - SMD/SMT; CategoryPassive components capacitor Ceramic capacitor MLCC, multilayer ceramic capacitors Multilayer ceramic capacitor MLCC - SMD/SMT; File Size2MB，24 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C0805H332K3GAC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C0805H332K3GAC	-	-	View	Buy Now

C0805H332K3GAC Overview

Multilayer Ceramic Capacitor MLCC - SMD/SMT

C0805H332K3GAC Parametric

Parameter Name	Attribute value
Maker	KEMET
Product Category	Multilayer Ceramic Capacitor MLCC - SMD/SMT
terminal	Standard
capacitance	3300 pF
Voltage ratingDC	25 VDC
Dielectric	C0G (NP0)
Tolerance	10 %
shell code - in	0805
Shell code - mm	2012
Minimum operating temperature	- 55 C
Maximum operating temperature	+ 200 C
product	General Type MLCCs
Termination type	SMD/SMT
series	SMD Indust C0G HT200C
length	2 mm
Package/box	0805 (2012 metric)
Voltage ratingAC	-
width	1.25 mm
Capacitance-nF	3.3 nF
Capacitance-uF	0.0033 uF
kind	Class 1
unit weight	5.500 mg

Preview

Download Datasheet

View All

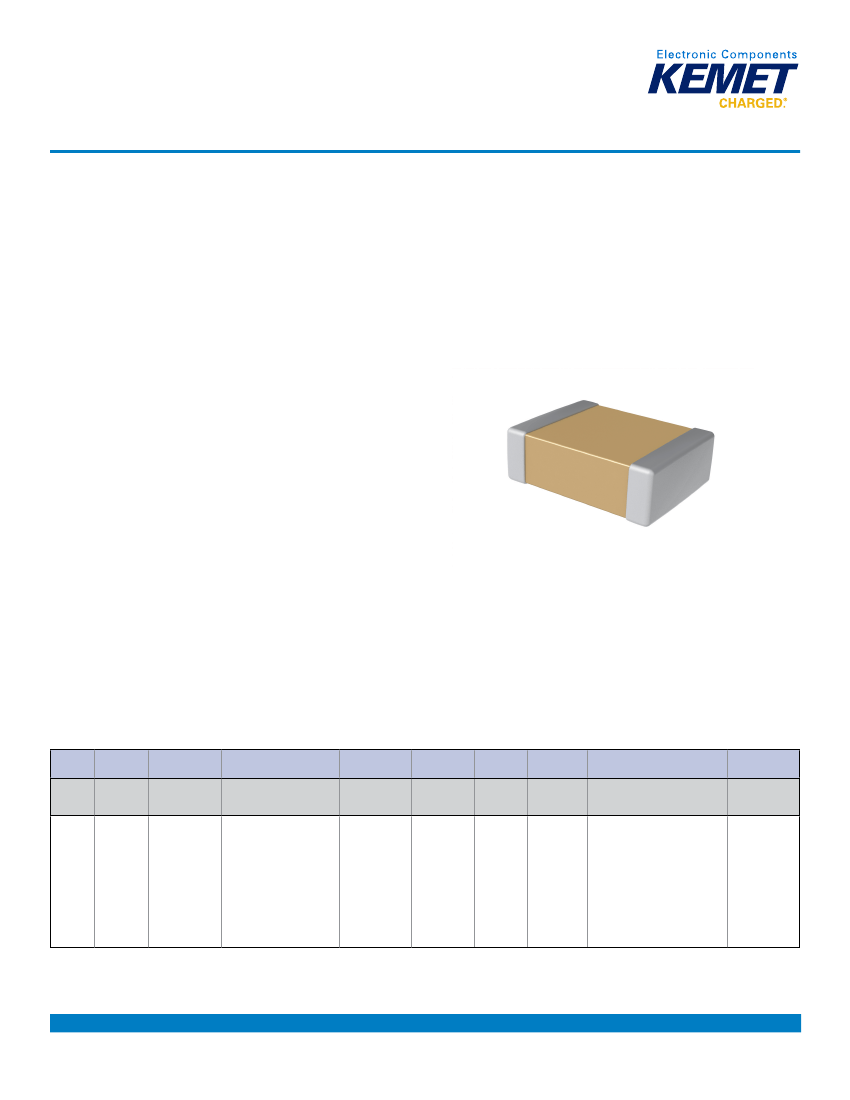

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Temperature 200°C, C0G Dielectric, 10 – 200 VDC

(Industrial Grade)

Overview

KEMET’s High Temperature surface mount C0G Multilayer

Ceramic Capacitors (MLCCs) are constructed of a robust

and proprietary C0G/NP0 base metal electrode (BME)

dielectric system that offers industry-leading performance

at extreme temperatures up to 200°C. These devices are

specifically designed to withstand the demands of harsh

industrial environments such as down-hole oil exploration

and automotive/avionics engine compartment circuitry.

KEMET’s High Temperature C0G capacitors are temperature

compensating and are well suited for resonant circuit

applications or those where Q and stability of capacitance

characteristics are required. They exhibit no change in

capacitance with respect to time and voltage and boast a

negligible change in capacitance with reference to ambient

temperature. Capacitance change is limited to ±30ppm/ºC

from −55°C to +200°C. In addition, these capacitors exhibit

high insulation resistance with low dissipation factor at

elevated temperatures up to 200°C. They also exhibit low ESR

at high frequencies and offer greater volumetric efficiency

over competitive high temperature precious metal electrode

(PME) and BME ceramic capacitor devices.

These devices are Lead (Pb)-Free, RoHS and REACH

compliant without the need of any exemptions.

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

Ceramic

1210

124

Capacitance

Code (pF)

Two significant digits +

number of zeros.

Use 9 for 1.0 – 9.9 pF

Use 8 for 0.5 – 0.99 pF

e.g., 2.2 pF = 229

e.g., 0.5 pF = 508

Capacitance

Tolerance

B = ±0.10 pF

C = ±0.25 pF

D = ±0.5 pF

F = ±1%

G = ±2%

J = ±5%

K = ±10%

M = ±20%

Voltage

8 = 10 V

4 = 16 V

3 = 25 V

5 = 50 V

1 = 100 V

2 = 200 V

Dielectric

Failure Rate/

Design

A = N/A

Termination Finish

C = 100% Matte Sn

L = SnPb (5% Pb minimum)

E = Gold (Au) 1.97 – 11.8 µin

F = Gold (Au) 30 – 50 µin

G = Gold (Au) 100 µin

minimum

Packaging/

Grade (C-Spec)

See

“Packaging

C-Spec

Ordering

Options

Table”

below

Case Size

Specification/

(L" x W")

Series

0402

0603

0805

1206

1210

1812

2220

H = High

Temperature

(200°C)

G = C0G

Additional capacitance tolerance offerings may be available. Contact KEMET for details.

Additional termination finish options may be available. Contact KEMET for details.

One world. One KEMET

C1001_C0G_200C_SMD • 7/29/2016
