conga-MA5/i-E3950-8G eMMC16 datasheet, PDF

Datasheet> All Categories > Embedded solution> To calculate> Modular computer - COM> conga-MA5/i-E3950-8G eMMC16

conga-MA5/i-E3950-8G eMMC16: Description模块化计算机 - COM COM Express Mini Type10 module with Intel Atom E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Industrial grade temperature range from -40 C to; CategoryEmbedded solution To calculate Modular computer - COM; File Size1MB，4 Pages; Manufacturercongatec; Environmental Compliance

Download Datasheet Parametric Compare View All

conga-MA5/i-E3950-8G eMMC16 Overview

模块化计算机 - COM COM Express Mini Type10 module with Intel Atom E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Industrial grade temperature range from -40 C to

conga-MA5/i-E3950-8G eMMC16 Parametric

Parameter Name	Attribute value
Maker	congatec
Product Category	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.
physical dimension	COM Express Mini Type 10
Processor brand	Intel
Processor type	Intel Atom x7-E3950
chipset	Integrated in SoC
frequency	1.6 GHz
storage	8 GB
Interface Type	Audio, Ethernet, I2C, PCIe, SATA, SMBus, UART, USB
Minimum operating temperature	- 40 C
Maximum operating temperature	+ 85 C
size	55 mm x 84 mm
flash	16 GB
storage type	DDR3L
Power consumption	12 W
series	conga-MA5
cache memory	2 MB
Factory packaging quantity	1

Preview

Download Datasheet

View All

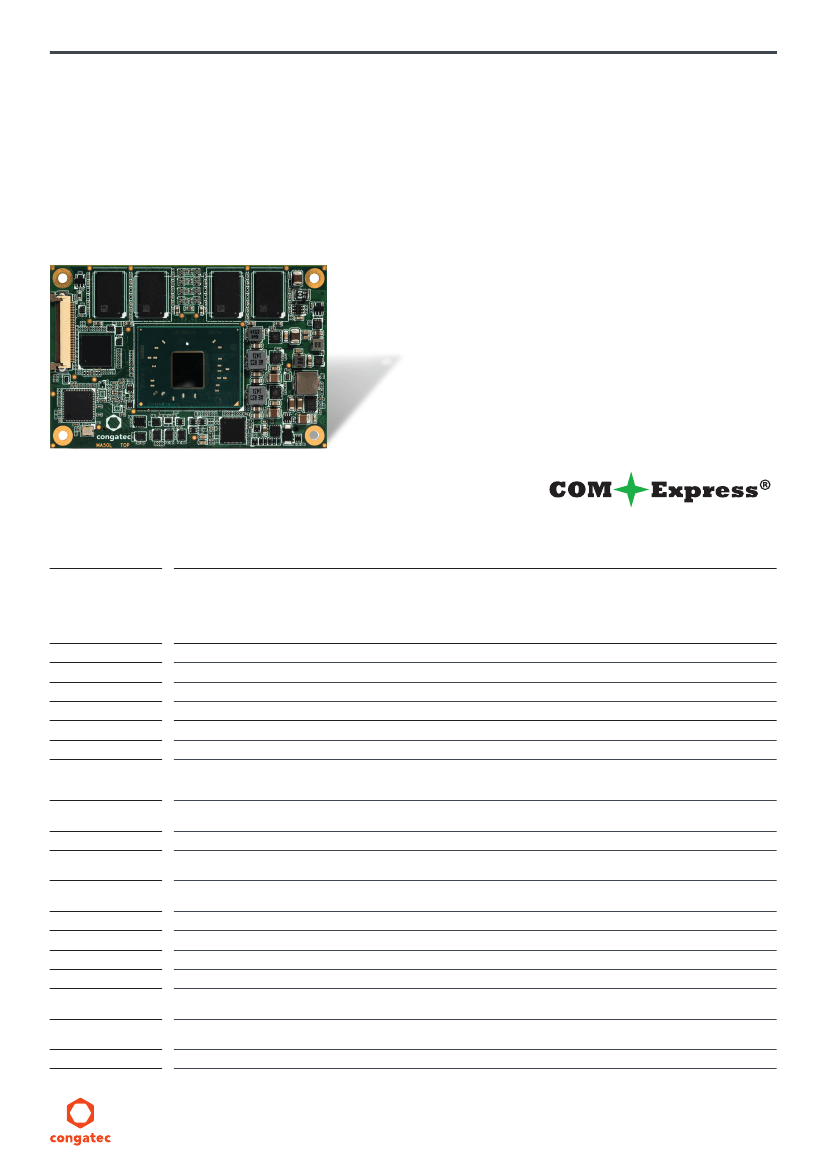

POWERFUL AND SMALL

conga-MA5

Gen. Intel

Atom

™

processor family

COM Express Mini Type 10 module

Intel 9th generation (Gen 9) LP graphics

Up to 4k resolution (4096x2160@60Hz)

4K Codec Decode & Encode for HEVC, H.264, VP8

Formfactor

CPU

Formfactor COM Express

Mini | (55 x 84 mm) | Type 10

Intel

Pentium

N4200

Intel

Celeron

N3350

Intel

Atom

™

x7-E3950

Intel

Atom

™

x5-E3940

Intel

Atom

™

x5-E3930

2.50 GHz (Burst) | 1.1 GHz Clock

2.40 GHz (Burst) | 1.1 GHz Clock

2.00 GHz (Burst) | 1.6 GHz Clock

1.80 GHz (Burst) | 1.6 GHz Clock

1.80 GHz (Burst) | 1.3 GHz Clock

Quad Core

Dual Core

Quad Core

Dual Core

L2 cache 2MB

6W TDP

12W TDP

9.5W TDP

6.5W TDP

DRAM

Chipset

Ethernet

I/O Interfaces

Onboard storage

Sound

Graphics

Dual channel onboard DDR3L memory support for up to 8 GByte at 1866MT/s

Integrated in SoC

Intel

I210 (Industrial) / I211 (Commercial) Gigabit Ethernet Controller

eMMC 5.0 interface up to 128GB

Intel

High Definition Audio (Intel

HD Audio)

(wireless) | Video decode hardware acceleration including support for 4kp60 HEVC (H.265), H.264, MVC, VP8, VP9, VC-1, WMV9, JPEG/MJPEG | Video

encode hardware acceleration including support for 4kp30 HEVC (H.265), H.264, MVC, VP8, JPEG/MJPEG.

18/24-bit Single Channel LVDS Interface, resolutions up to 1280X1024@60Hz | VESA standard or JEIDA data mapping

Automatic Panel Detection via EDID/EPI | shared with eDP 1.3 supporting up to 3840x2160@60 Hz (option)

DisplayPort 1.2 up to 4096×2160@60Hz or HDMI 1.4b up to 3840×2160@60Hz

Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics

I²C bus (fast mode | 400 kHz | multi master) | power loss control

AMI Aptio

UEFI 2.x firmware | 8 MByte serial SPI with congatec Embedded BIOS features OEM Logo | OEM CMOS Defaults | LCD Control

Display Auto Detection | Backlight Control | Flash Update

Infineon’s Trusted Platform Module (TPM 2.0/1.2) SLB 9665/9660 option

ACPI 5 .0 compliant | Smart Battery Management

Microsoft

Windows 10 | Microsoft

Windows 10 IoT Enterprise | Microsoft

Windows 10 IoT Core | Linux | Yocto | Android

Typ. application 6W...12W

Commercial :

Industrial:

Operating:

Storage:

Operating: 0 to +60°C

Operating: -40 to +85°C

10 to 90% r. H. non cond.

5 to 95% r. H. non cond.

Storage: -20 to +70°C

Storage: -40 to +85°C

LVDS

Digital Display Interface

congatec Board Controller

Embedded BIOS Features

TPM

Power Management

Operating Systems

Power Consumption

Temperature

Humidity

Size

55 x 84 mm (2.17” x 3.31”)

www.congatec.com

conga-MA5/i-E3950-8G eMMC16 Related Products

	conga-MA5/i-E3950-8G eMMC16	conga-MA5/E3930-2G eMMC16	conga-MA5/E3950-8G eMMC32	conga-MA5/i-E3930-4G eMMC16	conga-MA5/E3940-4G eMMC16	conga-MA5/N3350-4G eMMC16	conga-MA5/i-E3940-4G eMMC16
Description	模块化计算机 - COM COM Express Mini Type10 module with Intel Atom E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Industrial grade temperature range from -40 C to	模块化计算机 - COM COM Express Mini Type10 module with Intel Atom E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 2MB L2 cache, 2GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash.	模块化计算机 - COM COM Express Mini Type10 module with Intel Atom E3950 quad core processor with 1.6GHz core frequency up to 2.0GHz, 2MB L2 cache, 8GB 1866MT/s DDR3L onboard memory and 32GB eMMC onboard flash.	模块化计算机 - COM COM Express Mini Type10 module with Intel Atom E3930 dual core processor with 1.3GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Industrial grade temperature range from -40 C to	Modular Computer - COM COM Express Mini Type10 module with Intel Atom E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash.	Modular Computer - COM COM Express Mini Type10 module with Intel Celeron N3350 dual core processor with 1.1GHz core frequency up to 2.3GHz, 2MB L2 cache, 4GB 1600MT/s DDR3L onboard memory and 16GB eMMC onboard flash.	Modular Computer - COM COM Express Mini Type10 module with Intel Atom E3940 quad core processor with 1.6GHz core frequency up to 1.8GHz, 2MB L2 cache, 4GB 1866MT/s DDR3L onboard memory and 16GB eMMC onboard flash. Industrial grade temperature range from - 40 C to
Maker	congatec	congatec	congatec	congatec	congatec	congatec	congatec
Product Category	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM	Modular Computer - COM
Shipping restrictions	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.	Mouser does not currently sell this product in your area.
physical dimension	COM Express Mini Type 10	COM Express Mini Type 10	COM Express Mini Type 10	COM Express Mini Type 10	COM Express Mini Type 10	COM Express Mini Type 10	COM Express Mini Type 10
Processor brand	Intel	Intel	Intel	Intel	Intel	Intel	Intel
Processor type	Intel Atom x7-E3950	Intel Atom x5-E3930	Intel Atom x7-E3950	Intel Atom x5-E3930	Intel Atom x5-E3940	Intel Celeron N3350	Intel Atom x5-E3940
chipset	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC	Integrated in SoC
frequency	1.6 GHz	1.3 GHz	1.6 GHz	1.3 GHz	1.6 GHz	1.1 GHz	1.6 GHz
storage	8 GB	2 GB	8 GB	4 GB	4 GB	4 GB	4 GB
Interface Type	Audio, Ethernet, I2C, PCIe, SATA, SMBus, UART, USB	Audio, Ethernet, I2C, PCIe, SATA, SMBus, UART, USB	Audio, Ethernet, I2C, PCIe, SATA, SMBus, UART, USB	Audio, Ethernet, I2C, PCIe, SATA, SMBus, UART, USB	Audio, Ethernet, I2C, PCIe, SATA, SMBus, UART, USB	Audio, Ethernet, I2C, PCIe, SATA, SMBus, UART, USB	Audio, Ethernet, I2C, PCIe, SATA, SMBus, UART, USB
Minimum operating temperature	- 40 C	0 C	0 C	- 40 C	0 C	0 C	- 40 C
Maximum operating temperature	+ 85 C	+ 60 C	+ 60 C	+ 85 C	+ 60 C	+ 60 C	+ 85 C
size	55 mm x 84 mm	55 mm x 84 mm	55 mm x 84 mm	55 mm x 84 mm	55 mm x 84 mm	55 mm x 84 mm	55 mm x 84 mm
flash	16 GB	16 GB	32 GB	16 GB	16 GB	16 GB	16 GB
storage type	DDR3L	DDR3L	DDR3L	DDR3L	DDR3L	DDR3L	DDR3L
Power consumption	12 W	6.5 W	12 W	6.5 W	9 W	6 W	9 W
series	conga-MA5	conga-MA5	conga-MA5	conga-MA5	conga-MA5	conga-MA5	conga-MA5
cache memory	2 MB	2 MB	2 MB	2 MB	2 MB	2 MB	2 MB
Factory packaging quantity	1	1	1	1	1	1	1
