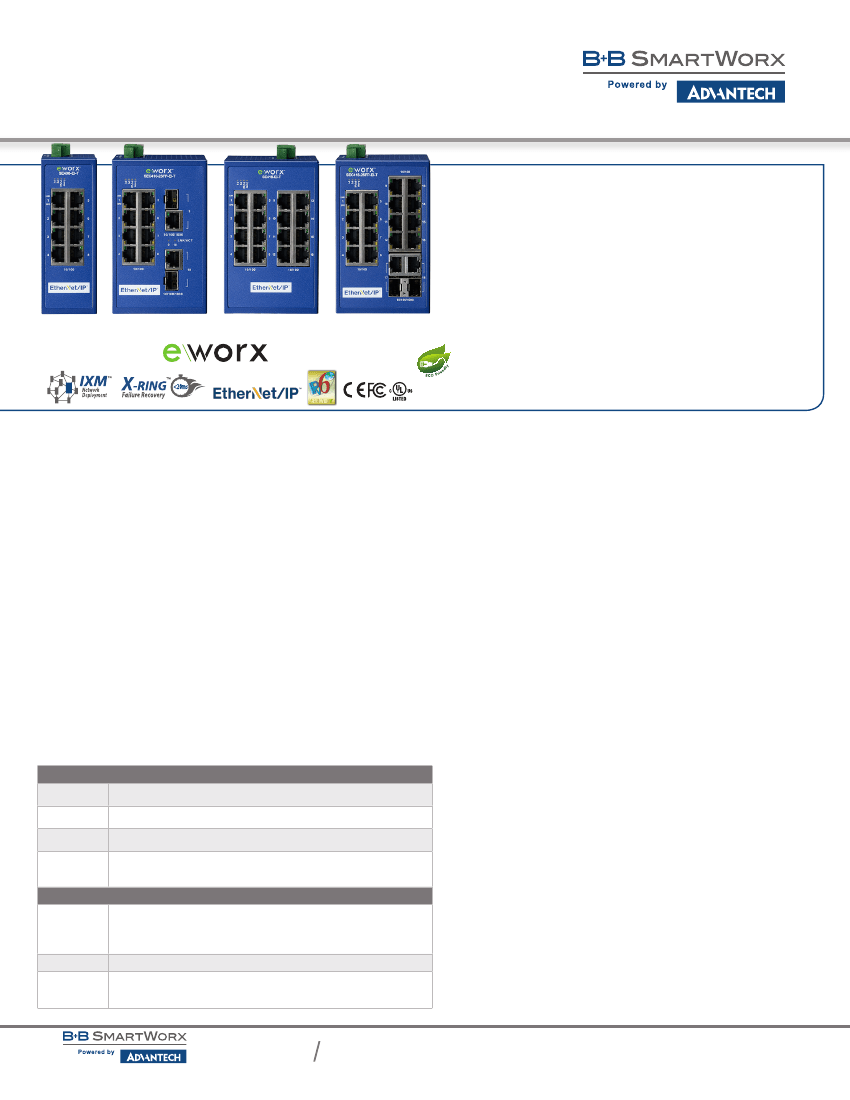

EtherNet/IP Managed Industrial Ethernet Switches
8, 10, 16, 18 port Ethernet Switches
Models SE408-EI-T, SEC410-2SFP-EI-T, SE416-EI-T, SEC418-2SFP-EI-T
www.advantech-bb.com
Features & Benefits
•
•
•
•
•
•
•
•
•
•
•
•
SE408-EI-T
SEC410-2SFP-EI-T
SE416-EI-T
SEC418-2SFP-EI-T
8-port or 16-port 10/100 Mbps
8-port or 16-port 10/100 Mbps + 2-port Gigabit Combo (RJ45 or SFP) Uplink
EtherNet/IP™ CIP Messaging, ODVA® certified
Layer 2 Managed functionality and advanced diagnostic tools
Compatible with Allen Bradley Control Systems
Premier integration modules for Rockwell Automation® Integrated Architecture™
- Add-on Profiles (AOPs) include predefined logix tags to help diagnostics retrieval
- FactoryTalk® View Faceplate, enables status monitoring and alarming
Energy Efficient Ethernet (EEE), IEEE 802.3az for low energy consumption
IXM™ function enables the cross management for fast deployment
X-Ring™ function offers self-healing recovery time less than 20 ms
Redundant Power Inputs (8.4 - 57.6 VDC)
UL508 certified for Industrial Control Panel
UL C1D2, ATEX Zone 2, IECEx certified for Hazardous Environments
Introduction
EtherNet/IP™, better known as the Common Industrial Protocol (CIP) that wide
deployment in industrial automation. The SE400 series has built-in EtherNet/IP™ CIP
Messaging that offer the premier integration into Studio 5000 Automation Engineering
and Design Environment™, the user can use our integration modules including
FactoryTalk® View Faceplate and Add-on Profiles for simplified configuration and
monitoring. Plus SE400 EtherNet/IP™ series certified by ODVA® and fully compatible
with Allen-Bradley automation systems.
SE400 series has essential L2 managed switching features, such as network security,
management, redudancy and diagnostic functions. Default enabled IGMP Snooping
and EtherNet/IP functions allows SE400 switch to forward and filter multicast traffic in
PLC/HMI/IO control networking intelligently. With QoS, Rate limiting, VLAN setting, the
user can easily prioritize the networking traffic and segment the separated local group
domains to tailor the actual networking requirement in industrial automation.
Also embedded into each switch with industry leading IXM™ cross management
technology. IXM™ allows the installer to auto synchronize firmware updates and
push configuration settings to either individual or groups of switches. IXM™ provides
maintenance and provisioning functionality to both the SE400 and SE300 family
switches without the need of extra software or trained personal. IXM™ speeds up switch
deployment and ensures network stability.
Essential L2 Managed Feature Design
Specifications
COMMUNICATIONS
IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.1p, 802.3az, 802.1w,
Standards
802.1Q, 802.1X, 802.1ad
10/100 Base-T(X), Optional 100Base-FX,
LAN
1000Base-SX/LX/LHX/XD/ZX/EZX
Transmission Ethernet: 100m (4-wire Cat.5e, Cat.6 RJ-45 cable suggested for GB port) SFP:
Distance
110km (depends on SFP)
Ethernet: 10/100Mbps Auto-Negotiation
Transmission
Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation
Speed
Gigabit Fiber: Up to 1000Mbps
INTERFACE
8 x RJ45 / 16 x RJ45
8 x RJ45 / 16 x RJ45 + 2 x (RJ45/SFP) combo ports
Connectors
1 x Reset button
6-pin removable screw terminal (power & relay)
Ethernet
Auto Sensing, 10/100BaseTX, 10/100/1000BaseTX, Duplex and MDIX
PWR1, PWR2, SYS, Alarm and R.M.
LED Indicators 10/100 T(X): Link/Activity, Speed Gigabit Copper: Link/Activity, Speed SFP:
Link/Activity
IEEE802.3az
– Energy-Efficient Ethernet (EEE) is a set of enhancements
to the twisted-pair and backplane Ethernet family of computer networking
standards that allows for less power consumption during periods of low data
activity.
IXM™
– Offers auto synchronization function of both firmware and configuration
settings to make middle/large-scale deployment of multiple switches fast and
easy. A built- in Web GUI feature, no need for extra software to be installed on
a computer.
RSTP/STP –
IEEE standard self-healing/ring recovery technology. Reduce
redundant network cabling and planning costs and ensure high reliability of
your industrial network applications.
Multiple Account Access
– This feature allows the network manager to
create user accounts with differing permissions. User ID’s can be created with
a wide variety of access - from simple device monitoring to full maintenance
accessibility, thus ensuring security and offering flexibility for field deployment.
IGMP Snooping v1/v2/v3
– The Internet Group Management Protocol is
a feature that allows the managed switch to forward and filter multicast traffic
intelligently, designed for the video streaming and automation control network
applications.
VLAN
- Virtual Local Area Network allows you to segment the different network
domains in a switch, also isolate the different network group as security
consideration.
QoS
- Quality of Service provides the network packet prioritization in order
to provide better network service. The main goal of QoS is to improve the
latency of prioritized Ethernet packets required for time-sensitive and real-time
interactive applications in automation.
Cable Diagnostics
– This feature will enable you to verify the length of a
cable right from the switch to the other end. This is essential in diagnosing
faults as a break in the cable can be easily identified on a single wire within the
cable, as well as shorts and crossed-pairs.
IPv6
– A future-proof feature, IPv6 (Internet Protocol version 6) is a set of
specifications from the Internet Engineering Task Force (IETF) that is an
upgrade of existing IP version 4 (IPv4). The basics of IPv6 are similar to those
of IPv4 - devices can use IPv6 as source and destination addresses to pass
packets over a network.
Ease of Use
– 10/100BaseTX or 10/100/1000 Mbps ports are auto sensing
and auto configuring. Each copper port is automatically negotiated for
maximum speed and performance by default, but can also be configured
individually via the user interface. A powerful inside processor allows wire
speed capability on all.
All product specifications are subject to change without notice.
SE400 Ethernet/IP Switch series_5116
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
EtherNet/IP Managed Industrial Ethernet Switches
8, 10, 16, 18 port Ethernet Switches
Models SE408-EI-T, SEC410-2SFP-EI-T, SE416-EI-T, SEC418-2SFP-EI-T
Software Properties
SWITCH PROPERTIES
MAC Table Size
Packet Buffer Size
Switching Capacity
Packet Buffer Size
8k
4.1 Mbits
1.6 Gbps - SE408-EI-T
5.6 Gbps - SEC410-2SFP-EI-T
3.2 Gbps - SE416-EI-T
7.2 Gbps - SEC418-2SFP-EI-T
9,216 bytes
Hardware Properties
POWER
Power Consumption
Power Input
Fault Output
Overload Current
PHYSICAL
Dimensions
(WxHxD)
Protection Class
Weight
Enclosure
Mounting
ENVIRONMENT
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
MTBF
CERTIFICATIONS
Hazardous Environments
Safety
EMI
EMS
Shock
Freefall
Vibration
Max. 5.2W - SE408-EI-T
Max. 5.8W - SEC410-2SFP-EI-T
Max. 8W - SE416-EI-T
Max. 8.2W - SEC418-2SFP-EI-T
12 ~ 48 VDC (8.4~57.6 VDC) redundant dual inputs
1 Relay Output
Present
43 x 120 x 84 mm - SE408-EI-T
74 x 120 x 84 mm - SEC410-2SFP-EI-T, SE416-EI-T,
SEC418-2SFP-EI-T
IP30 enclosure
Net: 0.67 kg. Gross: 0.72 kg - SE408-EI-T
Net: 1 kg. Gross: 1.2 kg - SEC410-2SFP-EI-T, SE416-EI-T,
SEC418-2SFP-EI-T
Metal Shell
DIN-Rail, Wall Mount
-40 to +75°C (-40 to +167°F)
-40 to +85°C (-40 to +185°F)
10 to 95% (non-condensing)
10 to 95% (non-condensing)
4,176,861 hours - SE408-EI-T
3,183,604 hours - SEC410-2SFP-EI-T
2,788,343 hours - SE416-EI-T
2,825,281 hours - SEC418-2SFP-EI-T
UL Class 1 Division 2 Groups A,B,C,D; ATEX Zone 2, IECEx
UL508
FCC Part 15 Subpart B Class A, EN 55011/55022, Class A
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
COMBO PORT
-
2
-
2
Reverse Polarity Protection Present
Priority Queues
8
Maximum Number of 256
Available VLANs
VLAN ID Range
1 to 4094
IGMP Groups
SOFTWARE
Management
Configuration
Security
Redundancy
Monitoring
Filter
Industrial Protocol
Diagnostics
Enhanced
Provisioning
Miscellaneous
256
Web interface, WebAccess NMS™, Multiple user accounts, LLDP,
SNMP v1/v2c/v3, Traps, SNTP, Standard MIB, Private MIB
HTTP/TFTP, IPv4/IPv6, DHCP client, DHCP 82, Flow control,
Ingress/Egress Rate limit, Jumbo frame
802.1x, DoS prevention, RADIUS, Multiple account setting,
Storm control, SNMPv3 (Encryption)
X-Ring Elite, STP/RSTP, LACP (Link Aggregation Control Protocol)
Port statistics & utilization, LLDP/IGMP/MLD statics, Loop detection
Multicast (IGMP Snooping/Querier), Unknown multicast filtering,
802.1Q, VLAN, Port-based VLAN, GVRP, QoS (IEEE 802.1p) with 8
classes and TOS/DiffServ, Flow control
EtherNet/IP™ CIP Messaging, ODVA® certified
Cable Diagnostic, IPv4/IPv6 Ping Test, Syslog, Port Mirror, DDM
(Digital-Diagnostic-Monitoring), Port Mirroring 1:1 and N:1
IXM™ Cross management platform for fast deployment,
Configuration backup manager, Import/ Export configuration files,
firmware upgrades.
Remote reboot/reset device, Dual Image,Multiple account setting
(Admin/User), Watchdog
Product Ordering Information
MODEL #
SE408-EI-T
DESCRIPTION
RJ45
OPERATING
TEMPERATURE
-40 ~ 75°C
-40 ~ 75°C
-40 ~ 75°C
-40 ~ 75°C
10/100
MBPS
8
8
16
16
FIBER
8-port 10/100Mbps
EtherNet/IP Managed Ethernet Switch
8-port 10/100Mbps + 2-port GbE Combo (SFP or Copper)
SEC410-2SFP-EI-T
EtherNet/IP Managed Ethernet Switch
16-port 10/100Mbps
SE416-EI-T
EtherNet/IP Managed Ethernet Switch
16-port 10/100Mbps + 2-port GbE Combo (SFP or Copper)
SEC418-2SFP-EI-T
EtherNet/IP Managed Ethernet Switch
Accessories - Optional (sold separately)
MODEL #
MDR-20-24
MDR-40-24
SDR-120-24
SDR-240-24
DESCRIPTION
DIN Rail Power Supply, 24VDC, 20W, 1.0A
DIN Rail Power Supply, 24VDC, 40W, 1.7A
DIN Rail Power Supply, 24VDC, 120W, 5A
DIN Rail Power Supply, 24VDC, 240W, 10A
100/1000
10/100/1000BASE-T(X)
BASE-SFP
OR 100/1000BASE-SFP
CONNECTOR
-
-
-
-
-
LC (SFP)
-
LC (SFP)
OPERATING
TEMPERATURE
-20~70 °C
-20~70 °C
-20~70 °C
-20~70 °C
Package Checklist
Accessories - WebAccess/NMS, Networking Management Software
(sold separately)
MODEL #
DESCRIPTION
Trial Version
6 Months Free Trial -- ask your local sales representative
NMS-U050-ULE
Supports maximum 50 nodes
NMS-U300-ULE
Supports maximum 300 nodes
NMS-U01K-ULE
Supports maximum 1,000 nodes
NMS-U04K-ULE
Supports maximum 4,000 nodes
Ethernet Switch, Protective Caps for unused ports, Quick Start Guide, DIN-Rail mount
bracket (installed), wall mount bracket.
orders@advantech-bb.com
support@advantech-bb.com
Warranty
Limited lifetime warranty for B+B SmartWorx designed and/or manufactured products.
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445

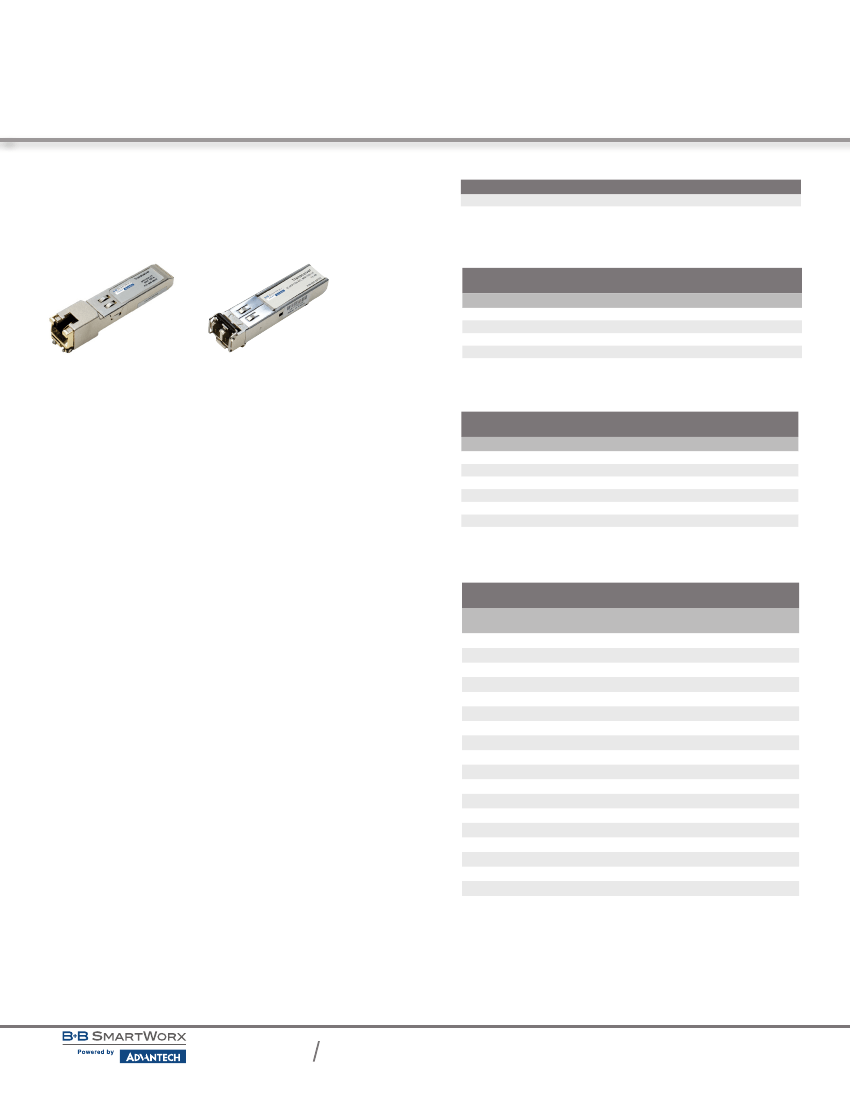

Small Form Pluggable (SFP) Modules
Copper SFP (10/100/1000 and 1000 Mbps)
Fiber SFP (155 Mbps, 1.25 Gbps)
•
•
•
•
•
Future-proof network equipment
Available in SM, MM fiber types
Maximize network hardware
Troubleshooting diagnostics
Plug-and-play operation
Copper SFP Models
MODEL NUMBER
808-39001
808-39010
PORT DESCRIPTION
10 - 1250, TX
1250, TX
CONNECTOR
RJ45
RJ45
DISTANCE
100 m
100 m
IE-SFP Modules: 100 to 155 Mbps, DDMI (OC-3)
MODEL NUMBER
W/ DDMI
808-38101
808-38102
808-38103
808-38104
808-38105
MM850
MM1300
SM1310
SM1310/PLUS
SM1550/LONG
LC
LC
LC
LC
LC
2 km
2 km
20 km
40 km
80 km
PORT DESCRIPTION
FIBER
DISTANCE
POWER
BUDGET
(db)
14.5
11
21
31
31
Copper
Fiber LC
SFPs are compact transceivers that function as modular connectors. Available for
copper (RJ-45) and all common fiber modes, wavelengths and data rates, these
modules allow network operators to connect different interface types to the same
network equipment via an SFP port. The cost of cable upgrades is greatly reduced,
preserving the networking equipment investment – all for the price of a relatively
inexpensive module.
More and more network equipment is being designed with SFP ports to take
advantage of the inherent flexibility and to eliminate the guesswork and uncertainty
of expensive equipment purchases. Remember to select an SFP to match the speed
of your designated port. All modules from B+B SmartWorx carry a limited lifetime
warranty.
IE-SFP Modules: 1.25 Gbps GB Ethernet, DDMI (OC-24)
MODEL NUMBER
W/ DDMI
808-38201
808-38206
808-38200
808-38203
808-38204
808-38205
808-38208
MM850
MM1300
SM1310
SM1310/PLUS
SM1550/LONG
SM1550/XLONG
SM1550/XXLONG
LC
LC
LC
LC
LC
LC
LC
220/550 m
2 km
20 km
30 km
40 km
70 km
120 km
PORT DESCRIPTION
FIBER
DISTANCE
POWER
BUDGET
(db)
7.5
10
14
17
18
21
30
Standard Diagnostics
•
•
•
•
•
SFP Type
Fiber Link Length
Wavelength
Bit Rate
Date Code
DDMI/Extended Diagnostics
•
•
•
•
•
Temperature
Voltage
Bias Current
TX Power
RX Power
IE-SFP Modules: CWDM (155 Mbps/1.25 Gbps), DDMI
MODEL NUMBER
155 Mbps
808-38141
808-38142
808-38143
808-38144
808-38145
808-38146
808-38147
808-38148
808-38149
808-38150
808-38151
808-38152
808-38153
808-38154
808-38155
808-38156
808-38157
808-38158
1.25 Gbps
808-38241
808-38242
808-38243
808-38244
808-38245
808-38246
808-38247
808-38248
808-38249
808-38250
808-38251
808-38252
808-38253
808-38254
808-38255
808-38256
808-38257
808-38258
CWDM-SM1270
CWDM-SM1290
CWDM-SM1310
CWDM-SM1330
CWDM-SM1350
CWDM-SM1370
CWDM-SM1390
CWDM-SM1410
CWDM-SM1430
CWDM-SM1450
CWDM-SM1470
CWDM-SM1490
CWDM-SM1510
CWDM-SM1530
CWDM-SM1550
CWDM-SM1570
CWDM-SM1590
CWDM-SM1610
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
LC
DESCRIPTION
FIBER
DISTANCE
155
Mbps
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
80 km
1.25
Gbps
40 km
40 km
40 km
40 km
40 km
40 km
40 km
40 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
70 km
POWER
BUDGET (db)
155
Mbps
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
1.25
Gbps
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
22
Fiber SFP Modules
Robust Industrial Performance
Feature Friendly
•
Extended operating temperature range
•
Hot swappable
•
Available in a wide range of fiber types, wavelengths and transmission rates to meet
almost any networking need
•
Powerful troubleshooting Digital Diagnostics Monitoring Interface (DDMI)
•
•
•
•
•
•
•
•
MSA compliant: available in dual- or single-strand, SC or LC connector
Eye Safety meets Laser Class 1 Compliance with IEC 60825-1
Complies with Telecordia GR-468-CORE
RoHS compliant
Input Voltage: 3.3V
Operating Temperature: -40° to +85° C
Operating Temperature, CWDM: 0° to +70° C
Storage Temperature: -40° to +85° C
Extended Diagnostics
Standard Compliances
Voltage/Temperature
Data Rates
155 Mbps
•
ITU-T G.957, G.958 and IEEE 802.3u
•
Applications: Fast Ethernet, OC-3/STM-1 and other optical links
1.25 Gbps
•
Compliant with specifications for IEEE 802.3z
•
Applications: Gigabit Ethernet and other optical links
NOTES: Fiber SFP Form Factors & Distances
Fiber SFP (OC-3, OC-24) form factors have virtually identical dimensions and are not typically interchangeable;
this will depend on the device type.
For each fiber product listed in the tables, DISTANCE represents an approximate fiber distance based on
industry-standard fiber attenuation specifications. Actual distances will vary for each installation. For complete
power budgets and additional information on calculating specific distances, contact B+B SmartWorx Technical
Support specialists at (815) 433-5100 (USA).
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
EtherNet/IP Managed Industrial Ethernet Switches
8, 10, 16, 18 port Ethernet
35.6
Switches
33.4
11.1
[0.439]
[1.315]
[1.400]
Models SE408-EI-T, SEC410-2SFP-EI-T, SE416-EI-T, SEC418-2SFP-EI-T

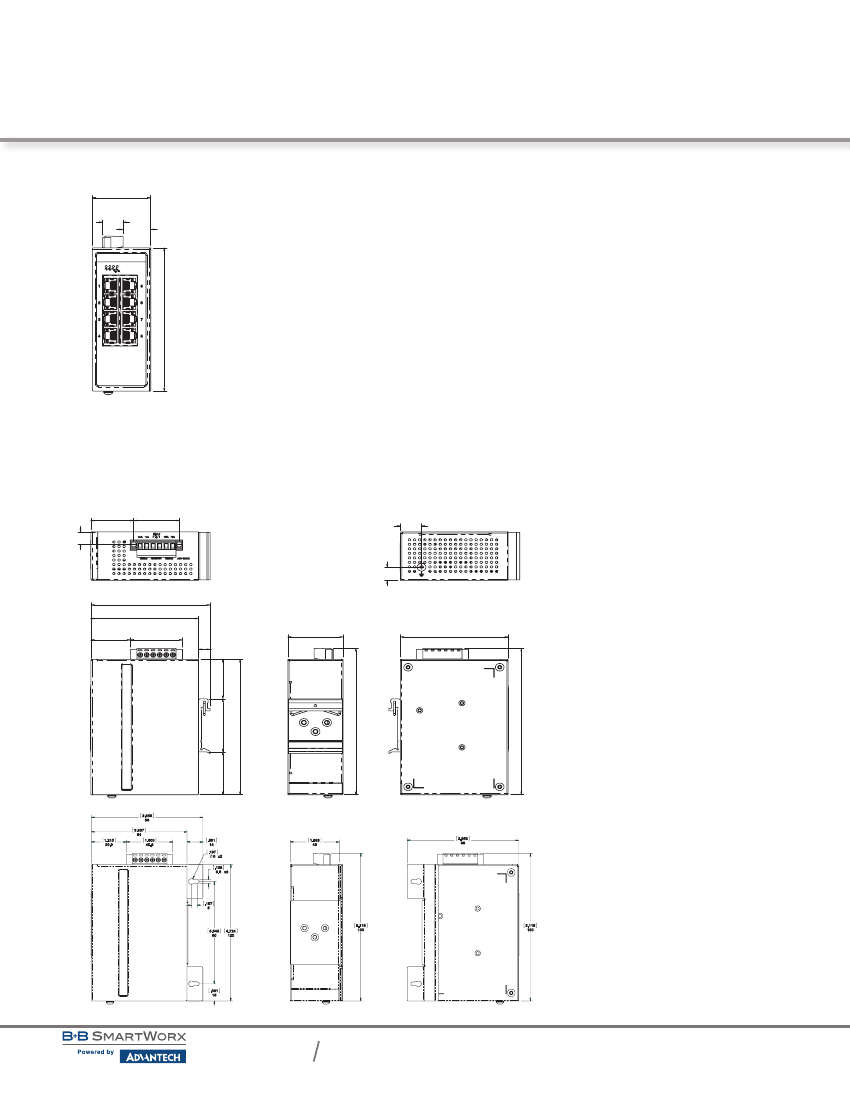

Mechanical Diagram
| Faceplate Detail
43 [1.693]
15
[0.591]
20.4
[0.803]
93 [3.661]
84 [3.307]
30.9
40.6
[1.215]
[1.600]
33.4
[1.315]
9 [0.354]
38 [1.496] 47 [1.850] 35 [1.378]
11.1
[0.439]
43 [1.693]
35.6
[1.400]
84 [3.307]
43 [1.693]
15
[0.591]
20.4
[0.803]
120 [4.724]
120 [4.724]
130 [5.118]
93 [3.661]
84 [3.307]
30.9
40.6
[1.215]
[1.600]
129.8 [5.110]
43 [1.693]
9 [0.354]
38 [1.496] 47 [1.850] 35 [1.378]
84 [3.307]
120 [4.724]
120 [4.724]
faceplate detail
16.4
[0.646]
Units = [inches] mm
11.1
[0.439]
33.4
[1.315]
35.6
[1.400]
11.7
[0.461]
Mechanical Diagram
| Enclosure
DIN Rail & Panel Mount Options
16.4
[0.646]
[1.693]
5
591]
20.4
[0.803]
93 [3.661]
84 [3.307]
30.9
40.6
[1.215]
[1.600]
9 [0.354]
38 [1.496] 47 [1.850] 35 [1.378]
11.7
[0.461]
43 [1.693]
84 [3.307]
120 [4.724]
120 [4.724]
1.315
33.4
.709
18
3.858
98
.512
13
1.400
35.6
.439
11.1
1.811
46
2
1.693
43
.803
20.4
16.4
[0.646]
1.215
30.9
3.858
98
3.307
84
1.600
40.6
.551
14
.197
5 x2
1.693
43
130 [5.118]
3.858
98
11.7
[0.461]
.138
3.5 x2
.197
5
4.724
120
3.543
90
4.724
120
5.118
130
.591
15
.646
16.4
orders@advantech-bb.com
support@advantech-bb.com
.461
11.7
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
129.8 [5.110]
5.118
130
130 [5.118]
Model SE408-EI-T
129.8 [5.110]
EtherNet/IP Managed Industrial Ethernet Switches
8, 10, 16, 18 port Ethernet Switches
Models SE408-EI-T, SEC410-2SFP-EI-T, SE416-EI-T, SEC418-2SFP-EI-T
.439
11.1
2.913
74
1.315
33.4
1.400
35.6
1.315
33.4
1.400
35.6
.439
11.1

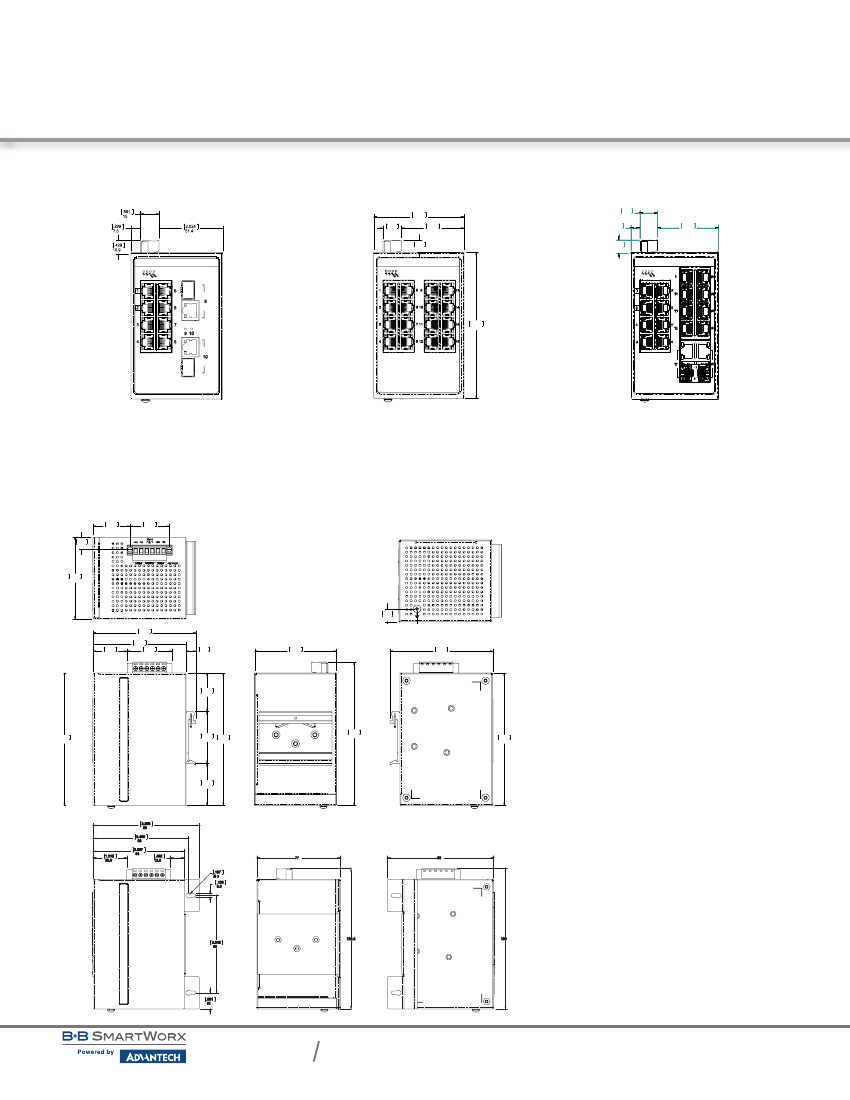

Mechanical Diagram
| Faceplate Detail by Model
Units = [inches] mm
2.913
74
.591
15
1.315
33.4
3.661
93
3.307
84
.591
15
.299
7.6
3.307
84
2.024
51.4
2.024
51.4
9
1.400
35.6
1.215
30.9
1.600
40.6
.354
9
2.913
74
1.215
30.9
.492
12.5
.439
11.1
.386
9.8
.429
10.9
1.378
35
2.913
74
4.724
120
3.661
93
3.307
84
1.850
47
4.724
120
5.110
129.8
2.913
74
.591
15
.386
9.8
2.024
51.4
1.215
30.9
1.600
40.6
.354
9
2.913
74
3.661
93
1.496
38
1.378
35
Model SEC410-2SFP-EI-T
faceplate detail
Model SE416-EI-T
faceplate detail
4.724
120
1.850
47
4.724
120
Model SEC418-2SFP-EI-T
faceplate detail
5.110
129.8
4.724
120
Mechanical Diagram
| Enclosure
DIN Rail & Panel Mount Options
Units = [inches] mm
1.315
33.4
.439
11.1
1.496
38
.461
11.7
1.400
35.6
.646
16.4
.461
11.7
.646
16.4
2.913
74
.461
11.7
2.913
74
2.024
51.4
.386
9.8
1.215
30.9
3.661
93
3.307
84
.646
16.4
1.600
40.6
.354
9
2.913
74
3.661
93
1.378
35
4.724
120
1.850
47
4.724
120
5.110
129.8
4.724
120
1.496
38
77
77
5
.461
11.7
.646
16.4
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
京公网安备 11010802033920号
EEWORLD
