MAX14713 Evaluation Kit
Evaluates: MAX14713/MAX14714
General Description
The MAX14713 evaluation kit (EV kit) is a fully assembled
and tested circuit board that demonstrates the MAX14713
power path selector. To evaluate the MAX14714, request
a sample from Maxim and replace the MAX14713 with
the MAX14714.
Quick Start
Required Equipment
●
●
●
●
MAX14713 EV kit
3V DC power supply
Two 5V DC power supplies
Multimeter
EV Kit Contents
Features
●
MAX14713 EV Kit Board
●
1.6V to 5.5V Operating Voltage Range
●
Proven PCB Layout
●
Fully Assembled and Tested
Procedure
1)
2)
The MAX14713 EV kit is fully assembled and tested.
Follow these steps to verify board operation:
Verify that all jumpers are in their default positions.
Connect 3V DC supply to VIO. Turn on the power
supply.
3) Connect one 5V DC supply to IN1. Connect one 5V
DC supply to IN2.
4) Turn on IN1 supply. Verify LED1 is on and OUT is 5V.
5) Turn off IN1 supply. Verify LED1 is off.
6) Turn on IN2 supply. Verify LED1 is on and OUT is 5V.
7) Turn off IN2 supply. Verify LED1 is off.
8) Set IN1 to 4V and IN2 to 3.5V, and turn on both
power supplies. Verify OUT goes to 4V.
9) Increase IN2 to 4.1V. Note that OUT is still 4V.
10) Slowly increase IN2. Verify OUT = IN2 when IN2
reaches ~4.2V.
11) After OUT = IN2. Decrease IN2 to 3.9V. Verify OUT =
IN2 still.
12) Slowly decrease IN2. Verify OUT = IN1(4V) when IN2
reaches ~3.8V.
Ordering Information
appears at end of data sheet.
19-8787; Rev 1; 8/17
MAX14713 Evaluation Kit
Evaluates: MAX14713/MAX14714
Detailed Description of Hardware
Output Load
The MAX14713 EV kit is a fully assembled and tested circuit
board demonstrating the MAX14713 power path selector IC
in a 15-bump, surface-mount, wafer-level package (WLP).
The MAX14713 EV kit features an LED to indicate that
input is powered from either channel 1 or 2.
Use JU3, JU5, and JU7 to select output load. See
Table 2
for jumper settings.
VIO Power Source
Enable Inputs
Use JU6 to select the VIO power source. See
Table 3
for
jumper settings.
Use JU1 and JU2 to enable the device. See
Table 1
for
jumper settings.
LED Indicator
Use JU8 to enable the LED indicator. See
Table 4
for
jumper settings.
Table 1. Enable Input Jumper Settings
JUMPER
SHUNT
POSITION
1-2
JU1
2-3*
1-2
JU2
2-3*
*Default
position.
DESCRIPTION
EN1
is connected to VIO (TP6)
through R1, channel 1 is disabled.
EN1
is connected to GND through
R1, channel 1 is enabled.
EN2
is connected to VIO (TP6)
through R2, channel 2 is disabled.
EN2
is connected to GND through
R2, channel 2 is enabled.
Table 3. VIO Power Source Jumper Settings
JUMPER
SHUNT
POSITION
Installed
JU6
Not
installed*
*Default
position.
DESCRIPTION
VIO is powered from either IN1 or
IN2. Do not connect power on VIO
(TP6) if shunt is installed.
VIO is powered from TP6.
Table 4. LED Indicator Jumper Settings
JUMPER
SHUNT
POSITION
Installed*
JU8
Not
installed
DESCRIPTION
LED1 is enabled. LED1 turns on
when either IN1 or IN2 is powered.
LED1 is disabled.
Table 2. Output Load Jumper Settings
JUMPER
SHUNT
POSITION
Installed
JU3
Not
installed*
Installed
JU5
Not
installed*
Installed
JU7
Not
installed*
DESCRIPTION
OUT is connected to R5, 10Ω.
OUT is not connected to R5.
OUT is connected to R3, 1kΩ.
OUT is not connected to R3.
OUT is connected to C4 and C5.
OUT is not connected to C4 and
C5.
*Default
position.
*Default
position.
www.maximintegrated.com
Maxim Integrated
│
2
MAX14713 Evaluation Kit
Evaluates: MAX14713/MAX14714
MAX14713 EV Kit Bill of Materials
DESIGNATION
C1–C3
C4, C5
C6, C7
C8−C27
D1, D2
JU1, JU2
JU3, JU5−JU8
LED1
R1–R3, R6
R5
TB1–TB3
TP1, TP3, TP7–TP9
TP2, TP4–TP6
U1
—
—
QTY
3
2
2
20
2
2
5
1
4
1
3
5
4
1
7
1
DESCRIPTION
1µF ±10%, 50V X5R ceramic capacitors (0805)
47µF ±10%, 16V tantalum capacitors
10µF ±10%, 25V X5R ceramic capacitors (1206)
DNI (2917)
75V 0.15A diodes, Diodes Incorporated 1N4148WS-7-F
3-pin single-row headers
2-pin single-row headers
Green LED
1kΩ ±1% resistors (0805)
10Ω ±1% 5W resistor, Ohmite WNE10RFET
Terminal block
Black test points
Red test points
Power path selector (15 WLP), Maxim MAX14713EWL+
Shunts
PCB: MAX14713 EVKIT
www.maximintegrated.com
Maxim Integrated
│
3
D1
TP5
1
2
+
IN1
IN
TB1
TP1
TP2
1
2
2
2
2
2
1
1
+
MAX14713 Evaluation Kit

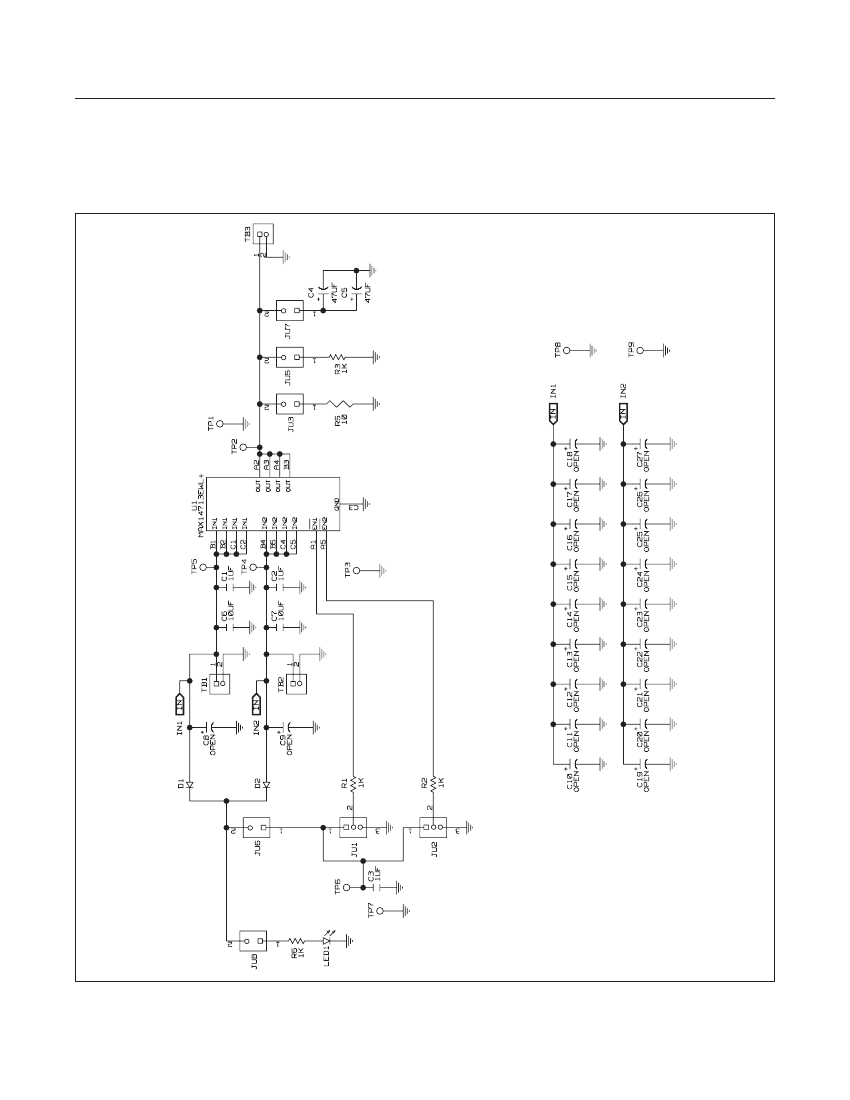

MAX14713 EV Kit Schematic
R6
1K
C9
OPEN
1
2
TB2
JU3
JU5
JU7
C7
10UF
C2
1UF
B4
B5
C4
C5
IN2
IN2
IN2
IN2
OUT
OUT
OUT
OUT
A2
A3
A4
B3
1
1
1
2
LED1
1
JU1
1K
C3
C3
1UF
1
3
3
+
+
+
+
+
+
+
+
C10
OPEN
C11
OPEN
C12
OPEN
C13
OPEN
C14
OPEN
C15
OPEN
C16
OPEN
C17
OPEN
C18
OPEN
+
+
+
+
+
+
+
+
+
Evaluates: MAX14713/MAX14714
C19
OPEN
C20
OPEN
C21
OPEN
C22
OPEN
C23
OPEN
C24
OPEN
C25
OPEN
C26
OPEN
C27
OPEN
+
www.maximintegrated.com
C8
OPEN
C6
10UF
TP4
D2
IN2
TB3
C1
1UF
B1
B2
C1
C2
IN1
IN1
IN1
IN1
U1
MAX14713EWL+
JU8
JU6
IN
A1
A5
EN1
EN2
GND
+
C4
TP6
2
R1
TP3
R5
10
R3
1K
47UF
C5
+
TP7
47UF
JU2
1K
2
R2
IN
IN1
TP8
IN
IN2
TP9
Maxim Integrated
│
4
MAX14713 Evaluation Kit
Evaluates: MAX14713/MAX14714

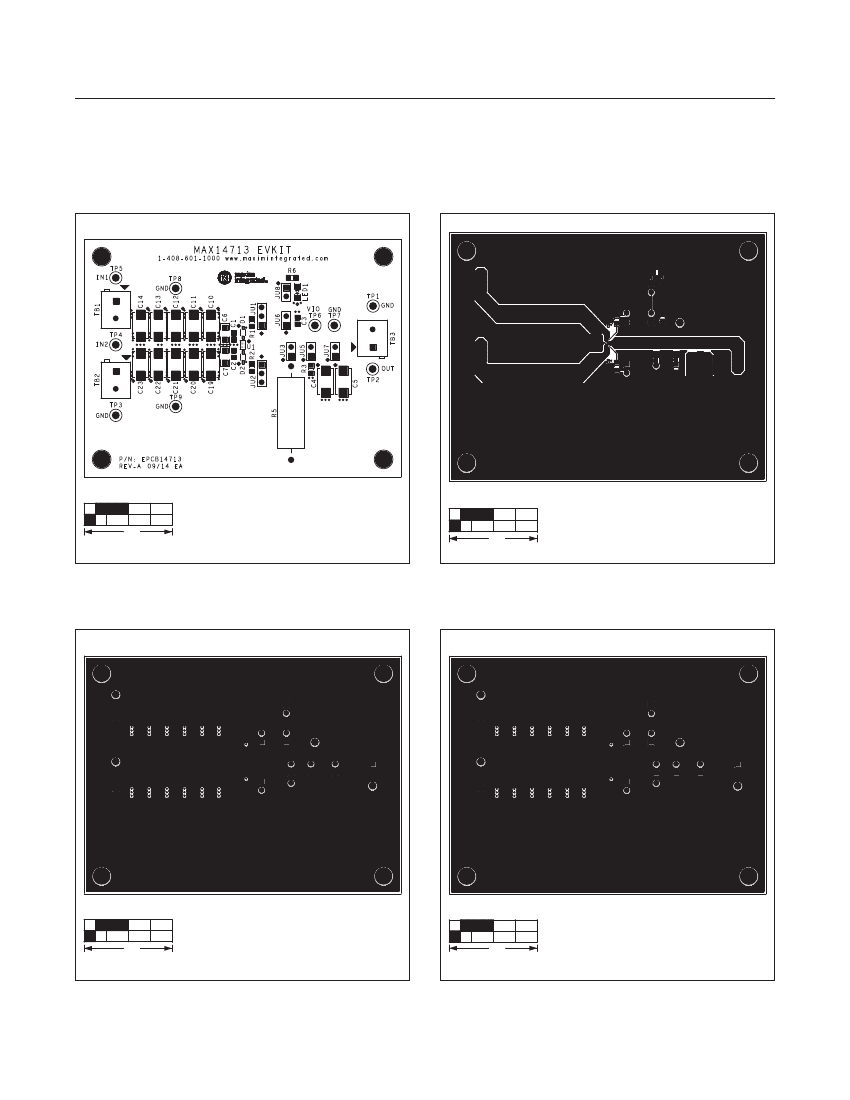

MAX14713 EV Kit PCB Layout Diagrams
1”
1”
MAX14713 EV Kit Component Placement Guide—Component Side
MAX14713 EV Kit PCB Layout—Component Side
1”
1”
MAX14713 EV Kit PCB Layout—Internal Layer 1
MAX14713 EV Kit PCB Layout—Internal Layer 2
www.maximintegrated.com
Maxim Integrated
│
5
