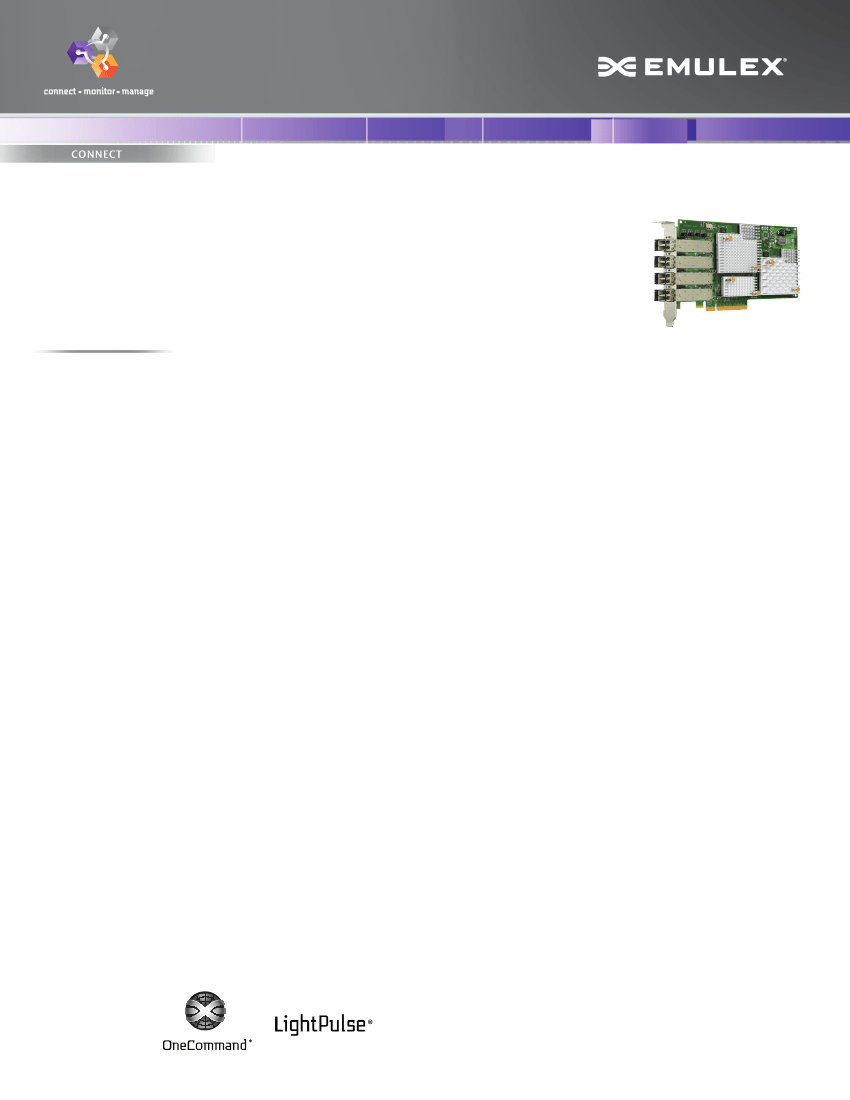

D ATA S H E E T
LightPulse LPe12004
®
8Gb Fibre Channel PCIe 2.0 Host Bus Adapter
Unparalleled Manageability, Reliability, Performance and Ease of Deployment
Streamlined installation and management, unrivaled scalability, and industry-leading
virtualization support make the quad-port Emulex LightPulse LPe12004 Fibre
Channel host bus adapters (HBA) ideal solutions for enterprise, mixed-OS and virtual
server environments.
Proven Design, Architecture and Interface
Emulex LightPulse HBAs’ highly integrated processor design minimized onboard
components to improve host performance and efficiency. Advanced error-checking
features ensure the integrity of block data as it traverses the SAN. Emulex’s firmware-
based architecture enables feature and performance upgrades without costly
hardware changes. The unique Service Level Interface (SLI™) allows use of a common
driver across all models of Emulex HBAs on a given OS platform. Installation and
management facilities are designed to minimize server reboots and further simplify
deployment.
Powerful Management Software for Maximum Data Center Efficiency
The Emulex OneCommand® Manager enterprise class management application
features a multiprotocol, cross-platform architecture that provides centralized
management of all adapters provided by Emulex. This enables IT administrators to
manage network connectivity with one tool for maximum efficiency. OneCommand
Manager also features:
n
Key Benefits
n
Provides superior performance for the enterprise
n
Integrates seamlessly into existing SANs
n
Delivers quad-port connectivity for 8GFC target
applications
n
Provides Fibre Channel connectivity for slot
constrained server environments
n
Supports IT server consolidation and energy
conservation initiatives
n
Allows application of SAN best practices, tools
and processes with virtual server deployments
n
Assures data availability and data integrity
n
Improves IT staff productivity through simplified
deployment and management
Key Features
n
Support for Message Signaled Interrupts
eXtended (MSI-X), improves host utilization
and enhances application performance
n
Support for 8GFC, 4GFC and 2GFC devices
n
Comprehensive virtualization capabilities with
support for N_Port ID Virtualization (NPIV) and
Virtual Fabric
n
Host to Fabric FC-SP authentication
n
Long wave optical transceiver model available—
allows the board to transmit signal over long
distances
n
Secure management with role-based
administration integrated with Light Directory
Access Protocol (LDAP) and Active Directory (AD)
services
n
BlockGuard® ready—ensures end-to-end
data integrity
n
Common driver model allows a single driver to
support all Emulex HBAs on a given OS
n
Easy deployment of new firmware with minimal
server reboots
n
Efficient centralized administration of Emulex
HBAs via powerful management tools
n
PCIe 2.0 bus compliant, with PCIe 1.0 backward
compatibility supported
OneCommand® Manager plug-in for VMware vCenter Server—enables
comprehensive control of Fibre Channel HBAs and network (FCoE, iSCSI and
TCP/IP NIC) connectivity solutions provided by Emulex from VMware’s vCenter
Server management console. Emulex OneCommand Manager plug-in for VMware
vCenter Server supports both the new VMware vSphere 5.1 Web Client and the
VMware vCenter Server desktop client with an identical feature set regardless of
the client.
S PE CI FICATION S
LightPulse
®
LPe12004
Standards
· ANSI Fibre Channel: FC-PI-4, FC-FS-2, FC-FS-2/AM1,
FC-LS, FC-AL-2, FC-GS-6, FC-FLA, FC-PLDA, FC-TAPE,
FC-DA, FCP through FCP-4, SBC-3, FC-SP, FC-HBA and
SMI-S v1.1
· PCI Express base spec 2.0
· PCI Express card electromechanical spec 2.0
· Fibre Channel class 2 and 3
· PHP hot plug-hot swap
Architecture
· Quad-port
· 8GFC, 4GFC or 2GFC Link speeds automatically
detected
· Integrated data buffer and code space memory
Comprehensive OS Support
· Windows, Linux, NetWare, Solaris (except DR),
VMware
· Additional support is available from OEMs
and partners
Hardware Environments
· PowerPC,® SPARC,® x86, x64 and
Intel® Itanium® 64-bit processor family
Optical
· Data rates: 2.125, 4.25 and 8.5GFC
(auto-detected)
· Optics: Short wave lasers with LC type connector
· Cable: Operating at 8Gb/s
- 50/125µm (500MHz*km BW)-up to 50m
- 50/125µm (2000MHz*km BW)-up to 150m
Physical Dimensions
· PCI full-height, half-length form factor card
· 111.15mm x 167.64mm (4.376” x 6.600”)
· Standard bracket
Power & Environmental Requirements
·
·
·
·
Volts: +3.3, +12
Operating temperature: 0° to 55° C (32° to 131° F)
Storage temperature: -40° to 70° C (-40° to 158° F)
Relative humidity: 5% to 95% non-condensing,
23° C wet bulb
Agency Approvals
North America:
- FCC Class A
- UL/CSA Recognized
Europe:
- CE Mark
- EU RoHS compliant
- TUV Bauart Certified
Japan:
- VCCI Class A
Taiwan:
- BSMI Class A
Korea:
- MSIP (formally KCC/MIC) Class A
China:
- China RoHS Compliant
(Please refer to the product page on
www.emulex.com for further details)
Ordering Information
8Gb Fibre Channel PCIe 2.0 Host Bus Adapter
Management Features
· The Emulex OneCommand Manager application
enables centralized discovery, monitoring, reporting,
and administration of Emulex HBAs and UCNAs
on local and remote hosts. Powerful automation
capabilities facilitate remote driver parameter,
firmware and boot code upgrades. Advanced
diagnostic features such as adapter port beaconing
and adapter statistics help to optimize management
and network performance while the environmental
monitoring feature helps to maintain optimum
host to fabric connections. In addition to the GUI
interface, management functions can also be
performed via a scriptable Command Line Interface
(CLI) as well as a web browser. With in-band and out-
of-band management capabilities, Emulex provides
data center administrators with the greatest level of
management flexibility.
· OneCommand Manager supports role-based
management to facilitate administration of adapters
throughout the data center without compromising
security. Management privileges can be assigned
based on LDAP and AD group memberships.
· Emulex’s management instrumentation complies
to Open Management Standards, such as SMI-S and
common HBA API support, which enables seamless
upward integration into enterprise storage and
server management solutions.
·
LPe12004-M8
- Quad-port, multi-mode optic interface
Additional Features
Performance features
· Doubling the maximum Fibre Channel link rate
from 4GFC to 8GFC and enhanced virtualization
capabilities help support IT “Green” initiatives
· Frame-level Multiplexing and out-of-order frame
reassembly increases link efficiency and maximizes
HBA performance.
Data protection features
· End-to-end data protection with hardware parity,
CRC, ECC and other advanced error checking and
correcting algorithms ensure data is safe from
corruption.
Deployment and management features
· Universal Boot capability allows the appropriate boot
environment to be automatically selected for any
given hardware.
· Boot from SAN capability reduces system
management costs and increases uptime.
· Detailed real-time event logging and tracing enables
quick diagnosis of SAN problems.
· Beaconing feature flashes the HBA LEDs, simplifying
their identification within server racks.
· Environmental monitoring feature helps to optimize
SAN availability.
World Headquarters
3333 Susan Street, Costa Mesa, CA 92626 +1 714 662 5600
Bangalore, India
+91 80 40156789 |
Beijing, China
+86 10 84400221
Dublin, Ireland+35
3 (0) 1 652 1700 |
Munich, Germany
+49 (0) 89 97007 177
Paris, France
+33 (0) 158 580 022 |
Tokyo, Japan
+81 3 5325 3261
Wokingham, United Kingdom
+44 (0) 118 977 2929
w ww.emul ex.co m
©2013 Emulex, Inc. All rights reserved. This document refers to various companies and products by their trade names. In most, if not all cases, their respective companies claim these designations as trademarks or registered trademarks. This information is provided for
reference only. Although this information is believed to be accurate and reliable at the time of publication, Emulex assumes no responsibility for errors or omissions. Emulex reserves the right to make changes or corrections without notice. This report is the property
of Emulex and may not be duplicated without permission from the Company.
13-1202-revC· 6/13
