Switch mode Power Supply
S82J
Compact and Economical Switch mode Power Supplies with Capacities Up to 600 W
DIN Track Mounting Bracket Type Now Available
• Power range from 10 W up to 600 W.
• Output Voltages: 5 V, 12 V, 15 V, or 24 V.
• Mounting bracket provided for mounting to control panels.
• Maintenance-free up to 300 W due to natural ventilation.
• Protection-ON alarm indicator shows valuable protection functions in action (300-/600-W models).
• Conforms to EMC standards: EN50081-2 and EN50082-2.
• With an external filter, achieves conformance to EN50081-1 for universal usage on EMI (300-/600-W models).
• Finger protection terminal block to meet VDE0106/P100
• Class 2 approved 10-W, 25-W (except for 5-V output), and 50-W (only for 24-V output) models.
• UL508 approved. All models can be used at full load in UL508A industrial control panel applications.
• Approved by UL/CSA standards, EN60950, and EN50178 (VDE0160).
• Six-language instruction manual provided. (English, French, German, Italian, Spanish, and Japanese)

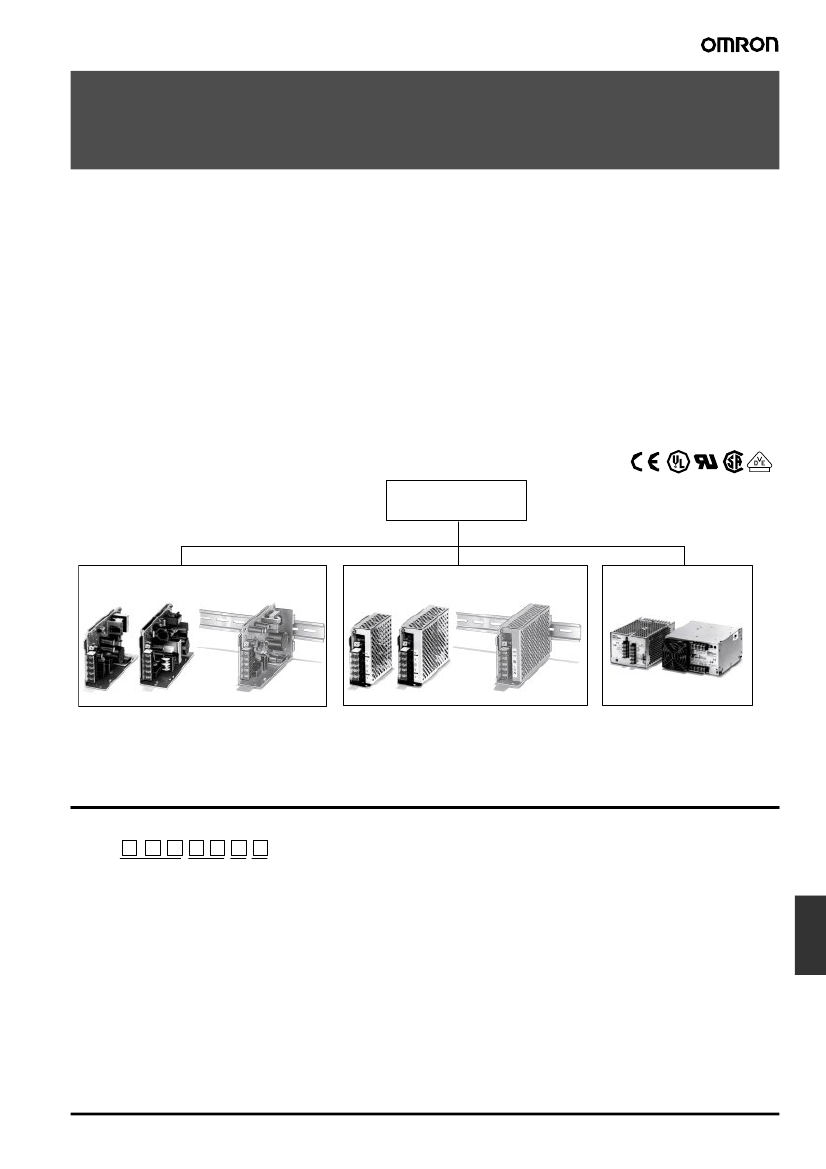

S82J
Open-frame Type
Covered Type
Enclosure Type
<10 W to 150 W>
•
100 to 240-VAC input
•
100 or 200 VAC (selected automatically)
(100-W 5-/12-/15-V output, 150-W models)
<10 W to 150 W>
•
100 to 240-VAC input
•
100 or 200 VAC (selected automatically)
(100-W 5-/12-/15-V output, 150-W models)
<300/600 W>
•
100 or 200 VAC (selectable)
Model Number Structure
I
Model Number Legend
S82J -
1
2
3
4
1. Power Ratings
010: 10 W
025: 25 W
050: 50 W
100: 100 W
150: 150 W
300: 300 W
600: 600 W
4. Mounting Bracket
None: Front-mounting Bracket Type
D:
DIN Track Mounting Bracket Type
Switch mode Power Supply
S82J
L-79
Power
Supplies
2. Output Voltage
05:
5V
12:
12 V
15:
15 V
24:
24 V
3. Configuration
A:
Open-frame type, front terminals
B:
Open-frame type, top terminals
C:
Open-frame type, connector
D:
Covered type, front terminals
E:
Covered type, top terminals
F:
Covered type, connector
N:
Without Mounting Bracket
None: Enclosure type, front terminals with
Mounting Bracket
Specifications
I
Ratings/Characteristics
Item
10 W
Efficiency (typical)
Input
Voltage
100 to 240 VAC input
25 W
50 W
100 W (24 V)
100 or 200 VAC
(selected automatically)
100 W
(5, 12, 15 V)
75% min.
150 W
82% min.
100 (85 to 132) or 200
(170 to 253) VAC
(selectable)
14 A max.
7 A max.
100 or 200 VAC
(selectable)
300 W
600 W
67% min. (77% min. for 50-W, 24- 83% min.
V models)
100 to 240 VAC (85 to 264 VAC)
110 to 170 VDC (set the terminal (L) to + side)
(10 and 25 W only) (See note 1.)
50/60 Hz (47 to 450 Hz)
100 VAC
input
200 VAC
input
100 VAC
input
200 VAC
input
100 VAC
input
200 VAC
input
0.35 A
max.
0.8 A max. 1.4 A max. 2.5 A max.
100 (85 to 132) or 200
(170 to 264) VAC
(selected automatically)
2.5 A max.
1.4 A max.
Frequency
Current
(See note
2.)
Leakage
current
(See note
2.)
Inrush cur-
rent (25°C,
cold start)
(See note
2.)
Noise filter
Output
(See note
3.)
Voltage adjustment
range
Ripple (See note 2.)
Input variation
influence
Load variation
influence
Temperature variation
influence
Startup time
3.5 A max. 8 A max.
2.1 A max. 4 A max.
0.3 A max. 0.6 A max. 0.8 A max. 1.5 A max.
0.5 mA max.
1 mA max.
25 A max.
50 A max.
Yes
±10%
(adjustable with variable resistor (V. ADJ))
2% (p-p) max.
0.4% max.
0.8% max. (with rated input, 10% to 100% load)
0.05%/°C max. (with rated input and output)
30 A max.
60 A max.
500 ms max. (up to 90% of output voltage at rated input and output)
300 ms max. (up to 90%
of output voltage at rated
input and output)
Hold time (See note 2.)
20 ms min.
Additional
function
Overload protection
105% to 160% of rated load current, inverted L
drop/intermittent operation type, automatic reset
105% min. of rated load current, inverted L drop
type, automatic reset (For the 600-W model, the cir-
cuit will be shut OFF when the overload exceeds 5
±3
s. Protection-ON alarm indicator lit (See note 4.))
Yes (5-V out- No
put models
only) (See
note 5.)
Yes, protection-ON alarm
indicator lit (See note 4.)
No
Overvoltage
protection (See note 5.)
Yes
(See note 5.)
Overheat protection
No
Yes,
protection-
ON alarm
indicator lit
(See note 4.)
Yes (color, red)
Yes, 5 units max.
Yes
Power
Supplies
Protection-ON alarm
indicator
Parallel operation
Series operation
No
No
No
Switching Power Supply
S82J
L-83
