MBH-FUJI-E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Embedded solution> Engineering tools> Rf/wireless development tools> Bluetooth development tool (802.15.1)> MBH-FUJI-E

Preview

MBH-FUJI-E: DescriptionBluetooth Development Tools (802.15.1) BLE Eval Brd w/USB Cable no Module mnt; CategoryEmbedded solution Engineering tools Rf/wireless development tools Bluetooth development tool (802.15.1); File Size194KB，3 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html; Environmental Compliance

Download Datasheet Parametric Compare View All

MBH-FUJI-E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBH-FUJI-E	-	-	View	Buy Now

MBH-FUJI-E Overview

Bluetooth Development Tools (802.15.1) BLE Eval Brd w/USB Cable no Module mnt

MBH-FUJI-E Parametric

Parameter Name	Attribute value
Maker	FUJITSU
Product Category	Bluetooth development tools (802.15.1)
Shipping restrictions	Mouser does not currently sell this product.
product	Evaluation Boards
Tools for assessment	MBH7BLZ07
Working power voltage	1.75 V to 3.6 V
series	MBH
Factory packaging quantity	1
model	Version 4.1

Preview

Download Datasheet

View All

Data Sheet

FUJITSU Component Wireless Modules

MBH7BLZ07

FUJITSU Component Wireless Modules

Bluetooth

Ver. 4.1 Module (Software Embedded)

MBH7BLZ07

Overview

Ultra small, low power consumption Bluetooth low energy module with embedded

software.

Modules embedded with Fujitsu Components’ Data Communication (FDC) profile

FDC is a unique data transmission profile developed by Fujitsu Components. FDC allows

data to transmit with host system by simple text command (via UART). With more than

60 commands and continuous additions, FDC allows for quick product to market and

reduction of development resources.

FDC is a SPP-like profile ideally suited for sensing, monitoring, and wearble

applications.

Based on Nordic Semiconductor nRF51822 SoC Rev.3

Item

Part number

Antenna

Bluetooth

technology

RAM

Transmit power

Receiver sensitivity

Interface

Crystal oscillator

Operating temperature LDO mode

& power supply

Low voltage mode

Power

consumption

Dimensions

Mounting method

Certifications

Note:

RoHS compliant

MBH7BLZ07

Specifications

MBH7BLZ07

Pattern antenna

Conforms to

Bluetooth

Core Specification

Version 4.1 (single mode low energy radio)

16KB

+4 dBM max. (switchable by command)

-88 dBM typical

UART

Embedded

-400C

to +850C,

1.9 VDC to 3.6 VDC

-250C to +750C,

1.8 VDC to 3.6 VDC

-250C to +750C,

1.75 VDC to 1.95 VDC

5µ A typical

12mA typical (at 0dBm)

16.5mA typical

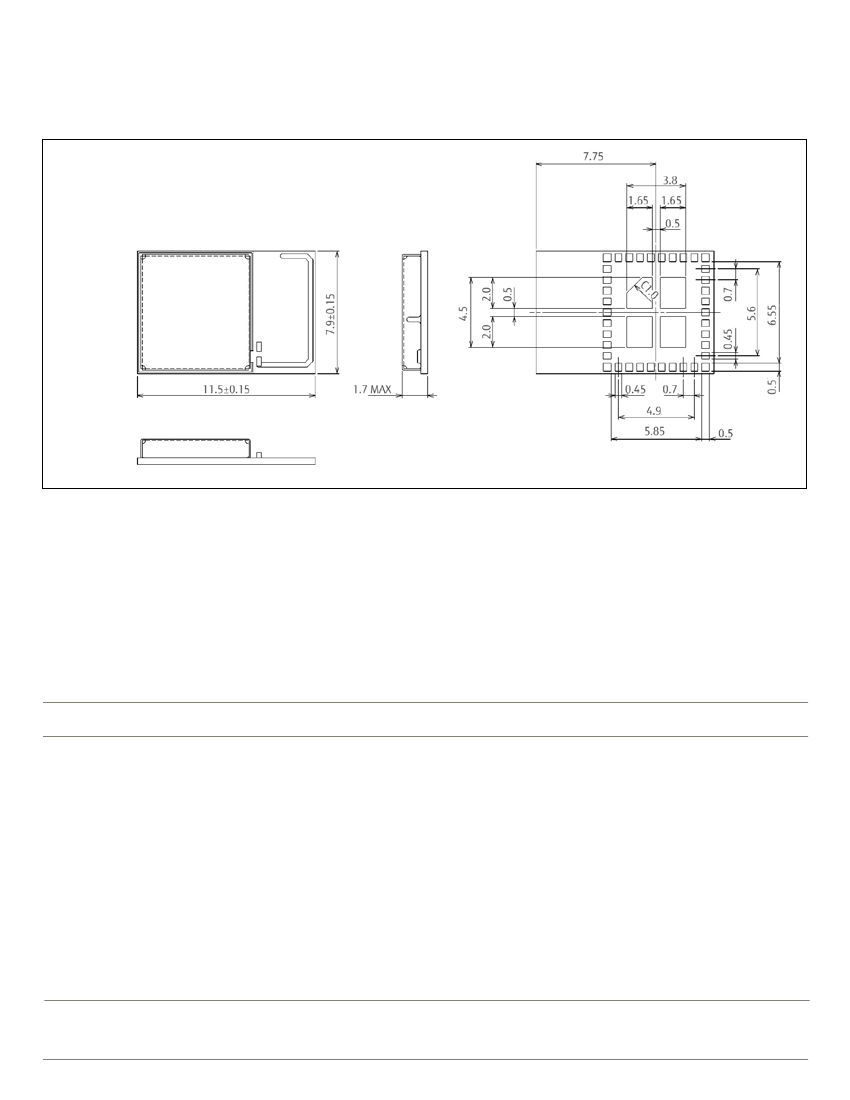

11.5 x 7.9 x 1.7 mm

Surface mount (SMD)

Bluetooth qualification (QDID)/

Radio Act (Japan) / FCC / IC / CE

Evaluation kit

Part number

MBH7BLZ07-EF1-KIT-2

Contains:

- MBH-FUJI2-E1

- MBH7BLZ07-DAU-EF1

- USB cable

Evaluation board

Module mounted on

daughter board

Details

Evaluation kit

Sleep mode

Tx mode

Rx mode

Bluetooth

SIG registration is required to use this module’s QDID.

Page 1 of 2

ASIA PACIFIC: www.fujitsu.com/sg/products/devices/components

EMEA: www.fujitsu.com/uk/components

AMERICAS: http://us.fujitsu.com/components

MBH-FUJI-E Related Products

	MBH-FUJI-E	MBH7BLZ07-EF-KIT	MBH7BLZ07
Description	Bluetooth Development Tools (802.15.1) BLE Eval Brd w/USB Cable no Module mnt	Bluetooth Development Tool (802.15.1) BLE S/W Embedd Eval Kit MBH7BLZ07-DAUEF1	Bluetooth Module (802.15.1) BLE 4.1 Peripheral w/Ant SingleMode Ult
Maker	FUJITSU	FUJITSU	FUJITSU
Product Category	Bluetooth development tools (802.15.1)	Bluetooth development tools (802.15.1)	Bluetooth module (802.15.1)
product	Evaluation Boards	Evaluation Kits	Bluetooth Modules
Working power voltage	1.75 V to 3.6 V	1.75 V to 3.6 V	1.75 V to 3.6 V
series	MBH	MBH7BLZ	MBH7BLZ
Factory packaging quantity	1	1	1000
model	Version 4.1	Version 4.1	Bluetooth 4.1
Shipping restrictions	Mouser does not currently sell this product.	-	Mouser does not currently sell this product.
Tools for assessment	MBH7BLZ07	MBH7BLZ07	-
Interface Type	-	UART	UART
Maximum operating temperature	-	+ 85 C	+ 85 C
Minimum operating temperature	-	- 40 C	- 40 C
