MCP6231T-E/SN amplifier basic information:
MCP6231T-E/SN is an operational amplifier - operational amplifier (Op Amps - Operational Amplifiers) from Microchip. It belongs to the MCP6231 series of products.
MCP6231T-E/SN amplifier core information:
The minimum operating temperature of the MCP6231T-E/SN is - 40 C and the maximum operating temperature is + 125 C. The corresponding working power supply current is 20 uA. The output current of each channel is: 23 mA.

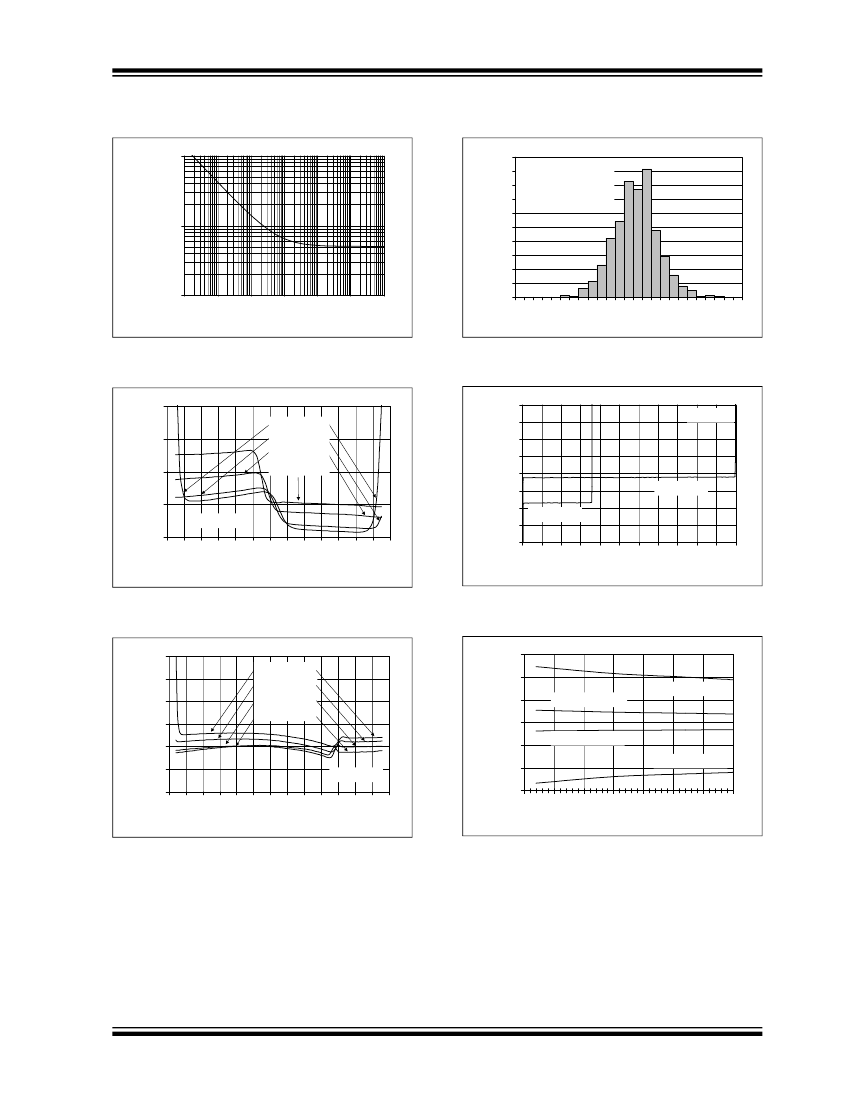

The MCP6231T-E/SN has a power supply rejection ratio of 83 dB. (Power supply rejection ratio (PSRR): An indicator used to determine the impact of the amplifier output on the power supply. PSRR = 20log[(Ripple(in) / Ripple(out))], that is, the larger the value, the less the amplifier output is affected by the power input. The smaller it is. ) Its voltage gain is 110 dB. The gain bandwidth product (GBP, gain bandwidth product) of the MCP6231T-E/SN is 300 kHz. As a parameter to simply measure the performance of the amplifier, if you are not only choosing your amplifier, you can use this as a relatively simple measure. index. The corresponding input voltage noise density is 52 nV/sqrt Hz and the corresponding input noise current density is 0.0006 pA/sqrt Hz.
When a voltage difference of 5 mV is applied between the MCP6231T-E/SN input pins, the output voltage of this amplifier is 0V. (That is, its input bias voltage is 5 mV)
Related dimensions of MCP6231T-E/SN:
The width of MCP6231T-E/SN is: 3.9 mm, the length is 4.9 mm, and the total number of channels (Number of channelels): 1 Channel.
MCP6231T-E/SN amplifier additional information:
Its more detailed single package form is: SOIC-8. When suppliers on the market sell MCP6231T-E/SN, they use the form: Reel.
MCP6231T-E/SN amplifier basic information:
MCP6231T-E/SN is an operational amplifier - operational amplifier (Op Amps - Operational Amplifiers) from Microchip. It belongs to the MCP6231 series of products.
MCP6231T-E/SN amplifier core information:
The minimum operating temperature of the MCP6231T-E/SN is - 40 C and the maximum operating temperature is + 125 C. The corresponding working power supply current is 20 uA. The output current of each channel is: 23 mA.
The MCP6231T-E/SN has a power supply rejection ratio of 83 dB. (Power supply rejection ratio (PSRR): An indicator used to determine the impact of the amplifier output on the power supply. PSRR = 20log[(Ripple(in) / Ripple(out))], that is, the larger the value, the less the amplifier output is affected by the power input. The smaller it is. ) Its voltage gain is 110 dB. The gain bandwidth product (GBP, gain bandwidth product) of the MCP6231T-E/SN is 300 kHz. As a parameter to simply measure the performance of the amplifier, if you are not only choosing your amplifier, you can use this as a relatively simple measure. index. The corresponding input voltage noise density is 52 nV/sqrt Hz and the corresponding input noise current density is 0.0006 pA/sqrt Hz.
When a voltage difference of 5 mV is applied between the MCP6231T-E/SN input pins, the output voltage of this amplifier is 0V. (That is, its input bias voltage is 5 mV)
Related dimensions of MCP6231T-E/SN:
The width of MCP6231T-E/SN is: 3.9 mm, the length is 4.9 mm, and the total number of channels (Number of channelels): 1 Channel.
MCP6231T-E/SN amplifier additional information:
Its more detailed single package form is: SOIC-8. When suppliers on the market sell MCP6231T-E/SN, they use the form: Reel.
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Microchip |
| Parts packaging code | SOIC |
| package instruction | 3.90 MM, PLASTIC, SOIC-8 |
| Contacts | 8 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 12 weeks |
| Is Samacsys | N |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.0011 µA |
| Minimum Common Mode Rejection Ratio | 61 dB |
| Nominal Common Mode Rejection Ratio | 75 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 7000 µV |
| JESD-30 code | R-PDSO-G8 |
| JESD-609 code | e3 |
| length | 4.9 mm |
| low-bias | YES |
| low-dissonance | NO |
| micropower | YES |
| Humidity sensitivity level | 3 |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP8,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| method of packing | TAPE AND REEL |
| Peak Reflow Temperature (Celsius) | 260 |
| power | NO |
| power supply | 2/5 V |
| Programmable power | NO |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Nominal slew rate | 0.15 V/us |
| Maximum slew rate | 0.03 mA |
| Supply voltage upper limit | 7 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | AUTOMOTIVE |
| Terminal surface | Matte Tin (Sn) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 40 |
| Nominal Uniform Gain Bandwidth | 300 kHz |
| Minimum voltage gain | 31620 |
| broadband | NO |
| width | 3.9 mm |
| Base Number Matches | 1 |
| MCP6231T-E/SN | MCP6231-E/MS | MCP6231T-E/MS | MCP6231T-E/OT | |
|---|---|---|---|---|
| Description | Operational Amplifier - Operational Amplifier Single 1.8V 200KHz | Operational Amplifiers - Op Amps Single 1.8V 200KHz | Operational Amplifier - Operational Amplifier Single 1.8V 200KHz | Operational Amplifier - Operational Amplifier Single 1.8V 200KHz |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| Parts packaging code | SOIC | MSOP | MSOP | SOT-23 |
| package instruction | 3.90 MM, PLASTIC, SOIC-8 | TSSOP, TSSOP8,.19 | PLASTIC, MSOP-8 | PLASTIC, SOT-23, 5 PIN |
| Contacts | 8 | 8 | 8 | 5 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Factory Lead Time | 12 weeks | 13 weeks | 8 weeks | 19 weeks |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.0011 µA | 0.0011 µA | 0.0011 µA | 0.0011 µA |
| Minimum Common Mode Rejection Ratio | 61 dB | 61 dB | 61 dB | 61 dB |
| Nominal Common Mode Rejection Ratio | 75 dB | 75 dB | 75 dB | 75 dB |
| frequency compensation | YES | YES | YES | YES |
| Maximum input offset voltage | 7000 µV | 7000 µV | 7000 µV | 7000 µV |
| JESD-30 code | R-PDSO-G8 | S-PDSO-G8 | S-PDSO-G8 | R-PDSO-G5 |
| JESD-609 code | e3 | e3 | e3 | e3 |
| length | 4.9 mm | 3 mm | 3 mm | 2.9 mm |
| low-bias | YES | YES | YES | YES |
| low-dissonance | NO | NO | NO | NO |
| micropower | YES | YES | YES | YES |
| Humidity sensitivity level | 3 | 1 | 1 | 1 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 5 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | TSSOP | TSSOP | LSSOP |
| Encapsulate equivalent code | SOP8,.25 | TSSOP8,.19 | TSSOP8,.19 | TSOP5/6,.11,37 |
| Package shape | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Celsius) | 260 | 260 | 260 | 260 |
| power | NO | NO | NO | NO |
| power supply | 2/5 V | 2/5 V | 2/5 V | 2/5 V |
| Programmable power | NO | NO | NO | NO |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 1.1 mm | 1.1 mm | 1.45 mm |
| Nominal slew rate | 0.15 V/us | 0.15 V/us | 0.15 V/us | 0.15 V/us |
| Maximum slew rate | 0.03 mA | 0.03 mA | 0.03 mA | 0.03 mA |
| Supply voltage upper limit | 7 V | 7 V | 7 V | 7 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE |
| Terminal surface | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) | Matte Tin (Sn) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 0.65 mm | 0.65 mm | 0.95 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 40 | 40 | 40 | 40 |
| Nominal Uniform Gain Bandwidth | 300 kHz | 300 kHz | 300 kHz | 300 kHz |
| Minimum voltage gain | 31620 | 31620 | 31620 | 31620 |
| broadband | NO | NO | NO | NO |
| width | 3.9 mm | 3 mm | 3 mm | 1.55 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Maker | Microchip | - | Microchip | Microchip |
| Is Samacsys | N | - | N | N |
| method of packing | TAPE AND REEL | - | TAPE AND REEL | TAPE AND REEL |
