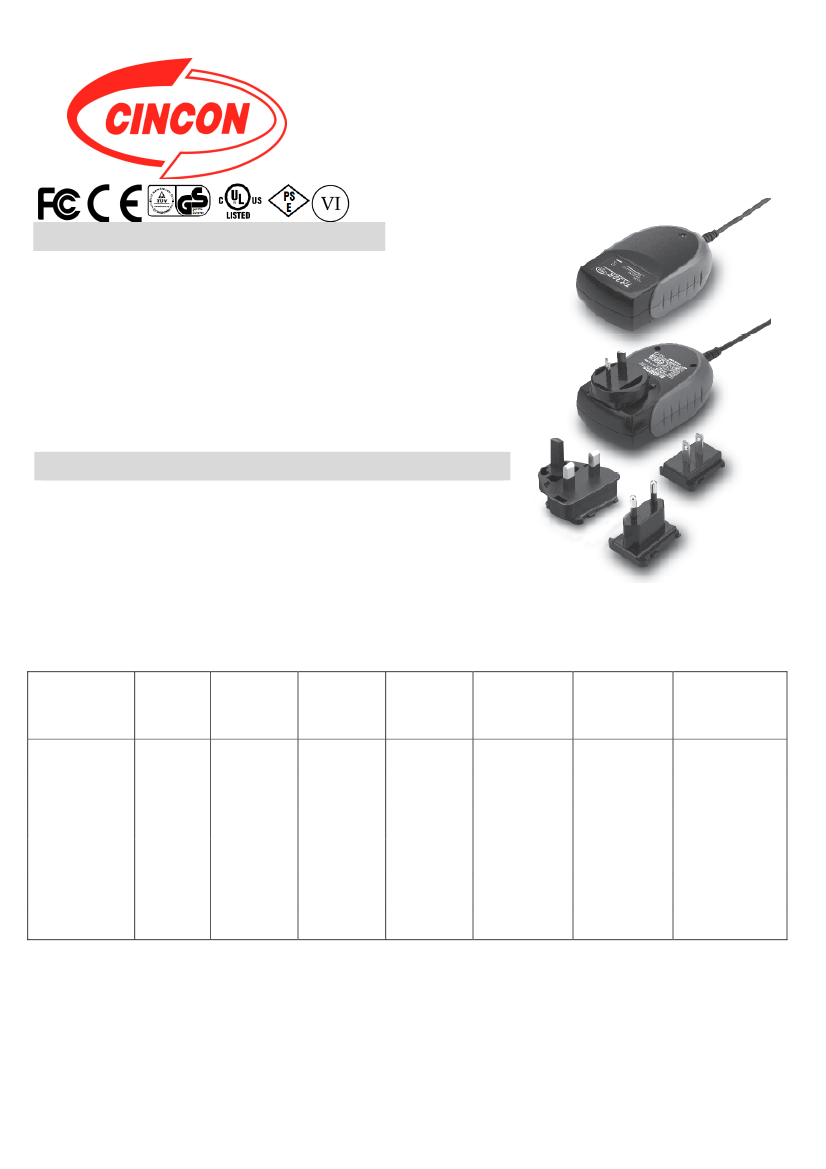

V11
TRG30R V SERIES
30W AC-DC SWITCHING
ADAPTER
Features
* Universal Input Range 90~264VAC
* Interchangeable AC Plugs
* Meets EN61204-3 Class B and CISPR/FCC Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
* Meet CoC Tier 2 & DoE Level VI
(Output Cable Length
≦
1800mm)
* No Load Power Consumption<75mW
Ordering information
TRG30RXXXV -XX
Model No.
DC Plug Type
E
XX
01: 720mm
02: 1220mm
03: 1800mm
11: 720mm with Ferrite Core
-XX
Color of Overmold Case
BE: Blue
GY: Gray
RD: Red
PE: Purple
-BK
OVP DC Cable Length and Type
12: 1220mm with Ferrite Core OR: Orange
13: 1800mm with Ferrite Core
* 18AWG / UL1185
* 16AWG / UL1185 for 5V
、
9V
OUTPUT
MODEL
VOLTAGE
OUTPUT
CURRENT
RIPPLE &
NOISE
NOTE 1
VOLTAGE
ACCURACY
NOTE 2
LINE
REGULATION
NOTE 3
LOAD
REGULATION
NOTE 4
AVERAGE
EFFICENCY min.
NOTE 5
TRG30R050V
TRG30R090V
TRG30R120V
TRG30R150V
TRG30R180V
TRG30R240V
5V
9V
12V
15V
18V
24V
4.0A
3.0A
2.5A
2.0A
1.67A
1.25A
50mVp-p
1%
1%
1%
1%
1%
±2%
±2%
±2%
±2%
±2%
±2%
±1%
±1%
±1%
±1%
±1%
±1%
±6%
±3%
±2%
±2%
±2%
±2%
83.69%
87.30%
87.70%
87.70%
87.70%
87.70%
Specifications are subject to change without notice.
1
V11
Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…........................................... 90~264Vac
Frequency ………………………………………….……………..... 47 to 63Hz
Input Current ………………….......……..……………………0.8Amax.
Inrush Current ……….....................Cold Start @25
℃
100A max. @ 240Vac
Leakage Current …………………………………………….…… 0.25mA max.
TRG30R-V Series Derating Curve
OUTPUT SPECIFICATIONS:
Hold-up Time …………………………………………… 10ms typ. @115Vac
Short Circuit Protection …………….………… Hiccup Mode (Auto Recovery)
Over Voltage Protection ………………..................................................Latch
GENERAL SPECIFICATIONS:
Isolation …………………………………………… Input to output ( 4,242VDC)
Operating Temperature ..................................-20 ~ 60
℃
(see Drating Curve)
Storage Temperature ……………………………...….......……........ -20~85
℃
Humidity …………………...……......….......... 93% RH max. Non condensing
Cooling …………………………………………………….. Natural Convection
Switching Frequency ……………………….. …….. …….. … 65KHz Typical
MTBF ……….… MIL-HDBK-217F, GB, 25
℃
/115VAC …… 200Khrs min.
Altitude …………………………………………………………………… 5000m
Dimensions ……….. 4.243x2.267x1.319 inches (107.77x57.60x33.50mm)
Weight ……………………………………………….……… 300g(0.66 Pounds)
NOTE:
1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measuring @20MHz BW.
2. Voltage setpoint at 60% full load.
3. Line regulation measured from 100Vac to 240Vac full load.
4. Load regulation measured from 60% to full load and from 60% to
20% load (60% +/- 40% load).
5. Average Efficiency measured at 25%,50%,75%,100% load and input
voltage is 115Vac / 230Vac.
SAFETY AND EMC:
Emission and Immunity ……….... EN61204-3, EN61000-3-2,EN61000-3-3
FCC CFR Title 47 Part 15 Subpart B
Safety... ………………………Class II, IEC60950-1, UL60950-1, EN60950-1

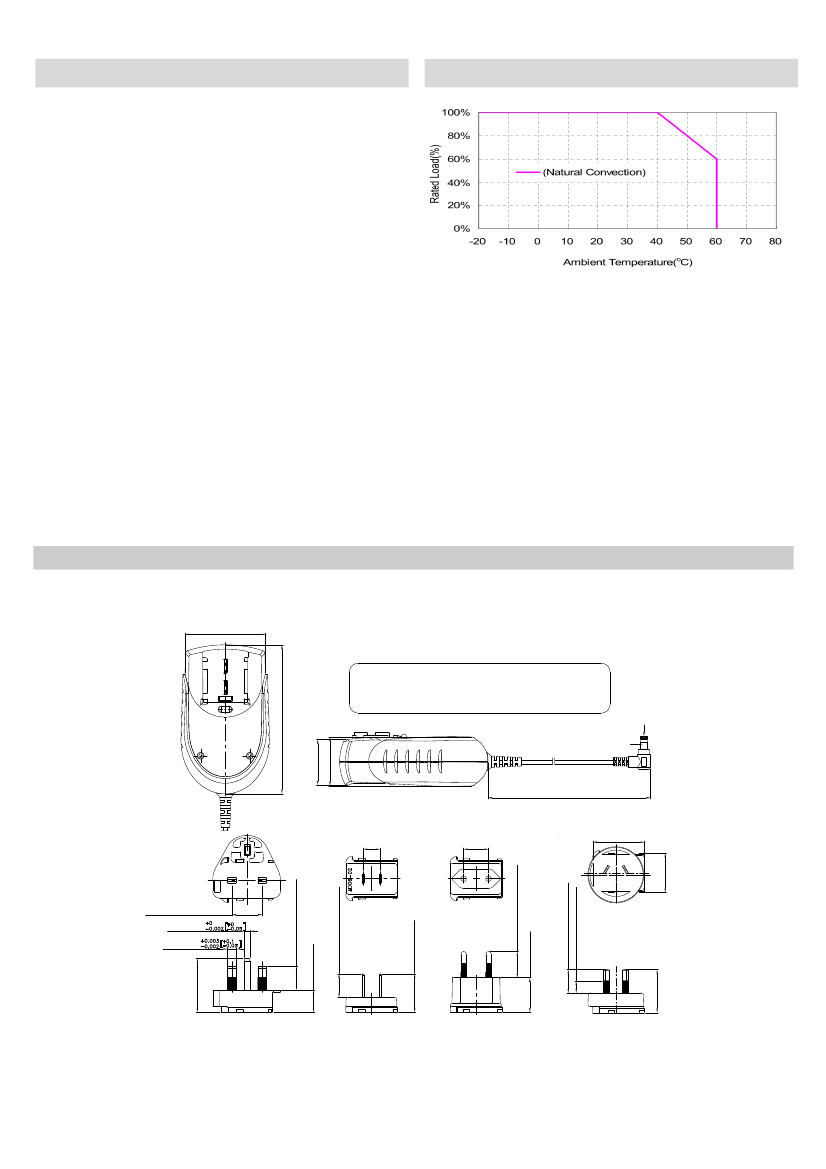

Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
2.267[57.60]
4.243[107.77]
DC Plug type: V+ ─●)─ V-
DC Plug :Right Angle(ψ5.5／ψ2.1) L12mm
18AWG／1800mm
+
1.283[32.60]
1.319[33.50]
-
70.866[1800.00]±1.969[50.00]
1.494[37.95]
0.492[12.50]±0.002[0.05]
0.720[18.30]±0.002[0.05]
1.139[28.93]
1.240[31.48]
0.689[17.50]±0.019[0.50]
0.748[19.00]±0.019[0.50]
0.874[22.20]±0.005[0.13]
0.157[4.00]
0.248[6.30]
1.535[39.00]
0.685[17.40]±0.027[0.70]
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
0.630[16.00]
2
0.988[25.10]
0.669[16.99]±0.011[0.30]
0.342[8.70]±0.019[0.50]
1.102[28.00]
